[DAIWA] Genuine Spare Parts for 25 SALTIGA 20000-P Product code: 00065087 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 25 SALTIGA 20000-P Product code: 00065087 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$293.37 [Regular Price: US$1.10 - US$419.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.16 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/8699

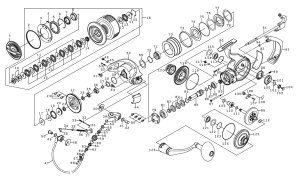

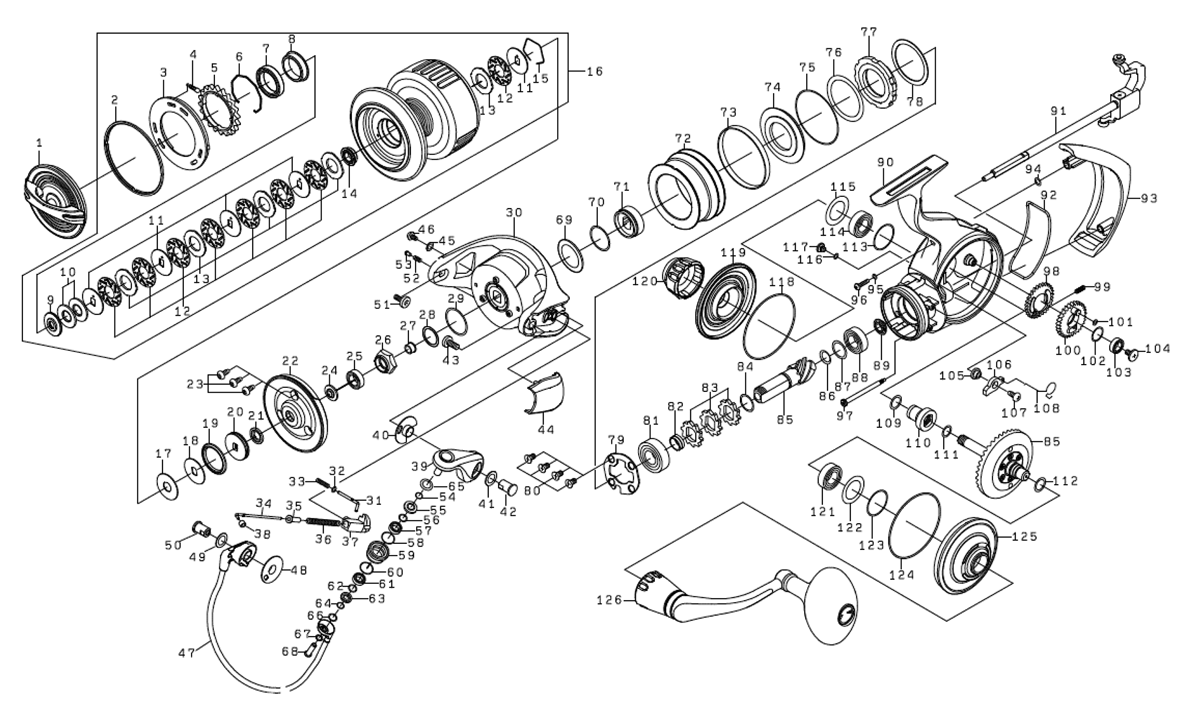

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6M657401 198.00
2 CLICK GEAR PLATE SC 6M042301 12.10
3 CLICK GEAR PLATE 6M825801 5.50
4 CLICK GEAR PIN 6J916501 2.20
5 CLICK GEAR 6J900201 4.40
6 SPOOL BEARING RING 6J899901 2.20
7 SPOOL BALL BEARING (A) 6J899801 18.70
8 SPOOL BEARING (A) COLLAR 6M659001 6.60
9 DRAG COLLAR 6M685401 2.20
10 DRAG SP/W 6M659201 2.20
11 DRAG DISC W 6M701401 2.20
12 DRD/W 6M658701 17.60
13 DRAG LIP W 6M658901 2.20
14 SPOOL BALL BEARING (B) 6J923201 8.80
15 DRAG DISC W RING 6J547101 2.20
16 SPOOL (2-15) 6M792401 419.10
17 SPOOL W (A) 6J937401 1.10
18 SPOOL W (B) 6M684601 1.10
19 SPOOL PLATE PACKING (A) 6J898501 2.20
20 SPOOL PLATE 6J922401 4.40
21 SPOOL PLATE PACKING (B) 6J922501 2.20
22 ROTOR COVER 6J930401 6.60
23 ROTOR COVER SC 6H401201 2.20
24 ROTOR NUT PACKING 6J930301 2.20
25 ROTOR NUT BALL BEARING 6B861702 8.80
26 ROTOR NUT 6H685403 5.50
27 ROTOR NUT COLLAR 6J930201 2.20
28 ROTOR NUT W 6J930101 1.10
29 ROTOR NUT O-RING 6F274501 1.10
30 ROTOR *Repair only (cannot be ordered) 6M651201 132.00
31 BAIL SHAFT (A) 6M651301 3.30
32 BAIL SHAFT (A) W 6J919501 1.10
33 BAIL SHAFT (A) SP 6J929501 2.20
34 BAIL SHAFT (B) 6M651401 2.20
35 BAIL SHAFT (B) SP COLLAR 6M624001 2.20
36 BAIL SHAFT (B) SP 6M651501 2.20
37 BAIL SHAFT (B) SP HOLDER 6M651601 11.00
38 BAIL SHAFT (B) COLLAR 6M624301 2.20
39 ARM LEVER *Repair only (cannot be ordered) 6M651801 39.60
40 ARM LEVER PLATE 6M624701 2.20
41 ARM LEVER NUT W 6M050901 1.10
42 ARM LEVER NUT 6M652101 3.30
43 ARM LEVER SC 6M624903 2.20
44 ARM LEVER COVER 6M652002 6.60
45 ARM LEVER COVER SC/W 6G256401 1.10
46 ARM LEVER COVER SC 6H741704 2.20
47 BAIL *Repair only (cannot be ordered) 6M724401 129.80
48 BAIL HOLDER PLATE 6M625701 2.20
49 BAIL HOLDER NUT W 6M050901 1.10
50 BAIL HOLDER NUT 6M652101 3.30
51 BAIL HOLDER PLATE SC 6M624903 2.20
52 BAIL CLICK SP 6M626001 2.20
53 BAIL CLICK PIN 6M626101 2.20
54 ROLLER MAG COLLAR (A) O-RING 6J916201 1.10
55 ROLLER MAG COLLAR (A) *Repair only (cannot be ordered) 6M654501 12.10
56 ROLLER W (B) 6E096501 1.10
57 ROLLER BALL BEARING (A) 6H738904 15.40
58 ROLLER O-RING (A) 6M625901 1.10
59 LINE ROLLER *Repair only (cannot be ordered) 6M625801 16.50
60 ROLLER O-RING (B) 6M625901 1.10
61 ROLLER BALL BEARING (B) 6H738904 15.40
62 ROLLER W (C) 6E096501 1.10
63 ROLLER MAG COLLAR (B) *Repair only (cannot be ordered) 6M654301 12.10
64 ROLLER MAG COLLAR (B) O-RING 6J916201 1.10
65 ROLLER W (A) 6E096501 1.10
66 ROLLER W (D) 6F774605 1.10
67 ROLLER SC/W 6M664401 1.10
68 ROLLER SC 6M844801 3.30
69 CLUTCH RING W 6H687201 2.20
70 CLUTCH RING O-RING 6G338401 1.10
71 CLUTCH RING *Repair only (cannot be ordered) 6H688601 27.50
72 INFINITE COVER *Repair only (cannot be ordered) 6J937301 40.70
73 INFINITE COVER O-RING 6J628302 1.10
74 MAG SHIELD PLATE *Repair only (cannot be ordered) 6M664301 23.10
75 MAG SHIELD PLATE O-RING 6H502601 1.10
76 ONE-WAY CLUTCH W (A) 6M819601 1.10
77 ONE-WAY CLUTCH *Repair only (cannot be ordered) 6F765401 36.30
78 ONE-WAY CLUTCH W (B) 6G158101 2.20
79 PINION BEARING (A) PLATE 6M684401 5.50
80 PINION BEARING (A) PLATE SC 6F206902 2.20
81 PINION BALL BEARING (A) 6M684301 8.80
82 PINION BEARING (A) COLLAR 6J922103 2.20
83 RATCHET 6M800101 2.20
84 RATCHET W 63727602 1.10
85 PINION + DRIVE GEAR SET *Repair only (cannot be ordered) 6Z028076 187.00
86 PINION BEARING (B) SP/W 6J921402 1.10
87 PINION BEARING (B) W 63737808 1.10
88 PINION BALL BEARING (B) 6G523401 8.80
89 PINION BEARING (B) COLLAR 6J921301 3.30
90 BODY *Repair only (cannot be ordered) 6M682601 135.30
91 MAIN SHAFT *Repair only (cannot be ordered) 6M683301 38.50
92 REAR CAP PACKING 6M683601 3.30
93 REAR CAP *Repair only (cannot be ordered) 6M683701 36.30
94 REAR CAP SC/W (A) 6B554303 1.10
95 REAR CAP SC/W (B) 6E272501 1.10
96 REAR CAP SC (A) 6J894901 2.20
97 REAR CAP SC (B) 6J895007 4.40
98 OSCILLATING GEAR (A) 6M682901 4.40
99 OSCILLATING GEAR (A) SP 6G157401 2.20
100 OSCILLATING GEAR (B) 6M682801 6.60
101 OSCILLATING GEAR (B) O-RING 6J037601 1.10
102 OSCILLATING GEAR BEARING W 6Q216002 1.10
103 OSCILLATING GEAR BALL BEARING 6B861702 8.80
104 OSCILLATING GEAR SC 6H347101 2.20
105 STOPPER COLLAR 6H243301 2.20
106 STOPPER 6M800001 3.30
107 STOPPER SC 63516401 2.20
108 STOPPER SP 6M684201 2.20
109 IDLE GEAR O-RING (A) 6G339401 1.10
110 IDLE GEAR 6M683001 22.00
111 IDLE GEAR O-RING (B) 6G336701 1.10
112 DRIVE GEAR O-RING 6G339401 1.10
113 DRIVE BEARING O-RING 6J048601 1.10
114 DRIVE BALL BEARING (A) *Repair only (cannot be ordered) 6J048702 45.10
115 DRIVE BEARING (A) W 6J920401 1.10
116 COVER PLATE PIN O-RING 6B853101 1.10
117 COVER PLATE PIN 6J902801 2.20
118 COVER PLATE O-RING 6M683201 1.10
119 COVER PLATE *Repair only (cannot be ordered) 6M683101 59.40
120 HANDLE CAP 6M685901 18.70
121 DRIVE BALL BEARING (B) *Repair only (cannot be ordered) 6J048702 45.10
122 DRIVE BEARING (B) W 6H502201 1.10
123 DRIVE BEARING (B) O-RING 6J048601 1.10
124 ENGINE PLATE O-RING 6M683201 1.10
125 ENGINE PLATE *Repair only (cannot be ordered) 6M684502 61.60
126 HANDLE 6M685501 264.00
200 LINE ROLLER (FOR MONOFILAMENT) *Repair only (cannot be ordered) 6M731001 16.50
201 HANDLE KNOB PACKING 6G223301 2.20
202 HANDLE KNOB W 63753005 1.10
203 HANDLE KNOB BALL BEARING 6G466205 15.40
204 HANDLE KNOB 6M116402 66.00
205 HANDLE KNOB SC 6E454003 2.20
206 HANDLE KNOB CAP (WITH O-RING) 6M658101 13.20
207 HANDLE KNOB CAP O-RING 6H100001 1.10
208 SCREWDRIVER (FOR HANDLE KNOB CAP) 6M793501 4.40
209 SPOOL BAND 6X403701 15.40
210 NAMEPLATE 6J893588 3.30
