[DAIWA] Genuine Spare Parts for 19 LEXA LT4000S-CXH Product code: 00067220 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 19 LEXA LT4000S-CXH Product code: 00067220 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$67.76 [Regular Price: US$1.10 - US$96.80]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don’t accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn’t accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.10 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/4398

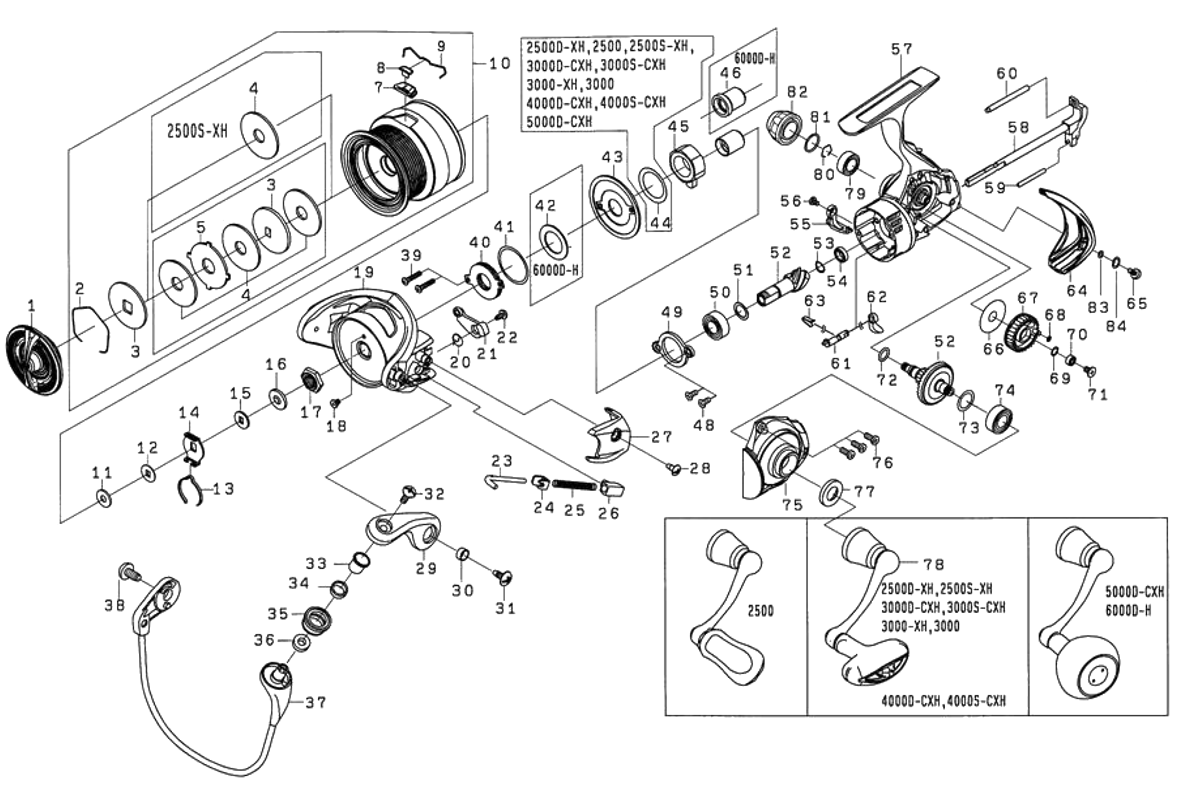

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6N001N01 12.10
2 DRAG RING 6J547101 2.20
3 DRAG DISC W 6J547001 2.20
4 DRAG W SET (3 PCS) 6J678801 19.80
5 DRAG LIP W 6J546902 2.20
7 LINE STOPPER PLATE 6J568601 2.20
8 LINE STOPPER 6J558001 2.20
9 LINE STOPPER SP 6J314801 2.20
10 SPOOL (2-9) 6J892501 96.80
11 SPOOL W (A) 6E467101 1.10
12 SPOOL W (B) 6E398003 1.10
13 CLICK LEAF SP 6Z026045 2.20
14 CLICK HOLDER 6M021401 2.20
15 CLICK HOLDER W 6J703101 1.10
16 ROTOR NUT PACKING 6H986901 3.30
17 ROTOR NUT 6H961101 15.40
18 ROTOR NUT SC 6H022701 2.20
19 ROTOR *Repair only (cannot be ordered) 6J567506 24.20
20 KICK LEVER SP 6H413601 2.20
21 KICK LEVER 6J567601 4.40
22 KICK LEVER SC 6H417701 2.20
23 ARM LEVER SHAFT 6H572001 2.20
24 ARM LEVER SHAFT PLATE 6H576101 3.30
25 ARM LEVER SP 6H414201 2.20
26 ARM LEVER SP HOLDER 6J089401 2.20
27 ARM LEVER SP COVER 6J567803 3.30
28 COVER SC 6G270801 2.20
29 ARM LEVER 6H728914 6.60
30 ARM LEVER SC COLLAR 6H962401 2.20
31 ARM LEVER SC 6G205001 2.20
32 ROLLER SC 6G195602 2.20
33 ROLLER COLLAR (A) 6G195501 2.20
34 ROLLER COLLAR (B) 6G220701 2.20
35 LINE ROLLER 6J089901 7.70
36 ROLLER COLLAR (C) 6G874201 2.20
37 BAIL 6J830701 29.70
38 BAIL HOLDER SC 6G205001 2.20
39 MAG SHIELD PLATE SC 6J001601 2.20
40 MAG SHIELD PLATE *Repair only (cannot be ordered) 6J688201 23.10
41 MAG SHIELD PLATE O-RING 6J354801 1.10
43 MAG SHIELD CAP *Repair only (cannot be ordered) 6J560901 4.40
44 MAG SHIELD CAP W 6J639902 1.10
45 ONE-WAY CLUTCH *Repair only (cannot be ordered) 6J388401 26.40
46 CLUTCH RING *Repair only (cannot be ordered) 6J001403 6.60
48 PINION BEARING PLATE SC 6J000901 2.20
49 PINION BEARING PLATE 6H411501 2.20
50 PINION BALL BEARING (A) 6G535104 8.80
51 PINION BALL BEARING (A) W 63758502 1.10
52 PINION + DRIVE GEAR SET *Repair only (cannot be ordered) 6Z024834 46.20
53 PINION BALL BEARING (B) W 6H931701 1.10
54 PINION BALL BEARING (B) 6G466202 8.80
55 BAIL KICK COLLAR 6J001101 2.20
56 BAIL KICK COLLAR SC 6G940402 2.20
57 BODY *Repair only (cannot be ordered) 6J854301 31.90
58 MAIN SHAFT *Repair only (cannot be ordered) 6J140803 15.40
59 OSCILLATING POST (A) 6J084802 2.20
60 OSCILLATING POST (B) 6H614301 2.20
61 STOPPER CAM 6H595501 3.30
62 STOPPER LEVER 6H595401 2.20
63 STOPPER CAM LEAF SP 6H697801 2.20
64 REAR CAP 6J495302 3.30
65 REAR CAP SC 6J001801 2.20
66 OSCILLATING GEAR W 6H595701 1.10
67 OSCILLATING GEAR *Repair only (cannot be ordered) 6M036701 9.90
68 OSCILLATING GEAR O-RING 6G466001 1.10
69 OSCILLATING GEAR BEARING W 6H129201 1.10
70 OSCILLATING GEAR BALL BEARING 6G469005 8.80
71 OSCILLATING GEAR SC 6G940402 2.20
72 DRIVE GEAR O-RING 6G670501 1.10
73 DRIVE W 63758504 1.10
74 DRIVE BALL BEARING (A) 6G467302 8.80
75 BODY COVER 6J854601 19.80
76 BODY COVER SC 6G332906 2.20
77 HANDLE PACKING 6J130201 2.20
78 HANDLE 6J728301 82.50
79 DRIVE BALL BEARING (B) 6G522706 8.80
80 DRIVE BEARING RING 6G472401 2.20
81 HANDLE CAP O-RING 6G162401 2.20
82 HANDLE CAP 6J418103 4.40
83 REAR CAP SC/W (A) 6F037404 1.10
84 REAR CAP SC/W (B) 6B411703 1.10
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB COLLAR 6G720001 2.20
202 HANDLE KNOB 6J574001 36.30
203 HANDLE KNOB SC 6B679308 2.20
204 HANDLE KNOB CAP 6J574202 6.60
