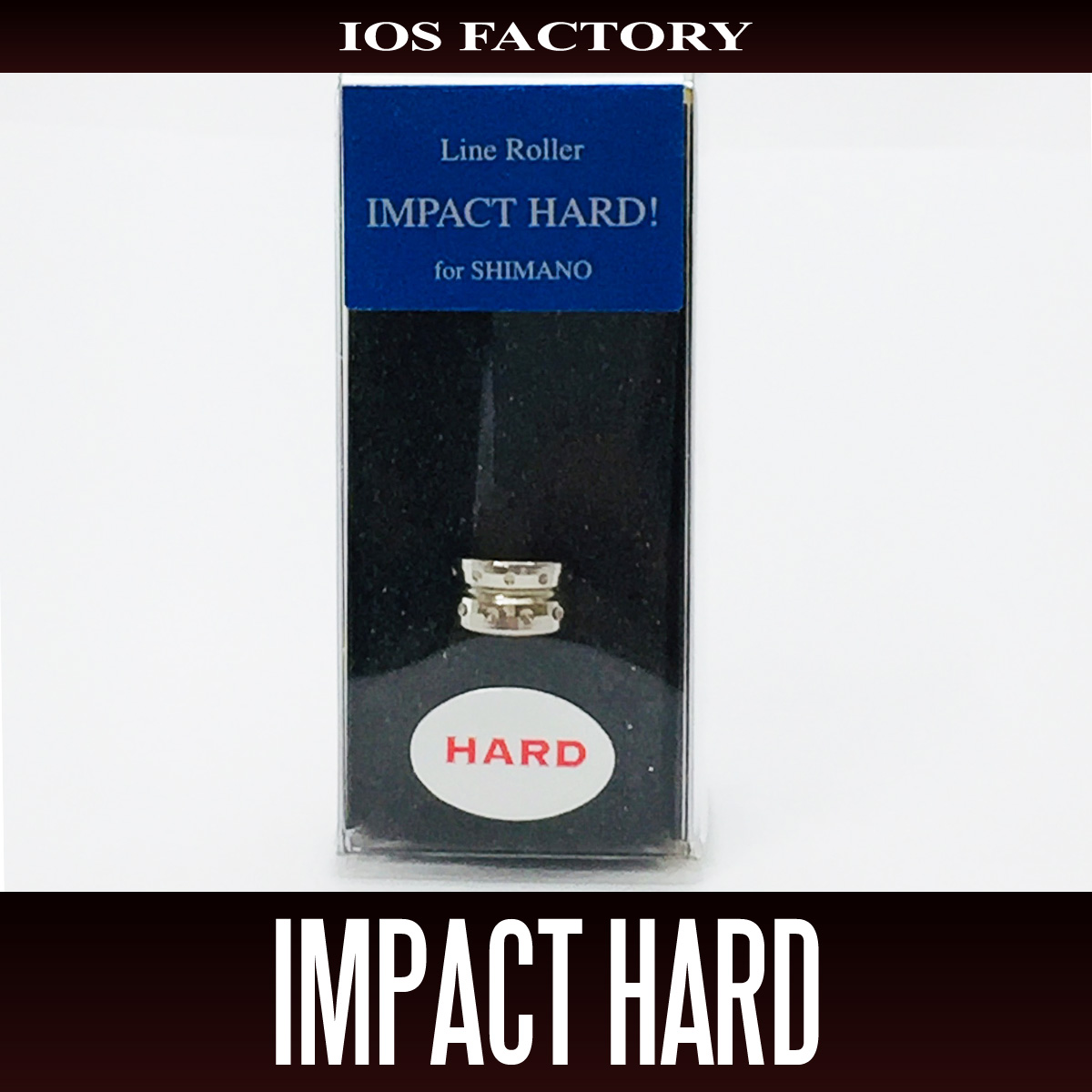

[IOS Factory] Line Roller IMPACT "HARD" for SHIMANO

[IOS Factory] Line Roller IMPACT "HARD" for SHIMANO

Our Selling Price: US$77.00

Available
Quantity:



Long-selling line roller Impact distance, best-selling, best-selling, precious chrome silver.
A stylish dimple line that surrounds them.
The line roller Impact Hard, which is graceful and delicate, yet has the ultimate durability, is made of highly accurate and tough stainless steel, especially for salt scenes where loads are applied, for bass and streams where durability is required.
By adopting it, it is the ultimate custom line roller with excellent high strength, wear resistance, and corrosion resistance.


Compatibility

SHIMANO reels with spool number 4000 to C5000, models released in 2004 and after
(STELLA, Vanquish, TWIN POWER, STRADIC, etc.)c

Color



SILVER only


Spec

Main unit: Corrosion-resistant stainless steel

Bearing/Shim: High-precision stainless steel


How to use


Remove all genuine parts.


Equipped with a line roller fixed shaft.


Set one 0.5mm shim.


Set the bearing.


Set the intermediate washer.
* If you use the conventional 0.65mm shim, you will hear a sound.


Apply IOS-02 to both sides of the bearing.


Set the line roller body.
The narrower the interval is on the bale side.


Set the bearing.


After setting the bearing, check that it moves up, down, left and right.
Please note that if the movement is poor, not only will the line roller make a strange noise, but the bearing will wear out prematurely.
If the fixed shaft of the line roller is deformed and the bearing does not fit, correct the deformed part with sandpaper or replace it with a new one.


Set two 0.5mm shims and apply IOS-02.
* No fine adjustment is required for other shims.
Some movement up and down is important because of the line angle from the spool.
Inserting more sheets than necessary may cause line trouble.


Set the line roller cam in the correct position, fix it with a screw, and check if it rotates smoothly with a cotton swab or the like.
If rotor shake occurs during reeling, use genuine screws.
* The rotor blur does not disappear completely.
* No fine-tuning with shims is required.

Some movement up and down is important because of the line angle from the spool.
Inserting more shims than necessary may cause line trouble.


For 4000 and above, loosen the spool, pull the line with your finger, check the rotation of the line roller, and check if the line interferes with the line roller cam.
The above confirmation is not required for numbers 3000 and below.


* Please read
Since this product is a custom line roller that emphasizes performance, rotor shake may occur during reeling.
In that case, please use genuine screws.
Please note that the rotor shake will not disappear completely.

This product is basically a shim and does not require fine adjustment.
Some movement up and down is important because of the line angle from the spool.
Inserting more sheets than necessary may cause line trouble.


About Daily Maintenance

Apply IOS-02 to bearings before and after fishing.
It provides smoother rotation and a barrier effect from water and seawater.
Especially after using it in salt, wash it well and dry it before using IOS-02 for bearings.
