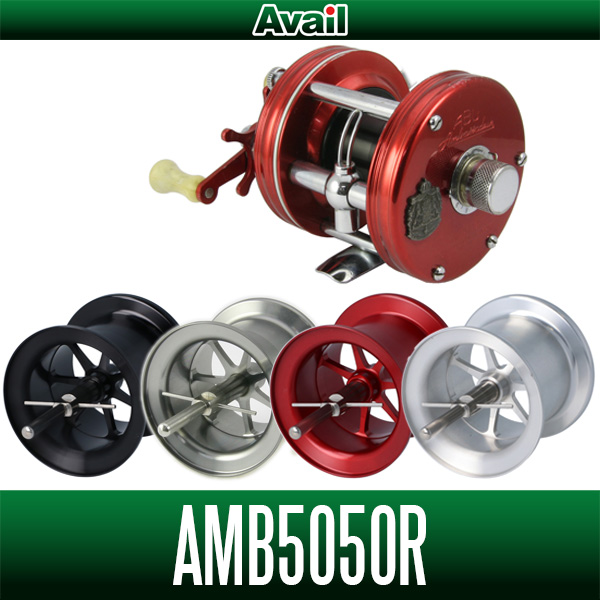

[Avail] ABU Microcast Spool for Ambassadeur 5000 Bronze Bushing Model [AMB5050R]

| Model Name

Microcast Spool AMB5050R (Groove Depth 5mm, for Bronze Bushing Model)


| Product Introduction



Reel: ABU Ambassadeur 5000/5000D (820600)
Avail Part Installed on the Reel
Microcast Spool AMB5050R Black

This Microcast Spool is designed for the ABU Ambassadeur 5000 Bronze Bushing Model.
Compared with the Genuine spool (5000 (4-Screw): approx. 24.9 g), the AMB5030R is approximately 8.9 g lighter, while the AMB5050R is approximately 8.3 g lighter. In addition, the reduced line capacity significantly decreases the total spool weight.
This greatly improves the minimum castable lure weight while increasing casting distance with lures of the same weight.


| Compatibility

Compatible with the Ambassadeur 5000/5000D models that support the spool on both ends with bronze bushings.
*If converting the bronze bushings to ball bearings, a different spool is required.
Compatible with the Old Ambassadeur 5000 and 5000D.
When using the line alarm function on the 5000D, please order the separately sold Line Alarm Gear Collar together.

The “Bronze Bushing Model” uses the same spool shaft as the Genuine spool,
but we also offer a “Ball Bearing Model” equipped with a spool shaft designed for bearing conversion.
*When using the “Ball Bearing Model,” two separately sold 10 x 3 x 4 bearings are required.

Although they share the same Ambassadeur 5000 model name, this spool is not compatible with the Palming Model or the ULTRACAST Model. Please confirm your reel before ordering.
The ULTRACAST Model, in which the spool shaft separates from the spool, is not compatible.



Compatible with reels that have the spool shaft shape shown in the photo.
The cog wheel has been removed from the right side.
Remove the cog wheel and check the shape of the concealed section.


| Color



Black




Gunmetal




Red




Silver


| Features

By reducing both spool weight and line capacity, the overall spool weight is significantly decreased.
This greatly improves the minimum castable lure weight while increasing casting distance with lures of the same weight.


| Specifications

- Basic Specifications

(Material)
Spool: Super Duralumin (Anodized Finish)
Shaft: Stainless Steel
(Compatible Reels)
ABU Ambassadeur 5000, 5000D
*The Ball Bearing Model spool is not compatible with the 5000C.
*Not compatible with the ULTRACAST Model or Palming Model.

- Weight

Spool / Weight / Ratio Compared to Genuine Spool
Microcast Spool AMB5050R / 16.6 g / 66.7%
Genuine Spool Ambassadeur 5000 (4-Screw) / 24.9 g / -

Weight may vary slightly depending on the production lot.

- Line Capacity

(Old Ambassadeur 5000 Spool 5 mm)
12 lb φ0.285 mm: 110 m
14 lb φ0.310 mm: 90 m
16 lb φ0.330 mm: 70 m

The above values were measured using Yamatoyo Tegus Co., Ltd. nylon line (Versatile Design), wound to the spool C surface.


| Installation Method When Using the Line Alarm Function



When using the line alarm function, please order the separately sold Line Alarm Gear Collar and install it behind the white clicker.


| Installation Method When Not Using the Line Alarm Function



When not using the line alarm function, install the parts as shown in the illustration above.
The white clicker and Line Alarm Gear Collar are not required.

*If you thumb the spool rim directly, friction may cause the anodized finish to wear away.
Please apply thumb pressure only to the spool line-winding surface.
