[SHIMANO] Genuine Spare Parts for 26 Sephia BB C3000SDHHG Product Code: 049933 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

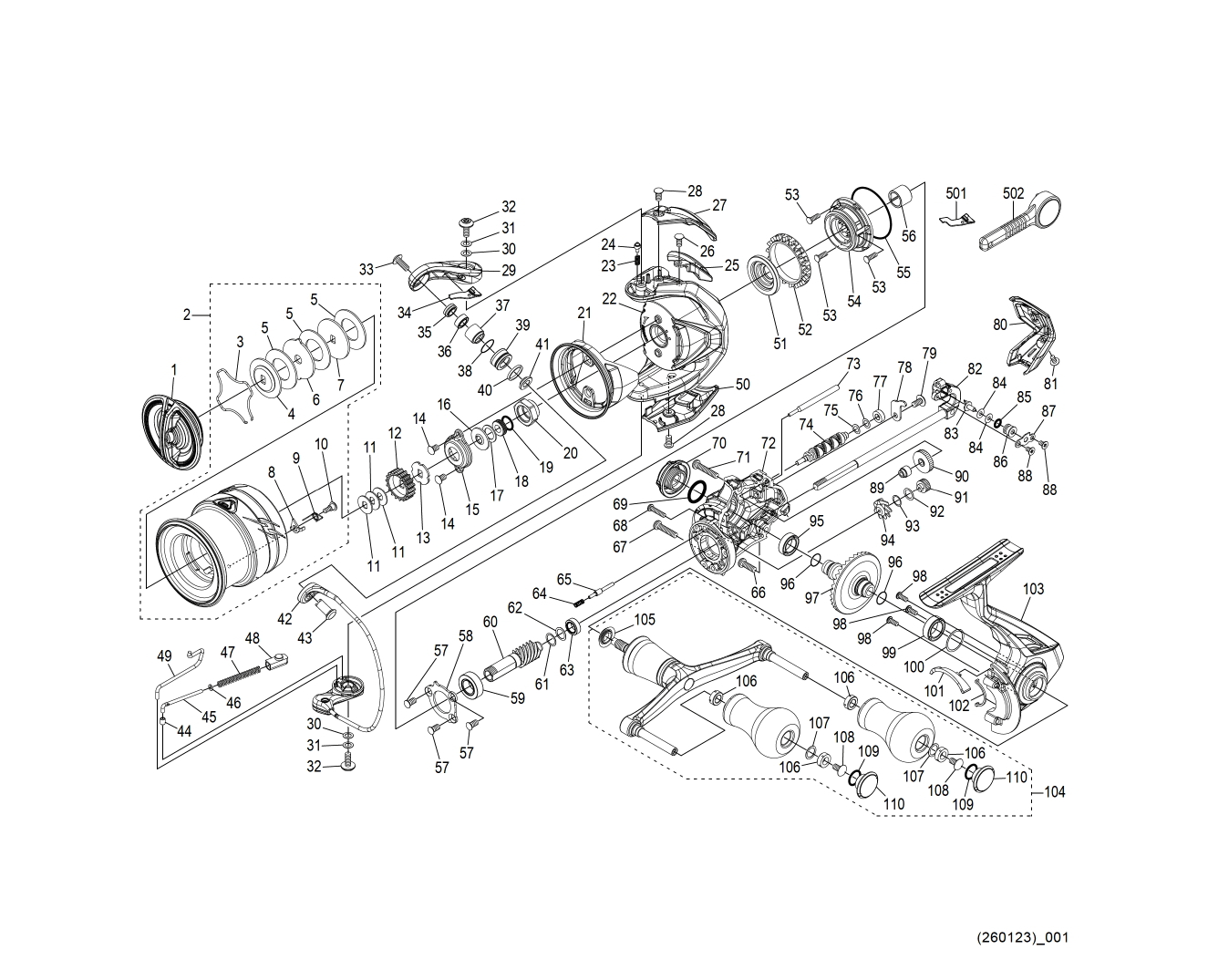

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	14CVB	DRAG KNOB ASSEMBLY	12.10
2	14CVU	SPOOL ASSEMBLY	55.00
3	10B8N	ANTI-DISENGAGEMENT SPRING	1.65
4	10QBT	OVAL WASHER	1.65
5	102ZG	DRAG WASHER	1.65
6	147ZU	WINGED WASHER	1.65
7	10BCE	OVAL WASHER	1.65
8	10DS4	SPOOL PIN	1.65
9	10DS5	SPOOL PIN SPRING	1.10
10	10TRB	SET SCREW	1.65
11	10BXN	SPOOL WASHER SET	1.10
12	103MU	SPOOL MOUNT (A)	1.65
13	10J04	SPOOL MOUNT (B)	1.65
14	103GW	SET SCREW	1.65
15	1076N	RETAINER	2.75
16	1017W	ROTOR BEARING SEAL	1.65
17	100RU	WASHER	1.65
18	10RDL	MAIN SHAFT COLLAR	3.85
19	10DXE	O-RING	1.65
20	1427D	ROTOR NUT	6.05
21	14802	ROTOR FLANGE	7.70
22	14CUY	ROTOR	12.10
23	10HE7	CLICK SPRING	1.65
24	106ZC	CLICK PIN	1.65
25	1427G	BALANCE WEIGHT	3.85
26	103KS	SET SCREW	1.10
27	1427H	ARM CAM SPRING COVER	8.25
28	10PS2	SET SCREW	1.65
29	14CUZ	ARM CAM	4.40
30	10KFA	ADJUSTMENT WASHER	1.10
31	10K96	WASHER	1.65
32	10PS5	SET SCREW	1.65
33	10K90	SET SCREW	1.10
34	1427J	ARM CAM FIN	1.10
35	10187	LINE ROLLER COLLAR	2.75
36	104VX	BALL BEARING (4X7X2.5)	13.75
37	1009K	LINE ROLLER BUSHING	1.65
38	1009E	O-RING	1.65
39	1009A	LINE ROLLER	6.05
40	10RFZ	LINE ROLLER SPACER	1.65
41	10QY7	LINE ROLLER BEARING COLLAR	2.75
42	14DKQ	BAIL ASSEMBLY	30.80
43	10TPC	ARM MOUNTING SHAFT	6.05
44	1009B	ARM SPRING GUIDE (A) COLLAR BUSHING	1.65
45	10SAN	ARM SPRING GUIDE (A)	3.85
46	101D9	ARM SPRING GUIDE (A) COLLAR	1.65
47	105R6	ARM CAM SPRING	1.65
48	107AB	ARM CAM SPRING SEAT	2.75
49	1427L	INNER BRAKE LEVER	2.75
50	1427M	BAIL MOUNTING COVER	8.25
51	101D5	ROTOR COLLAR	9.35
52	10QXQ	FRICTION RING	2.75
53	100WT	SET SCREW	1.65
54	10S2L	ROLLER CLUTCH ASSEMBLY	12.65
55	1009Z	O-RING	1.65
56	1009Y	ROLLER CLUTCH INNER	3.85
57	100WY	SET SCREW	1.65
58	10DWD	BEARING RETAINING PLATE	1.65
59	10DZB	BALL BEARING (7X13X4)	7.15
60	1428A	PINION GEAR	19.80
61	10HE5	WASHER	1.65
62	10SYU	WASHER	1.65
63	104JZ	BALL BEARING (5X8X2.5)	13.75
64	1427P	INTERMEDIATE GEAR SPRING	1.10
65	1427Q	INTERMEDIATE GEAR SHAFT	3.85
66	10LZG	SET SCREW	1.10
67	10M31	SET SCREW	1.10
68	10TP1	SET SCREW	1.10
69	108WH	O-RING	1.65
70	10RSK	HANDLE SCREW CAP	3.85
71	146AR	SET SCREW	1.65
72	14CV3	BODY	22.00
73	1427V	SLIDER GUIDE	1.65
74	1427W	WORM SHAFT	6.05
75	10ECK	WASHER	1.10
76	10K9C	WASHER	1.10
77	1009C	WORM SHAFT BUSHING	1.65
78	1427X	WORM SHAFT COVER	1.65
79	10QG5	SET SCREW	1.10
80	141HU	BODY GUARD	11.55
81	10PRZ	SET SCREW	1.65
82	149DM	MAIN SHAFT ASSEMBLY	12.10
83	1018D	WORM SHAFT PIN	6.05
84	1070D	WASHER	1.10
85	100WX	O-RING	1.65
86	1009L	WORM SHAFT PIN COLLAR	1.65
87	10182	WORM SHAFT PIN RETAINING PLATE	1.65
88	1055H	SET SCREW	1.65
89	1427Y	BUSHING	1.10
90	10DK0	WORM SHAFT GEAR	9.35
91	147W5	INTERMEDIATE GEAR (SMALL)	8.25
92	10G6D	WASHER	1.65
93	10TBA	WASHER	1.65
94	147VA	INTERMEDIATE GEAR (LARGE)	8.25
95	107FA	BALL BEARING (7X11X3)	7.15
96	1009S	O-RING	1.65
97	1428C	DRIVE GEAR	20.35
98	100UL	SET SCREW	1.65
99	10EX6	BALL BEARING (8X12X3.5)	7.15
100	1022D	WASHER	2.75
101	14282	INNER BEARING RETAINER	1.65
102	1009W	LID FLANGE SEAL	2.75
103	14DKP	LID ASSEMBLY	22.00
104	14CVQ	HANDLE ASSEMBLY	66.00
105	13AYZ	HANDLE SHAFT SEAL	2.75
106	10PXZ	HANDLE KNOB BUSHING	1.65
107	104FH	WASHER	2.20
108	10LFA	SET SCREW	1.10
109	10LAA	O-RING	1.10
110	10U1Q	HANDLE CAP	8.80
501	14287	ARM CAM FIN	1.10
502	10NC0	REEL WRENCH	1.65
MH01	14CVR	NAMEPLATE ON UNDERSIDE OF LEG	2.75
