[SHIMANO] Genuine Spare Parts for 26 SoaRe BB C2000SSHG Product Code: 049964 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 SoaRe BB C2000SSHG Product Code: 049964 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$42.35 [Regular Price: US$1.10 - US$60.50]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

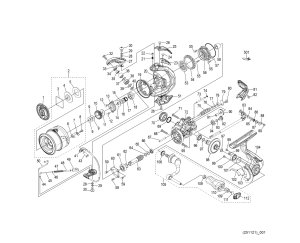

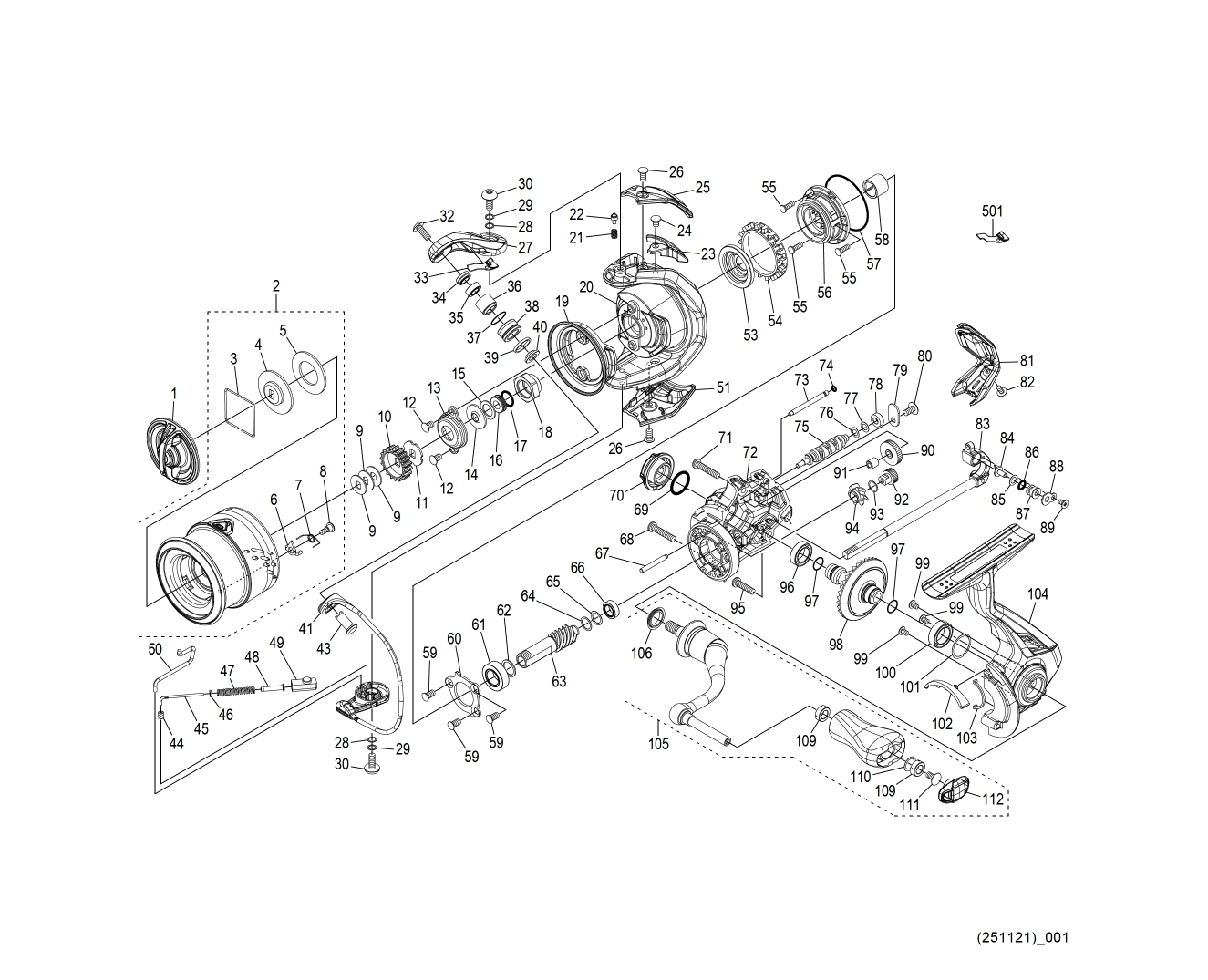

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 14CZW DRAG KNOB ASSEMBLY 12.10
2 14CN3 SPOOL ASSEMBLY 55.00
3 10B87 ANTI-DISENGAGEMENT SPRING 1.65
4 10BBM OVAL WASHER 1.65
5 13K3C DRAG WASHER 2.75
6 10DS4 SPOOL PIN 1.65
7 10DS5 SPOOL PIN SPRING 1.10
8 10TRB SET SCREW 1.65
9 10BXN SPOOL WASHER SET 1.10
10 103MU SPOOL GUIDE (A) 1.65
11 10J04 SPOOL GUIDE (B) 1.65
12 10DNE SET SCREW 1.10
13 1076N RETAINER 2.75
14 1017W ROTOR BEARING SEAL 1.65
15 100RU WASHER 1.65
16 10RDL MAIN SHAFT COLLAR 3.85
17 10DXE O-RING 1.65
18 1427D ROTOR NUT 6.05
19 144R9 ROTOR FLANGE 8.80
20 14CMU ROTOR 12.65
21 13ZAA CLICK SPRING 1.65
22 106ZC CLICK PIN 1.65
23 144RB BALANCE WEIGHT 3.85
24 10PMC SET SCREW 2.75
25 144RC ARM CAM SPRING COVER 8.25
26 10SH9 SET SCREW 1.65
27 14CMV ARM CAM 4.40
28 10K96 WASHER 1.65
29 10KF9 WASHER 1.10
30 10TLM SET SCREW 1.65
32 13JXP SET SCREW 1.65
33 13ZA9 ARM CAM FIN 1.10
34 10E44 LINE ROLLER COLLAR 2.75
35 104VX BALL BEARING (4X7X2.5) 13.75
36 1009K LINE ROLLER BUSHING 1.65
37 1009E O-RING 1.65
38 1009A LINE ROLLER 6.05
39 10RFZ LINE ROLLER SPACER 1.65
40 10TJM LINE ROLLER BEARING COLLAR 2.75
41 14DKD BAIL ASSEMBLY 30.80
43 10TPC ARM MOUNTING SHAFT 6.05
44 142QB ARM SPRING GUIDE (A) BUSHING 1.65
45 142Q8 ARM SPRING GUIDE (A) 1.10
46 142Q7 ARM SPRING GUIDE (A) COLLAR 1.65
47 142Q9 ARM CAM SPRING 1.65
48 142PV ARM SPRING GUIDE (C) 1.65
49 144RE ARM SPRING GUIDE (B) 1.65
50 144RF INNER BRAKE LEVER 2.75
51 144RG BAIL MOUNTING COVER 8.25
53 101D5 ROTOR COLLAR 9.35
54 10QXQ FRICTION RING 2.75
55 100WT SET SCREW 1.65
56 10S2L ROLLER CLUTCH ASSEMBLY 12.65
57 1009Z O-RING 1.65
58 1009Y ROLLER CLUTCH INNER 3.85
59 100WY SET SCREW 1.65
60 10DWD BEARING RETAINING PLATE 1.65
61 10DZB BALL BEARING (7X13X4) 7.15
62 143G5 WASHER 1.10
63 144RX PINION GEAR 19.80
64 10HE5 WASHER 1.65
65 10SYU WASHER 1.65
66 104JZ BALL BEARING (5X8X2.5) 13.75
67 144RJ INTERMEDIATE GEAR SHAFT 3.85
68 10TND SET SCREW 1.65
69 10E3K O-RING 1.65
70 144RK HANDLE SCREW CAP 5.50
71 146AR SET SCREW 1.65
72 14CMZ BODY 22.00
73 144RM SLIDER GUIDE 1.65
74 100BH O-RING 1.10
75 144RN WORM SHAFT 6.05
76 10ECK WASHER 1.10
77 10K98 WASHER 1.10
78 144RP BUSHING 1.10
79 10S7C WORM SHAFT COVER 1.65
80 10QG5 SET SCREW 1.10
81 1451F BODY GUARD 11.55
82 10RX2 SET SCREW 1.65
83 14A03 MAIN SHAFT ASSEMBLY 11.55
84 1018D WORM SHAFT PIN 6.05
85 10K9C WASHER 1.10
86 100WX O-RING 1.65
87 1009L WORM SHAFT PIN COLLAR 1.65
88 144RR WORM SHAFT PIN RETAINING PLATE 1.65
89 1055H SET SCREW 1.65
90 10DK0 WORM SHAFT GEAR 9.35
91 1009C WORM SHAFT BUSHING 1.65
92 10DK2 INTERMEDIATE GEAR (S) 8.25
93 10TBA WASHER 1.65
94 144RY INTERMEDIATE GEAR (LARGE) 9.35
95 10M2L SET SCREW 1.10
96 107FA BALL BEARING (7X11X3) 7.15
97 1009S O-RING 1.65
98 142PT DRIVE GEAR 20.35
99 10SH0 SET SCREW 1.65
100 10EX6 BALL BEARING (8X12X3.5) 7.15
101 1022D WASHER 2.75
102 1017Y INNER THRUST BEARING 1.65
103 1009W COVER FLANGE SEAL 2.75
104 14DKG COVER ASSEMBLY 22.00
105 14CN0 HANDLE ASSEMBLY 60.50
106 10PXV HANDLE SHAFT SEAL 2.75
109 10PXZ HANDLE KNOB BUSHING 1.65
110 104FH WASHER 2.20
111 10LFA SET SCREW 1.10
112 10TNJ HANDLE CAP 3.85
501 13ZAB ARM CAM FIN 1.10
MH01 14CN5 NAMEPLATE ON UNDERSIDE OF LEG 2.75
