[SHIMANO] Genuine Spare Parts for 26 SoaRe BB 500SPG Product Code: 049940 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 SoaRe BB 500SPG Product Code: 049940 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$42.35 [Regular Price: US$1.10 - US$60.50]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

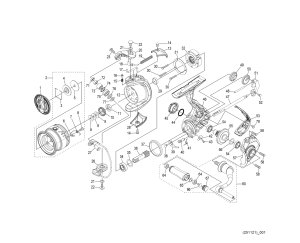

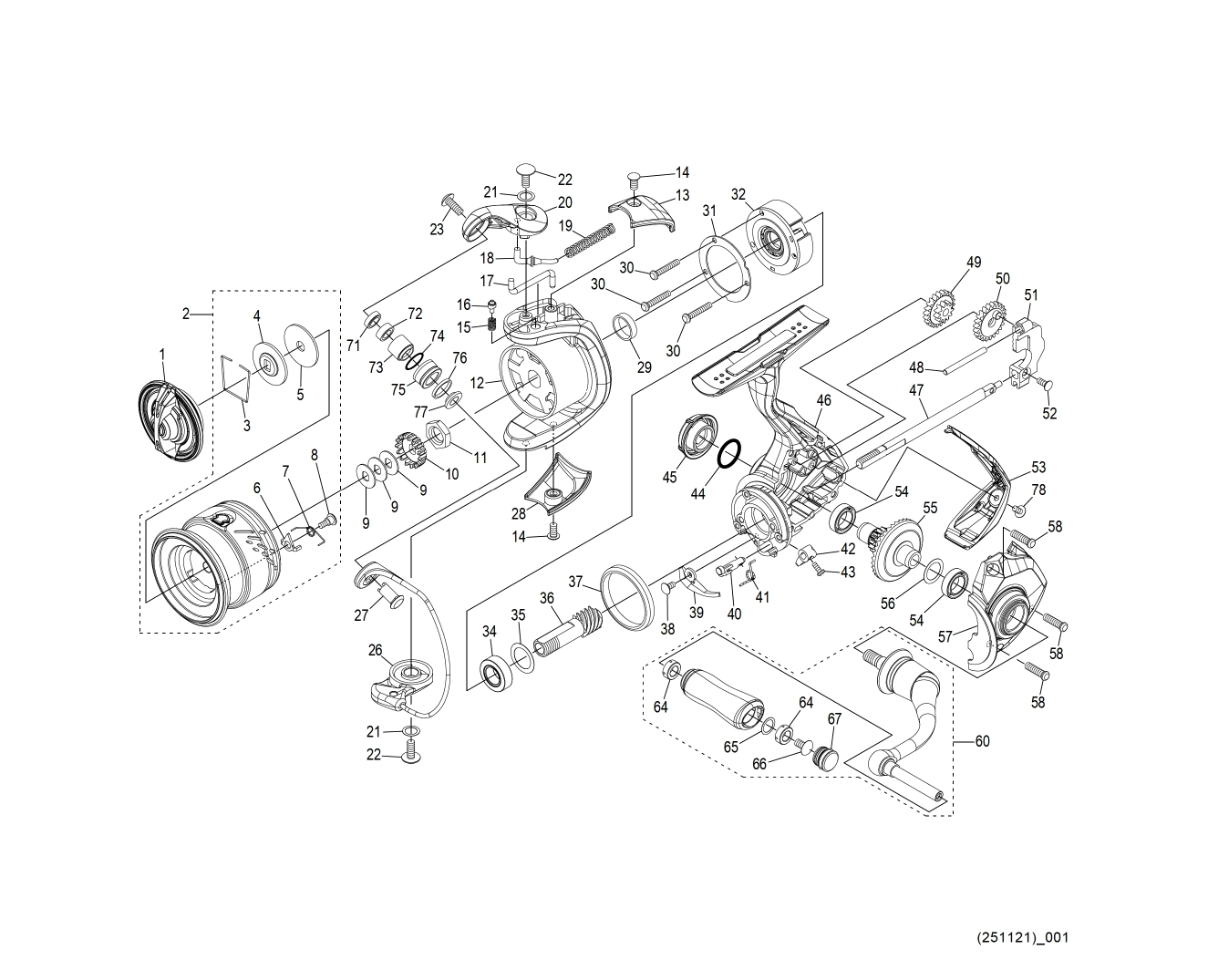

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 14CZV DRAG KNOB ASSEMBLY 12.10
2 14CX2 SPOOL ASSEMBLY 55.00
3 10MZN ANTI-DISENGAGEMENT SPRING 1.10
4 10S0W OVAL WASHER 1.65
5 1033Z DRAG WASHER 6.05
6 10DS4 SPOOL PIN 1.65
7 10DS6 SPOOL PIN SPRING 1.65
8 10TRB SET SCREW 1.65
9 10BXN SPOOL WASHER SET 1.10
10 103MX SPOOL HOLDER 1.65
11 1081A ROTOR NUT 3.85
12 14CX6 ROTOR 12.65
13 10CT3 ARM CAM SPRING COVER 2.75
14 10SH9 SET SCREW 1.65
15 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
16 106ZC CLICK PIN 1.65
17 10FAZ INNER BRAKE LEVER 3.85
18 105LS ARM SPRING GUIDE 1.10
19 10SQ8 ARM CAM SPRING 1.65
20 14CX8 ARM CAM 4.40
21 10K96 WASHER 1.65
22 10TLM SET SCREW 1.65
23 13JXP SET SCREW 1.65
26 14DKB BAIL ASSEMBLY 30.80
27 10TPC ARM MOUNTING SHAFT 6.05
28 107WM CAM COVER MOUNTING BRACKET 3.85
29 10HB7 ROTATING FRAME RING 2.75
30 10L1Z SET SCREW 1.10
31 10AEX ROLLER CLUTCH COVER PLATE 1.65
32 10QPH ROLLER CLUTCH ASSEMBLY 11.55
34 10DZB BALL BEARING (7X13X4) 7.15
35 10HHQ WASHER 1.65
36 14BG5 PINION GEAR 19.80
37 10D7P FRICTION RING 3.85
38 10LCS SET BOLT 1.10
39 10D8Z INNER BRAKE STOPPER 1.65
40 10DC5 STOPPER CAM 1.65
41 10DCS CLICK SPRING 1.10
42 10FPW STOPPER LEVER 1.65
43 10SUK SET BOLT 1.65
44 10E3K O-RING 1.65
45 144RK HANDLE SCREW CAP 5.50
46 14DKC BODY ASSEMBLY 20.35
47 10S85 PARTS 6.60
48 10QWH SLIDER GUIDE 1.65
49 10QWJ INTERMEDIATE GEAR 2.75
50 10QWF SLIDER GEAR 1.65
51 104WG SLIDER 8.25
52 10MGL SET BOLT 1.10
53 10SGA BODY GUARD 11.55
54 107FA BALL BEARING (7X11X3) 7.15
55 13D1T DRIVE GEAR ASSEMBLY 17.05
56 1022D WASHER 2.75
57 14CX9 COVER 18.70
58 10SHA SET SCREW 1.65
60 14CXC HANDLE ASSEMBLY 60.50
64 10PXZ HANDLE KNOB BUSHING 1.65
65 104FH WASHER 2.20
66 10LFA SET SCREW 1.10
67 14A8P HANDLE CAP 6.05
71 10E44 LINE ROLLER COLLAR 2.75
72 104VX BALL BEARING (4X7X2.5) 13.75
73 1009K LINE ROLLER BUSHING 1.65
74 1009E O-RING 1.65
75 1009A LINE ROLLER 6.05
76 10RFZ LINE ROLLER SPACER 1.65
77 10TJM LINE ROLLER BEARING COLLAR 2.75
78 10RX2 SET SCREW 1.65
MH01 14CXB NAMEPLATE ON BOTTOM OF LEG 2.75
