[ABU] Genuine Spare Parts for ROXANI BF8-L Product code: 1487514 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

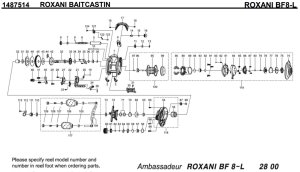

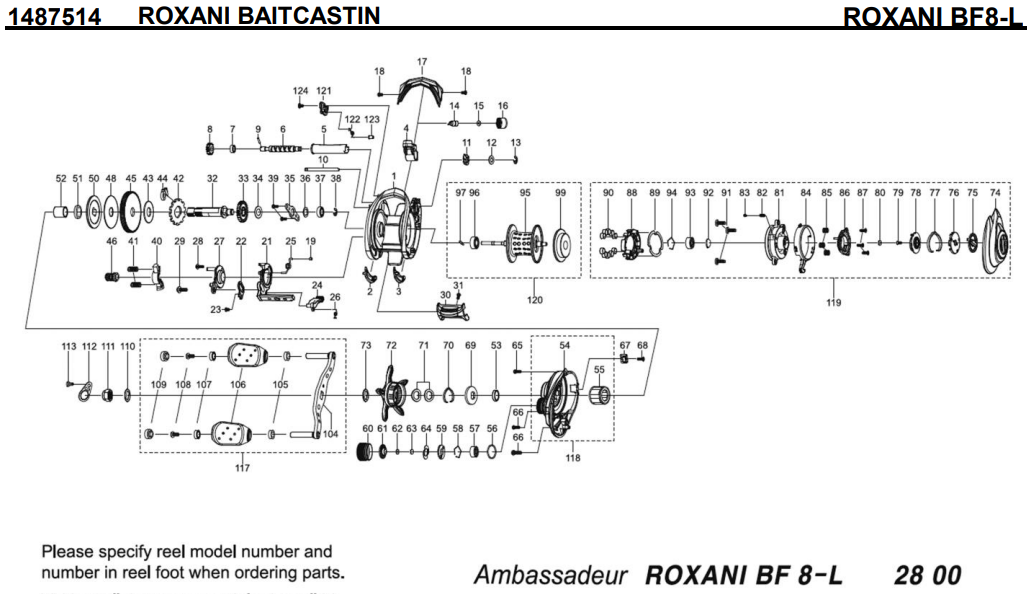

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
1	1490557	FRAME	55.00
2	1490482	SLIDE WASHER RIGHT	2.20
3	1490483	SLIDE WASHER LEFT	2.20
4	1490484	LINE GUIDE	5.50
5	1137750	LEVEL WIND TUBE	3.30
6	1125805	WORM SHAFT	16.50
7	1313502	WORM SHAFT BUSHING	2.20
8	1125732	WORM SHAFT GEAR	1.10
9	1125733	WORM SHAFT PIN	0.55
10	1490485	LINE GUIDE SHAFT	3.30
11	1313359	WORM SHAFT PIN HOLDER	2.20
12	1185695	WORM SHAFT WASHER	1.76
13	1124201	RETAINER	0.55
14	1125806	PAWL	3.30
15	1116193	WASHER	0.55
16	1129323	LINE GUIDE NUT	0.77
17	1490558	FRONT COVER	5.50
18	1452764	SCREW	2.20
19	1415616	BUSHING	2.20
20	1490487	BUSHING	2.20
21	1490540	CLUTCH CAM	3.30
22	1415619	LINK PLATE	2.20
23	1415620	SCREW	2.20
24	1289971	KICK LEVER	3.30
25	1380547	CLUTCH SPRING	2.20
26	1490541	KICK LEVER SPRING	2.20
27	1415661	CLUTCH PLATE	2.20
28	1415622	SCREW	2.20
29	1380616	SCREW	2.20
30	1490490	THUMB BAR	3.30
31	1252078	SCREW	1.76
32	1490542	MAIN GEAR SHAFT	13.20
33	1251634	LEVEL WIND GEAR	1.76
34	1380530	WASHER	2.20
35	1490492	MAIN GEAR SHAFT PLATE	2.20
36	1490493	WASHER	2.20
37	1116186	BALL BEARING	6.60
38	1124201	RETAINER	0.55
39	1372152	SCREW	2.20
40	1127703	YOKE	1.10
41	1116237	YOKE SPRING	0.55
42	1144195	RATCHET	1.65
43	1281133	DRAG WASHER	2.75
44	1144194	STOPPER	9.90
45	1490552	MAIN GEAR	22.00
46	1490553	PINION	11.00
48	1190698	DRAG WASHER	1.76
50	1144201	PRESSURE WASHER	1.65
51	1185755	WASHER	2.20
52	1257782	SLEEVE	2.20
53	1185778	DRAG SPACER	0.55
54	1490559	GEAR SIDE PLATE	33.00
55	1275594	OWC	27.50
56	1185714	O-RING	0.55
57	1490497	BALL BEARING	27.50
58	1104790	RING	0.55
59	1125768	CLICK WASHER	1.10
60	1490498	BRAKE KNOB	16.50
61	1452777	CLICK WASHER	2.20
62	1125771	RUBBER WASHER	0.55
63	1125770	FRICTION WASHER	0.55
64	1125769	CLICK SPRING	1.65
65	1452779	SCREW	2.20
66	1257013	SCREW	1.76
67	1490528	LUBE PORT	2.20
68	1252078	SCREW	1.76
69	1185796	CLICK PLATE	1.65
70	1125780	CLICK SPRING	0.77
71	1117208	SPRING WASHER	0.55
72	1490560	STAR WHEEL	27.50
73	1125783	WASHER	0.55
74	1490546	PALM SIDE PLATE	38.50
75	1490531	MAG DIAL	3.30
76	1415634	MAG DIAL PLATE	2.20
77	1125780	CLICK SPRING	0.77
78	1415635	SLIDE CAM	3.30
79	1185710	RIGHT SIDE COVER CAP SCREW	0.55
80	1125771	RUBBER WASHER	0.55
81	1490532	BEARING HOUSING	16.50
82	1313372	CLICK PIN SPRING	2.20
83	1313371	CLICK PIN	2.20
84	1490547	CAM LOCK LEVER	3.30
85	1313476	SPRING	2.20
86	1415641	SLIDE CAM	3.30
87	1380655	SCREW	2.20
88	1490505	MAGNET HOLDER	5.50
89	1490506	MAGNET PLATE	5.50
90	1302674	MAGNET	4.40
91	1415533	SCREW	2.20
92	1125797	WASHER	0.55
93	5230	BALL BEARING	8.80
94	1104790	RING	0.55
95	1490533	SPOOL	49.50
96	1144215	BALL BEARING	8.80
97	1187619	SPOOL SHAFT PIN	2.20
99	1490534	SPOOL PLATE	8.80
104	1490511	HANDLE	77.00
105	1208088	BUSHING FOR BALL BEARING	2.20
106	1362777	HANDLE KNOB	5.50
107	1208088	BUSHING FOR BALL BEARING	2.20
108	1208090	SCREW	0.55
109	1380579	HANDLE KNOB CAP	2.20
110	1185798	HANDLE WASHER	0.55
111	1214327	HANDLE NUT	2.20
112	1490512	HANDLE NUT COVER	2.20
113	1203407	SCREW	0.55
117	1490561	GEAR SIDE COMPLETE	49.50
118	1490514	HANDLE COMPLETE	88.00
119	1490562	PALM SIDE COMPLETE	154.00
120	1490537	SPOOL COMPLETE	58.30
121	1490550	HOOK HOLDER	3.30
122	1490551	TORSION SPRING	2.20
123	1490518	COLLAR-H	2.20
124	1380699	SCREW	2.20

* Items Marked “For Repair Use Only” Are Not Available for Individual Parts Sales

Order Flow

(STEP 1: Customer)
Please add the ordered parts from the parts list to your cart and complete the payment together with the Commission for [SHIMANO / DAIWA / ABU] Back-order Genuine Parts (US$5.00).
↓
(STEP 2: Our Shop)
We review your order details and place the order with the manufacturer.
↓
(STEP 3: Manufacturer)
Only for parts that are not in stock, we will receive a notification from the manufacturer approximately one week later.
Parts that are in stock will arrive at our shop in about one month.
* If all ordered parts are in stock, there will be no notification from the manufacturer or our shop until the shipment is dispatched. Please wait until shipping.
↓
(STEP 4: Our Shop)
Once the parts arrive from the manufacturer, we will dispatch your order.

* Please note that it generally takes about one month for genuine spare parts to arrive.
* If you order both back-ordered items and in-stock items together, they will be shipped together after all back-ordered items arrive.
* If you would like to receive in-stock items first, please place and pay for each order separately.

* The parts list pages will be expanded gradually.
If the parts list for your reel is not yet available, please place your order by manually entering the details using the order form below.

Genuine Spare Parts Order Form
https://www.hedgehog-studio.co.jp/form/parts

Regarding What You Can and Cannot Order for the Spare Parts

We source and provide genuine spare parts for SHIMANO / DAIWA / ABU reels only from the official Japanese websites listed below.
(We cannot assist with translating these websites. Please use Google Translate or other translation tools if necessary.)

| Parts that CANNOT be Ordered

- Spare parts for certain reel models (mainly older models) marked as “Unrepairable” on the SHIMANO website.

https://www.shimanofishingservice.jp/price.php

- Spare parts marked as “Just for Repair,” “Suspended,” or “Discontinued” on the DAIWA website.

http://www.sl-planets.co.jp/shop/c/

- Spare parts that do not have a part number or part code shown in the schematic diagrams on the SHIMANO / DAIWA websites.

- Spare parts marked as “For Repair Only” on the ABU website.

https://pfj-parts.com/
Please note that even for discontinued ABU reel models, parts may still be ordered if stock is available.

- Parts other than reel-related spare parts, such as rods or other fishing gear.
