[ABU] Genuine Spare Parts for DECIDER 7-L Product code: 1366274 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

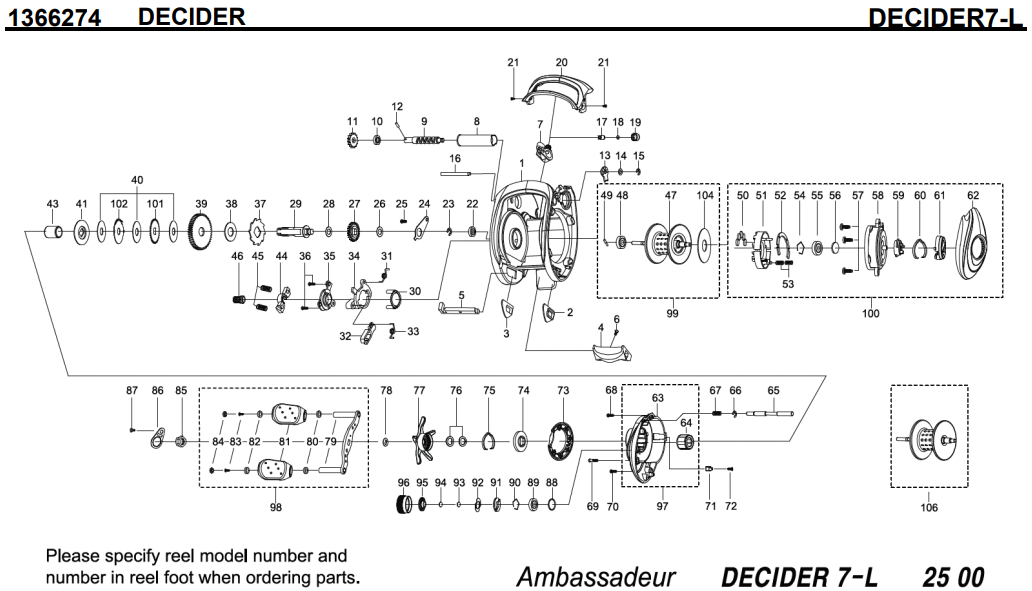

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
1	1385205	FRAME	55.00
2	1125801	SLIDE WASHER	1.10
3	1125802	SLIDE WASHER	1.10
4	1125803	THUMBAR	3.30
5	1127696	THUMBAR SHAFT	1.65
6	1124746	THUMBAR SCREW	0.55
7	1281152	LINE GUIDE	5.50
8	1280905	LEVEL WIND TUBE	3.30
9	1280906	WORM SHAFT	16.50
10	1313502	WORM SHAFT BUSHING	2.20
11	1125732	WORM SHAFT GEAR	1.10
12	1125733	WORM SHAFT PIN	0.55
13	1125734	WORM SHAFT PIN HOLDER	0.77
14	1185695	WORM SHAFT WASHER	1.76
15	1124201	RETAINER	0.55
16	1280907	LINE GUIDE SHAFT	3.30
17	1125806	PAWL	3.30
18	1125736	WASHER	0.55
19	1129323	LINE GUIDE NUT	0.77
20	1313470	FRONT COVER	5.50
21	1125738	SCREW	0.55
22	1116186	BALL BEARING	6.60
23	1124201	RETAINER	0.55
24	1125750	MAINGEAR SHAFT PLATE	2.20
25	1125796	SCREW	0.55
26	1125749	WASHER	0.55
27	1251634	LEVEL WIND GEAR	1.76
28	1125747	WASHER	0.55
29	1132937	MAIN GEAR SHAFT	11.00
30	1125739	YOKE HOLDER	1.10
31	1200009	CLUTCH SPRING	1.76
32	1289971	KICK LEVER	3.30
33	1127701	KICK LEVER SPRING	0.55
34	1127698	LIFT CURVE	3.30
35	1289974	CLUTCH PLATE	3.30
36	1125744	SCREW	0.55
37	1189341	RATCHET	1.65
38	1281133	DRAG WASHER	2.75
39	1362794	MAIN GEAR	33.00
40	1281218	DRAG WASHER	2.20
41	1281221	PRESSURE WASHER (K)	4.40
43	1257782	SLEEVE	2.20
44	1127703	YOKE	1.10
45	1116237	YOKE SPRING	0.55
46	1200012	PINION GEAR(K)	11.00
47	1385195	SPOOL	49.50
48	1144215	BALL BEARING	8.80
49	1187619	SPOOL SHAFT PIN	2.20
50	1302674	MAGNET	4.40
51	1302675	MAGNET HOLDER	5.50
52	1252096	MAGNET PLATE	2.20
53	1187623	MAGNET HOLDER SPRING	1.76
54	1104790	RING	0.55
55	1132859	BALL BEARING	6.60
56	1125797	WASHER	0.55
57	1124209	SCREW	0.55
58	1252039	BEARING HOUSING	16.50
59	1185732	SILDE CAM	2.20
60	1125791	CLICK SPRING	1.10
61	1281162	MAG DIAL	3.30
62	1385206	PALM SIDE PLATE	33.00
63	1385207	GEAR SIDE PLATE	44.00
64	1275594	OWC	27.50
65	1313475	LOCK PIN	2.20
66	1116226	RETAINER	0.55
67	1313476	SPRING	2.20
68	1125812	SCREW	0.55
69	1385198	SCREW	2.20
70	1257013	SCREW	1.76
71	1385199	LUBE PORT	3.30
72	1257016	SCREW	1.76
73	1313494	GEAR SIDE TRIM	5.50
74	1125779	CLICK SPRING HOLDER	1.65
75	1125780	CLICK SPRING	0.77
76	1117208	SPRING WASHER	0.55
77	1281253	STAR WHEEL	22.00
78	1125783	WASHER	0.55
79	1281322	HANDLE	22.00
80	1208088	BUSHING FOR BALL BEARING	2.20
81	1362777	HANDLE KNOB	5.50
82	1208088	BUSHING FOR BALL BEARING	2.20
83	1281320	SCREW	1.76
84	1281321	HANDLE KNOB CAP	2.20
85	1214327	HANDLE NUT	2.20
86	1252035	HANDLE NUT COVER	3.30
87	1203407	SCREW	0.55
88	1185714	O-RING	0.55
89	1132859	BALL BEARING	6.60
90	1104790	RING	0.55
91	1125768	CLICK WASHER	1.10
92	1125769	CLICK SPRING	1.65
93	1125770	FRICTION WASHER	0.55
94	1125771	RUBBER WASHER	0.55
95	1125772	CLICK WASHER	1.10
96	1341472	BRAKE KNOB	16.50
97	1385208	GEAR SIDE COMPLETE	55.00
98	1385201	HANDLE COMPLETE	49.50
99	1385202	SPOOL COMPLETE	77.00
100	1385209	PALM SIDE COMPLETE	82.50
101	1281219	DRAG WASHER	2.20
102	1302687	EAR WASHER	2.20
104	1257068	SPOOL PLATE	3.30
106	1385204	SPARE SPOOL	77.00

* Items Marked “For Repair Use Only” Are Not Available for Individual Parts Sales

Order Flow

(STEP 1: Customer)
Please add the ordered parts from the parts list to your cart and complete the payment together with the Commission for [SHIMANO / DAIWA / ABU] Back-order Genuine Parts (US$5.00).
↓
(STEP 2: Our Shop)
We review your order details and place the order with the manufacturer.
↓
(STEP 3: Manufacturer)
Only for parts that are not in stock, we will receive a notification from the manufacturer approximately one week later.
Parts that are in stock will arrive at our shop in about one month.
* If all ordered parts are in stock, there will be no notification from the manufacturer or our shop until the shipment is dispatched. Please wait until shipping.
↓
(STEP 4: Our Shop)
Once the parts arrive from the manufacturer, we will dispatch your order.

* Please note that it generally takes about one month for genuine spare parts to arrive.
* If you order both back-ordered items and in-stock items together, they will be shipped together after all back-ordered items arrive.
* If you would like to receive in-stock items first, please place and pay for each order separately.

* The parts list pages will be expanded gradually.
If the parts list for your reel is not yet available, please place your order by manually entering the details using the order form below.

Genuine Spare Parts Order Form
https://www.hedgehog-studio.co.jp/form/parts

Regarding What You Can and Cannot Order for the Spare Parts

We source and provide genuine spare parts for SHIMANO / DAIWA / ABU reels only from the official Japanese websites listed below.
(We cannot assist with translating these websites. Please use Google Translate or other translation tools if necessary.)

| Parts that CANNOT be Ordered

- Spare parts for certain reel models (mainly older models) marked as “Unrepairable” on the SHIMANO website.

https://www.shimanofishingservice.jp/price.php

- Spare parts marked as “Just for Repair,” “Suspended,” or “Discontinued” on the DAIWA website.

http://www.sl-planets.co.jp/shop/c/

- Spare parts that do not have a part number or part code shown in the schematic diagrams on the SHIMANO / DAIWA websites.

- Spare parts marked as “For Repair Only” on the ABU website.

https://pfj-parts.com/
Please note that even for discontinued ABU reel models, parts may still be ordered if stock is available.

- Parts other than reel-related spare parts, such as rods or other fishing gear.
