[ABU] Genuine Spare Parts for 2021 PROMAX4 Product code: 1548091 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

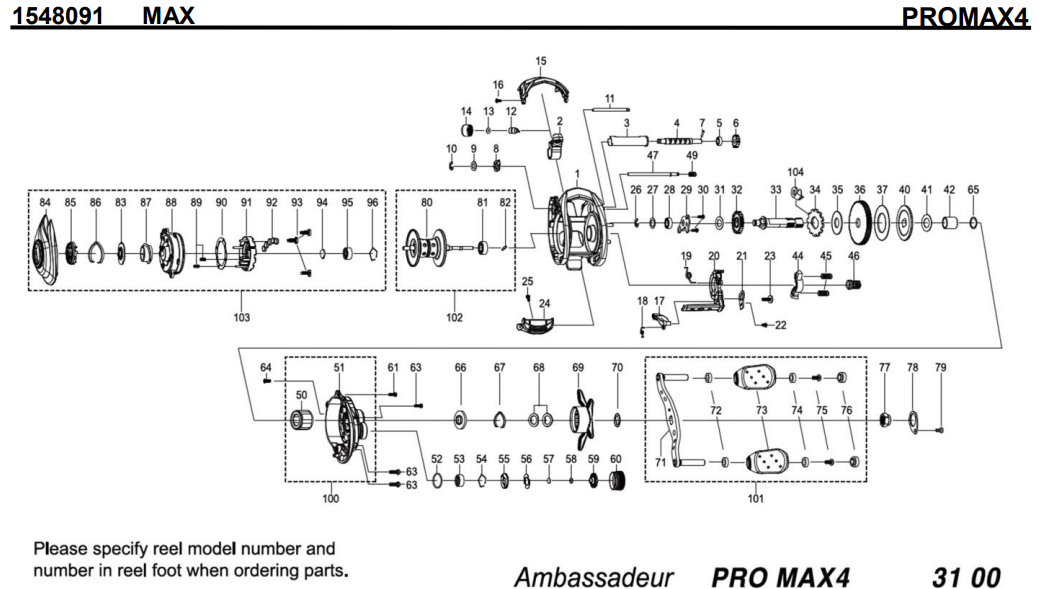

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
1	1551023	FRAME	55.00
2	1551024	LINE GUIDE	5.50
3	1137750	LEVEL WIND TUBE	3.30
4	1125805	WORM SHAFT	16.50
5	1125729	BALLBEARING	6.60
6	1125732	WORM SHAFT GEAR	1.10
7	1125733	WORM SHAFT PIN	0.55
8	1313359	WORM SHAFT PIN HOLDER	2.20
9	1185695	WORM SHAFT WASHER	1.76
10	1124201	RETAINER	0.55
11	1490485	LINE GUIDE SHAFT	3.30
12	1125806	PAWL	3.30
13	1125736	WASHER	0.55
14	1129323	LINE GUIDE NUT	0.77
15	1551025	FRONT COVER	5.50
16	1185912	FRONT COVER SCREW	1.76
17	1289969	KICK LEVER	3.30
18	1490489	KICK LEVER SPRING	2.20
19	1551026	CLUTCH SPRING	2.20
20	1551027	LIFT CURVE	3.30
21	1551028	LIFT CURVE PLATE	3.30
22	1415620	SCREW	2.20
23	1252059	SCREW	1.76
24	1551159	THUMB BAR	3.30
25	1252077	SCREW	1.76
26	1124201	RETAINER	0.55
27	1380528	WASHER	2.20
28	1116186	BALL BEARING	6.60
29	1380529	MAIN GEAR SHAFT PLATE	3.30
30	1116183	SCREW	0.55
31	1380530	WASHER	2.20
32	1251634	LEVEL WIND GEAR	1.76
33	1415560	MAIN GEAR SHAFT	11.00
34	1144195	RATCHET	1.65
35	1281133	DRAG WASHER	2.75
36	1214277	MAIN GEAR	16.50
37	1190698	DRAG WASHER	1.76
40	1144201	PRESSURE WASHER	1.65
41	1188790	WASHER	0.55
42	1257782	SLEEVE	2.20
44	1125753	YOKE	1.10
45	1116237	YOKE SPRING	0.55
46	1125809	PINION 7,1	11.00
47	1560311	LOCK PIN	2.20
49	1313476	SPRING	2.20
50	1551161	ONE WAY CLUTCH	11.00
51	1560312	GEAR SIDE PLATE	22.00
52	1185714	O-RING	0.55
53	1125827	BALL BEARING	6.60
54	1104790	RING	0.55
55	1125768	CLICK WASHER	1.10
56	1125769	CLICK SPRING	1.65
57	1125770	FRICTION WASHER	0.55
58	1125771	RUBBER WASHER	0.55
59	1125772	CLICK WASHER	1.10
60	1560313	BRAKE KNOB	6.60
61	1257016	SCREW	1.76
63	1252079	SCREW	1.76
64	1252079	SCREW	1.76
65	1281136	WASHER	1.76
66	1125779	CLICK SPRING HOLDER	1.65
67	1125780	CLICK SPRING	0.77
68	1117208	SPRING WASHER	0.55
69	1551210	STAR WHEEL	13.20
70	1125783	WASHER	0.55
71	1560285	HANDLE	11.00
72	1208088	BUSHING FOR BALL BEARING	2.20
73	1362777	HANDLE KNOB	5.50
74	1208088	BUSHING FOR BALL BEARING	2.20
75	1208090	SCREW	0.55
76	1380579	HANDLE KNOB CAP	2.20
77	1551167	HANDLE NUT	2.20
78	1380560	HANDLE NUT COVER	2.20
79	1200031	HANDLE NUT RETAINER SCREW	0.55
80	1560314	SPOOL	16.50
81	1187625	SPOOL BALL BEARING	8.80
82	1187619	SPOOL SHAFT PIN	2.20
83	1551169	DIAL PLATE	2.20
84	1560315	PALM SIDE PLATE	22.00
85	1551171	MAG DIAL	3.30
86	1125780	CLICK SPRING	0.77
87	1551172	SLIDE CAM	2.20
88	1551173	BEARING HOUSING	16.50
89	1187623	MAGNET HOLDER SPRING	1.76
90	1551174	MAGNET PLATE	2.20
91	1551175	MAGNET HOLDER	2.20
92	1116222	MAGNET	2.20
93	1415533	SCREW	2.20
94	1125797	WASHER	0.55
95	1125827	BALL BEARING	6.60
96	1104790	RING	0.55
100	1560316	GEAR SIDE COMPLETE	30.80
101	1560288	HANDLE COMPLETE	22.00
102	1560317	SPOOL COMPLETE	33.00
103	1560318	PALM SIDE COMPLETE	71.50
104	1144194	STOPPER	9.90

* Items Marked “For Repair Use Only” Are Not Available for Individual Parts Sales

Order Flow

(STEP 1: Customer)
Please add the ordered parts from the parts list to your cart and complete the payment together with the Commission for [SHIMANO / DAIWA / ABU] Back-order Genuine Parts (US$5.00).
↓
(STEP 2: Our Shop)
We review your order details and place the order with the manufacturer.
↓
(STEP 3: Manufacturer)
Only for parts that are not in stock, we will receive a notification from the manufacturer approximately one week later.
Parts that are in stock will arrive at our shop in about one month.
* If all ordered parts are in stock, there will be no notification from the manufacturer or our shop until the shipment is dispatched. Please wait until shipping.
↓
(STEP 4: Our Shop)
Once the parts arrive from the manufacturer, we will dispatch your order.

* Please note that it generally takes about one month for genuine spare parts to arrive.
* If you order both back-ordered items and in-stock items together, they will be shipped together after all back-ordered items arrive.
* If you would like to receive in-stock items first, please place and pay for each order separately.

* The parts list pages will be expanded gradually.
If the parts list for your reel is not yet available, please place your order by manually entering the details using the order form below.

Genuine Spare Parts Order Form
https://www.hedgehog-studio.co.jp/form/parts

Regarding What You Can and Cannot Order for the Spare Parts

We source and provide genuine spare parts for SHIMANO / DAIWA / ABU reels only from the official Japanese websites listed below.
(We cannot assist with translating these websites. Please use Google Translate or other translation tools if necessary.)

| Parts that CANNOT be Ordered

- Spare parts for certain reel models (mainly older models) marked as “Unrepairable” on the SHIMANO website.

https://www.shimanofishingservice.jp/price.php

- Spare parts marked as “Just for Repair,” “Suspended,” or “Discontinued” on the DAIWA website.

http://www.sl-planets.co.jp/shop/c/

- Spare parts that do not have a part number or part code shown in the schematic diagrams on the SHIMANO / DAIWA websites.

- Spare parts marked as “For Repair Only” on the ABU website.

https://pfj-parts.com/
Please note that even for discontinued ABU reel models, parts may still be ordered if stock is available.

- Parts other than reel-related spare parts, such as rods or other fishing gear.
