[SHIMANO] Genuine Spare Parts for 26 Beast Master 3000II Product code: 045478 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 Beast Master 3000II Product code: 045478 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$271.81 [Regular Price: US$1.10 - US$388.30]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

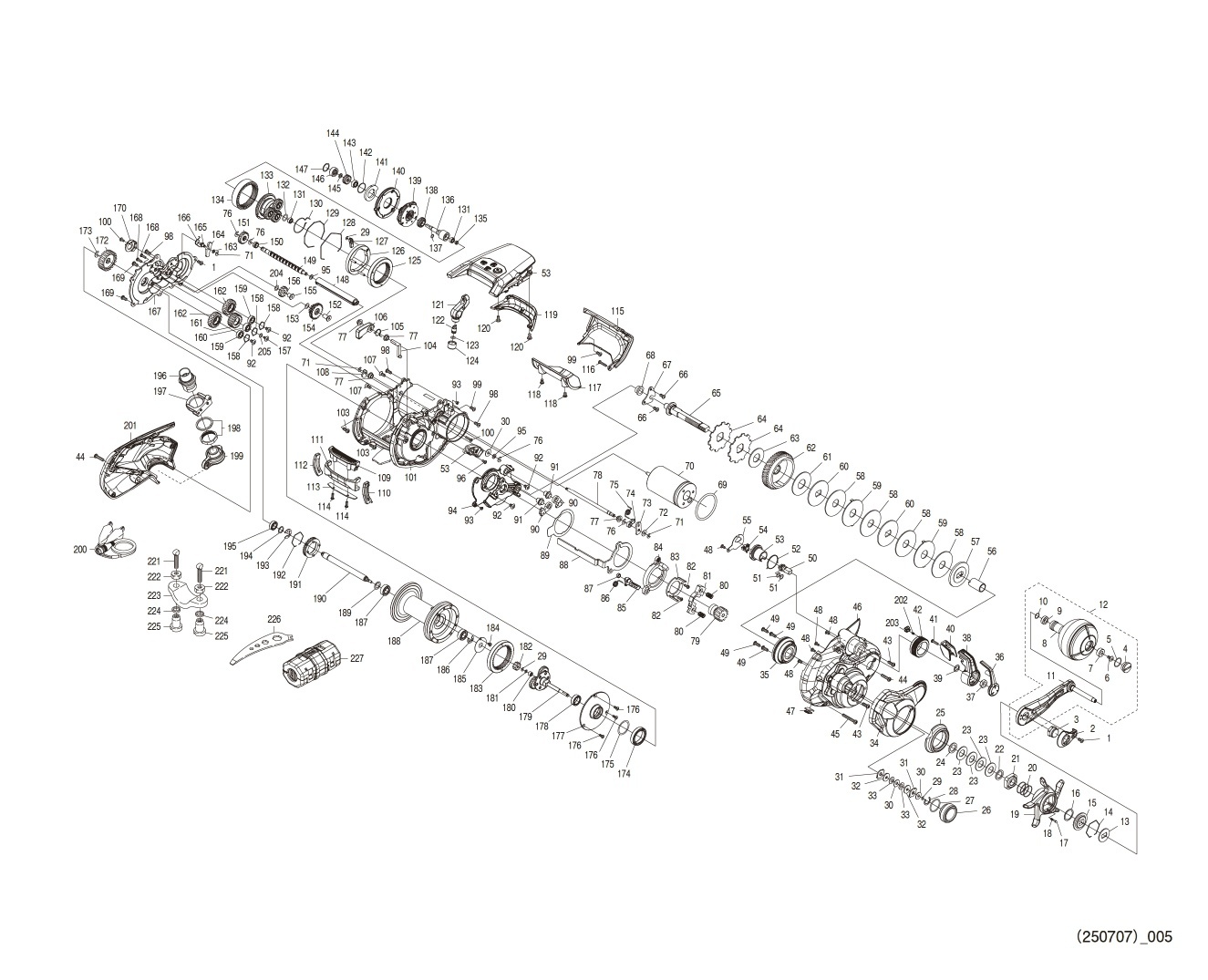

　Reel Part's Schematic Diagram



No. S Part No. Description Price (USD)
1 10R1Q SET SCREW 1.65
2 100F6 RETAINER 3.85
3 10RHS HANDLE LOCK NUT 6.05
4 1062R HANDLE CAP 1.10
5 10LAB O-RING 1.10
6 103E9 SET SCREW 1.10
7 10EU0 HANDLE GRIP BUSHING (A) 1.65
8 1402V HANDLE KNOB ASSEMBLY 66.00
9 104UJ HANDLE GRIP BUSHING (B) 1.65
10 104FH WASHER 2.20
11 1402W HANDLE SHAFT ASSEMBLY 56.10
12 1402X HANDLE ASSEMBLY 112.20
13 107QM HANDLE MOUNTING WASHER 1.10
14 10KXX STAR DRAG CLICK PLATE RETAINER 1.65
15 10J27 STAR DRAG CLICK PLATE 1.65
16 10G6M WASHER 1.10
17 10B27 CLICK PIN 1.65
18 10988 CLICK SPRING 1.65
19 13Z4U STAR DRAG 45.10
20 10HZ2 STAR DRAG SPRING 1.65
21 10QY2 STAR DRAG LOCKING NUT 4.95
22 10BR2 BEARING RETAINER 1.65
23 1052E FLAT SPRING (DB8H) 1.65
24 146FF WASHER 1.65
25 13Z51 MAIN UNIT A NAMEPLATE 14.85
26 13Z52 MECHANICAL BRAKE KNOB 11.55
27 10EYV O-RING 1.10
28 105S4 C-CLIP (NO. 5103-31) 1.10
29 105NB E-TYPE RETAINING RING 1.5 1.10
30 13PFC WASHER 1.65
31 13Z4Z MECHANICAL BRAKE WASHER (B) 3.30
32 13Z50 MECHANICAL BRAKE KNOB SPACER 1.10
33 13SVL SPRING (DB4L) 1.65
34 13Z4W MAIN UNIT A2 22.00
35 1402Y DRIVE GEAR BEARING ASSEMBLY 27.50
36 13Z4C LEVER SWITCH NAMEPLATE 6.05
37 10NAS LOCKING NUT 2.75
38 13Z4G LEVER SWITCH 8.80
39 10NAQ OVAL WASHER 1.65
40 13Z4F LEVER SWITCH (B) 1.65
41 10LPT LOCKING BOLT 1.10
42 1402Z GEAR SHIFT SWITCH ASSEMBLY 13.20
43 10A6Q LOCKING BOLT 1.65
44 100YN LOCKING BOLT 1.65
45 13Z74 LOCKING BOLT 1.10
46 14030 MAIN UNIT A ASSEMBLY 49.50
47 10RNS THREAD LOCK 2.75
48 1055J SET SCREW 1.65
49 101AA SET SCREW 1.65
50 14031 LEVER INSERT SHAFT ASSEMBLY 8.80
51 10TNF O-RING 1.65
52 13Z57 SHIFT SWITCH SPRING 1.10
53 13Z75 COUNTER UNIT ASSEMBLY 388.30
54 14032 MAGNET HOLDER ASSEMBLY 3.30
55 13Z6N MAGNET HOLDER SPACER 1.10
56 10CCL INNER TUBE 6.05
57 10D4Q STAR DRAG PLATE 1.65
58 10L86 STAR DRAG WASHER 9.35
59 10LBB STAR DRAG WASHER 1.65
60 10KZW STAR DRAG WASHER 1.65
61 10CKR STAR DRAG WASHER 9.35
62 13USJ DRIVE GEAR 22.55
63 10CKS STAR DRAG WASHER 6.05
64 13USH STOPPER GEAR 2.75
65 146FE DRIVE GEAR SHAFT 22.55
66 103ED SET SCREW 1.10
67 109VK DRIVE GEAR SHAFT RETAINING PLATE 1.65
68 10BQ3 MAIN GEAR SHAFT BUSHING 1.65
69 13K3D O-RING 1.65
70 13Z76 MOTOR ASSEMBLY 143.00
71 105NC E-TYPE RETAINING RING 2 1.10
72 1403D WASHER 1.10
73 13Z5A SHIFT SELECTOR PLATE (B) 1.10
74 13Z55 SHIFT SELECTOR PLATE (B2) 1.10
75 13Z58 SHIFT SELECTOR SHAFT SPRING 1.10
76 105NK E-TYPE RETAINING RING 2.5 1.10
77 13U7Z CLUTCH LEVER RETAINING SHAFT COLLAR 1.65
78 13Z5D SHIFT SELECTOR SHAFT 4.40
79 13SNZ PINION GEAR 22.55
80 104BU CLUTCH YOKE SPRING 1.10
81 13T16 CLUTCH YOKE 1.65
82 10LVJ MOUNTING BOLT 1.10
83 13UDZ CLUTCH CAM PRESSURE PLATE 2.75
84 13AW8 CLUTCH CAM ASSEMBLY 11.55
85 13T15 CLUTCH PAWL 6.05
86 13T17 CLUTCH PAWL SPRING 1.65
87 1048B CLUTCH PAWL BUSHING 1.65
88 13TCS CLUTCH PLATE 6.05
89 13T7E CLUTCH CAM WASHER 1.65
90 10MWB STOPPER PAWL ASSEMBLY 3.85
91 10PE1 STOPPER MOUNTING SHAFT 1.65
92 103L4 MOUNTING BOLT 1.10
93 10F23 CLUTCH CAM SPACER 1.10
94 13T14 MAIN BODY MOUNTING PLATE 45.10
95 1059U WASHER 1.10
96 10S65 MOUNTING BOLT 1.10
98 103GK MOUNTING BOLT 1.10
99 103DE MOUNTING BOLT 1.10
100 10LUZ MOUNTING BOLT 1.10
101 14033 FRAME ASSEMBLY 112.20
103 10LZD MOUNTING BOLT 1.65
104 13TCT CLUTCH LEVER (B) SHAFT 9.35
105 13Z5K CLUTCH LEVER POSITIONING SPRING 1.10
106 13Z6Q CLUTCH LEVER (B) 6.05
107 10ML8 MOUNTING BOLT 1.10
108 13Z5E GEAR SHIFT PLATE 1.10
109 13T7C CLUTCH LEVER 3.85
110 13Z5C CLUTCH LEVER MOUNT (B) 1.65
111 13Z5L CLUTCH LEVER NAMEPLATE 16.50
112 13Z5B CLUTCH LEVER MOUNT (A) 1.65
113 13UDQ CLUTCH LEVER PROTECTOR 1.65
114 101LH MOUNTING BOLT 1.10
115 13Z6B LEVEL WIND GUARD 22.55
116 10TGT MOUNTING BOLT 1.10
117 13Z6A LEVEL WIND GUARD NAMEPLATE 1.65
118 103GZ MOUNTING BOLT 1.65
119 13Z4M COUNTER CASE SIDE COVER 11.55
120 1055F MOUNTING BOLT 1.65
121 14034 LEVEL WIND ASSEMBLY 11.00
122 10FFW WORM SHAFT PIN 2.75
123 10RR9 WASHER 2.75
124 10FJW LEVEL WIND BRACKET 1.65
125 13Z60 INNER GEAR 16.50
126 14035 STOPPER RETAINING PLATE ASSEMBLY 8.80
127 13Z5M STOPPER TAB 1.65
128 10B6C RETAINING SPRING 1.10
129 13Z5P INNER GEAR (B) RETAINING CLIP 1.10
130 13Z6X STOPPER TAB SPRING 1.10
131 10PDA BALL BEARING (3X6X2.5) 13.75
132 108WQ O-RING 1.65
133 14036 REDUCTION GEAR PLATE (A) ASSEMBLY (WITH BEARING) 67.65
134 13Z5Q INNER GEAR (B) 19.25
135 13Z5X SUN GEAR (A) COLLAR 1.10
136 13Z5Y SUN GEAR BUSHING 12.65
137 13Z67 BEARING RETAINING SPRING 1.10
138 13Z5T SUN GEAR (C) 5.50
139 14037 REDUCTION GEAR PLATE (C) ASSEMBLY (WITH BEARING) 57.75
140 14038 WATERPROOF SEAL HOLDER ASSEMBLY 13.20
141 13Z56 SHIFT STOPPER GEAR 2.20
142 13NR6 STOPPER GEAR RETAINER 1.10
143 104VQ BALL BEARING (4X8X3) 13.75
144 13Z6T DRIVE GEAR (A) 9.35
145 13Z70 WASHER 1.10
146 105C1 BALL BEARING (3X10X4) 13.75
147 13PEP WASHER 1.10
148 13Z6D LEVEL WIND PIPE 1.65
149 13Z6E WORM SHAFT 11.55
150 13S0K WORM SHAFT MOUNT (B) 1.65
151 13S6C WORM SHAFT GEAR 6.05
152 13T10 WORM SHAFT GEAR DRIVE GEAR COLLAR 3.85
153 105EU WASHER 1.10
154 13T0Z WORM SHAFT GEAR DRIVE GEAR (B) 2.75
155 13T12 WORM SHAFT GEAR DRIVE GEAR COLLAR (B) 3.85
156 13T11 WORM SHAFT GEAR DRIVE GEAR (C) 6.05
157 10TTU SET SCREW 1.10
158 10GEW BEARING RETAINING CLIP 1.10
159 105BP BALL BEARING (5X9X3) 13.75
160 10KX2 BALL BEARING (4X9X4) 13.75
161 13RMW DRIVE GEAR 9.35
162 13Z6S DRIVE GEAR (B) 9.35
163 10GCX WASHER 1.10
164 13Z5G GEAR SHIFT STOPPER 1.10
165 13Z59 GEAR SHIFT STOPPER MOUNTING SHAFT 3.85
166 13Z5F GEAR SHIFT STOPPER SPRING 1.10
167 13Z6U DRIVE GEAR RETAINING PLATE 55.00
168 10LVM SET SCREW 1.10
169 101CP SET SCREW 1.65
170 13Z6J LEAD WIRE COVER 1.10
172 13Z6R DRIVE GEAR (E) 19.80
173 105NE TYPE E RETAINING RING 3 1.10
174 108PG BALL BEARING (15X21X4) 22.55
175 1497R WASHER 1.65
176 10MGL MOUNTING BOLT 1.10
177 14039 SPOOL SIDE PLATE ASSEMBLY 13.20
178 10EX8 BALL BEARING (8X12X3.5) 13.75
179 1403A REDUCTION GEAR PLATE (B) ASSEMBLY 41.25
180 10MCV REDUCTION GEAR PLATE (B) SHAFT BUSHING 2.75
181 13B0W WASHER 1.10
182 13T13 SUN GEAR 6.05
183 13Z66 SPOOL INSERT 13.75
184 1055G MOUNTING BOLT 1.65
185 13SVG SPOOL PARTITION 1.65
186 105NJ TYPE E RETAINING RING 4 1.10
187 108PE BALL BEARING (6X12X4) 13.75
188 1403B SPOOL ASSEMBLY 77.00
189 10G8H WASHER 1.10
190 13Z68 SPOOL SHAFT 6.05
191 13SVJ WORM SHAFT GEAR TRANSMISSION GEAR (A) 2.75
192 106MT BRAKE GEAR BEARING RETAINING RING 1.10
193 105RY TYPE E RETAINING RING 5 1.10
194 13PKA WASHER 1.10
195 104JT BALL BEARING (6X10X3) 13.75
196 100XP CONNECTOR 22.55
197 13Z6L SOCKET BRACKET 1.65
198 10BGS SOCKET NUT SET 6.05
199 10T2G SOCKET CAP 3.85
200 10004 CABLE 45.10
201 1403C MAIN UNIT B ASSEMBLY 55.00
202 10T6Z CLICK SPRING 1.10
203 14BWK GEAR SHIFT SWITCH CLICK PIN 1.10
204 10HYY WASHER 1.65
205 10HYM WASHER 1.10
221 10A79 LEG MOUNTING BOLT 2.75
222 105N9 LEG MOUNTING HEX NUT 1.65
223 10AR5 LEG MOUNTING BASE 4.95
224 10GA8 LEG MOUNTING NUT WASHER 1.65
225 1046P LEG MOUNTING NUT 2.75
226 10MJ6 REEL WRENCH 3.85
227 14BZL FERRITE CORE 6.60
LINE 10CW0 LINE GUIDE 1.65
