[SHIMANO] Genuine Spare Parts for 26 TALICA 50II Product code: 050038 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 TALICA 50II Product code: 050038 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$284.90 [Regular Price: US$1.10 - US$407.00]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

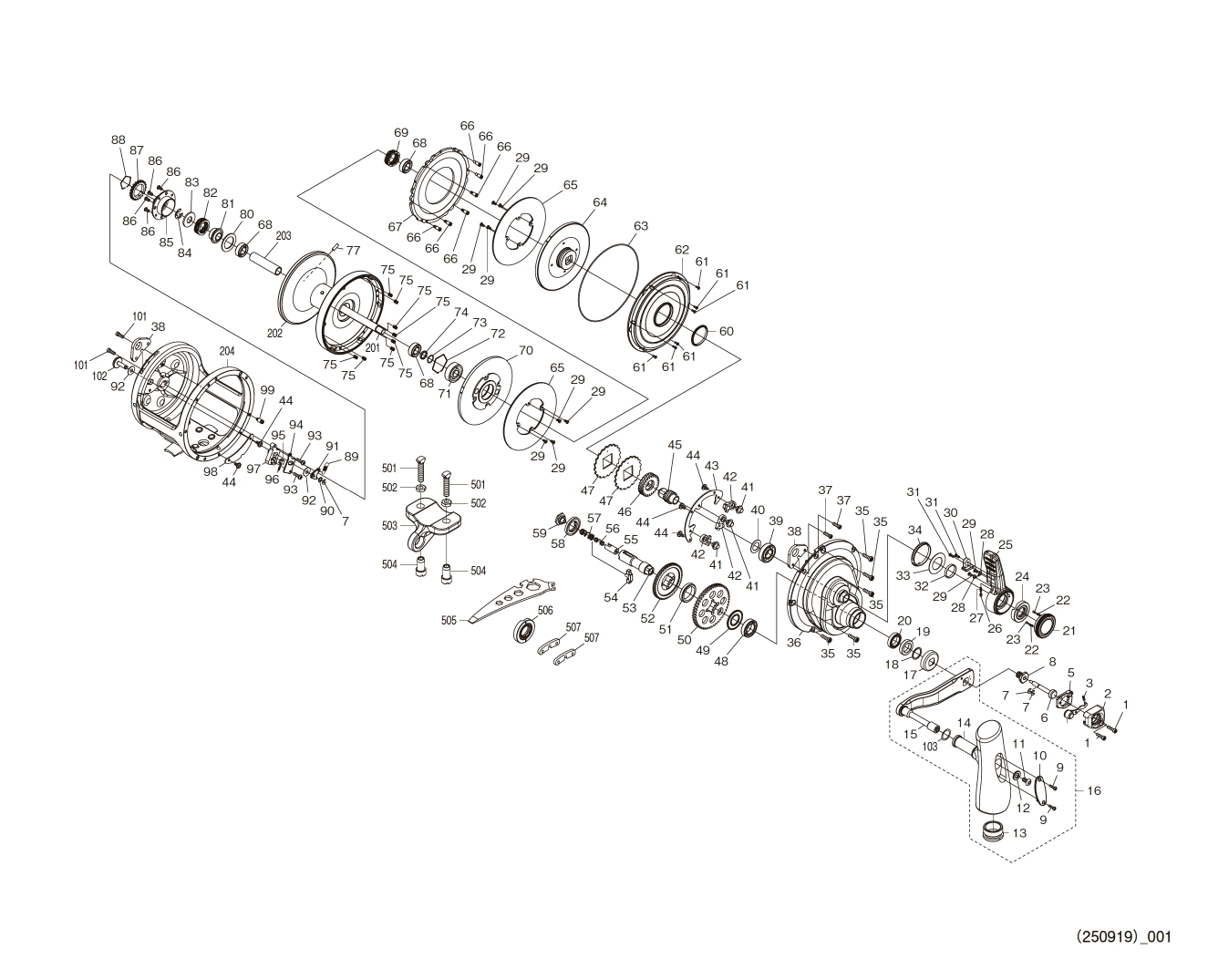

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 13ZQG SET SCREW 1.65
2 13ZQH RETAINER COVER 26.95
3 10PWJ LOCK PLATE SPRING 1.65
4 13ZRS LOCK PLATE ASSEMBLY 6.60
5 10PBN RETAINER 1.65
6 109XB PUSH ROD 6.05
7 105NK E-TYPE RETAINING RING 2.5 1.10
8 106XP HANDLE SET SCREW 6.05
9 14AZ1 SET SCREW 1.10
10 14AZ2 HANDLE KNOB NAMEPLATE 2.20
11 14AZ3 SET SCREW 1.10
12 14960 WASHER 1.65
13 10EU1 HANDLE KNOB BUSHING 6.05
14 14AZ4 HANDLE KNOB 49.50
15 14AR9 HANDLE SHAFT ASSEMBLY 66.00
16 14ARA HANDLE ASSEMBLY 121.00
17 10KZS HANDLE MOUNT 3.85
18 141QR WASHER 1.10
19 109AS DRIVE GEAR BEARING 11.55
20 108PH BALL BEARING (12X18X4) 13.75
21 14ARB PRESET KNOB ASSEMBLY 25.30
22 10K07 CLICK SPRING 1.65
23 10JX6 CLICK PIN 1.65
24 141Q0 DRAG CAM 19.80
25 14ARC DRAG LEVER ASSEMBLY 110.00
26 13ZQM CLICK PIN 1.10
27 10C3X CLICK SPRING 1.65
28 13ZQN DRAG LEVER CLICK PIN COVER 1.65
29 10S65 SET SCREW 1.10
30 1497C LEVER PROTECTOR 1.10
31 13ZQQ SET SCREW 1.10
32 108DP DRAG LEVER BUSHING 1.65
33 10G6G WASHER 1.65
34 10F6C LEVER CLICK GEAR 1.65
35 148UZ SET SCREW 1.65
36 14ARD MAIN BODY A ASSEMBLY 275.00
37 10M6X SET SCREW 1.65
38 10PYJ HARNESS 17.05
39 104JP BALL BEARING (10X22X6) 13.75
40 1496G WASHER 1.10
41 10PFS STOPPER MOUNTING SHAFT 2.20
42 10MWC STOPPER TAB ASSEMBLY 3.85
43 10KVH STOPPER MOUNTING PLATE 2.75
44 1055F MOUNTING BOLT 1.65
45 1496E PINION GEAR (A) 24.20
46 1496B PINION GEAR (B) 33.00
47 10DAQ STOPPER GEAR 3.85
48 10KXA BALL BEARING (12X21X5) 17.05
49 13ZQW DRIVE GEAR WASHER 9.35
50 1497D DRIVE GEAR (A) 44.00
51 10D61 MAIN GEAR WASHER (C) 1.65
52 1497G DRIVE GEAR (B) 33.00
53 10D6P DRIVE GEAR SHAFT 22.55
54 10KXH LOCK PIN 6.05
55 10KXL LOCK PIN HOLDER 1.65
56 109VM LOCK PIN SPRING 1.10
57 10KXQ MAIN GEAR SHAFT SPRING 1.65
58 10D5B MAIN GEAR WASHER (A) 1.65
59 10FCD MAIN GEAR SHAFT MOUNTING BOLT 2.75
60 10EYP WATERPROOF SEAL 3.85
61 10PRU MOUNTING BOLT 1.65
62 1496K WATERPROOF COVER 4.95
63 1495X O-RING 3.85
64 1496F PINION GEAR COLLAR 26.95
65 1496P DRAG WASHER 26.95
66 1496L MOUNTING BOLT 2.75
67 1496R DRAG PLATE 40.15
68 10KXE BALL BEARING (8X16X5) 13.75
69 1496N SPOOL SHAFT SPRING 2.20
70 1496W DRAG PLATE SUPPORT 26.40
71 10BMF BALL BEARING (8X22X7) 13.75
72 14963 BEARING RETAINER 1.10
73 13B0R WASHER 1.10
74 1496U BEARING SPACER 1.65
75 10KJ6 ONE-TOUCH LEVER SPRING 1.10
77 13ZRC SPOOL SHAFT PIN 1.10
80 14962 WASHER 1.65
81 1496A DRAG SPRING SPACER 4.40
82 1496Y DRAG SPRING 3.85
83 14961 WASHER 1.65
84 105RZ E-TYPE RETAINING RING 6 1.10
85 1496M CLICK GEAR RETAINER 2.75
86 103E9 SET SCREW 1.10
87 1496H CLICK GEAR 5.50
88 1495W CLICK GEAR RETAINING RING 1.10
89 14BG3 CLICK SPRING 1.65
90 10J16 WASHER 1.10
91 14964 CLICK PAWL 2.75
92 104H2 CLICK BUTTON WASHER (A) 1.10
93 10LZL SET SCREW 1.10
94 14966 CLICK PUSH PLATE 1.65
95 14967 CLICK SPRING HOLDER 1.10
96 14965 CLICK SPRING 1.10
97 14969 CLICK BEARING 1.10
98 14970 MAIN BODY MOUNTING PLATE 6.05
99 14973 CLICK SPRING MOUNTING SHAFT 2.75
101 10M6T SET SCREW 2.75
102 14968 CLICK BUTTON 7.70
103 1458J WASHER 1.10
201 14937 SPOOL SHAFT 12.10
202 14ARG SPOOL ASSEMBLY 220.00
203 14938 SPOOL SHAFT COLLAR 6.05
204 14ARH FRAME ASSEMBLY 407.00
501 10J9W ROD CLAMP BOLT 7.15
502 10JCG ROD CLAMP NUT (B) 3.85
503 10J9P ROD CLAMP 11.55
504 10JC3 ROD CLAMP NUT (A) 3.85
505 10MJ8 REEL WRENCH 3.85
506 141Q2 DRAG CAM (LIGHT LINE CAM) 26.40
507 10AAB HARNESS PLUG 6.05
