[SHIMANO] Genuine Spare Parts for 26 GRAPPLER 301HG LEFT Product code: 049742 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

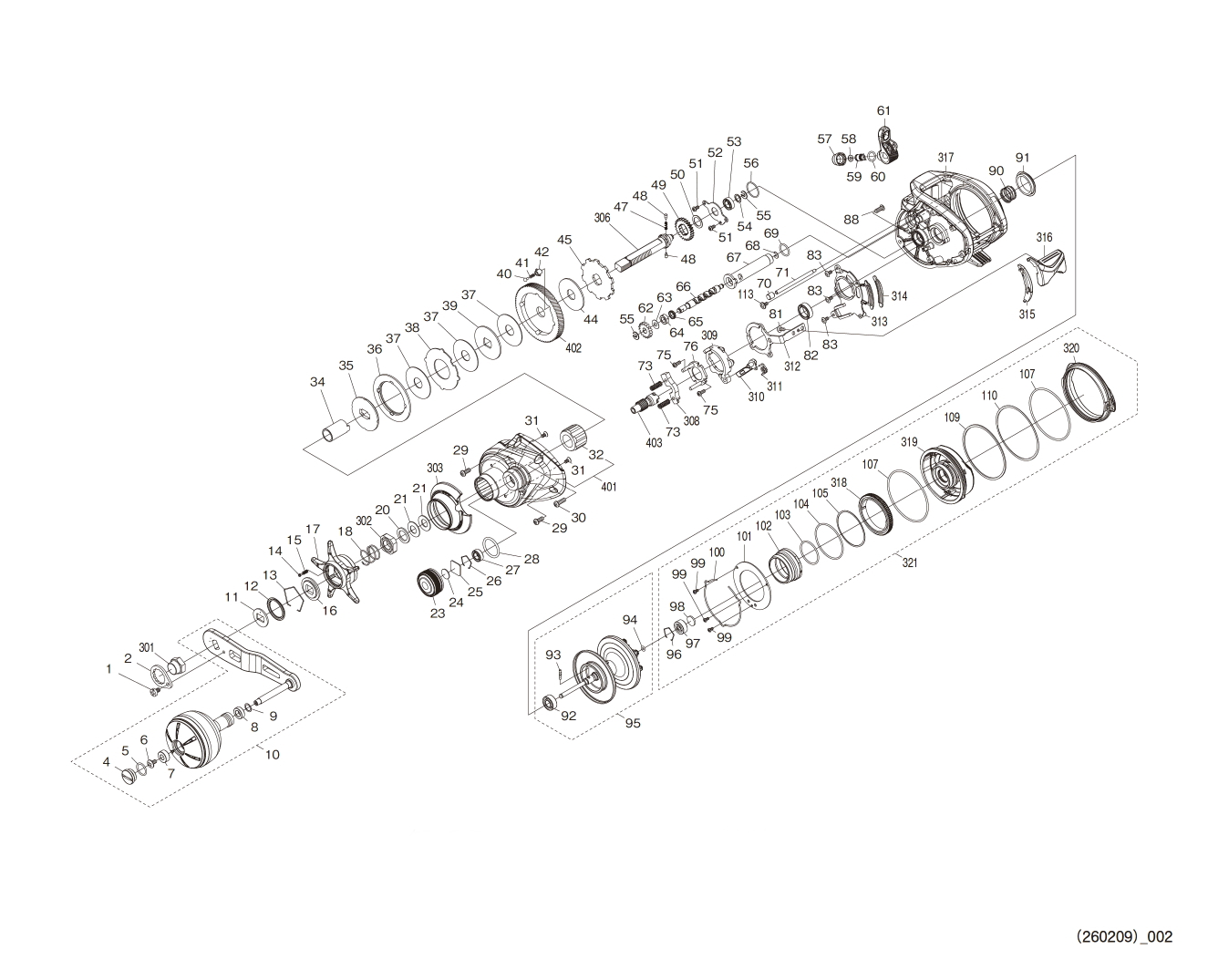

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "32 / ROLLER CLUTCH BEARING", "93 /SPOOL CLUTCH PIN", "92 /BALL BEARING", "BRKS /BRAKE SHOE M" and "BST1 /BRAKE SHAFT", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	13NXD	SET SCREW	1.10
2	13VAD	RETAINER	2.75
4	10B2C	HANDLE CAP	6.05
5	10LAB	O-RING	1.10
6	103E9	SET SCREW	1.10
7	10EU0	HANDLE GRIPPED BUSH (A)	1.65
8	104UJ	HANDLE GRIPPED BUSH (B)	1.65
9	104FH	WASHER	2.20
10	14CCM	HANDLE ASSEMBLY	88.00
11	10QVN	HANDLE MOUNT WASHER	1.65
12	10QVP	STAR DRAG SEAL	2.75
13	10KXW	STAR DRAG CLICK PLATE RETAINER	1.65
14	10MFC	CLICK PIN	1.65
15	10BT2	CLICK SPRING	1.65
16	10J26	STAR DRAG CLICK PLATE	1.65
17	14CC9	STAR DRAG	23.10
18	10A70	STAR DRAG SPRING	2.75
20	10J1P	STAR DRAG SPACER	2.75
21	109LA	SALA SPRING (DB-8H)	1.65
23	14CCD	MECHANICAL BRAKE KNOB	16.50
24	10896	MECHANICAL BRAKE WASHER	1.10
25	148DJ	MECHANICAL BRAKE WASHER	1.65
26	148DK	BEARING RETAINER	1.10
27	105BR	BALL BEARING (5X9X3)	13.75
28	108WK	O-RING SM14	1.65
29	10TLW	SET SCREW	1.10
30	10L6E	SET SCREW	1.65
31	13NWK	SET SCREW	1.10
32	10F37	ROLLER CLUTCH BEARING *Cannot be ordered	17.05
34	145RZ	ROLLER CLUTCH INNER TUBE	12.65
35	10D54	STAR DRAG PLATE	3.85
36	10JAZ	DRAG CLICK RATCHET	1.65
37	1064S	STAR DRAG WASHER	6.05
38	13V9P	STAR DRAG WASHER	1.65
39	13V9N	STAR DRAG PLATE	1.65
40	13UDK	DRAG CLICK PIN	2.75
41	13VFP	DRAG CLICK SPRING	1.65
42	10J58	DRAG SPRING HOLDER	1.65
44	1025A	STAR DRAG WASHER	6.05
45	145SG	STOPPER GEAR	2.75
47	10JDZ	SPRING FOR WORM SHAFT GEAR	1.65
48	10HJG	PIN FOR WORM SHAFT GEAR	1.65
49	10J47	WORM SHAFT GEAR	2.75
50	10GR7	WASHER	1.10
51	10S3Y	SET SCREW	1.10
52	145S6	DRIVE GEAR SHAFT RETAINING PLATE	1.65
53	105BP	BALL BEARING (5X9X3)	13.75
54	10G6D	WASHER	1.65
55	105NK	E-TYPE RETAINING RING 2.5	1.10
56	10LA8	O-RING	1.65
57	10FJB	LEVEL WIND RECEIVER	1.65
58	10CFU	WASHER	1.10
59	10BHQ	WORM SHAFT PIN	2.75
60	108WQ	O-RING	1.65
61	10R7V	LEVEL WIND ASSEMBLY	13.75
62	1024Q	WORM SHAFT GEAR	2.75
63	10C47	MAIN GEAR SHAFT WASHER	1.10
64	10PXZ	HANDLE KNOB BUSHING	1.65
65	1024R	WORM SHAFT SEAL	3.85
66	146AP	WORM SHAFT	1.65
67	145SF	LEVEL WIND PIPE	1.65
68	105NC	E-TYPE RETAINING RING 2	1.10
69	101GT	O-RING	1.65
70	14694	LEVEL WIND GUIDE RETAINING PLATE	1.10
71	145S1	LEVEL WIND GUIDE	1.65
73	104BC	CLUTCH YOKE SPRING	1.10
75	10LVJ	SET SCREW	1.10
76	10QVM	CLUTCH CAM SUPPORT PLATE	3.85
81	10LCL	SET SCREW	1.10
82	105BT	BALL BEARING (8X12X3.5)	13.75
83	10SUT	SET SCREW	1.65
88	101WJ	SET SCREW	1.65
90	10EZE	BB SUPPORT SPRING	1.65
91	1024L	FRAME CENTER SEAL	2.75
92	105CA	BALL BEARING (5X11X4) *Cannot be ordered	13.75
93	10MD1	SPOOL CLUTCH PIN *Cannot be ordered	1.10
94	10EZ7	O-RING	1.10
95	14CCS	SPOOL ASSEMBLY	82.50
96	1054D	BEARING RETAINER	1.10
97	105C2	BALL BEARING (3X10X4)	13.75
98	10EX5	SPOOL SHAFT STOP B	1.10
99	10E7R	SET SCREW	1.10
100	145S0	CAM LEVER RETAINING RING	1.65
101	147J3	PARTS	3.30
102	148DF	BRAKE PIPE GEAR ASSEMBLY	22.00
103	146GJ	O-RING	1.65
104	10MLU	O-RING	3.85
105	146HL	WASHER	1.10
107	145SP	O-RING	2.20
109	146HN	WASHER	2.20
110	146HP	WASHER	1.10
113	10MPD	SET SCREW	1.10
301	10R3C	HANDLE SET NUT	2.75
302	10R3H	STAR DRAG SET NUT	6.05
303	148Q0	PARTS	2.20
306	146J9	DRIVE GEAR SHAFT	15.95
308	1046Y	CLUTCH YOKE	1.65
309	10225	CLUTCH CAM	2.75
310	1021U	CLUTCH PAWL	9.35
311	1021T	CLUTCH PAWL SPRING	1.65
312	1021Z	CLUTCH PLATE	4.95
313	10227	MAIN BODY A SEAT	3.85
314	1021Y	CLUTCH LEVER SEAL	3.85
315	146J8	CLUTCH LEVER MOUNT (B)	1.65
316	1021W	CLUTCH LEVER	6.05
317	14DJJ	FRAME ASSEMBLY	110.00
318	147BQ	BRAKE DIAL	3.30
319	14DJK	FRAME B MOUNT ASSEMBLY	31.90
320	147HQ	PARTS	11.55
321	14DJH	MAIN BODY B ASSEMBLY	49.50
401	14CFQ	MAIN BODY A ASSEMBLY	70.40
402	14CFB	DRIVE GEAR	33.00
403	14CFC	PINION GEAR	14.30
BRKS	1019F	BRAKE SHOE M *Cannot be ordered	1.10
BST1	13SFU	BRAKE SHAFT *Cannot be ordered	1.10
