[SHIMANO] Genuine Spare Parts for 26 OCEA CONQUEST FT 61MG LEFT Product code: 049186 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

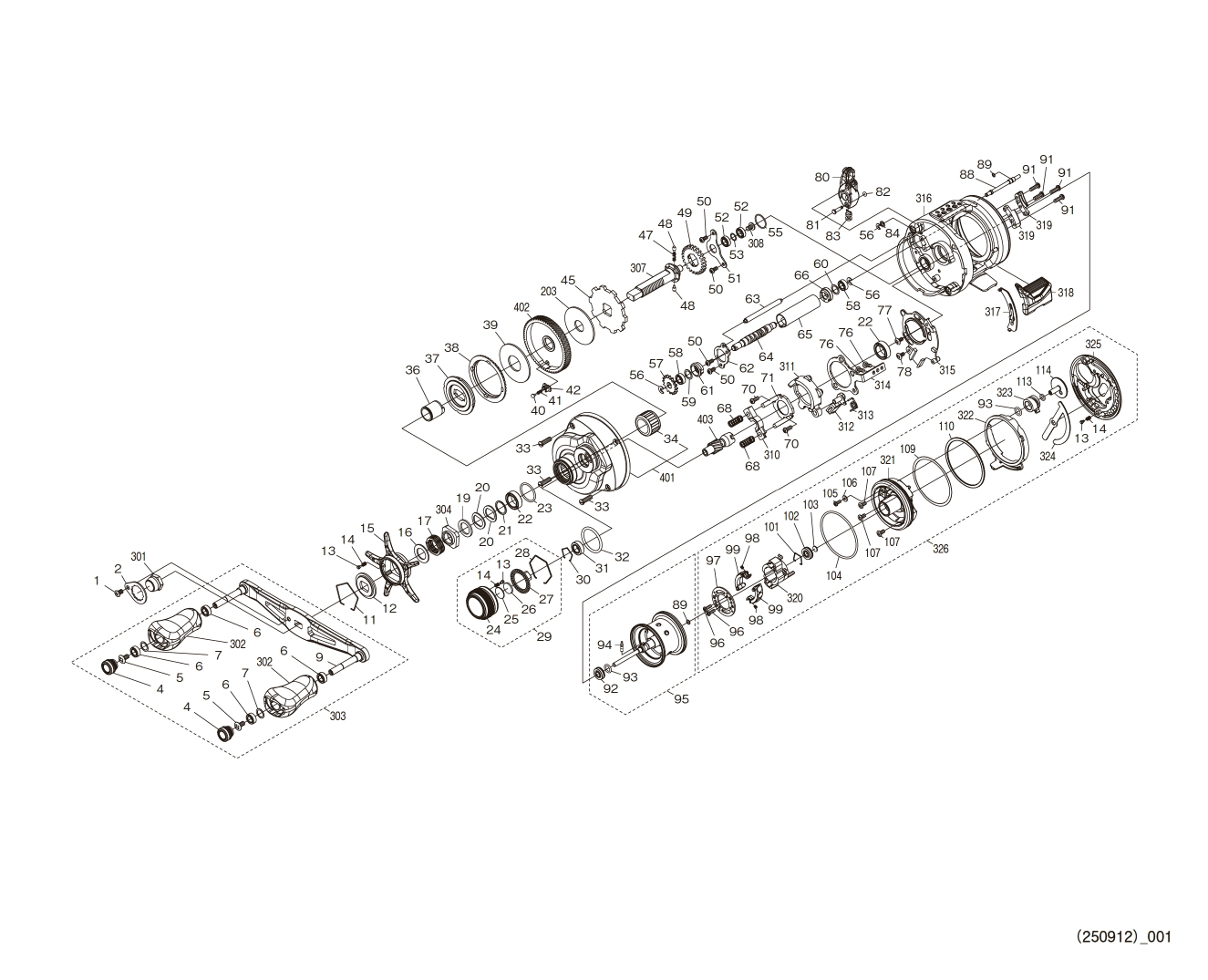

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "34 / ROLLER CLUTCH", "94 /SPOOL CLUTCH PIN" and "92 /BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	103GY	SET SCREW	2.75
2	1486S	RETAINER	2.75
4	14861	HANDLE CAP	6.60
5	103E9	SET SCREW	1.10
6	104VX	BALL BEARING (4X7X2.5)	13.75
7	104FH	WASHER	2.20
9	149KZ	HANDLE SHAFT ASSEMBLY	58.30
11	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
12	10J1Y	STAR DRAG CLICK PLATE	1.65
13	10B27	CLICK PIN	1.65
14	10988	CLICK SPRING	1.65
15	13Y87	STAR DRAG	22.00
16	100CU	WASHER	1.10
17	10A71	STAR DRAG SPRING	2.75
19	10J1N	STAR DRAG SPACER	1.65
20	10D60	MAIN GEAR WASHER (C)	1.65
21	105PW	STAR DRAG BEARING WASHER	1.10
22	10EX8	BALL BEARING (8X12X3.5)	13.75
23	1027V	O-RING	1.65
24	14A34	MECHANICAL BRAKE KNOB	23.10
25	10896	MECHANICAL BRAKE WASHER	1.10
26	1057S	SPOOL SHAFT STOP (B)	1.10
27	10L2F	MECHANICAL BRAKE KNOB CLICK PLATE	2.75
28	10L6X	MECHANICAL BRAKE KNOB CLICK HOLDER	2.75
29	14CYD	MECHANICAL BRAKE KNOB ASSEMBLY	36.30
30	1057X	RETAINING CLIP	1.65
31	105BP	BALL BEARING (5X9X3)	13.75
32	108W8	O-RING S-16	1.65
33	10C3N	SET SCREW	2.75
34	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
36	14016	ROLLER CLUTCH INNER TUBE	13.75
37	10SNJ	STAR DRAG PLATE	7.15
38	10E9B	DRAG CLICK RATCHET	3.85
39	1027W	STAR DRAG WASHER	9.35
40	10C0T	DRAG CLICK PIN	2.75
41	10J8A	DRAG CLICK SPRING	1.65
42	10J87	DRAG SPRING HOLDER	1.65
45	10R5Z	STOPPER GEAR	2.75
47	10JDX	SPRING FOR WORM SHAFT GEAR	1.65
48	10HJF	PIN FOR WORM SHAFT GEAR	1.65
49	10057	WORM SHAFT GEAR	2.75
50	10U0S	SET SCREW	1.10
51	100GK	DRIVE GEAR SHAFT RETAINING PLATE	1.10
52	10SAM	BALL BEARING (4X7X2)	13.75
53	143KE	WASHER	1.10
55	10SZ4	O-RING	1.65
56	105NC	E-TYPE RETAINING RING (2)	1.10
57	10FNX	WORM SHAFT GEAR	2.75
58	10PXY	HANDLE GRIP BUSHING (B)	1.65
59	10G8J	WASHER	1.10
60	10G8G	WASHER	1.10
61	10N9Q	WORM SHAFT RETAINER (A)	1.65
62	10T7S	WORM SHAFT RETAINER	1.10
63	13Y89	LEVEL WIND GUIDE	3.85
64	100GT	WORM SHAFT	5.50
65	13Y8A	LEVEL WIND PIPE	7.15
66	104SP	WORM SHAFT RETAINER (B)	1.65
68	13Y8B	CLUTCH YOKE SPRING	1.10
70	101CN	SET SCREW	1.65
71	10F42	CLUTCH CAM PRESSURE PLATE	3.85
76	10559	SET SCREW	1.65
77	100BD	SET SCREW	1.65
78	10MPS	SET SCREW	1.65
80	10TED	LEVEL WIND ASSEMBLY	51.70
81	100GC	WORM SHAFT PIN RETAINER	1.10
82	10908	O-RING	1.65
83	100GJ	WORM SHAFT PIN	4.40
84	10GA7	WASHER	1.10
88	13Y8E	LINE GUARD	3.85
89	10E7H	O-RING	1.10
91	10TP0	SET SCREW	1.10
92	1005D	BALL BEARING (5X11X4) *Cannot be ordered	13.75
93	10TNF	O-RING	1.65
94	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
95	14CYG	SPOOL ASSEMBLY	88.00
96	10EEA	SET SCREW	1.10
97	10TK4	BRAKE MOUNTING PLATE	3.85
98	10DGJ	BRAKE COIL SPRING	1.10
99	10E7E	MAGNET HOLDER ASSEMBLY	29.70
101	101A9	BEARING RETAINER	1.10
102	10RUC	BALL BEARING (3X8X2.5)	15.95
103	1085H	MECHANICAL BRAKE WASHER	1.10
104	1006P	O-RING	1.65
105	13Y8F	SET SCREW	1.65
106	13Y8G	WASHER	1.10
107	13Y8H	SET SCREW	1.65
109	145PV	WASHER	1.10
110	10T02	WASHER	2.75
113	10CFZ	O-RING	1.65
114	13Y8L	BRAKE DIAL	31.35
203	10CJ4	STAR DRAG WASHER (A)	3.85
301	14864	HANDLE LOCK NUT	6.60
302	101EW	HANDLE KNOB	11.00
303	14CYK	HANDLE ASSEMBLY	99.00
304	10A0C	STAR DRAG LOCK NUT	2.75
307	13ULL	DRIVE GEAR SHAFT	13.20
308	10DR5	SET SCREW	1.10
310	1046U	CLUTCH YOKE	1.65
311	10SKS	CLUTCH CAM	2.75
312	105ZV	CLUTCH PAWL	3.85
313	14026	CLUTCH PAWL SPRING	1.65
314	13TD2	CLUTCH PLATE	2.20
315	13UEF	MAIN UNIT A SEAT	1.65
316	14CYM	FRAME ASSEMBLY	220.00
317	13TD3	CLUTCH LEVER MOUNT	1.10
318	10282	CLUTCH LEVER ASSEMBLY	7.70
319	13Y8D	FRAME B CAM MOUNT	1.10
320	10EEK	BRAKE MOUNTING BRACKET	3.30
321	13Y85	FRAME B MOUNT ASSEMBLY	38.50
322	13Y8J	MAIN UNIT B CAM LEVER	1.10
323	13Y8K	BRAKE CAM	2.75
324	13Y8M	MAIN UNIT B SEAL	1.10
325	14A38	MAIN UNIT B	66.00
326	14CYN	MAIN UNIT B ASSEMBLY	143.00
401	14CYP	MAIN UNIT A ASSEMBLY	148.50
402	13UWV	DRIVE GEAR	28.05
403	14A3C	PINION GEAR	22.55
