[ABU] Genuine Spare Parts for REVO ELITE GUNMETAL Product code: 1135483 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

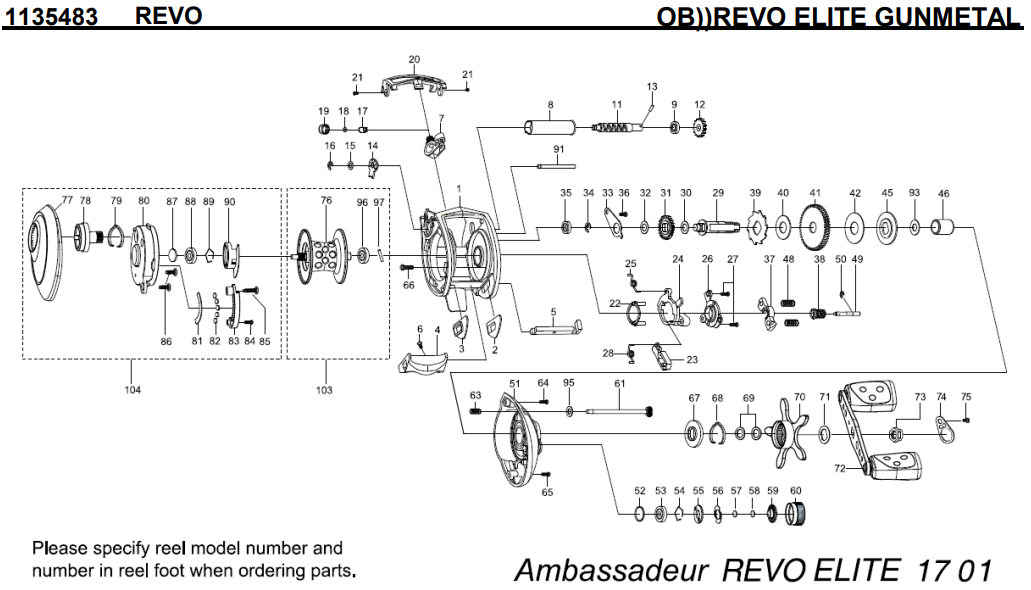

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
1	1137322	FRAME	44.00
2	1124742	SLIDE WASHER	1.10
3	1124743	SLIDE WASHER	1.10
4	1125803	THUMBAR	3.30
5	1124745	THUMBAR SHAFT	1.65
6	1124746	THUMBAR SCREW	0.55
7	1128193	LINEGUIDE	5.50
8	1132901	LEVEL WIND TUBE	3.30
9	1132853	BALL BEARING	6.60
11	1132903	WORM SHAFT	16.50
12	1125732	WORM SHAFT GEAR	1.10
13	1125733	WORM SHAFT PIN	0.55
14	1125734	WORM SHAFT PIN HOLDER	0.77
15	1124178	WASHER	0.55
16	1124201	RETAINER	0.55
17	1125735	PAWL	3.30
18	1125736	WASHER	0.55
19	1116194	LINE GUIDE NUT	0.77
20	1137345	FRONT COVER	5.50
21	1125738	SCREW	0.55
22	1125739	YOKE HOLDER	1.10
23	1156749	KICK LEVER	1.65
24	1125741	LIFT CURVE	3.30
25	1125742	CLUTCH SPRING	0.55
26	1203786	CLUTCH PLATE	3.30
27	1125744	SCREW	0.55
28	1125745	KICK LEVER SPRING	0.55
29	1132912	MAIN GEAR SHAFT	11.00
30	1125747	WASHER	0.55
31	1125748	LEVEL WIND GEAR	1.10
32	1125749	WASHER	0.55
33	1125750	MAINGEAR SHAFT PLATE	2.20
34	1124201	RETAINER	0.55
35	1132857	BALL BEARING	6.60
36	1125752	SCREW	0.55
37	1125753	YOKE	1.10
38	1132914	PINION 6,4	11.00
39	1125756	RATCHET	1.65
40	1125757	DRAG WASHER	2.20
41	1132915	MAIN GEAR 6,4	22.00
42	1139229	DRAG WASHER	0.77
45	1125763	PRESURE WASHER	1.65
46	1132916	IAR SLEEVE	2.20
48	1116237	YOKE SPRING	0.55
49	1125766	PINION SHAFT	5.50
50	1116226	RETAINER	0.55
51	1137324	GEAR SIDE COVER	27.50
52	1185714	O-RING	0.55
53	1128194	BALLBEARING	8.80
54	1104790	RING	0.55
55	1125768	CLICK WASHER	1.10
56	1125769	CLICK SPRING	1.65
57	1125770	FRICTION WASHER	0.55
58	1125771	RUBBER WASHER	0.55
59	1125772	CLICK WASHER	1.10
60	1132920	BRAKE KNOB	11.00
61	1132922	CAMLOCK SCREW	2.20
63	1125775	SPRING	0.55
64	1125776	SCREW	0.55
65	1125777	SCREW	0.55
66	1125778	SCREW	0.55
67	1132925	CLICK SPRING HOLDER	1.65
68	1125780	CLICK SPRING	0.77
69	1117208	SPRING WASHER	0.55
70	1125814	STAR WHEEL	13.20
71	1185798	HANDLE WASHER	0.55
72	1137326	HANDLE	33.00
73	1132928	HANDLE NUT	2.20
74	1132929	HANDLE NUT COVER	1.65
75	1132930	SCREW *Cannot be ordered	2.20
76	1201446	SPOOL	38.50
77	1137328	PALMING SIDE COVER	33.00
78	1132933	MAG DIAL	3.30
79	1125791	CLICK SPRING	1.10
80	1125792	BEARING HOUSING	16.50
81	1125793	MAGNET PLATE	2.20
82	1116222	MAGNET	2.20
83	1125794	MAGNET HOLDER	2.20
84	1116206	SCREW	0.55
85	1125821	SCREW	0.55
86	1125822	SCREW	0.55
87	1125797	WASHER	0.55
88	1128194	BALLBEARING	8.80
89	1104790	RING	0.55
90	1125798	MAGNET PLATE	2.20
91	1125799	LINE GUIDE SHAFT	1.65
93	1139230	WASHER	0.55
95	1133903	WASHER	0.55
96	1144215	BALL BEARING	8.80
97	1192826	SPOOL SHAFT PIN	2.20
103	1192829	SPOOL COMPLETE (1132931) *Cannot be ordered	55.00
104	1201469	PALMING	107.25

* Items Marked “For Repair Use Only” Are Not Available for Individual Parts Sales

Order Flow

(STEP 1: Customer)
Please add the ordered parts from the parts list to your cart and complete the payment together with the Commission for [SHIMANO / DAIWA / ABU] Back-order Genuine Parts (US$5.00).
↓
(STEP 2: Our Shop)
We review your order details and place the order with the manufacturer.
↓
(STEP 3: Manufacturer)
Only for parts that are not in stock, we will receive a notification from the manufacturer approximately one week later.
Parts that are in stock will arrive at our shop in about one month.
* If all ordered parts are in stock, there will be no notification from the manufacturer or our shop until the shipment is dispatched. Please wait until shipping.
↓
(STEP 4: Our Shop)
Once the parts arrive from the manufacturer, we will dispatch your order.

* Please note that it generally takes about one month for genuine spare parts to arrive.
* If you order both back-ordered items and in-stock items together, they will be shipped together after all back-ordered items arrive.
* If you would like to receive in-stock items first, please place and pay for each order separately.

* The parts list pages will be expanded gradually.
If the parts list for your reel is not yet available, please place your order by manually entering the details using the order form below.

Genuine Spare Parts Order Form
https://www.hedgehog-studio.co.jp/form/parts

Regarding What You Can and Cannot Order for the Spare Parts

We source and provide genuine spare parts for SHIMANO / DAIWA / ABU reels only from the official Japanese websites listed below.
(We cannot assist with translating these websites. Please use Google Translate or other translation tools if necessary.)

| Parts that CANNOT be Ordered

- Spare parts for certain reel models (mainly older models) marked as “Unrepairable” on the SHIMANO website.

https://www.shimanofishingservice.jp/price.php

- Spare parts marked as “Just for Repair,” “Suspended,” or “Discontinued” on the DAIWA website.

http://www.sl-planets.co.jp/shop/c/

- Spare parts that do not have a part number or part code shown in the schematic diagrams on the SHIMANO / DAIWA websites.

- Spare parts marked as “For Repair Only” on the ABU website.

https://pfj-parts.com/
Please note that even for discontinued ABU reel models, parts may still be ordered if stock is available.

- Parts other than reel-related spare parts, such as rods or other fishing gear.
