[ABU] Genuine Spare Parts for REVO BIGSHOOTER HS Product code:1239079 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

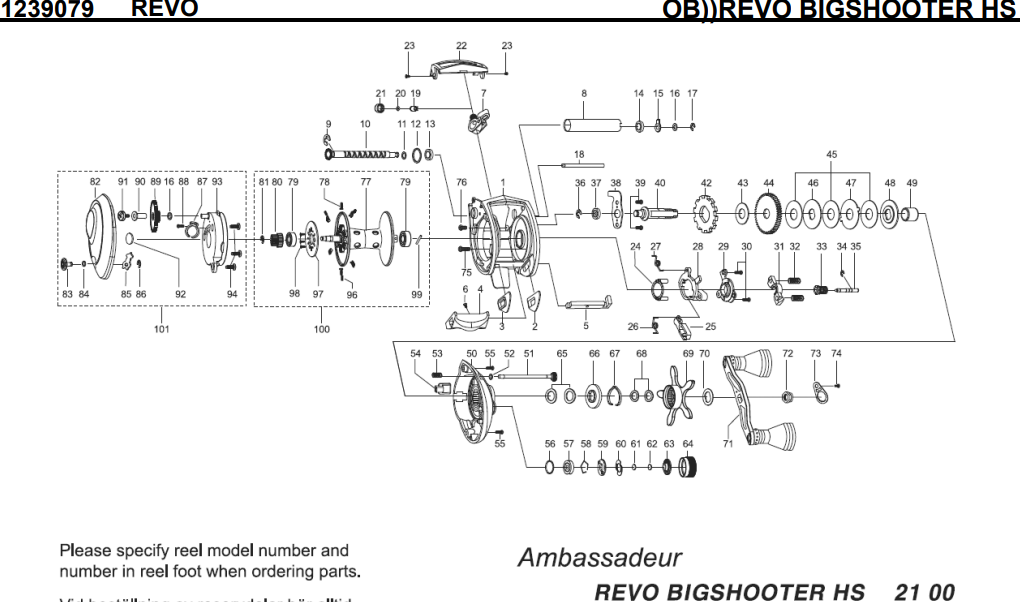

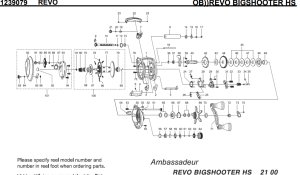

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
1	1203371	FRAME(K)	88.00
2	1203372	SLIDE WASHER	1.76
3	1203373	SLIDE WASHER	1.76
4	1144178	THUMB BAR	3.30
5	1144179	CLUTCH LINK	1.76
6	1124746	THUMBAR SCREW	0.55
7	1203374	LINE GUIDE	5.50
8	1144181	LEVEL WIND TUBE	3.30
9	1144182	RETAINER	1.76
10	1144183	WORM SHAFT	22.00
11	1144184	WASHER	1.76
12	1144185	WASHER	0.55
13	1144186	BALL BEARING	6.60
14	1132853	BALL BEARING	6.60
15	1125734	WORM SHAFT PIN HOLDER	0.77
16	1124178	WASHER	0.55
17	1124201	RETAINER	0.55
18	1144187	LINE GUIDE SHAFT	1.76
19	1144188	PAWL	3.30
20	1125736	WASHER	0.55
21	1144189	LINE GUIDE NUT	2.20
22	1203375	FRONT COVER (K)	5.50
23	1125738	SCREW	0.55
24	1125739	YOKE HOLDER	1.10
25	1156749	KICK LEVER	1.65
26	1125745	KICK LEVER SPRING	0.55
27	1125742	CLUTCH SPRING	0.55
28	1125741	LIFT CURVE	3.30
29	1125743	CLUTCH PLATE	3.30
30	1125744	SCREW	0.55
31	1125753	YOKE	1.10
32	1203376	YOKE SPRING	0.55
33	1203377	PINION(K)	11.00
34	1116226	RETAINER	0.55
35	1125766	PINION SHAFT	5.50
36	1124201	RETAINER	0.55
37	1132857	BALL BEARING	6.60
38	1144192	MAIN GEAR SHAFT PLATE(K)	13.20
39	1125752	SCREW	0.55
40	1144193	MAIN GEAR SHAFT(K)	13.20
42	1144195	RATCHET	1.65
43	1144196	DRAG WASHER	1.76
44	1204949	DRIVE GEAR	16.50
45	1204950	Carbon washer	2.20
46	1204951	D WASHER	1.65
47	1204952	A WASHER	1.65
48	1204953	PRESSURE WASHER	1.65
49	1144202	IAR SLEEVE	2.20
50	1245803	GEAR SIDE PLATE	33.00
51	1144204	CAM LOCK SCREW	2.20
52	1133903	WASHER	0.55
53	1144205	SPRING	0.55
54	1203388	LUBE PORT	1.65
55	1144207	SCREW	1.76
56	1185714	O-RING	0.55
57	1132859	BALL BEARING	6.60
58	1104790	RING	0.55
59	1125768	CLICK WASHER	1.10
60	1125769	CLICK SPRING	1.65
61	1125770	FRICTION WASHER	0.55
62	1125771	RUBBER WASHER	0.55
63	1125772	CLICK WASHER	1.10
64	1245805	BRAKE KNOB	6.60
65	1144209	SPRING WASHER	1.76
66	1125779	CLICK SPRING HOLDER	1.65
67	1125780	CLICK SPRING	0.77
68	1117208	SPRING WASHER	0.55
69	1245806	STAR WHEEL	22.00
70	1144211	HANDLE WASHER	0.55
71	1245808	HANDLE COMPLETE	49.50
72	1203392	HANDLE NUT	2.20
73	1132929	HANDLE NUT COVER	1.65
74	1245809	SCREW	0.55
75	1125778	SCREW	0.55
76	1144213	SCREW	1.76
77	1245810	SPOOL (K)	60.50
78	1187888	BRAKE SHOE	0.55
79	1144215	BALL BEARING	8.80
80	1124226	SPOOL PINION GEAR	2.20
81	1116226	RETAINER	0.55
82	1203395	PALMING SIDE PLATE	27.50
83	1144217	CLICK BUTTON	6.60
84	1133903	WASHER	0.55
85	1144218	CLICK CLAW	2.20
86	1144219	RETAINER	1.76
87	1144220	CLICK SPRING	2.20
88	1144221	SCREW	1.76
89	1124221	MIDDLE GEAR	2.75
90	1144222	COLLAR	2.20
91	1144223	SCREW	1.76
92	1125797	WASHER	0.55
93	1190580	BEARING HOUSING	16.50
94	1125822	SCREW	0.55
96	1187892	BRAKE SHOE SPRING	0.55
97	1245811	BRAKE WEIGHT COVER	3.30
98	1187891	SCREW	0.55
99	1190582	SPOOL SHAFT PIN	2.20
100	1245812	SPOOL COMPLETE (K)	88.00
101	1203398	L/S COVER	88.00

* Items Marked “For Repair Use Only” Are Not Available for Individual Parts Sales

Order Flow

(STEP 1: Customer)
Please add the ordered parts from the parts list to your cart and complete the payment together with the Commission for [SHIMANO / DAIWA / ABU] Back-order Genuine Parts (US$5.00).
↓
(STEP 2: Our Shop)
We review your order details and place the order with the manufacturer.
↓
(STEP 3: Manufacturer)
Only for parts that are not in stock, we will receive a notification from the manufacturer approximately one week later.
Parts that are in stock will arrive at our shop in about one month.
* If all ordered parts are in stock, there will be no notification from the manufacturer or our shop until the shipment is dispatched. Please wait until shipping.
↓
(STEP 4: Our Shop)
Once the parts arrive from the manufacturer, we will dispatch your order.

* Please note that it generally takes about one month for genuine spare parts to arrive.
* If you order both back-ordered items and in-stock items together, they will be shipped together after all back-ordered items arrive.
* If you would like to receive in-stock items first, please place and pay for each order separately.

* The parts list pages will be expanded gradually.
If the parts list for your reel is not yet available, please place your order by manually entering the details using the order form below.

Genuine Spare Parts Order Form
https://www.hedgehog-studio.co.jp/form/parts

Regarding What You Can and Cannot Order for the Spare Parts

We source and provide genuine spare parts for SHIMANO / DAIWA / ABU reels only from the official Japanese websites listed below.
(We cannot assist with translating these websites. Please use Google Translate or other translation tools if necessary.)

| Parts that CANNOT be Ordered

- Spare parts for certain reel models (mainly older models) marked as “Unrepairable” on the SHIMANO website.

https://www.shimanofishingservice.jp/price.php

- Spare parts marked as “Just for Repair,” “Suspended,” or “Discontinued” on the DAIWA website.

http://www.sl-planets.co.jp/shop/c/

- Spare parts that do not have a part number or part code shown in the schematic diagrams on the SHIMANO / DAIWA websites.

- Spare parts marked as “For Repair Only” on the ABU website.

https://pfj-parts.com/
Please note that even for discontinued ABU reel models, parts may still be ordered if stock is available.

- Parts other than reel-related spare parts, such as rods or other fishing gear.
