[ABU] Genuine Spare Parts for REVO LTX-L Product code: 1242949 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

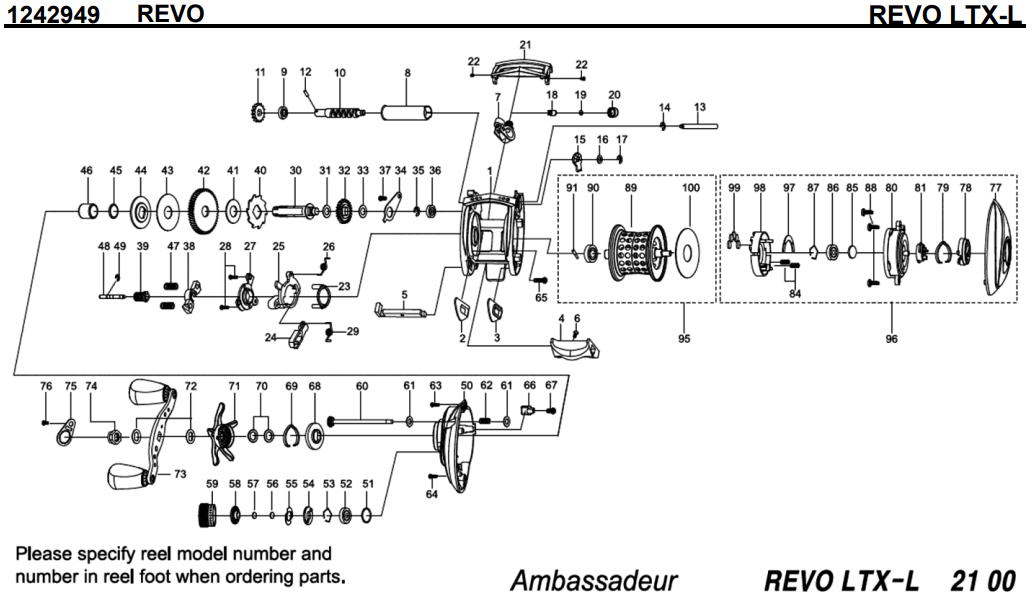

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
1	1257003	FRAME (K)	82.50
2	1125801	SLIDE WASHER	1.10
3	1125802	SLIDE WASHER	1.10
4	1251631	THUMBAR	3.30
5	1127696	THUMBAR SHAFT	1.65
6	1124746	THUMBAR SCREW	0.55
7	1185690	LINE GUIDE	5.50
8	1137750	LEVEL WIND TUBE	3.30
9	1132853	BALL BEARING	6.60
10	1132903	WORM SHAFT	16.50
11	1125732	WORM SHAFT GEAR	1.10
12	1125733	WORM SHAFT PIN	0.55
13	1251632	LINE GUIDE SHAFT	3.30
14	1116226	RETAINER	0.55
15	1125734	WORM SHAFT PIN HOLDER	0.77
16	1124178	WASHER	0.55
17	1124201	RETAINER	0.55
18	1125735	PAWL	3.30
19	1125736	WASHER	0.55
20	1129323	LINE GUIDE NUT	0.77
21	1251633	FRONT COVER (K)	5.50
22	1125738	SCREW	0.55
23	1125739	YOKE HOLDER	1.10
24	1257005	KICK LEVER	1.65
25	1127698	LIFT CURVE	3.30
26	1200009	CLUTCH SPRING	1.76
27	1203787	KICK LEVER	3.30
28	1125744	SCREW	0.55
29	1127701	KICK LEVER SPRING	0.55
30	1196827	MAIN GEAR SHAFT	13.20
31	1125747	WASHER	0.55
32	1251634	LEVEL WIND GEAR	1.76
33	1125749	WASHER	0.55
34	1125750	MAINGEAR SHAFT PLATE	2.20
35	1124201	RETAINER	0.55
36	1132857	BALL BEARING	6.60
37	1125752	SCREW	0.55
38	1127703	YOKE	1.10
39	1257006	PINION(K)	11.00
40	1189341	RATCHET	1.65
41	1125757	DRAG WASHER	2.20
42	1257008	MAIN GEAR (K)	22.00
43	1204950	Carbon washer	2.20
44	1251638	D-WASHER (K)	4.40
45	1144185	WASHER	0.55
46	1239084	SLEEVE	3.30
47	1116237	YOKE SPRING	0.55
48	1125766	PINION SHAFT	5.50
49	1116226	RETAINER	0.55
50	1257012	LEFT SIDE PLATE	49.50
51	1185714	O-RING	0.55
52	1128194	BALLBEARING	8.80
53	1104790	RING	0.55
54	1125768	CLICK WASHER	1.10
55	1125769	CLICK SPRING	1.65
56	1125770	FRICTION WASHER	0.55
57	1125771	RUBBER WASHER	0.55
58	1125772	CLICK WASHER	1.10
59	1252031	BRAKE KNOB	16.50
60	1252781	CAM LOCK SCREW	2.20
61	1133903	WASHER	0.55
62	1125775	SPRING	0.55
63	1125812	SCREW	0.55
64	1257013	SCREW	1.76
65	1257014	SCREW	1.76
66	1257015	LUBE PORT	1.65
67	1257016	SCREW	1.76
68	1132925	CLICK SPRING HOLDER	1.65
69	1125780	CLICK SPRING	0.77
70	1117208	SPRING WASHER	0.55
71	1257018	STAR WHEEL	22.00
72	1185798	HANDLE WASHER	0.55
73	1245816	HANDLE	110.00
74	1214327	HANDLE NUT	2.20
75	1252035	HANDLE NUT COVER	3.30
76	1252036	SCREW	1.76
77	1257021	RIGHT SIDE PLATE	38.50
78	1252038	MAG DIAL	3.30
79	1125791	CLICK SPRING	1.10
80	1252039	BEARING HOUSING	16.50
81	1185732	SILDE CAM	2.20
84	1187623	MAGNET HOLDER SPRING	1.76
85	1125797	WASHER	0.55
86	1128194	BALLBEARING	8.80
87	1104790	RING	0.55
88	1124209	SCREW	0.55
89	1257022	SPOOL (K)	49.50
90	1144215	BALL BEARING	8.80
91	1192826	SPOOL SHAFT PIN	2.20
95	1257023	SPOOL COMPLETE (K)	77.00
96	1257026	RIGHT SIDE PLATE	108.90
97	1252096	MAGNET PLATE	2.20
98	1257067	MAGNET HOLDER	3.30
99	1116222	MAGNET	2.20
100	1257068	SPOOL PLATE	3.30

* Items Marked “For Repair Use Only” Are Not Available for Individual Parts Sales

Order Flow

(STEP 1: Customer)
Please add the ordered parts from the parts list to your cart and complete the payment together with the Commission for [SHIMANO / DAIWA / ABU] Back-order Genuine Parts (US$5.00).
↓
(STEP 2: Our Shop)
We review your order details and place the order with the manufacturer.
↓
(STEP 3: Manufacturer)
Only for parts that are not in stock, we will receive a notification from the manufacturer approximately one week later.
Parts that are in stock will arrive at our shop in about one month.
* If all ordered parts are in stock, there will be no notification from the manufacturer or our shop until the shipment is dispatched. Please wait until shipping.
↓
(STEP 4: Our Shop)
Once the parts arrive from the manufacturer, we will dispatch your order.

* Please note that it generally takes about one month for genuine spare parts to arrive.
* If you order both back-ordered items and in-stock items together, they will be shipped together after all back-ordered items arrive.
* If you would like to receive in-stock items first, please place and pay for each order separately.

* The parts list pages will be expanded gradually.
If the parts list for your reel is not yet available, please place your order by manually entering the details using the order form below.
