[ABU] Genuine Spare Parts for REVO BLACK10-L Product code:1501978 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

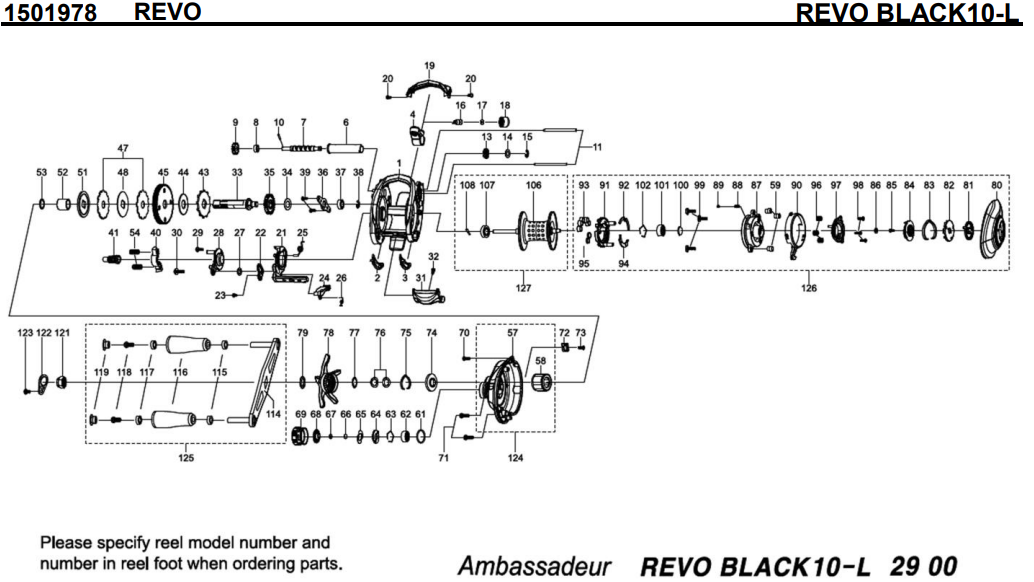

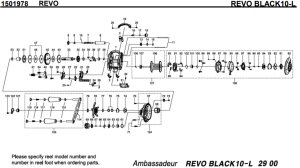

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
1	1499323	FRAME	55.00
2	1415607	SLIDE WASHER	2.20
3	1415608	SLIDE WASHER	2.20
4	1452852	LINE GUIDE	5.50
6	1280905	LEVEL WIND TUBE	3.30
7	1280906	WORM SHAFT	16.50
8	1125729	BALLBEARING	6.60
9	1125732	WORM SHAFT GEAR	1.10
10	1125733	WORM SHAFT PIN	0.55
11	1452762	LINE GUIDE SHAFT	3.30
13	1313359	WORM SHAFT PIN HOLDER	2.20
14	1185695	WORM SHAFT WASHER	1.76
15	1124201	RETAINER	0.55
16	1125806	PAWL	3.30
17	1116193	WASHER	0.55
18	1129323	LINE GUIDE NUT	0.77
19	1452944	FRONT COVER	5.50
20	1452764	SCREW	2.20
21	1452809	CLUTCH CAM	3.30
22	1415619	LINK PLATE	2.20
23	1415620	SCREW	2.20
24	1289971	KICK LEVER	3.30
25	1452810	CLUTCH SPRING	2.20
26	1127701	KICK LEVER SPRING	0.55
27	1185695	WORM SHAFT WASHER	1.76
28	1415661	CLUTCH PLATE	2.20
29	1415622	SCREW	2.20
30	1380616	SCREW	2.20
31	1452767	THUMB BAR	3.30
32	1252078	SCREW	1.76
33	1499324	MAIN GEAR SHAFT	13.20
34	1125747	WASHER	0.55
35	1251634	LEVEL WIND GEAR	1.76
36	1281130	MAIN GEAR SHAFT PLATE	2.20
37	1187625	SPOOL BALL BEARING	8.80
38	1124201	RETAINER	0.55
39	1372152	SCREW	2.20
40	1486242	YOKE	2.20
41	1486243	PINION	16.50
43	1452769	RATCHET	2.20
44	1452770	DRAG WASHER	3.30
45	1486244	MAIN GEAR	27.50
47	1452855	DRAG WASHER	5.50
48	1452856	DRAG WASHER	2.20
51	1452857	PRESSURE WASHER	2.20
52	1257782	SLEEVE	2.20
53	1452773	WASHER	2.20
54	1116237	YOKE SPRING	0.55
57	1514661	GEAR SIDE PLATE	49.50
58	1275594	OWC	27.50
59	1499316	COLLAR	3.30
61	1452775	O-RING	2.20
62	1504566	BALL BEARING	27.50
63	1497606	RING	3.30
64	1125768	CLICK WASHER	1.10
65	1125769	CLICK SPRING	1.65
66	1452776	FRICTION WASHER	1.10
67	1125771	RUBBER WASHER	0.55
68	1452777	CLICK WASHER	2.20
69	1452929	BRAKE KNOB	16.50
70	1452779	SCREW	2.20
71	1452780	SCREW	2.20
72	1415630	LUBE PORT	2.20
73	1252078	SCREW	1.76
74	1125779	CLICK SPRING HOLDER	1.65
75	1125780	CLICK SPRING	0.77
76	1117208	SPRING WASHER	0.55
77	1132935	WASHER	0.55
78	1514662	STAR WHEEL	27.50
79	1125783	WASHER	0.55
80	1514663	PALM SIDE PLATE	38.50
81	1415757	MAG DIAL	3.30
82	1415634	MAG DIAL PLATE	2.20
83	1125780	CLICK SPRING	0.77
84	1415635	SLIDE CAM	3.30
85	1185710	RIGHT SIDE COVER CAP SCREW	0.55
86	1125771	RUBBER WASHER	0.55
87	1452785	BEARING HOUSING	16.50
88	1313372	CLICK PIN SPRING	2.20
89	1313371	CLICK PIN	2.20
90	1452816	CAM LOCK LEVER	3.30
91	1452787	MAGNET HOLDER	3.30
92	1453268	MAGNET PLATE	2.20
93	1116222	MAGNET	2.20
94	1452788	MAGNET PLATE	2.20
95	1302674	MAGNET	4.40
96	1313476	SPRING	2.20
97	1415641	SLIDE CAM	3.30
98	1185710	RIGHT SIDE COVER CAP SCREW	0.55
99	1415622	SCREW	2.20
100	1125797	WASHER	0.55
101	1504568	BALL BEARING	16.50
102	1104790	RING	0.55
106	1514637	SPOOL	60.50
107	1504567	BALL BEARING	16.50
108	1192826	SPOOL SHAFT PIN	2.20
114	1372167	HANDLE	88.00
115	1208088	BUSHING FOR BALL BEARING	2.20
116	1372168	HANDLE KNOB	22.00
117	1281319	BALL BEARING	6.60
118	1281320	SCREW	1.76
119	1308850	HANDLE KNOB CAP	6.60
121	1372176	HANDLE NUT	2.20
122	1203406	HANDLE NUT COVER	1.65
123	1203407	SCREW	0.55
124	1514664	GEAR SIDE COMPLETE	71.50
125	1372160	HANDLE COMPLETE	165.00
126	1514665	PALM SIDE COMPLETE	143.00
127	1514660	SPOOL COMPLETE	77.00

* Items Marked “For Repair Use Only” Are Not Available for Individual Parts Sales

Order Flow

(STEP 1: Customer)
Please add the ordered parts from the parts list to your cart and complete the payment together with the Commission for [SHIMANO / DAIWA / ABU] Back-order Genuine Parts (US$5.00).
↓
(STEP 2: Our Shop)
We review your order details and place the order with the manufacturer.
↓
(STEP 3: Manufacturer)
Only for parts that are not in stock, we will receive a notification from the manufacturer approximately one week later.
Parts that are in stock will arrive at our shop in about one month.
* If all ordered parts are in stock, there will be no notification from the manufacturer or our shop until the shipment is dispatched. Please wait until shipping.
↓
(STEP 4: Our Shop)
Once the parts arrive from the manufacturer, we will dispatch your order.

* Please note that it generally takes about one month for genuine spare parts to arrive.
* If you order both back-ordered items and in-stock items together, they will be shipped together after all back-ordered items arrive.
* If you would like to receive in-stock items first, please place and pay for each order separately.

* The parts list pages will be expanded gradually.
If the parts list for your reel is not yet available, please place your order by manually entering the details using the order form below.

Genuine Spare Parts Order Form
https://www.hedgehog-studio.co.jp/form/parts

Regarding What You Can and Cannot Order for the Spare Parts

We source and provide genuine spare parts for SHIMANO / DAIWA / ABU reels only from the official Japanese websites listed below.
(We cannot assist with translating these websites. Please use Google Translate or other translation tools if necessary.)

| Parts that CANNOT be Ordered

- Spare parts for certain reel models (mainly older models) marked as “Unrepairable” on the SHIMANO website.

https://www.shimanofishingservice.jp/price.php

- Spare parts marked as “Just for Repair,” “Suspended,” or “Discontinued” on the DAIWA website.

http://www.sl-planets.co.jp/shop/c/

- Spare parts that do not have a part number or part code shown in the schematic diagrams on the SHIMANO / DAIWA websites.

- Spare parts marked as “For Repair Only” on the ABU website.

https://pfj-parts.com/
Please note that even for discontinued ABU reel models, parts may still be ordered if stock is available.

- Parts other than reel-related spare parts, such as rods or other fishing gear.
