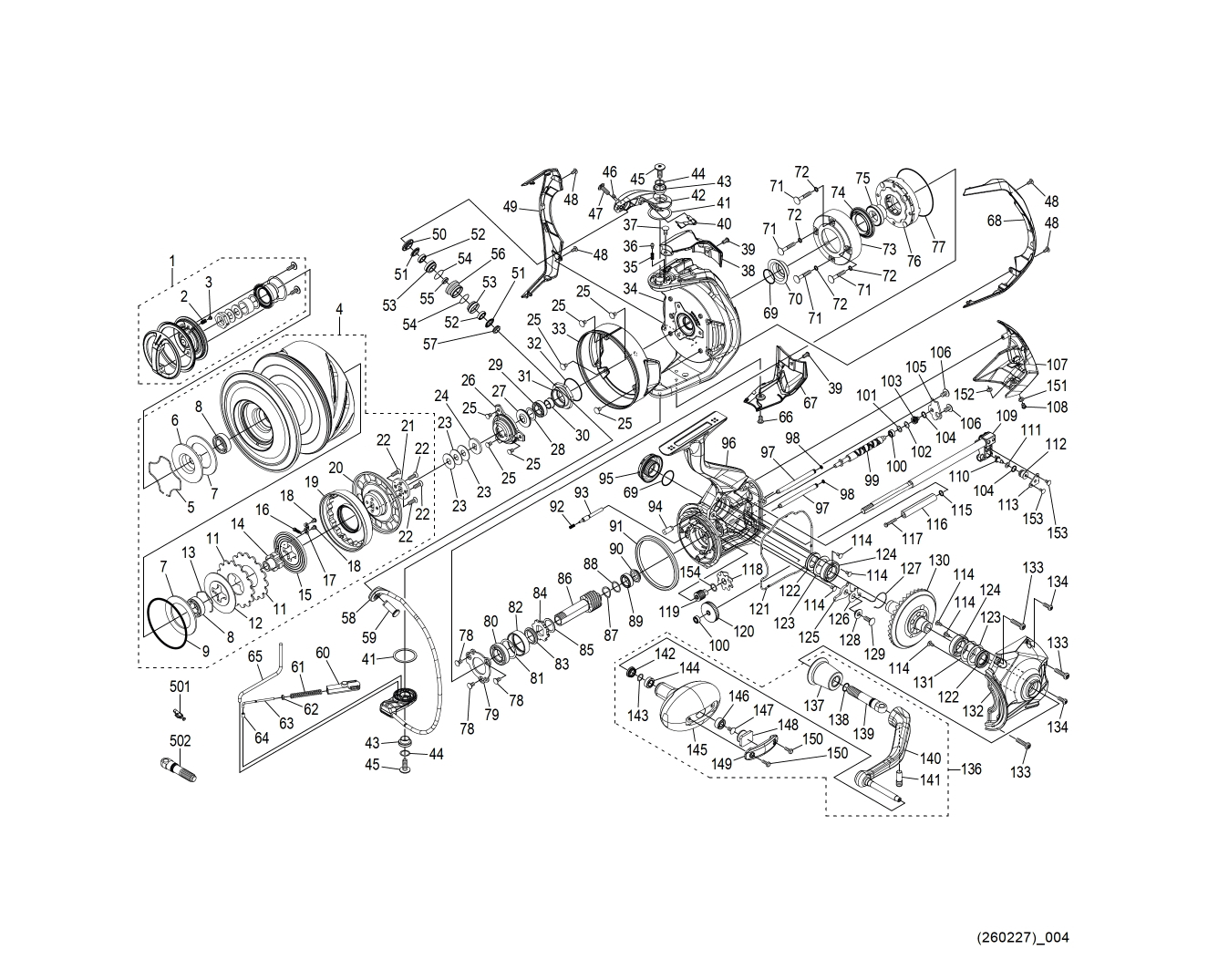

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 14CCV DRAG KNOB ASSEMBLY 138.60
2 1077S BAIL TRIP LEVER CLICK SPRING 1.65
3 10361 CLICK PIN 1.10
4 14CWQ SPOOL ASSEMBLY 363.00
5 14ARP SPOOL RING COLLAR *Cannot be ordered 51.70
6 10SQX O-RING *Cannot be ordered 1.65
7 14ARN SPOOL RING *Cannot be ordered 46.20
8 10B88 RETAINING SPRING 1.65
9 14AS0 OVAL WASHER 17.60
10 146VH DRAG WASHER (A) 33.00
11 10BGD BALL BEARING (9X17X5) 13.75
12 10EAG PIN *Cannot be ordered 1.10
13 108WD O-RING AS568-31 1.10
15 14AS1 DRAG WASHER (B) 33.00
16 14D7J DRAG PLATE (A) 15.40
17 10LWM BEARING RETAINER 1.10
18 14AS2 MAIN SHAFT BEARING GUIDE 16.50
19 10SFD DRAG PLATE (B) 6.05
20 10E90 SPOOL PIN ASSEMBLY 11.55
21 1017R SPRING GUIDE 1.65
22 14A1D SET SCREW 1.10
23 14DUP DRAG COVER ASSEMBLY 44.00
24 10SR1 HEAT SINK 11.55
25 10SQJ SPOOL RETAINER (B) 2.75
26 10MLB SET SCREW 1.10
27 101DM SPOOL WASHER (A) 2.20
28 10J3W SPOOL RETAINER (D) 1.65
29 103LB SET SCREW 1.10
30 10RBZ RETAINER 1.65
31 14AS6 ROTOR BEARING SEAL 5.50
32 10HU1 WASHER 1.10
33 104PS BALL BEARING (8X14X4) 13.75
34 10SR4 ROTOR RETAINER BUSHING 9.35
35 46275 ROTOR NUT 22.55
36 10CG0 O-RING 19.5 1.65
37 10E8M SET SCREW 1.65
38 1487L ROTOR FLANGE 17.60
39 1487D ROTOR 176.00
40 1077Q BAIL TRIP LEVER CLICK SPRING 1.65
41 10CH8 BAIL TRIP LEVER CLICK PIN 1.65
42 10SCS SET SCREW 1.10
43 1487F ARM CAM SPRING COVER 14.30
44 14E8W SET SCREW 2.75
45 149PA ARM CAM FIN ASSEMBLY 5.50
46 10J7H WASHER 1.10
47 1487G ARM CAM 88.00
48 10K7M SET SCREW COLLAR 3.85
49 14A71 WASHER 1.10
50 147FH SET SCREW 2.20
51 10PN1 SET SCREW (M2X3) 1.65
52 10K46 SET SCREW 6.05
53 10MT2 SET SCREW 1.10
54 1487K ROTOR GUARD (B) 3.30
55 146VU LINE ROLLER MOUNT 3.30
56 1016K LINE ROLLER SEAL 1.65
57 104W1 BALL BEARING (5X8X2) 9.35
58 1015A BUSHING 1.65
59 1015S O-RING 1.65
60 1014P SPACER 1.65
61 146VT LINE ROLLER 27.50
62 1014N SPACER 3.85
63 14CCX BAIL ASSEMBLY 99.00
64 10Q3F ARM MOUNTING SHAFT 9.35
65 10SEN ARM SPRING GUIDE (B) 1.65
66 10SEV ARM CAM SPRING 1.65
67 10DUU ARM SPRING GUIDE (A) SPACER 1.65
68 1016J ARM SPRING GUIDE (A) 3.85
69 10R2F ARM SPRING GUIDE (A) SPACER BUSHING 1.65
70 14AS7 INNER BRAKE LEVER 4.40
71 14E8X SET SCREW 4.95
72 1487E BAIL MOUNTING COVER 14.30
73 1487J ROTOR GUARD (A) 3.30
75 14AS8 ROTOR COLLAR 8.80
76 10RP7 SET SCREW 1.65
77 10LAD O-RING 1.10
78 10MHD ROLLER CLUTCH SEAL COVER 2.75
79 14ASU ROLLER CLUTCH SEAL 9.35
80 14ASR ROLLER CLUTCH INNER 44.00
81 14DKS ROLLER CLUTCH ASSEMBLY 36.30
82 10MLR O-RING 3.85
83 10ML2 SET SCREW 2.75
84 10SFC BEARING RETAINING PLATE 3.85
85 104PV BALL BEARING (10X19X5) 13.75
86 10T1K WASHER 1.10
87 10SR8 BEARING COLLAR 9.35
88 10SRD PINION GEAR COLLAR 6.05
89 14ASD TOOTHED STOPPER 3.30
90 10GD6 WASHER 1.65
91 14ARQ PINION GEAR 51.70
92 14ASV CURVED WASHER 1.65
93 14ASF SPACER 1.65
94 10583 BALL BEARING (8X12X3.5) 13.75
95 14AST BUSHING 4.95
96 104AZ FRICTION RING 3.85
97 10R5T INTERMEDIATE GEAR SPRING 1.10
98 14ASM INTERMEDIATE GEAR SHAFT 2.20
99 10AYR BODY FLANGE SEAL 2.75
100 108WP O-RING 1.65
101 1487R HANDLE SCREW CAP 28.60
102 14CWR BODY ASSEMBLY 242.00
103 10SQL SLIDER GUIDE 3.85
104 10B0V O-RING 2.75
105 14ASJ WORM SHAFT 8.80
106 10PDA BALL BEARING (3X6X2.5) 13.75
107 100XZ WASHER 2.20
108 10TK0 WASHER 1.65
109 1015D BUSHING 3.85
110 10TNF O-RING 1.65
111 14ASP WORM SHAFT COVER 2.75
112 103H6 SET SCREW 1.65
113 14ARU BODY GUARD 33.00
114 10L9D GUARD SET SCREW (D) 1.65
115 14CCZ MAIN SHAFT ASSEMBLY 55.00
116 106V5 CROSS GEAR PIN 6.05
117 14813 WASHER 1.65
118 10164 WORM SHAFT PIN COLLAR 6.05
119 14ASQ WORM SHAFT PIN RETAINING PLATE 1.65
120 10MT4 SET SCREW 1.10
121 108W9 O-RING (3X5) 1.65
122 10AYM BODY GUARD COLLAR 2.75
123 10LSC SET SCREW 1.10
124 14ART INTERMEDIATE GEAR (LARGE) 14.30
125 14ARV INTERMEDIATE GEAR (SMALL) 11.55
126 14ARS WORM SHAFT GEAR 13.20
127 14AR0 BODY SEAL 3.30
128 146W0 BEARING SEAL 5.50
129 10BGG WASHER 1.65
130 104PW BALL BEARING (10X19X5) 13.75
131 10SQW ASSIST STOPPER 1.65
132 102VH ASSIST STOPPER COVER 1.65
133 14ASE STOPPER SPRING 1.65
134 10J3U ASSIST STOPPER COLLAR 3.85
135 103HM SET SCREW 1.10
136 14ARM DRIVE GEAR ASSEMBLY 88.00
137 14814 WASHER 2.20
138 14CD0 COVER ASSEMBLY 99.00
139 10PVN SET SCREW 2.75
140 10A6N SET SCREW 1.65
142 14CD1 HANDLE ASSEMBLY 203.50
143 14CD2 HANDLE SHAFT FLANGE ASSEMBLY 38.50
144 10LAA O-RING 1.10
145 146WL HANDLE SHAFT 15.40
146 14CD3 HANDLE SHANK ASSEMBLY 110.00
147 10E85 SET SCREW 6.05
148 147FX HANDLE KNOB SEAL 7.70
149 104FH WASHER 2.20
150 105BN BALL BEARING (5X9X3) 13.75
151 146XQ HANDLE KNOB 17.60
152 10KX1 BALL BEARING (4X9X4) 13.75
153 103E9 SET SCREW 1.10
154 147F8 HANDLE CAP 1.65
155 146XN HANDLE KNOB NAMEPLATE 4.95
156 103NM SET SCREW 2.75
161 14CTH WASHER 1.10
162 14D7L WASHER 1.10
163 103BX SET SCREW 1.65
164 148GM WASHER 1.10
501 1485A ARM CAM FIN (B) ASSEMBLY 5.50
502 1485B HANDLE SHAFT (RIGHT) ASSEMBLY 16.50
*F01 145MV REEL BAG 38.50
MH01 14D94 LEG BOTTOM NAMEPLATE QR 6.60
