[ABU] Genuine Spare Parts for 20 REVO TORO 60 ROCKET Product code:1501905 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.

https://www.hedgehog-studio.co.jp/page/324">
* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

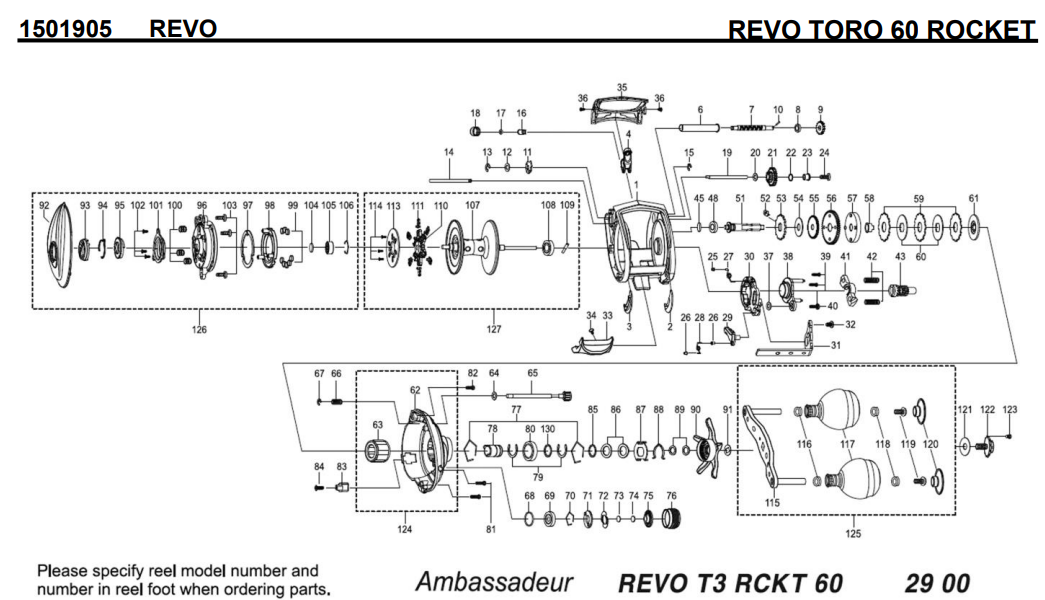

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
1	1515981	FRAME	71.50
2	1380594	SLIDE WASHER	2.20
3	1380595	SLIDE WASHER	2.20
4	1515955	LINE GUIDE	5.50
6	1380597	LEVEL WIND TUBE	3.30
7	1380598	WORM SHAFT	27.50
8	1313502	WORM SHAFT BUSHING	2.20
9	1125732	WORM SHAFT GEAR	1.10
10	1125733	WORM SHAFT PIN	0.55
11	1380599	WORM SHAFT PIN HOLDER	2.20
12	1185695	WORM SHAFT WASHER	1.76
13	1124201	RETAINER	0.55
14	1380600	LINE GUIDE SHAFT	3.30
15	1116226	RETAINER	0.55
16	1515956	PAWL	3.30
17	1380601	WASHER	2.20
18	1129323	LINE GUIDE NUT	0.77
19	1380602	LEVEL WIND GEAR SHAFT	3.30
20	1124178	WASHER	0.55
21	1380603	LEVEL WIND GEAR	4.40
22	1144184	WASHER	1.76
23	1380604	LEVEL WIND GEAR BUSHING	2.20
24	1380605	SCREW	2.20
25	1380606	CLUTCH SPRING BUSHING	2.20
26	1116230	INSERT	0.55
27	1380607	CLUTCH SPRING	2.20
28	1125742	CLUTCH SPRING	0.55
29	1380608	KICK LEVER	2.75
30	1380609	LIFT CURVE	4.40
31	1380610	CLUTCH LINK	5.50
32	1125822	SCREW	0.55
33	1380611	THUMB BAR	5.50
34	1380612	THUMB BAR SCREW	2.20
35	1380697	FRONT COVER	5.50
36	1125738	SCREW	0.55
37	1380614	WASHER	2.20
38	1380615	CLUTCH PLATE	3.30
39	1187621	SCREW	2.20
40	1380616	SCREW	2.20
41	1380617	YOKE	3.30
42	1380618	SPRING	2.20
43	1515982	PINION	13.20
45	1125797	WASHER	0.55
48	1281216	BALL BEARING	6.60
51	1380621	MAIN GEAR SHAFT	13.20
52	1380622	STOPPER	5.50
53	1380623	RATCHET	4.40
54	1380624	DRAG WASHER	2.75
55	1380625	WORM SHAFT DRIVE GEAR	3.30
56	1400399	MAIN GEAR	19.80
57	1380627	WASHER DRUM	4.40
58	1380628	MAIN GEAR SHAFT BUSHING	3.30
59	1380629	DRAG WASHER	5.50
60	1380630	DRAG WASHER	3.30
61	1380631	PRESSURE WASHER	3.30
62	1515983	GEAR SIDE PLATE	38.50
63	1380633	ONE WAY CLUTCH	22.00
64	1133903	WASHER	0.55
65	1380634	CAM LOCK SCREW	3.30
66	1144205	SPRING	0.55
67	1116226	RETAINER	0.55
68	1185714	O-RING	0.55
69	1515959	BALL BEARING	6.60
70	1104790	RING	0.55
71	1125768	CLICK WASHER	1.10
72	1125769	CLICK SPRING	1.65
73	1125770	FRICTION WASHER	0.55
74	1125771	RUBBER WASHER	0.55
75	1125772	CLICK WASHER	1.10
76	1415509	BRAKE KNOB	16.50
77	1380636	RING	2.20
78	1380637	IAR SLEEVE	3.30
79	1380638	RETAINER	2.20
80	1380639	BALL BEARING	6.60
81	1257013	SCREW	1.76
82	1380640	SCREW	2.20
83	1515984	LUBE PORT	2.20
84	1252079	SCREW	1.76
85	1380641	WASHER	2.20
86	1380642	SPRING WASHER	2.20
87	1380643	CLICK SPRING HOLDER	3.30
88	1380644	CLICK SPRING	2.20
89	1380645	SPRING WASHER	2.20
90	1415511	STAR WHEEL	27.50
91	1380647	WASHER	2.20
92	1515985	PALM SIDE PLATE	33.00
93	1416413	MAG DIAL	3.30
94	1125780	CLICK SPRING	0.77
95	1380650	SLIDE CAM	3.30
96	1380651	BEARING HOUSING	16.50
97	1380652	MAGNET PLATE	3.30
98	1380653	MAGNET HOLDER	5.50
99	1116222	MAGNET	2.20
100	1313476	SPRING	2.20
101	1380654	SLIDE CAM	3.30
102	1380655	SCREW	2.20
103	1124746	THUMBAR SCREW	0.55
104	1125797	WASHER	0.55
105	1128194	BALLBEARING	8.80
106	1104790	RING	0.55
107	1515962	SPOOL	60.50
108	1380657	BALL BEARING	8.80
109	1380658	SPOOL SHAFT PIN	2.20
110	1380659	BRAKE WEIGHT HOLDER	3.30
111	1380660	BRAKE WEIGHT	2.20
113	1380661	BRAKE WEIGHT COVER	3.30
114	1185710	RIGHT SIDE COVER CAP SCREW	0.55
115	1415514	HANDLE	22.00
116	1208088	BUSHING FOR BALL BEARING	2.20
117	1415515	HANDLE KNOB	11.00
118	1208088	BUSHING FOR BALL BEARING	2.20
119	1208090	SCREW	0.55
120	1415516	HANDLE KNOB CAP	7.70
121	1380665	WASHER	2.20
122	1380666	HANDLE NUT	5.50
123	1380667	SCREW	2.20
124	1515986	GEAR SIDE COMPLETE	60.50
125	1415518	HANDLE COMPLETE	55.00
126	1515987	PALM SIDE COMPLETE	104.50
127	1515966	SPOOL COMPLETE	93.50
130	1392846	WASHER	2.20

* Items Marked “For Repair Use Only” Are Not Available for Individual Parts Sales

Order Flow

(STEP 1: Customer)
Please add the ordered parts from the parts list to your cart and complete the payment together with the Commission for [SHIMANO / DAIWA / ABU] Back-order Genuine Parts (US$5.00).
↓
(STEP 2: Our Shop)
We review your order details and place the order with the manufacturer.
↓
(STEP 3: Manufacturer)
Only for parts that are not in stock, we will receive a notification from the manufacturer approximately one week later.
Parts that are in stock will arrive at our shop in about one month.
* If all ordered parts are in stock, there will be no notification from the manufacturer or our shop until the shipment is dispatched. Please wait until shipping.
↓
(STEP 4: Our Shop)
Once the parts arrive from the manufacturer, we will dispatch your order.

* Please note that it generally takes about one month for genuine spare parts to arrive.
* If you order both back-ordered items and in-stock items together, they will be shipped together after all back-ordered items arrive.
* If you would like to receive in-stock items first, please place and pay for each order separately.

* The parts list pages will be expanded gradually.
If the parts list for your reel is not yet available, please place your order by manually entering the details using the order form below.

Genuine Spare Parts Order Form
https://www.hedgehog-studio.co.jp/form/parts

Regarding What You Can and Cannot Order for the Spare Parts

We source and provide genuine spare parts for SHIMANO / DAIWA / ABU reels only from the official Japanese websites listed below.
(We cannot assist with translating these websites. Please use Google Translate or other translation tools if necessary.)

| Parts that CANNOT be Ordered

- Spare parts for certain reel models (mainly older models) marked as “Unrepairable” on the SHIMANO website.
https://www.shimanofishingservice.jp/price.php" target="_blank">
https://www.shimanofishingservice.jp/price.php

- Spare parts marked as “Just for Repair,” “Suspended,” or “Discontinued” on the DAIWA website.
http://www.sl-planets.co.jp/shop/c/" target="_blank">
http://www.sl-planets.co.jp/shop/c/

- Spare parts that do not have a part number or part code shown in the schematic diagrams on the SHIMANO / DAIWA websites.

- Spare parts marked as “For Repair Only” on the ABU website.
https://pfj-parts.com/" target="_blank">
https://pfj-parts.com/
Please note that even for discontinued ABU reel models, parts may still be ordered if stock is available.

- Parts other than reel-related spare parts, such as rods or other fishing gear.
