[ABU] Genuine Spare Parts for 20 REVO DEEZ8 Product code: 1525261 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

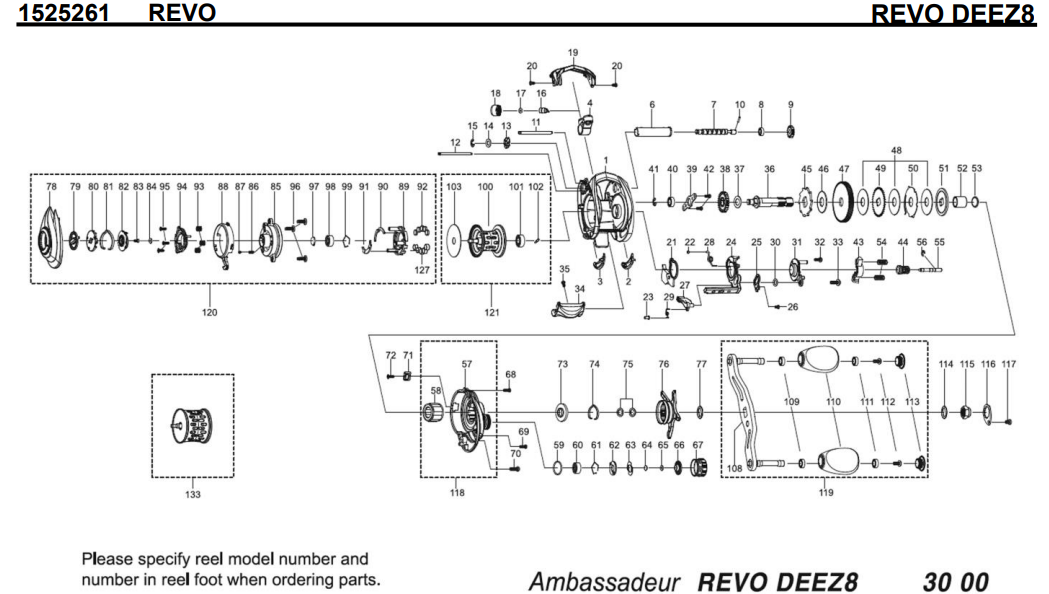

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
1	1415606	FRAME	82.50
2	1415607	SLIDE WASHER	2.20
3	1415608	SLIDE WASHER	2.20
4	1415609	LINE GUIDE	5.50
6	1415610	LEVEL WIND TUBE	3.30
7	1415611	WORM SHAFT	16.50
8	1125729	BALLBEARING	6.60
9	1125732	WORM SHAFT GEAR	1.10
10	1125733	WORM SHAFT PIN	0.55
11	1415612	LINE GUIDE SHAFT	3.30
12	1415613	GUIDE PIN	3.30
13	1313359	WORM SHAFT PIN HOLDER	2.20
14	1124224	WASHER	1.76
15	1124201	RETAINER	0.55
16	1125735	PAWL	3.30
17	1125736	WASHER	0.55
18	1129323	LINE GUIDE NUT	0.77
19	1415614	FRONT COVER	5.50
20	1185747	SCREW	1.76
21	1415615	FRAME PLATE	3.30
22	1415616	BUSHING	2.20
23	1415617	KICK LEVER SPRING BUSHING	2.20
24	1415618	LIFT CURVE	3.30
25	1415619	LINK PLATE	2.20
26	1415620	SCREW	2.20
27	1289969	KICK LEVER	3.30
28	1380524	CLUTCH SPRING	2.20
29	1125745	KICK LEVER SPRING	0.55
30	1124224	WASHER	1.76
31	1415621	CLUTCH PLATE	2.20
32	1415622	SCREW	2.20
33	1380616	SCREW	2.20
34	1490490	THUMB BAR	3.30
35	1530546	THUM BAR SCREW	2.20
36	1415624	MAIN GEAR SHAFT	13.20
37	1125747	WASHER	0.55
38	1251634	LEVEL WIND GEAR	1.76
39	1415625	MAIN GRRR SHAFT PLATE	16.50
40	1116186	BALL BEARING	6.60
41	1124201	RETAINER	0.55
42	1372152	SCREW	2.20
43	1125753	YOKE	1.10
44	1415626	PINION	11.00
45	1281188	RATCHET	1.65
46	1452770	DRAG WASHER	3.30
47	1310956	MAIN GEAR	22.00
48	1281218	DRAG WASHER	2.20
49	1281219	DRAG WASHER	2.20
50	1281220	EAR WASHER	2.20
51	1530547	PRESSURE WASHER	4.40
52	1415627	IAR SLEEVE	3.30
53	1144185	WASHER	0.55
54	1116237	YOKE SPRING	0.55
55	1125766	PINION SHAFT	5.50
56	1116226	RETAINER	0.55
57	1530548	GEAR SIDE PLATE	33.00
58	1275594	OWC	27.50
59	1185714	O-RING	0.55
60	1125827	BALL BEARING	6.60
61	1104790	RING	0.55
62	1125768	CLICK WASHER	1.10
63	1125769	CLICK SPRING	1.65
64	1125770	FRICTION WASHER	0.55
65	1125771	RUBBER WASHER	0.55
66	1125772	CLICK WASHER	1.10
67	1530559	BRAKE KNOB	16.50
68	1125812	SCREW	0.55
69	1257013	SCREW	1.76
70	1324390	SCREW	2.20
71	1415630	LUBE PORT	2.20
72	1252078	SCREW	1.76
73	1132925	CLICK SPRING HOLDER	1.65
74	1125780	CLICK SPRING	0.77
75	1117208	SPRING WASHER	0.55
76	1415631	STAR WHEEL	44.00
77	1125783	WASHER	0.55
78	1415632	PARM SIDE PLATE	38.50
79	1415633	MAG DIAL	3.30
80	1415634	MAG DIAL PLATE	2.20
81	1125780	CLICK SPRING	0.77
82	1415635	SLIDE CAM	3.30
83	1185710	RIGHT SIDE COVER CAP SCREW	0.55
84	1125771	RUBBER WASHER	0.55
85	1415636	BEARING HOUSING	16.50
86	1313372	CLICK PIN SPRING	2.20
87	1313371	CLICK PIN	2.20
88	1415637	CAM LOCK LEVER	3.30
89	1415638	MAGNET HOLDER	3.30
90	1415639	MAGNET PLATE	2.20
91	1415640	MAGNET PLATE	2.20
92	1116222	MAGNET	2.20
93	1313476	SPRING	2.20
94	1415641	SLIDE CAM	3.30
95	1380655	SCREW	2.20
96	1124209	SCREW	0.55
97	1125797	WASHER	0.55
98	1523205	BALL BEARING	27.50
99	1104790	RING	0.55
100	1530560	SPOOL	60.50
101	1523206	BALL BEARING	27.50
102	1192826	SPOOL SHAFT PIN	2.20
103	1530561	SPOOL PLATE	5.50
108	1530562	HANDLE	77.00
109	1281319	BALL BEARING	6.60
110	1530563	HANDLE KNOB	27.50
111	1281319	BALL BEARING	6.60
112	1281320	SCREW	1.76
113	1372142	HANDLE KNOB CAP	6.60
114	1125783	WASHER	0.55
115	1214326	HANDLE NUT	2.20
116	1415654	SPARE HANDLE NUT COVER	2.20
117	1200031	HANDLE NUT RETAINER SCREW	0.55
118	1530564	GEAR SIDE COMPLETE	49.50
119	1530565	HANDLE COMPLETE	165.00
120	1530566	PALM SIDE COMPLETE	154.00
121	1530567	SPOOL COMPLETE	93.50
127	1302674	MAGNET	4.40
133	1530568	SPARE SPOOL COMPLETE	93.50

* Items Marked “For Repair Use Only” Are Not Available for Individual Parts Sales

Order Flow

(STEP 1: Customer)
Please add the ordered parts from the parts list to your cart and complete the payment together with the Commission for [SHIMANO / DAIWA / ABU] Back-order Genuine Parts (US$5.00).
↓
(STEP 2: Our Shop)
We review your order details and place the order with the manufacturer.
↓
(STEP 3: Manufacturer)
Only for parts that are not in stock, we will receive a notification from the manufacturer approximately one week later.
Parts that are in stock will arrive at our shop in about one month.
* If all ordered parts are in stock, there will be no notification from the manufacturer or our shop until the shipment is dispatched. Please wait until shipping.
↓
(STEP 4: Our Shop)
Once the parts arrive from the manufacturer, we will dispatch your order.

* Please note that it generally takes about one month for genuine spare parts to arrive.
* If you order both back-ordered items and in-stock items together, they will be shipped together after all back-ordered items arrive.
* If you would like to receive in-stock items first, please place and pay for each order separately.

* The parts list pages will be expanded gradually.
If the parts list for your reel is not yet available, please place your order by manually entering the details using the order form below.

Genuine Spare Parts Order Form
https://www.hedgehog-studio.co.jp/form/parts

Regarding What You Can and Cannot Order for the Spare Parts

We source and provide genuine spare parts for SHIMANO / DAIWA / ABU reels only from the official Japanese websites listed below.
(We cannot assist with translating these websites. Please use Google Translate or other translation tools if necessary.)

| Parts that CANNOT be Ordered

- Spare parts for certain reel models (mainly older models) marked as “Unrepairable” on the SHIMANO website.

https://www.shimanofishingservice.jp/price.php

- Spare parts marked as “Just for Repair,” “Suspended,” or “Discontinued” on the DAIWA website.

http://www.sl-planets.co.jp/shop/c/

- Spare parts that do not have a part number or part code shown in the schematic diagrams on the SHIMANO / DAIWA websites.

- Spare parts marked as “For Repair Only” on the ABU website.

https://pfj-parts.com/
Please note that even for discontinued ABU reel models, parts may still be ordered if stock is available.

- Parts other than reel-related spare parts, such as rods or other fishing gear.
