[ABU] Genuine Spare Parts for 20 REVO LX992Z Product code: 1525352 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

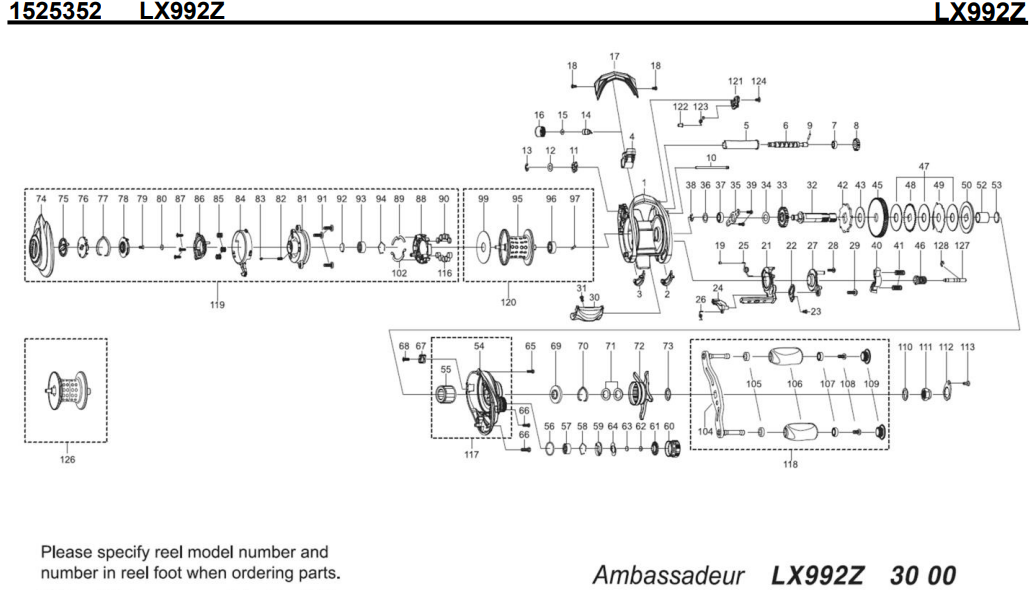

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
1	1490525	FRAME	55.00
2	1490482	SLIDE WASHER RIGHT	2.20
3	1490483	SLIDE WASHER LEFT	2.20
4	1490484	LINE GUIDE	5.50
5	1137750	LEVEL WIND TUBE	3.30
6	1132903	WORM SHAFT	16.50
7	1132853	BALL BEARING	6.60
8	1125732	WORM SHAFT GEAR	1.10
9	1125733	WORM SHAFT PIN	0.55
10	1415612	LINE GUIDE SHAFT	3.30
11	1313359	WORM SHAFT PIN HOLDER	2.20
12	1185695	WORM SHAFT WASHER	1.76
13	1124201	RETAINER	0.55
14	1125735	PAWL	3.30
15	1116193	WASHER	0.55
16	1129323	LINE GUIDE NUT	0.77
17	1490526	FRONT COVER	5.50
18	1452764	SCREW	2.20
19	1415616	BUSHING	2.20
21	1490488	CLUTCH CAM	3.30
22	1415619	LINK PLATE	2.20
23	1415620	SCREW	2.20
24	1289969	KICK LEVER	3.30
25	1380524	CLUTCH SPRING	2.20
26	1490489	KICK LEVER SPRING	2.20
27	1415621	CLUTCH PLATE	2.20
28	1415622	SCREW	2.20
29	1380616	SCREW	2.20
30	1415623	THUM BAR	3.30
31	1252078	SCREW	1.76
32	1490491	MAIN GEAR SHAFT	13.20
33	1251634	LEVEL WIND GEAR	1.76
34	1380530	WASHER	2.20
35	1415625	MAIN GRRR SHAFT PLATE	16.50
36	1490493	WASHER	2.20
37	1132857	BALL BEARING	6.60
38	1124201	RETAINER	0.55
39	1372152	SCREW	2.20
40	1125753	YOKE	1.10
41	1116237	YOKE SPRING	0.55
42	1281188	RATCHET	1.65
43	1281133	DRAG WASHER	2.75
45	1310956	MAIN GEAR	22.00
46	1518297	PINION	11.00
47	1281218	DRAG WASHER	2.20
48	1281219	DRAG WASHER	2.20
49	1281220	EAR WASHER	2.20
50	1530547	PRESSURE WASHER	4.40
52	1239084	SLEEVE	3.30
53	1324387	WASHER	2.20
54	1546705	GEAR SIDE PLATE *Cannot be ordered	60.50
55	1275594	OWC	27.50
56	1185714	O-RING	0.55
57	1493307	BALL BEARING	27.50
58	1104790	RING	0.55
59	1125768	CLICK WASHER	1.10
60	1415629	BRAKE KNOB	16.50
61	1452777	CLICK WASHER	2.20
62	1125771	RUBBER WASHER	0.55
63	1125770	FRICTION WASHER	0.55
64	1125769	CLICK SPRING	1.65
65	1452779	SCREW	2.20
66	1257013	SCREW	1.76
67	1490528	LUBE PORT	2.20
68	1252078	SCREW	1.76
69	1132925	CLICK SPRING HOLDER	1.65
70	1125780	CLICK SPRING	0.77
71	1117208	SPRING WASHER	0.55
72	1546706	STAR WHEEL	44.00
73	1125783	WASHER	0.55
74	1546707	PALM SIDE PLATE *Cannot be ordered	49.50
75	1415633	MAG DIAL	3.30
76	1415634	MAG DIAL PLATE	2.20
77	1125780	CLICK SPRING	0.77
78	1415635	SLIDE CAM	3.30
79	1185710	RIGHT SIDE COVER CAP SCREW	0.55
80	1125771	RUBBER WASHER	0.55
81	1546708	BEARING HOUSING	22.00
82	1313372	CLICK PIN SPRING	2.20
83	1313371	CLICK PIN	2.20
84	1490504	CAM LOCK LEVER	3.30
85	1313476	SPRING	2.20
86	1415641	SLIDE CAM	3.30
87	1380655	SCREW	2.20
88	1546709	MAGNET HOLDER	11.00
89	1415639	MAGNET PLATE	2.20
90	1116222	MAGNET	2.20
91	1415533	SCREW	2.20
92	1125797	WASHER	0.55
93	1523205	BALL BEARING	27.50
94	1104790	RING	0.55
95	1546710	SPOOL *Cannot be ordered	60.50
96	1523206	BALL BEARING	27.50
97	1192826	SPOOL SHAFT PIN	2.20
99	1385185	SPOOL PLATE *Cannot be ordered	5.50
102	1546711	MAGNET PLATE	5.50
104	1415700	HANDLE	77.00
105	1144186	BALL BEARING	6.60
106	1546712	HANDLE KNOB *Cannot be ordered	55.00
107	1144186	BALL BEARING	6.60
108	1281320	SCREW	1.76
109	1546713	HANDLE KNOB CAP *Cannot be ordered	5.50
110	1125783	WASHER	0.55
111	1214326	HANDLE NUT	2.20
112	1380560	HANDLE NUT COVER	2.20
113	1200031	HANDLE NUT RETAINER SCREW	0.55
116	1302674	MAGNET	4.40
117	1546714	GEAR SIDE COMPLETE *Cannot be ordered	88.00
118	1546715	HANDLE COMPLETE *Cannot be ordered	187.00
119	1546716	PALM SIDE COMPLETE *Cannot be ordered	165.00
120	1546717	SPOOL COMPLETE *Cannot be ordered	93.50
121	1490517	HOOK HOLDER-R	3.30
122	1490518	COLLAR-H	2.20
123	1490519	TORSION SPRING	2.20
124	1380699	SCREW	2.20
126	1546718	SPARE SPOOL *Cannot be ordered	93.50
127	1125766	PINION SHAFT	5.50
128	1116226	RETAINER	0.55
