[ABU] Genuine Spare Parts for REVO5 X-HS Product code:1565150 **Back-order (Shipping in 3-4 weeks after receiving order)

[ABU] Genuine Spare Parts for REVO5 X-HS Product code:1565150 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.39 - US$69.30 [Regular Price: US$0.55 - US$99.00]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.


 In-Stock Abu Garcia Genuine Parts

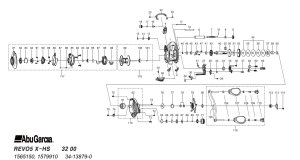

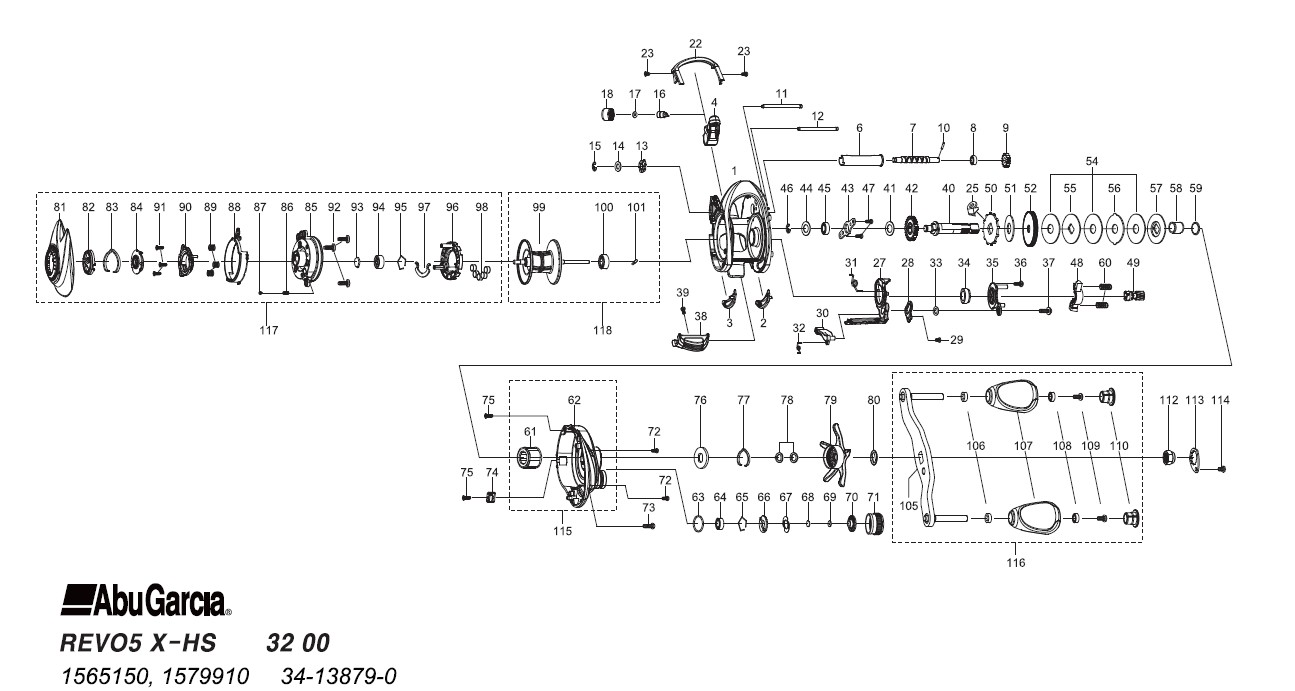

Schematic
Number		 Part Number Part Name Price
(USD)
1 1592944 FRAME 55.00
2 1490482 SLIDE WASHER RIGHT 2.20
3 1490483 SLIDE WASHER LEFT 2.20
4 1592945 LINE GUIDE 5.50
6 1137750 LEVEL WIND TUBE 3.30
7 1125805 WORM SHAFT 16.50
8 1125729 BALLBEARING 6.60
9 1125732 WORM SHAFT GEAR 1.10
10 1125733 WORM SHAFT PIN 0.55
11 1490485 LINE GUIDE SHAFT 3.30
12 1592946 GUIDE PIN 3.30
13 1313359 WORM SHAFT PIN HOLDER 2.20
14 1185695 WORM SHAFT WASHER 1.76
15 1124201 RETAINER 0.55
16 1125806 PAWL 3.30
17 1125736 WASHER 0.55
18 1129323 LINE GUIDE NUT 0.77
22 1592947 FRONT COVER 6.60
23 1415620 SCREW 2.20
25 1144194 STOPPER 9.90
27 1592948 CLUTCH CAM 3.30
28 1415619 LINK PLATE 2.20
29 1415620 SCREW 2.20
30 1289969 KICK LEVER 3.30
31 1380524 CLUTCH SPRING 2.20
32 1490489 KICK LEVER SPRING 2.20
33 1490867 WASHER 2.20
34 1592969 BUSH 2.20
35 1581432 CLUTCH PLATE 3.30
36 1214269 SCREW 2.20
37 1116206 SCREW 0.55
38 1592970 THUMB BAR 3.30
39 1252078 SCREW 1.76
40 1592971 MAIN GEAR SHAFT 13.20
41 1380528 WASHER 2.20
42 1251634 LEVEL WIND GEAR 1.76
43 1490492 MAIN GEAR SHAFT PLATE 2.20
44 1592972 WASHER 2.20
45 1116186 BALL BEARING 6.60
46 1124201 RETAINER 0.55
47 1116183 SCREW 0.55
48 1281131 YOKE 2.20
49 1592997 PINION 18.70
50 1452769 RATCHET 2.20
51 1490874 DRAG WASHER 3.30
52 1452803 MAIN GEAR 22.00
54 1125760 DRAG WASHER 2.20
55 1125761 D-WASHER 1.65
56 1125762 EAR WASHER 1.65
57 1452772 PRESSURE WASHER 2.20
58 1257782 SLEEVE 2.20
59 1144185 WASHER 0.55
60 1116237 YOKE SPRING 0.55
61 1551161 ONE WAY CLUTCH 11.00
62 1592998 GEAR SIDE PLATE 33.00
63 1452775 O-RING 2.20
64 1125827 BALL BEARING 6.60
65 1104790 RING 0.55
66 1125768 CLICK WASHER 1.10
67 1125769 CLICK SPRING 1.65
68 1452776 FRICTION WASHER 1.10
69 1125771 RUBBER WASHER 0.55
70 1452777 CLICK WASHER 2.20
71 1592975 BRAKE KNOB 16.50
72 1257016 SCREW 1.76
73 1252079 SCREW 1.76
74 1581441 LUBE PORT 2.20
75 1252078 SCREW 1.76
76 1185796 CLICK PLATE 1.65
77 1125780 CLICK SPRING 0.77
78 1117208 SPRING WASHER 0.55
79 1592999 STAR WHEEL 16.50
80 1125783 WASHER 0.55
81 1592977 PALM SIDE PLATE 27.50
82 1592978 MAG DIAL 3.30
83 1125780 CLICK SPRING 0.77
84 1415635 SLIDE CAM 3.30
85 1592979 BEARING HOUSING 16.50
86 1313372 CLICK PIN SPRING 2.20
87 1313371 CLICK PIN 2.20
88 1592980 CAM LOCK LEVER 3.30
89 1313476 SPRING 2.20
90 1415641 SLIDE CAM 3.30
91 1415533 SCREW 2.20
92 1380655 SCREW 2.20
93 1125797 WASHER 0.55
94 1125827 BALL BEARING 6.60
95 1104790 RING 0.55
96 1592981 MAGNET HOLDER 2.20
97 1592982 MAGNET PLATE 2.20
98 1302674 MAGNET 4.40
99 1592983 SPOOL 66.00
100 1187625 SPOOL BALL BEARING 8.80
101 1581450 SPOOL SHAFT PIN 2.20
105 1592984 HANDLE 27.50
106 1208088 BUSHING FOR BALL BEARING 2.20
107 1556220 HANDLE KNOB 11.00
108 1281319 BALL BEARING 6.60
109 1281320 SCREW 1.76
110 1592985 HANDLE KNOB CAP 2.20
112 1592986 HANDLE NUT 3.30
113 1592987 HANDLE NUT COVER 2.20
114 1200031 HANDLE NUT RETAINER SCREW 0.55
115 1593000 GEAR SIDE COMPLETE 44.00
116 1592989 HANDLE COMPLETE 71.50
117 1592990 PALM SIDE COMPLETE 99.00
118 1592991 SPOOL COMPLETE 71.50
