[SHIMANO] Genuine Spare Parts for 26 TALICA 25II Product code: 050014 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 TALICA 25II Product code: 050014 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$169.40 [Regular Price: US$1.10 - US$242.00]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

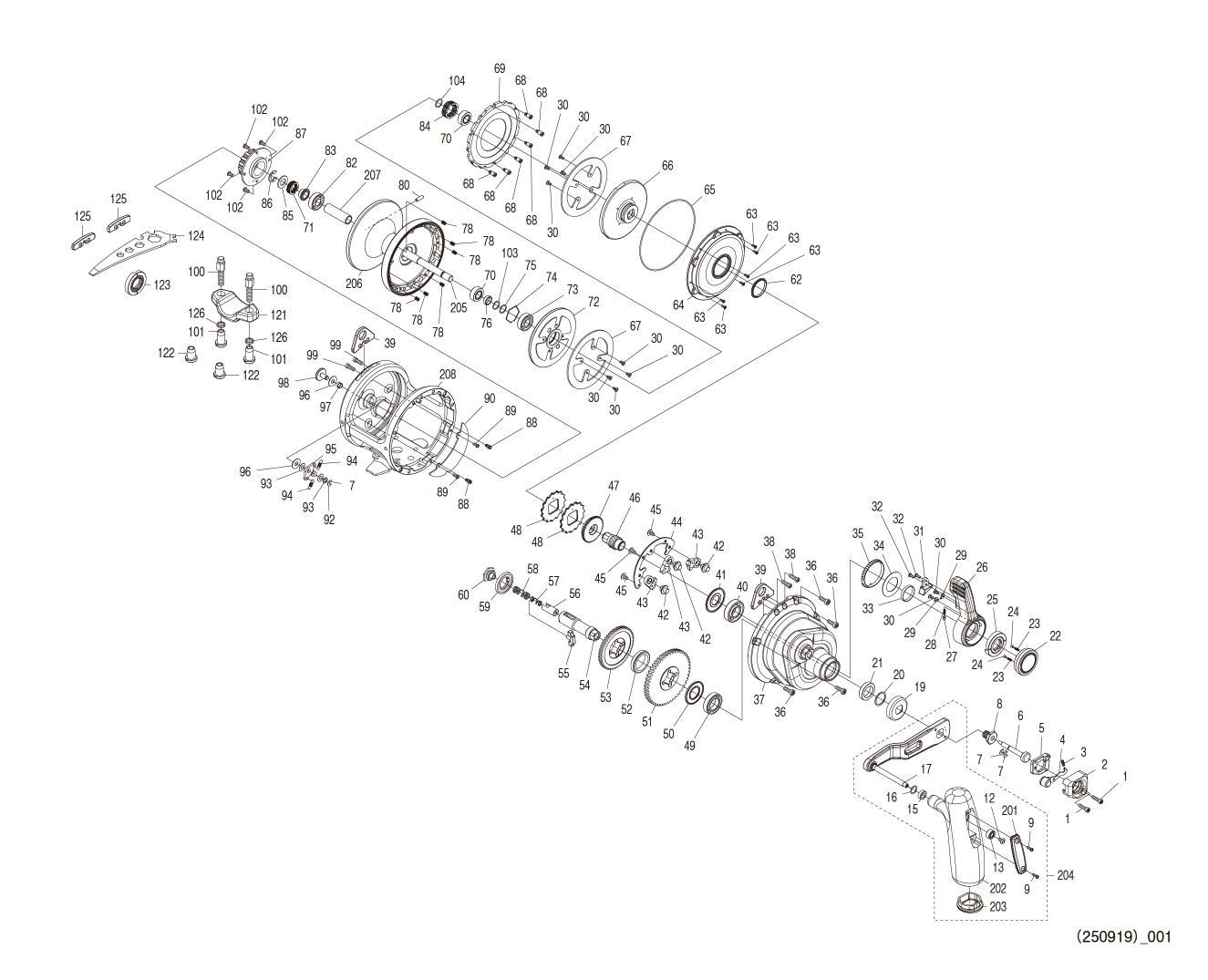

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 13ZQG SET SCREW 1.65
2 13ZQH RETAINER COVER 26.95
3 10PWJ LOCK PLATE SPRING 1.65
4 13ZRS LOCK PLATE ASSEMBLY 6.60
5 10PBN RETAINER 1.65
6 109XB PUSH ROD 6.05
7 105NK E-TYPE RETAINING RING 2.5 1.10
8 106XP HANDLE SET SCREW 6.05
9 103NH SET SCREW 1.10
12 103E9 SET SCREW 1.10
13 10EU0 HANDLE GRIP BUSHING (A) 1.65
15 104UJ HANDLE GRIP BUSHING (B) 1.65
16 104FH WASHER 2.20
17 14826 HANDLE SHAFT ASSEMBLY 55.00
19 10KZS HANDLE MOUNT 3.85
20 10G9V WASHER 1.10
21 109AR DRIVE GEAR BEARING 11.55
22 14828 PRESET KNOB ASSEMBLY 24.20
23 10K07 CLICK SPRING 1.65
24 10JX6 CLICK PIN 1.65
25 141Q0 DRAG CAM 19.80
26 14829 DRAG LEVER ASSEMBLY 77.00
27 13ZQM CLICK PIN 1.10
28 10C3X CLICK SPRING 1.65
29 13ZQN DRAG LEVER CLICK PIN COVER 1.65
30 10S65 SET SCREW 1.10
31 141Q1 LEVER PROTECTOR 1.10
32 13ZQQ SET SCREW 1.10
33 108DP DRAG LEVER BUSHING 1.65
34 10G6G WASHER 1.65
35 10F6C LEVER CLICK GEAR 1.65
36 13ZQR SET SCREW 1.65
37 1482A MAIN UNIT A ASSEMBLY 198.00
38 10M6X SET SCREW 1.65
39 141PF HARNESS 9.90
40 104JP BALL BEARING (10X22X6) 13.75
41 141PP WASHER 6.60
42 10PFS STOPPER MOUNTING SHAFT 2.20
43 10MWC STOPPER TAB ASSEMBLY 3.85
44 10KVG STOPPER MOUNTING PLATE 2.75
45 1055F SET SCREW 1.65
46 141PM PINION GEAR (A) 22.00
47 141PG PINION GEAR (B) 30.80
48 10DAN STOPPER GEAR 3.85
49 10KXA BALL BEARING (12X21X5) 17.05
50 13ZQW DRIVE GEAR WASHER 9.35
51 141Q3 DRIVE GEAR (A) 41.80
52 10D61 MAIN GEAR WASHER (C) 1.65
53 141Q5 DRIVE GEAR (B) 31.90
54 10D6L DRIVE GEAR SHAFT 22.55
55 10KXH LOCK PIN 6.05
56 10KXL LOCK PIN HOLDER 1.65
57 109VM LOCK PIN SPRING 1.10
58 10KXQ MAIN GEAR SHAFT SPRING 1.65
59 10D5B MAIN GEAR WASHER (A) 1.65
60 10FCD MAIN GEAR SHAFT SET SCREW 2.75
62 10EWA WATERPROOF SEAL 3.85
63 10PRU SET SCREW 1.65
64 141PR WATERPROOF COVER 3.30
65 10EYZ O-RING A 3.85
66 141PN PINION GEAR COLLAR 24.20
67 141PT DRAG WASHER 12.65
68 141PS SET SCREW 2.75
69 141R4 DRAG PLATE 36.85
70 104Q5 BALL BEARING (7X14X5) 13.75
71 13ZR5 DRAG SPRING 2.75
72 141PU DRAG PLATE RETAINER 24.20
73 104VH BALL BEARING (7X17X5) 9.35
74 13ZR7 BEARING RETAINER 1.10
75 149PM WASHER 1.10
76 141R3 BEARING SPACER 1.65
78 10KJ6 ONE-TOUCH LEVER SPRING 1.10
80 13ZRC SPOOL SHAFT PIN 1.10
82 104VJ BALL BEARING (7X17X5) 13.75
83 13ZRF DRAG SPRING SPACER 3.30
84 13ZRG SPOOL SHAFT SPRING 2.20
85 13ZRH WASHER 1.10
86 105RZ E-TYPE RETAINING RING 6 1.10
87 141PQ CLICK GEAR 1.10
88 108W4 CLICK SPRING RETAINING SHAFT 9.35
89 10LVH CLUTCH CAM RETAINING BOLT 1.10
90 141QU MAIN BODY RETAINING PLATE NAMEPLATE 3.85
92 144C6 WASHER 1.10
93 10GA6 WASHER 1.10
94 104B0 CLICK SPRING 1.65
95 10GQW CLICK PAWL 1.65
96 104H2 CLICK BUTTON WASHER (A) 1.10
97 104MS CLICK BEARING 1.65
98 1459G CLICK BUTTON 6.05
99 10M6T RETAINING BOLT 2.75
100 10JBZ ROD CLAMP BOLT 3.85
101 145R5 LEG MOUNTING HEX NUT 3.85
102 10LSQ RETAINING BOLT 1.10
103 149PN WASHER 1.10
104 13MGK WASHER 1.65
121 10AS1 LEG MOUNTING BRACKET 11.55
122 10JBX LEG MOUNTING NUT 2.75
123 141Q2 DRAG CAM (LIGHT LINE CAM) 26.40
124 10MJ8 REEL WRENCH 3.85
125 141PC HARNESS PLUG 5.50
126 10GA8 LEG MOUNTING NUT WASHER 1.65
201 144ZR HANDLE KNOB NAMEPLATE 6.05
202 144ZM HANDLE KNOB 45.10
203 144ZQ HANDLE CAP 1.65
204 1482C HANDLE ASSEMBLY 110.00
205 141PL SPOOL SHAFT 10.45
206 14866 SPOOL ASSEMBLY 121.00
207 141R5 SPOOL SHAFT COLLAR 5.50
208 1482D FRAME ASSEMBLY 242.00
