[SHIMANO] Genuine Spare Parts for 26 TALICA 12II Product code: 049988 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 TALICA 12II Product code: 049988 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$123.20 [Regular Price: US$1.10 - US$176.00]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

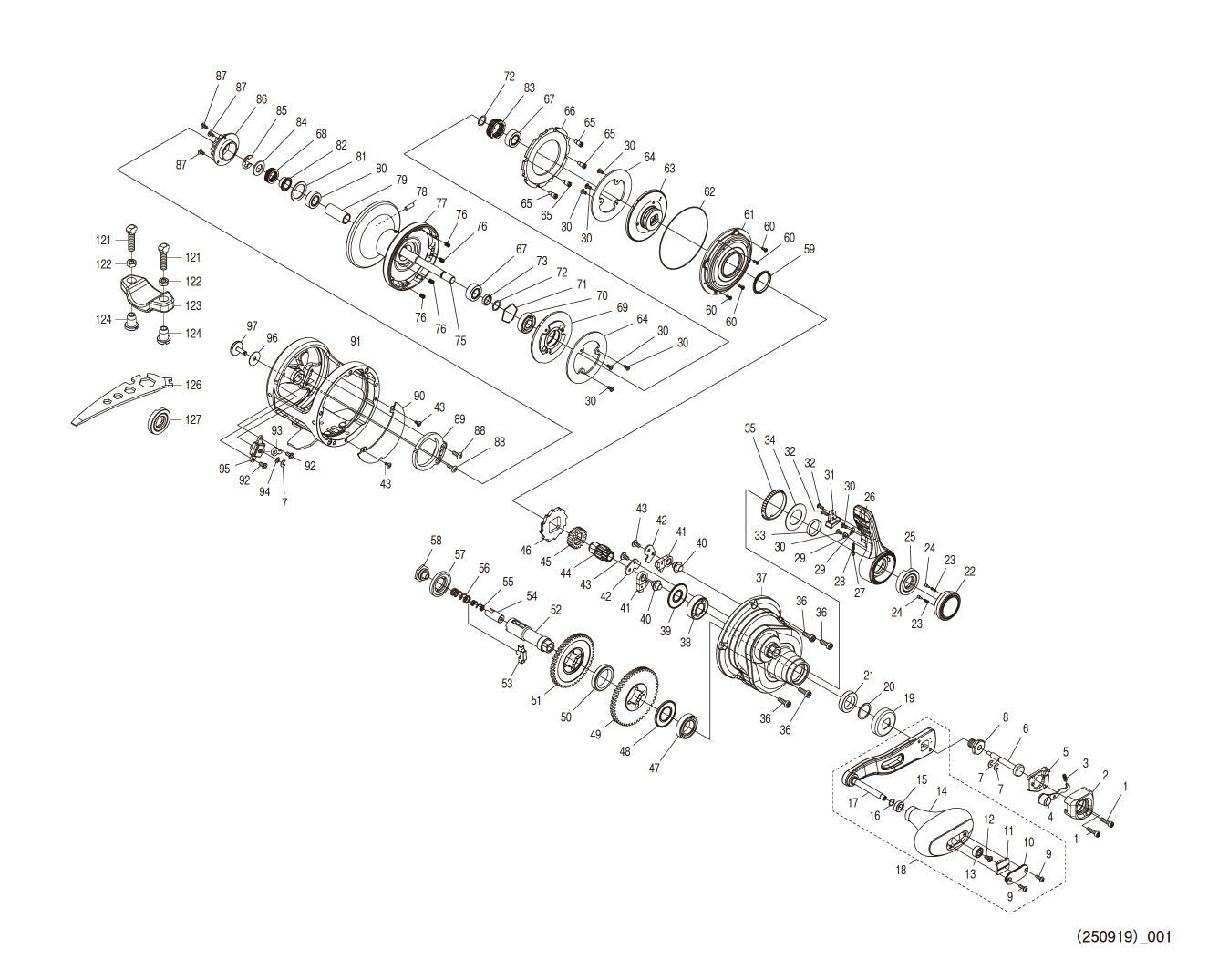

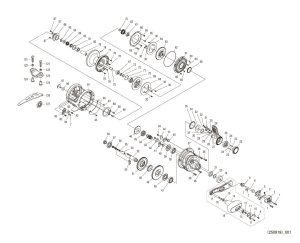

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 13ZQG SET SCREW 1.65
2 13ZQH RETAINER COVER 26.95
3 10PWJ LOCK PLATE SPRING 1.65
4 13ZRS LOCK PLATE ASSEMBLY 6.60
5 10PBN RETAINER 1.65
6 109XB PUSH ROD 6.05
7 105NK E-TYPE RETAINING RING 2.5 1.10
8 106XP HANDLE SET SCREW 6.05
9 103NH SET SCREW 1.10
10 13ZQJ HANDLE KNOB NAMEPLATE 1.10
11 10B97 HANDLE CAP 2.75
12 103E9 SET SCREW 1.10
13 10KX2 BALL BEARING (4X9X4) 13.75
14 13ZQK HANDLE KNOB 27.50
15 104UJ HANDLE GRIP BUSHING (B) 1.65
16 104FH WASHER 2.20
17 13ZRT HANDLE SHAFT ASSEMBLY 44.00
18 13ZRU HANDLE ASSEMBLY 93.50
19 10KZS HANDLE MOUNT 3.85
20 10G9V WASHER 1.10
21 109AR DRIVE GEAR BEARING 11.55
22 1400U PRESET KNOB ASSEMBLY 23.10
23 10K07 CLICK SPRING 1.65
24 10JX6 CLICK PIN 1.65
25 13ZQL DRAG CAM 20.90
26 13ZRV DRAG LEVER ASSEMBLY 79.20
27 13ZQM CLICK PIN 1.10
28 10C3X CLICK SPRING 1.65
29 13ZQN DRAG LEVER CLICK PIN COVER 1.65
30 10S65 SET SCREW 1.10
31 13ZQP LEVER PROTECTOR 1.65
32 13ZQQ SET SCREW 1.10
33 108DN DRAG LEVER BUSHING 1.65
34 10J19 WASHER 1.65
35 10F6B LEVER CLICK GEAR 1.10
36 13ZQR SET SCREW 1.65
37 13ZRW MAIN UNIT A ASSEMBLY 143.00
38 10T2K BALL BEARING (9X20X6) 13.75
39 13ZQS WASHER 7.70
40 10PFS STOPPER MOUNTING SHAFT 2.20
41 10MWC STOPPER TAB ASSEMBLY 3.85
42 13ZQT STOPPER MOUNTING PLATE 1.10
43 1055F SET SCREW 1.65
44 13ZQU PINION GEAR (A) 20.90
45 13ZQV PINION GEAR (B) 22.00
46 10DAM STOPPER GEAR 3.85
47 10KXA BALL BEARING (12X21X5) 17.05
48 13ZQW DRIVE GEAR WASHER 9.35
49 13ZQX DRIVE GEAR (A) 35.20
50 10D61 MAIN GEAR WASHER (C) 1.65
51 13ZQY DRIVE GEAR (B) 30.80
52 10D6L DRIVE GEAR SHAFT 22.55
53 10KXH LOCK PIN 6.05
54 10KXL LOCK PIN HOLDER 1.65
55 109VM LOCK PIN SPRING 1.10
56 10KXQ MAIN GEAR SHAFT SPRING 1.65
57 10D5B MAIN GEAR WASHER (A) 1.65
58 10FCD MAIN GEAR SHAFT MOUNTING BOLT 2.75
59 10EWA WATERPROOF SEAL 3.85
60 10PRU MOUNTING BOLT 1.65
61 13ZQZ WATERPROOF COVER 2.75
62 1421C O-RING 1.65
63 13ZR0 PINION GEAR COLLAR 29.70
64 13ZR1 DRAG WASHER 9.90
65 13ZR2 MOUNTING BOLT 4.95
66 13ZR4 DRAG PLATE 22.00
67 104Q5 BALL BEARING (7X14X5) 13.75
68 13ZR5 DRAG SPRING 2.75
69 13ZR6 DRAG PLATE RETAINER 25.30
70 104VJ BALL BEARING (7X17X5) 13.75
71 13ZR7 BEARING RETAINER 1.10
72 149PN WASHER 1.10
73 13ZR9 BEARING SPACER 2.20
75 13ZRA SPOOL SHAFT 9.35
76 10KJ6 ONE-TOUCH LEVER SPRING 1.10
77 14868 SPOOL ASSEMBLY 82.50
78 13ZRC SPOOL SHAFT PIN 1.10
79 13ZRD SPOOL SHAFT COLLAR 3.30
80 104Q7 BALL BEARING (7X14X5) 13.75
81 13ZRE WASHER 1.10
82 13ZRF DRAG SPRING SPACER 3.30
83 13ZRG SPOOL SHAFT SPRING 2.20
84 13ZRH WASHER 1.10
85 105RZ E-TYPE RETAINING RING 6 1.10
86 13ZRJ CLICK GEAR 1.10
87 10MT4 SET SCREW 1.10
88 103GQ SET SCREW 1.10
89 13ZRK CLICK SPRING 2.75
90 13ZRL MAIN BODY MOUNTING PLATE 4.40
91 13ZRX FRAME ASSEMBLY 176.00
92 103ED SET SCREW 1.10
93 10GQV CLICK PAWL 1.65
94 1059U WASHER 1.10
95 13ZRM CLICK BEARING HOUSING 1.10
96 13ZRN WASHER 1.10
97 13ZRP CLICK BUTTON 10.45
121 13ZRQ LEG MOUNTING BOLT 7.70
122 105N9 LEG MOUNTING HEX NUT 1.65
123 10AS1 LEG MOUNTING PLATE 11.55
124 10JCD ROD CLAMP NUT 3.85
126 10MJ8 REEL WRENCH 3.85
127 13ZRR DRAG CAM (LIGHT LINE CAM) 26.40
