[DAIWA] Genuine Spare Parts for 26 SILVER WOLF CT SV TW PE SPECIAL 8.5L Product code: 00631611 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 26 SILVER WOLF CT SV TW PE SPECIAL 8.5L Product code: 00631611 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$130.90 [Regular Price: US$1.10 - US$187.00]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

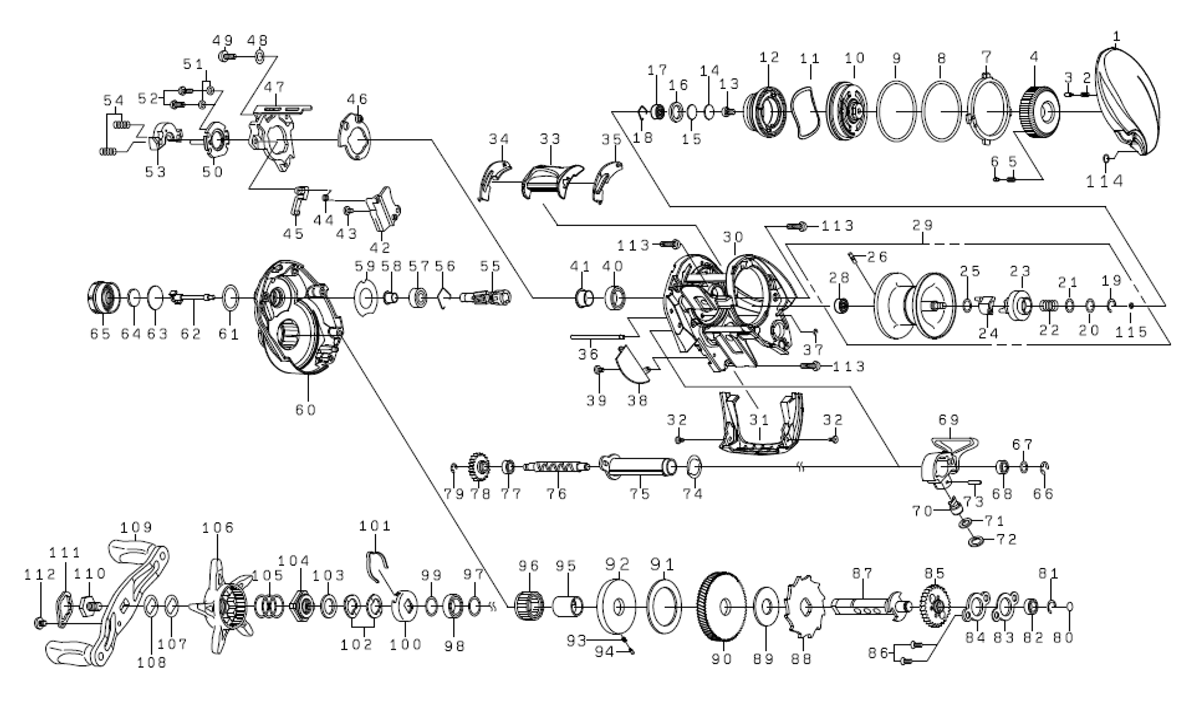

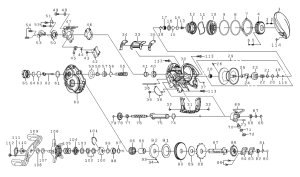

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 RS PLATE 6M887801 30.80
2 LEVER PLATE SP 6J631901 2.20
3 LEVER PLATE PIN 6J286301 2.20
4 BRAKE DIAL 6M268003 7.70
5 BRAKE DIAL SP 6M333301 2.20
6 BRAKE DIAL PIN 6J731201 2.20
7 LEVER PLATE (A) 6M332001 3.30
8 LEVER PLATE (B) 6J741703 2.20
9 LEVER PLATE (C) 6J742601 2.20
10 SET PLATE 6M896901 31.90
11 SET PLATE W 6M593301 1.10
12 MAG HOLDER *Cannot be ordered 6M646601 34.10
13 SET PLATE SC 6H666002 2.20
14 RS BEARING W (A) 63757404 1.10
15 RS BEARING W (B) 63757411 1.10
16 RS BEARING W (C) 6G185101 1.10
17 RS BALL BEARING 6G511506 15.40
18 RS BEARING RING 6F032201 2.20
19 SPOOL HOLDER SP RETAINER 63208002 2.20
20 SPOOL HOLDER W (A) 6E096501 1.10
21 SPOOL HOLDER W (B) 6M567801 1.10
22 SPOOL HOLDER SP 6M567701 2.20
23 SPOOL HOLDER 6M900201 19.80
24 SPOOL HOLDER COLLAR 6J190301 2.20
25 SPOOL HOLDER COLLAR W 6E096501 1.10
26 SPOOL PIN 6H358802 2.20
28 SPOOL BALL BEARING 6G511506 15.40
29 SPOOL (19-28, 115) 6Z028593 187.00
30 FRAME 6M887701 78.10
31 FRONT COVER 6J740905 8.80
32 FRONT COVER SC 6H294104 2.20
33 CLUTCH LEVER 6J739201 9.90
34 CLUTCH LEVER PLATE (L) 6J738501 2.20
35 CLUTCH LEVER PLATE (R) 6J738401 2.20
36 OSCILLATING POST 6J741001 2.20
37 OSCILLATING POST RETAINER 6H704101 2.20
38 LS COVER PLATE 6J765201 2.20
39 LS COVER PLATE SC 6H294104 2.20
40 CLUTCH CAM BALL BEARING 6G431008 15.40
41 CLUTCH CAM BEARING COLLAR 6M518401 7.70
42 KICK LEVER PLATE (A) 6J739101 3.30
43 KICK LEVER PLATE (A) SC 6H294104 2.20
44 KICK LEVER PLATE SP 6M042701 2.20
45 KICK LEVER 6J638601 6.60
46 CLUTCH CAM PLATE 6J765601 2.20
47 CLUTCH CAM 6J765301 9.90
48 CLUTCH CAM PLATE W 6H450701 1.10
49 CLUTCH CAM PLATE SC 6B360405 2.20
50 KICK LEVER PLATE (B) 6H659103 3.30
51 KICK LEVER PLATE (B) W 6G913306 1.10
52 KICK LEVER PLATE (B) SC 6B032905 3.30
53 CLUTCH PLATE 6H929001 3.30
54 CLUTCH SP 6J313901 2.20
55 PINION + DRIVE GEAR SET 6Z025927 56.10
56 PINION RING 6H448402 2.20
57 PINION BALL BEARING 6G538003 15.40
58 PINION BEARING COLLAR 6J724601 9.90
59 CLUTCH SP PLATE 6J285901 2.20
60 LS PLATE 6M887601 94.60
61 ZERO ADJUSTER O-RING 6J279701 1.10
62 PINION SHAFT 6G931001 3.30
63 ZERO ADJUSTER W (A) 6H161001 1.10
64 ZERO ADJUSTER W (B) 6B175503 1.10
65 ZERO ADJUSTER 6J279613 19.80
66 WORM SHAFT RETAINER 63205901 2.20
67 WORM SHAFT W 6B411702 1.10
68 WORM SHAFT COLLAR 6H850402 2.20
69 LEVEL WIND 6M604801 70.40
70 POLE 6J740102 3.30
71 POLE W 6M161301 1.10
72 LEVEL WIND O-RING 6G252202 1.10
73 LEVEL WIND PIN 6J740201 3.30
74 WORM SHIELD PLATE 6J281601 2.20
75 WORM SHIELD 6J765801 3.30
76 WORM SHAFT 6M042401 8.80
77 WORM SHAFT COLLAR 6H850402 2.20
78 WORM SHAFT GEAR 6J281401 4.40
79 WORM SHAFT GEAR RETAINER 6B339801 2.20
80 GEAR SHAFT W 6G099801 1.10
81 GEAR SHAFT RETAINER 63208002 2.20
82 GEAR SHAFT BALL BEARING 6G466201 15.40
83 GEAR SHAFT PLATE (A) 6M730701 2.20
84 GEAR SHAFT PLATE (B) 6J281101 3.30
85 WORM SHAFT GEAR 6J281001 7.70
86 GEAR SHAFT PLATE SC 6G297006 2.20
87 GEAR SHAFT 6J739404 27.50
88 RATCHET 6H660901 3.30
89 DRIVE GEAR W 63746605 1.10
90 PINION + DRIVE GEAR SET 6Z025927 56.10
91 DRAG W 6H359004 7.70
92 DRIVE COLLAR 6J740501 17.60
93 DRIVE COLLAR SP 6J410801 2.20
94 DRIVE COLLAR PIN 6J566201 2.20
95 CLUTCH RING 6J327701 8.80
96 ONE-WAY CLUTCH 6G819801 20.90
97 HANDLE BEARING W (A) 6B553803 1.10
98 HANDLE BALL BEARING 6G431008 15.40
99 HANDLE BEARING W (B) 6B553801 1.10
100 DRAG HOLDER 6F028203 3.30
101 DRAG HOLDER LEAF SP 6F032401 2.20
102 DRAG SP・W 61508901 2.20
103 STAR DRAG W 6H929501 2.20
104 STAR DRAG NUT 6J141002 7.70
105 STAR DRAG SP 6J011901 2.20
106 STAR DRAG 6M289904 35.20
107 HANDLE W (A) 6M567801 1.10
108 HANDLE W (B) 6E096501 1.10
109 HANDLE 6M888001 90.20
110 HANDLE SC 6J295501 9.90
111 HANDLE LOCK PLATE 6J319203 3.30
112 HANDLE LOCK PLATE SC 6G835502 3.30
113 LS PLATE SC 6G945806 2.20
114 RS PLATE O-RING 6J197901 1.10
115 SPOOL HOLDER O-RING 6H770601 1.10
200 HANDLE KNOB SP/W 6H744801 1.10
201 HANDLE KNOB W 6B411703 1.10
202 HANDLE KNOB 6J315504 24.20
203 HANDLE KNOB COLLAR 6G720001 2.20
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP 6J315801 6.60
206 FRAME PROTECTIVE SHEET 6J374301 2.20
