[ABU] Genuine Spare Parts for Revo Beast 41 X-L Product code: 1501039 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

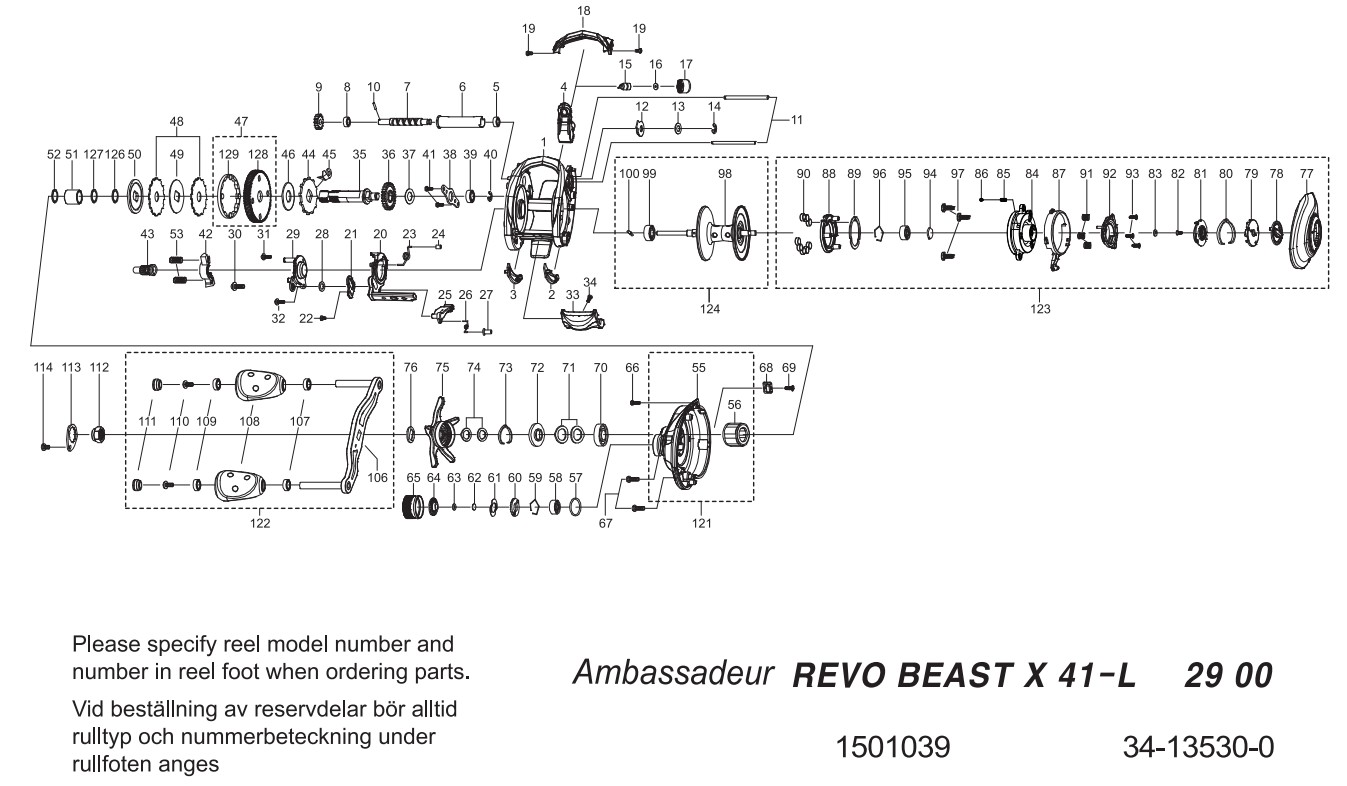

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
1	1515923	FRAME	60.50
2	1490861	SLIDE WASHER RIGHT	2.20
3	1490862	SLIDE WASHER LEFT	2.20
4	1515932	LINE GUIDE	5.50
5	1132853	BALL BEARING	6.60
6	1490864	LEVEL WIND TUBE	3.30
7	1515933	WORM SHAFT	16.50
8	1132853	BALL BEARING	6.60
9	1125732	WORM SHAFT GEAR	1.10
10	1125733	WORM SHAFT PIN	0.55
11	1490866	LINE GUIDE SHAFT	3.30
12	1125734	WORM SHAFT PIN HOLDER	0.77
13	1490867	WASHER	2.20
14	1124201	RETAINER	0.55
15	1125806	PAWL	3.30
16	1116193	WASHER	0.55
17	1129323	LINE GUIDE NUT	0.77
18	1515924	FRONT COVER	5.50
19	1452764	SCREW	2.20
20	1490828	CLUTCH CAM	3.30
21	1490870	LINK PLATE	2.20
22	1415620	SCREW	2.20
23	1452810	CLUTCH SPRING	2.20
24	1380606	CLUTCH SPRING BUSHING	2.20
25	1289971	KICK LEVER	3.30
26	1127701	KICK LEVER SPRING	0.55
27	1415617	KICK LEVER SPRING BUSHING	2.20
28	1124224	WASHER	1.76
29	1490829	CAM PLATE	2.20
30	1380616	SCREW	2.20
31	1415622	SCREW	2.20
32	1196769	SCREW	0.55
33	1452767	THUMB BAR	3.30
34	1252078	SCREW	1.76
35	1490830	MAIN GEAR SHAFT	11.00
36	1251634	LEVEL WIND GEAR	1.76
37	1125747	WASHER	0.55
38	1281130	MAIN GEAR SHAFT PLATE	2.20
39	1281216	BALL BEARING	6.60
40	1124201	RETAINER	0.55
41	1372152	SCREW	2.20
42	1281235	YOKE	2.20
43	1515947	PINION	16.50
44	1452769	RATCHET	2.20
45	1144194	STOPPER	9.90
46	1490874	DRAG WASHER	3.30
47	1515948	MAIN GEAR COMPLETE	27.50
48	1452855	DRAG WASHER	5.50
49	1452856	DRAG WASHER	2.20
50	1452857	PRESSURE WASHER	2.20
51	1415627	IAR SLEEVE	3.30
52	1372155	WASHER	2.20
53	1116237	YOKE SPRING	0.55
55	1515949	GEAR SIDE PLATE	49.50
56	1275594	OWC	27.50
57	1490799	O-RING	3.30
58	1132857	BALL BEARING	6.60
59	1104790	RING	0.55
60	1125768	CLICK WASHER	1.10
61	1125769	CLICK SPRING	1.65
62	1452776	FRICTION WASHER	1.10
63	1125771	RUBBER WASHER	0.55
64	1452777	CLICK WASHER	2.20
65	1452778	BRAKE KNOB	16.50
66	1452779	SCREW	2.20
67	1452780	SCREW	2.20
68	1452781	LUBE PORT	2.20
69	1252078	SCREW	1.76
70	1490801	BALL BEARING	11.00
71	1144209	SPRING WASHER	1.76
72	1185796	CLICK PLATE	1.65
73	1125780	CLICK SPRING	0.77
74	1117208	SPRING WASHER	0.55
75	1515950	STAR WHEEL	27.50
76	1144211	HANDLE WASHER	0.55
77	1515951	PALM SIDE PLATE	33.00
78	1452784	MAG DIAL	3.30
79	1415634	MAG DIAL PLATE	2.20
80	1125780	CLICK SPRING	0.77
81	1415635	SLIDE CAM	3.30
82	1185710	RIGHT SIDE COVER CAP SCREW	0.55
83	1125771	RUBBER WASHER	0.55
84	1515939	BEARING HOUSING	13.20
85	1313372	CLICK PIN SPRING	2.20
86	1313371	CLICK PIN	2.20
87	1490836	CAM LOCK LEVER	3.30
88	1515940	MAGNET HOLDER	3.30
89	1490807	MAGNET PLATE	5.50
90	1116222	MAGNET	2.20
91	1313476	SPRING	2.20
92	1490808	SLIDE CAM	3.30
93	1380655	SCREW	2.20
94	1125797	WASHER	0.55
95	1132859	BALL BEARING	6.60
96	1104790	RING	0.55
97	1490809	SCREW	2.20
98	1515941	SPOOL	60.50
99	1144215	BALL BEARING	8.80
100	1490811	SPOOL SHAFT PIN	2.20
106	1515942	HANDLE	22.00
107	1208088	BUSHING FOR BALL BEARING	2.20
108	1452791	HANDLE KNOB	5.50
109	1208088	BUSHING FOR BALL BEARING	2.20
110	1208090	SCREW	0.55
111	1380579	HANDLE KNOB CAP	2.20
112	1372176	HANDLE NUT	2.20
113	1380560	HANDLE NUT COVER	2.20
114	1200031	HANDLE NUT RETAINER SCREW	0.55
121	1515952	GEAR SIDE COMPLETE	71.50
122	1515944	HANDLE COMPLETE	44.00
123	1515953	PALM SIDE COMPLETE	104.50
124	1515946	SPOOL COMPLETE	71.50
126	1118994	WASHER	0.55
127	1188790	WASHER	0.55
128	1517692	MAIN GEAR	24.20
129	1517676	WASHER DRUM	3.30

* Items Marked “For Repair Use Only” Are Not Available for Individual Parts Sales

Order Flow

(STEP 1: Customer)
Please add the ordered parts from the parts list to your cart and complete the payment together with the Commission for [SHIMANO / DAIWA / ABU] Back-order Genuine Parts (US$5.00).
↓
(STEP 2: Our Shop)
We review your order details and place the order with the manufacturer.
↓
(STEP 3: Manufacturer)
Only for parts that are not in stock, we will receive a notification from the manufacturer approximately one week later.
Parts that are in stock will arrive at our shop in about one month.
* If all ordered parts are in stock, there will be no notification from the manufacturer or our shop until the shipment is dispatched. Please wait until shipping.
↓
(STEP 4: Our Shop)
Once the parts arrive from the manufacturer, we will dispatch your order.

* Please note that it generally takes about one month for genuine spare parts to arrive.
* If you order both back-ordered items and in-stock items together, they will be shipped together after all back-ordered items arrive.
* If you would like to receive in-stock items first, please place and pay for each order separately.

* The parts list pages will be expanded gradually.
If the parts list for your reel is not yet available, please place your order by manually entering the details using the order form below.

Genuine Spare Parts Order Form
https://www.hedgehog-studio.co.jp/form/parts

Regarding What You Can and Cannot Order for the Spare Parts

We source and provide genuine spare parts for SHIMANO / DAIWA / ABU reels only from the official Japanese websites listed below.
(We cannot assist with translating these websites. Please use Google Translate or other translation tools if necessary.)

| Parts that CANNOT be Ordered

- Spare parts for certain reel models (mainly older models) marked as “Unrepairable” on the SHIMANO website.

https://www.shimanofishingservice.jp/price.php

- Spare parts marked as “Just for Repair,” “Suspended,” or “Discontinued” on the DAIWA website.

http://www.sl-planets.co.jp/shop/c/

- Spare parts that do not have a part number or part code shown in the schematic diagrams on the SHIMANO / DAIWA websites.

- Spare parts marked as “For Repair Only” on the ABU website.

https://pfj-parts.com/
Please note that even for discontinued ABU reel models, parts may still be ordered if stock is available.

- Parts other than reel-related spare parts, such as rods or other fishing gear.
