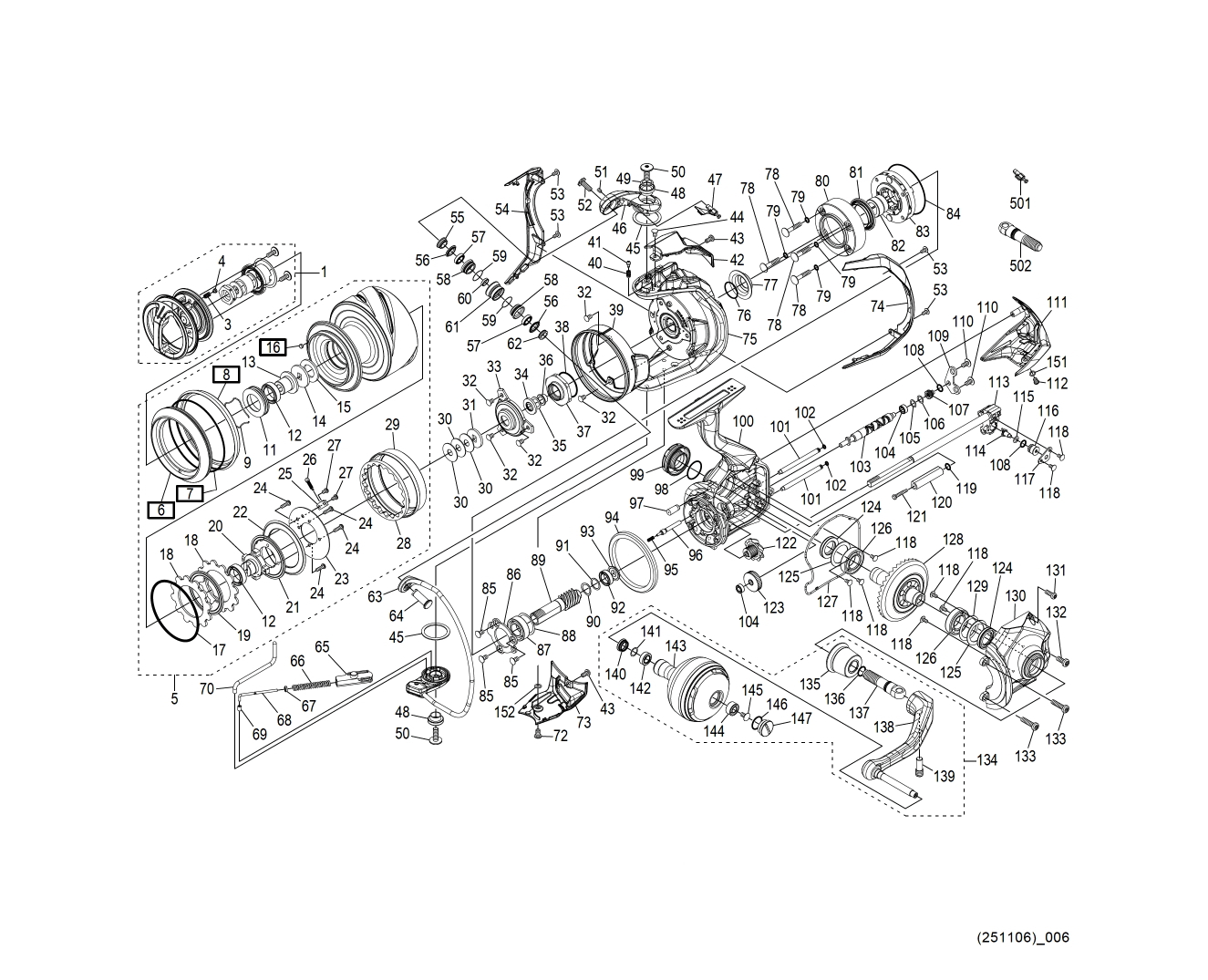

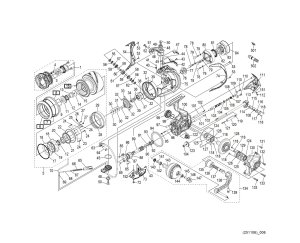

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* Parts with square numbers are for repair only.
These parts are supposedto be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	14A3H	DRAG KNOB ASSEMBLY	110.00
3	1077S	BAIL TRIP LEVER CLICK SPRING	1.65
4	10361	CLICK PIN	1.10
5	14A8Z	SPOOL ASSEMBLY	275.00
6	146WS	SPOOL RING COLLAR *Cannot be ordered	40.70
7	10DUS	O-RING *Cannot be ordered	1.65
8	146WR	SPOOL RING *Cannot be ordered	33.00
9	10B6F	ANTI-SLIP SPRING	1.65
11	146WT	BEARING SPACER	6.05
12	10KX7	BALL BEARING (10X15X4)	13.75
13	10152	BEARING HOUSING	6.05
14	10BC5	OVAL WASHER	2.75
15	10344	DRAG WASHER	11.55
16	10EAG	PIN *Cannot be ordered	1.10
17	108WD	O-RING AS568-31	1.10
18	10C19	DRAG WASHER	20.35
19	10BS8	DRAG PLATE	6.05
20	146WU	MAIN SHAFT BEARING GUIDE	16.50
21	10T7T	DRAG PLATE (B)	6.05
22	10RC9	MAIN SHAFT BEARING SEAL	6.05
23	1016H	DRAG PLATE WASHER	2.75
24	147FC	FIXING BOLT	1.10
25	109ZN	DRAG CLICK SPRING GUIDE	1.65
26	10E90	SPOOL PIN ASSEMBLY	11.55
27	1480N	FIXING BOLT	1.10
28	109ZQ	DRAG CLICK RATCHET	2.75
29	100LX	DRAG COVER	11.00
30	101DJ	SPOOL WASHER	2.20
31	103MW	SPOOL BEARING	1.65
32	103LB	FIXING BOLT	1.10
33	10K30	RETAINER	2.75
34	147VW	ROTOR BEARING SEAL	4.95
35	14B4X	WASHER	1.10
36	10S4S	ROTOR BEARING COLLAR	1.10
37	146X3	ROTOR NUT	8.80
38	10163	O-RING	1.65
39	146X4	ROTOR FLANGE	13.20
40	1077Q	BAIL TRIP LEVER CLICK SPRING	1.65
41	10CH8	BAIL TRIP LEVER CLICK PIN	1.65
42	146WW	ARM CAM SPRING COVER	12.65
43	10CYU	FIXING BOLT	2.75
44	10DN7	FIXING BOLT	1.65
45	10HDP	ARM CAM WASHER	1.65
46	146X0	ARM CAM	66.00
47	14859	ARM CAM FIN ASSEMBLY	5.50
48	10K7M	FIXING BOLT COLLAR	3.85
49	14A71	WASHER	1.10
50	147FH	FIXING BOLT	2.20
51	10PN1	SET SCREW (M2X3)	1.65
52	10K46	FIXING BOLT	6.05
53	10MT2	FIXING BOLT	1.10
54	146WZ	ROTOR GUARD (B)	2.20
55	1016P	LINE ROLLER BEARING	6.05
56	1016K	LINE ROLLER SEAL	1.65
57	104W1	BALL BEARING (5X8X2)	9.35
58	1015Z	BUSHING	1.65
59	1015L	O-RING	1.65
60	1014P	BUSHING	1.65
61	10DUT	LINE ROLLER	17.05
62	1014N	COLLAR	3.85
63	14A90	BAIL ASSEMBLY	88.00
64	10Q3F	ARM FIXING SHAFT	9.35
65	10153	ARM SPRING GUIDE (B)	1.65
66	1015E	ARM CAM SPRING	1.65
67	10DUU	ARM SPRING GUIDE (A) COLLAR	1.65
68	1016J	ARM SPRING GUIDE (A)	3.85
69	10R2F	ARM SPRING GUIDE (A) COLLAR BUSHING	1.65
70	14865	INNER LEVER	3.85
72	10CYT	GUARD FIXING BOLT (A)	2.75
73	146WX	BAIL MOUNTING COVER	12.10
74	146WY	ROTOR GUARD (A)	2.20
75	146WV	ROTOR	121.00
76	147FE	O-RING	1.10
77	146W2	ROTOR COLLAR	7.15
78	1015M	FIXING BOLT	1.65
79	10LAD	O-RING	1.10
80	10148	ROLLER CLUTCH SEAL COVER	1.65
81	147FS	ROLLER CLUTCH SEAL	8.25
82	1014F	ROLLER CLUTCH INNER	9.35
83	10DUZ	ROLLER CLUTCH ASSEMBLY	22.55
84	1014X	O-RING	1.65
85	10ML2	FIXING BOLT	2.75
86	146W3	BEARING THRUST PLATE	4.40
87	10RJF	BALL BEARING (9X17X5)	7.15
88	14A3U	WASHER	1.10
89	146X8	PINION GEAR	38.50
90	147FF	CURVED WASHER	1.10
91	147FT	SPACER	1.10
92	104PN	BALL BEARING (7X11X3)	13.75
93	146W5	BUSHING	4.40
94	1014J	FRICTION RING	3.85
95	14D93	INTERMEDIATE GEAR SPRING	1.10
96	146WA	INTERMEDIATE GEAR SHAFT	1.65
97	10AYR	BODY FLANGE SEAL	2.75
98	108WP	O-RING	1.65
99	146WG	HANDLE SCREW CAP	26.40
100	14AMB	BODY ASSEMBLY	196.90
101	10147	SLIDER GUIDE	2.75
102	10JAB	O-RING	1.65
103	146WB	WORM SHAFT	8.25
104	10PDA	BALL BEARING (3X6X2.5)	13.75
105	100XZ	WASHER	2.20
106	10TK0	WASHER	1.65
107	1015D	BUSHING	3.85
108	10TNF	O-RING	1.65
109	147FU	WORM SHAFT COVER	1.10
110	103EB	FIXING BOLT	1.65
111	147FB	BODY GUARD	16.50
112	10L9D	GUARD FIXING BOLT (D)	1.65
113	14A3N	MAIN SHAFT ASSEMBLY	44.00
114	106V5	CROSS GEAR PIN	6.05
115	14813	WASHER	1.65
116	10164	WORM SHAFT PIN COLLAR	6.05
117	146WE	WORM SHAFT PIN RETAINING PLATE	1.10
118	10MT4	FIXING BOLT	1.10
119	108W9	O-RING (3X5)	1.65
120	10AYL	BODY GUARD COLLAR	2.75
121	10LSC	FIXING BOLT	1.10
122	146XB	INTERMEDIATE GEAR (LARGE)	2.75
123	146XC	WORM SHAFT GEAR	9.90
124	146W0	BEARING SEAL	5.50
125	10BGG	WASHER	1.65
126	104PW	BALL BEARING (10X19X5)	13.75
127	146VZ	BODY SEAL	2.75
128	1486A	DRIVE GEAR ASSEMBLY	66.00
129	14814	WASHER	2.20
130	14A3P	COVER ASSEMBLY	82.50
131	10A6N	FIXING BOLT	1.65
132	10PVM	FIXING BOLT	2.75
133	10PVN	FIXING BOLT	2.75
134	14A92	HANDLE ASSEMBLY	231.00
135	14A3R	HANDLE SHAFT FLANGE ASSEMBLY	34.10
136	10LAA	O-RING	1.10
137	146WL	HANDLE SHAFT	15.40
138	14A93	HANDLE SHANK ASSEMBLY	99.00
139	10E85	FIXING BOLT	6.05
140	147FX	HANDLE KNOB SEAL	7.70
141	104FH	WASHER	2.20
142	105BN	BALL BEARING (5X9X3)	13.75
143	14A3T	HANDLE KNOB ASSEMBLY	88.00
144	10KX1	BALL BEARING (4X9X4)	13.75
145	103E9	FIXING BOLT	1.10
146	10LAB	O-RING	1.10
147	1004B	HANDLE CAP	3.85
151	14CTH	WASHER	1.10
152	14D7L	WASHER	1.10
501	1485A	ARM CAM FIN (B) ASSEMBLY	5.50
502	1485B	HANDLE SHAFT (RIGHT) ASSEMBLY	16.50
*F01	145MW	REEL BAG	33.00
MH01	14CDS	LEG BOTTOM NAMEPLATE QR	6.60
