[SHIMANO] Genuine Spare Parts for 26 STELLA SW 5000HG Product Code: 047496 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

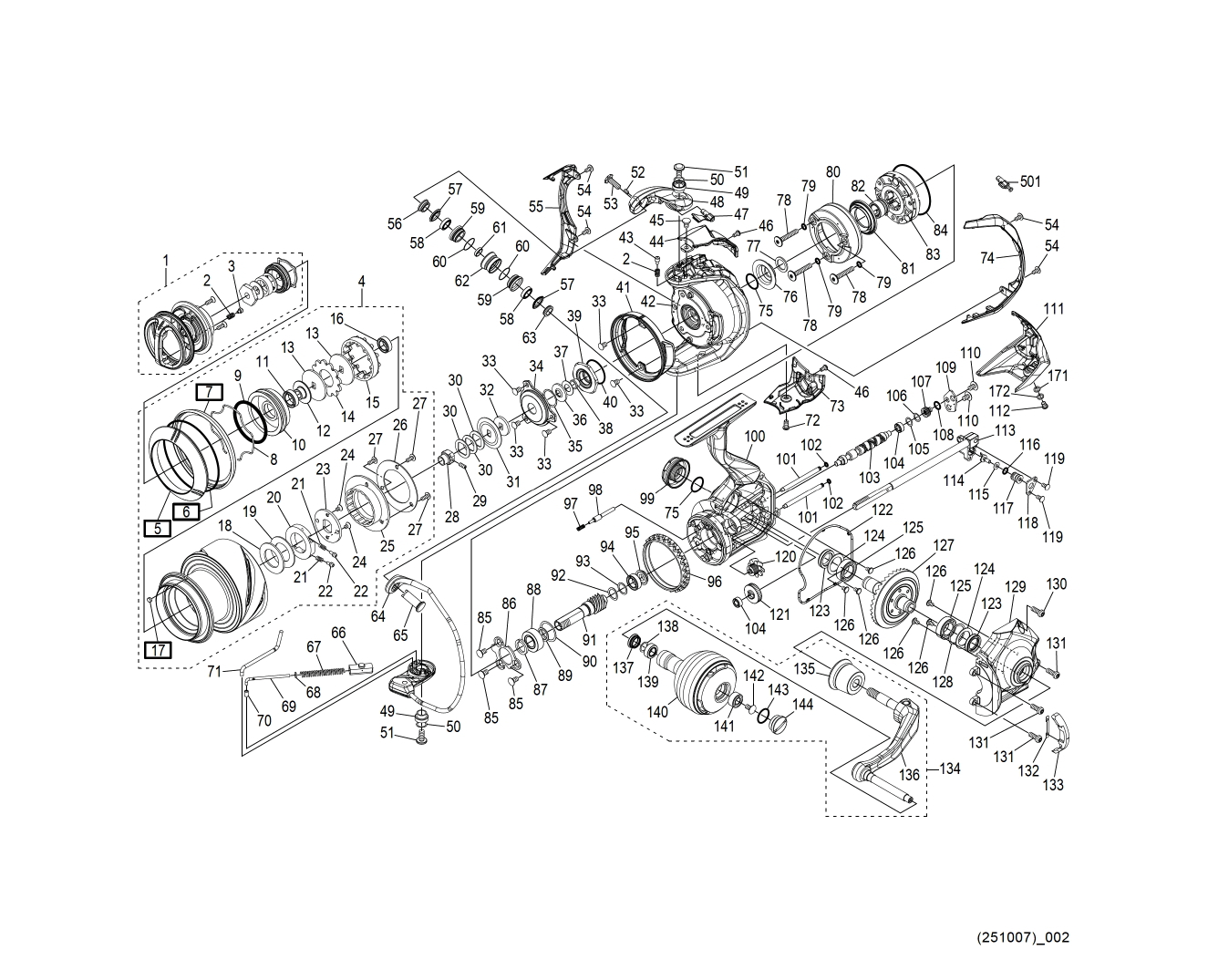

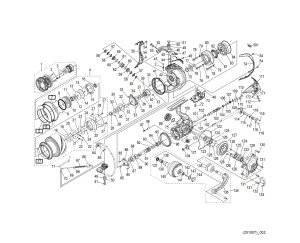

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* Parts with square numbers are for repair only.
These parts are supposedto be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	145MU	REEL BAG	28.60
1	14B62	DRAG KNOB ASSEMBLY	93.50
2	1077Q	BAIL TRIP LEVER CLICK SPRING	1.65
3	10361	CLICK PIN	1.10
4	14B63	SPOOL ASSEMBLY	242.00
5	1463A	SPOOL RING COLLAR *Cannot be ordered	25.85
6	1028L	O-RING *Cannot be ordered	1.65
7	148B9	SPOOL RING *Cannot be ordered	30.80
8	10B88	ANTI-SLIP SPRING	1.65
9	108WC	O-RING SM26	1.65
10	148BB	BEARING SPACER	9.35
11	104PP	BALL BEARING (7X11X3)	13.75
12	148BA	BEARING HOUSING	3.85
13	10B9Z	OVAL WASHER	2.75
14	148Z0	EAR WASHER (A)	24.20
15	148P7	SPOOL INSERT	1.65
16	104JT	BALL BEARING (6X10X3)	13.75
17	10EAG	PIN *Cannot be ordered	1.10
18	148SU	DRAG WASHER (B)	6.60
19	1031R	DRAG WASHER	4.95
20	10JJU	CLICK OVAL GUIDE	9.35
21	10JMD	DRAG CLICK SPRING	1.65
22	1035W	SPOOL PIN	1.65
23	109HE	CLICK OVAL WASHER	3.85
24	10MGD	FIXING BOLT	1.10
25	10C1J	DRAG COVER	2.75
26	101N7	DRAG COVER NAMEPLATE	3.85
27	10MPR	MAIN BODY A SHEET B FIXING BOLT	1.10
28	148BQ	MAIN SHAFT BEARING GUIDE	5.50
29	10PRL	SET SCREW (M2X5)	1.65
30	148Z5	SPOOL WASHER	3.30
31	10RBU	MAIN SHAFT BEARING SEAL	3.85
32	148BR	SPOOL BEARING (A)	1.65
33	103LB	FIXING BOLT	1.10
34	148BM	RETAINER	1.65
35	10G8C	WASHER	1.10
36	148Z1	ROTOR BEARING SEAL	4.40
37	14CTJ	WASHER	1.10
38	14DLH	ROTOR BEARING COLLAR	1.10
39	148BL	ROTOR NUT	7.15
40	108WF	O-RING	1.10
41	14870	ROTOR FLANGE	9.35
42	1486V	ROTOR	143.00
43	106ZD	CLICK PIN	1.65
44	1486X	ARM CAM SPRING COVER	12.65
45	10DR4	FIXING BOLT	1.10
46	106ZG	FIXING BOLT	1.65
47	14935	ARM CAM FIN ASSEMBLY	5.50
48	1486Y	ARM CAM	75.90
49	101NS	COLLAR	3.85
50	10HV3	WASHER	1.10
51	101NF	FIXING BOLT	1.65
52	10PN1	SET SCREW (M2X3)	1.65
53	10K46	FIXING BOLT	6.05
54	10MT4	FIXING BOLT	1.10
55	1486Z	ROTOR GUARD (B)	2.20
56	1016P	LINE ROLLER BEARING HOUSING	6.05
57	1016K	LINE ROLLER SEAL	1.65
58	104W1	BALL BEARING (5X8X2)	9.35
59	1015Z	BUSHING	1.65
60	1015L	O-RING	1.65
61	1014P	BUSHING	1.65
62	10DUT	LINE ROLLER	17.05
63	1014N	COLLAR	3.85
64	14B64	BAIL ASSEMBLY	88.00
65	10Q3F	ARM FIXING SHAFT	9.35
66	148BJ	ARM SPRING GUIDE (B)	1.65
67	148BH	ARM CAM SPRING	1.65
68	148BG	ARM SPRING GUIDE (A) COLLAR	2.20
69	148BF	ARM SPRING GUIDE (A)	4.95
70	10R2F	ARM SPRING GUIDE (A) COLLAR BUSHING	1.65
71	148BK	INNER LEVER	1.65
72	10CYU	FIXING BOLT	2.75
73	1486W	BAIL MOUNTING COVER	12.65
74	14876	ROTOR GUARD (A)	2.20
75	108WA	O-RING	1.65
76	148BV	ROTOR COLLAR	6.60
77	10J2G	ROTOR WASHER	1.65
78	148T4	FIXING BOLT	1.10
79	10LAD	O-RING	1.10
80	148BU	ROLLER CLUTCH SEAL COVER	2.75
81	148BT	ROLLER CLUTCH SEAL	8.25
82	10667	ROLLER CLUTCH INNER	3.85
83	10QPK	ROLLER CLUTCH ASSEMBLY	11.55
84	108WZ	O-RING	3.85
85	10ML3	FIXING BOLT	1.65
86	148BX	BEARING THRUST PLATE	2.75
87	1028S	WASHER	1.10
88	104Q6	BALL BEARING (7X14X5)	13.75
89	13MGK	WASHER	1.65
90	107JT	FRONT FLANGE BEARING ADJUSTMENT WASHER	1.10
91	148BY	PINION GEAR	36.30
92	148Z6	BENT WASHER	1.65
93	148Z4	SPACER	1.65
94	104JS	BALL BEARING (6X10X3)	13.75
95	148BZ	BUSHING	4.40
96	104FW	FRICTION RING	3.85
97	14D93	INTERMEDIATE GEAR SPRING	1.10
98	148C4	INTERMEDIATE GEAR SHAFT	2.20
99	14874	HANDLE SCREW CAP	23.10
100	14B65	BODY ASSEMBLY	190.30
101	101N9	SLIDER GUIDE	2.75
102	10JAB	O-RING	1.65
103	148C5	WORM SHAFT	8.25
104	10PDA	BALL BEARING (3X6X2.5)	13.75
105	100XZ	WASHER	2.20
106	10TK0	WASHER	1.65
107	1015D	BUSHING	3.85
108	10TNF	O-RING	1.65
109	148C7	WORM SHAFT COVER	2.75
110	10E8M	FIXING BOLT	1.65
111	14873	BODY GUARD	20.90
112	10RZ1	FIXING BOLT	3.85
113	14B66	MAIN SHAFT ASSEMBLY	32.45
114	106VM	WORM SHAFT PIN	4.95
115	100CW	WASHER	2.20
116	108W9	O-RING (3X5)	1.65
117	101NW	COLLAR	3.85
118	148C8	WORM SHAFT PIN RETAINING PLATE	1.65
119	10S65	FIXING BOLT	1.10
120	148C3	INTERMEDIATE GEAR (LARGE)	2.75
121	148C6	WORM SHAFT GEAR	13.20
122	148BS	BODY SEAL	2.75
123	148SV	BEARING SEAL	4.95
124	10BGE	WASHER	1.65
125	104PT	BALL BEARING (8X14X4)	13.75
126	1055G	FIXING BOLT	1.65
127	148C0	DRIVE GEAR ASSEMBLY	60.50
128	100W9	WASHER	2.75
129	14B67	COVER ASSEMBLY	77.00
130	10A6N	FIXING BOLT	1.65
131	10A6P	FIXING BOLT	1.65
132	1498G	SPACER SHEET	1.65
133	148BW	FRICTION RING SPACER	1.65
134	14B68	HANDLE ASSEMBLY	214.50
135	14B69	HANDLE SHAFT FLANGE ASSEMBLY	24.20
136	14B6A	HANDLE SHANK ASSEMBLY	88.00
137	147FX	HANDLE KNOB SEAL	7.70
138	104FH	WASHER	2.20
139	105BN	BALL BEARING (5X9X3)	13.75
140	14B6B	HANDLE KNOB ASSEMBLY	82.50
141	10KX1	BALL BEARING (4X9X4)	13.75
142	103E9	FIXING BOLT	1.10
143	10LAB	O-RING	1.10
144	1004B	HANDLE CAP	3.85
171	14D7L	WASHER	1.10
172	14CTH	WASHER	1.10
501	1485A	ARM CAM FIN (B) ASSEMBLY	5.50
MH01	14CNB	LEG BOTTOM NAMEPLATE QR	3.85
