[DAIWA] Genuine Spare Parts for 26 FREAMS LT6000D-H Product code: 00067326 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 26 FREAMS LT6000D-H Product code: 00067326 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$59.29 [Regular Price: US$1.10 - US$84.70]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

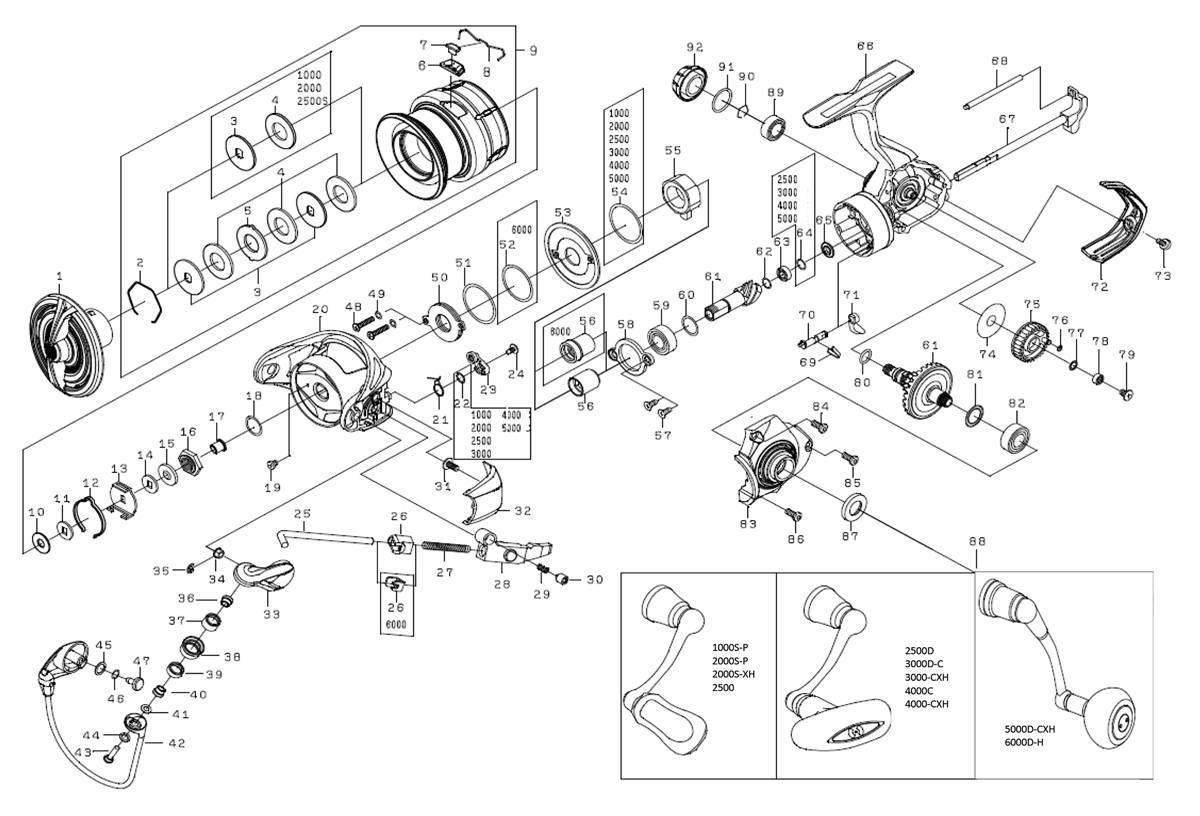

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6Q364201 15.40
2 DRAG RING 61704101 2.20
3 DRAG DISC W 6Q731901 2.20
4 DRAG W (3 pieces) 6Q917701 19.80
5 DRAG GRIP W 6Q377601 2.20
6 LINE STOPPER PLATE 6Q353501 2.20
7 LINE STOPPER 6Q345501 2.20
8 LINE STOPPER SP 6Q345701 2.20
9 SPOOL (2-9) 6R099101 77.00
10 SPOOL W (A) 6F050103 1.10
11 SPOOL W (B) 6Q363801 1.10
12 CLICK LEAF SP 6Q797701 2.20
13 CLICK HOLDER 6Q798301 2.20
14 CLICK HOLDER W 6Q377501 1.10
15 ROTOR NUT GASKET 6H995201 2.20
16 ROTOR NUT 6Q875601 3.30
17 ROTOR NUT COLLAR 6Q875500 3.30
18 ROTOR NUT W 6G529509 1.10
19 ROTOR NUT SC 6H022701 2.20
20 ROTOR 6Q837211 30.80
21 KICK LEVER SP 6H413601 2.20
23 KICK LEVER 6Q994701 3.30
24 KICK LEVER SC 6H417701 2.20
25 ARM LEVER SHAFT 6Q965001 2.20
26 ARM LEVER SHAFT COLLAR 6Q818801 2.20
27 ARM LEVER SP 6Q958001 2.20
28 ARM LEVER SP HOLDER 6Q837801 2.20
29 ARM LEVER HOLDER SP 6Q812001 2.20
30 ARM LEVER HOLDER PIN *Not available 6Q808701 2.20
31 ARM LEVER SP COVER SC 6Q812201 2.20
32 ARM LEVER SP COVER 6Q838001 3.30
33 ARM LEVER 6R056002 11.00
34 ARM LEVER COLLAR 6Q809101 2.20
35 ARM LEVER RETAINER 6B339801 2.20
36 ROLLER COLLAR (A) 6Q994101 2.20
37 ROLLER COLLAR (B) 6R065801 2.20
38 LINE ROLLER 6Q881101 8.80
39 ROLLER COLLAR (C) 6Q994201 2.20
40 ROLLER COLLAR (D) 6Q994101 2.20
41 ROLLER W 63754101 1.10
42 BAIL 6R056101 48.40
43 ROLLER SC 6M475401 2.20
44 ROLLER SC-W *Not available 63754105 1.10
45 BAIL HOLDER SC-W (A) 6Q416203 1.10
46 BAIL HOLDER SC-W (B) 6F037404 1.10
47 BAIL HOLDER SC 6Q812301 2.20
48 MAG SHIELD PLATE SC 6G837101 2.20
49 MAG SHIELD PLATE SC-W 63754102 1.10
50 MAG SHIELD PLATE *Cannot be ordered 6J289301 23.10
51 MAG SHIELD PLATE O-RING 6J212901 1.10
52 MAG SHIELD CAP W 6J238801 2.20
53 MAG SHIELD CAP *Cannot be ordered 6Q363501 3.30
55 ONE-WAY CLUTCH *Cannot be ordered 6J309101 26.40
56 CLUTCH RING *Cannot be ordered 6J690501 18.70
57 PINION BEARING PLATE SC 6Q195701 2.20
58 PINION BEARING PLATE 6Q205901 2.20
59 PINION BALL BEARING (A) 66354801 8.80
60 PINION BEARING W (A) 63712828 1.10
61 PINION + DRIVE GEAR SET *Cannot be ordered 6Z700961 19.80
62 PINION BEARING W (B) 6G572501 1.10
63 PINION BALL BEARING (B) 6G467108 8.80
65 PINION BEARING COLLAR 6J428101 3.30
66 BODY *Cannot be ordered 6R098801 33.00
67 MAIN SHAFT *Cannot be ordered 6Q883601 8.80
68 OSCILLATING POST 6Q853003 2.20
69 STOPPER CAM SP 6Q845901 2.20
70 STOPPER CAM 6Q883501 2.20
71 STOPPER LEVER 6Q852601 2.20
72 REAR CAP 6R099001 4.40
73 REAR CAP SC 6Q342901 2.20
74 OSCILLATING GEAR W 6G644201 1.10
75 OSCILLATING GEAR *Cannot be ordered 6Q133501 3.30
76 OSCILLATING GEAR O-RING 6B853101 1.10
77 OSCILLATING GEAR BEARING W 6G522101 1.10
78 OSCILLATING GEAR BALL BEARING 6G467108 8.80
79 OSCILLATING GEAR SC 6H463401 2.20
80 DRIVE GEAR O-RING 6G645301 2.20
81 DRIVE W 63737811 1.10
82 DRIVE BALL BEARING (A) 6G523405 8.80
83 BODY COVER *Cannot be ordered 6R098901 19.80
84 BODY COVER SC (A) 6Q852401 2.20
85 BODY COVER SC (B) 6Q852401 2.20
86 BODY COVER SC (C) 6Q852401 2.20
87 HANDLE PACKING 6H730801 2.20
88 HANDLE 6R100101 84.70
89 DRIVE BALL BEARING (B) 6B861705 8.80
90 DRIVE BALL BEARING (B) RING 6G525101 2.20
91 HANDLE CAP O-RING 6G672401 1.10
92 HANDLE CAP 6Q364801 4.40
200 HANDLE KNOB W 6B411701 1.10
201 HANDLE KNOB COLLAR (A) 6G720001 2.20
202 HANDLE KNOB 6R031701 29.70
203 HANDLE KNOB COLLAR (B) 6G720001 2.20
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP 6R031801 18.70
