[DAIWA] Genuine Spare Parts for 26 CERTATE SW 10000-P Product code: 00065302 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 26 CERTATE SW 10000-P Product code: 00065302 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$177.10 [Regular Price: US$1.10 - US$253.00]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

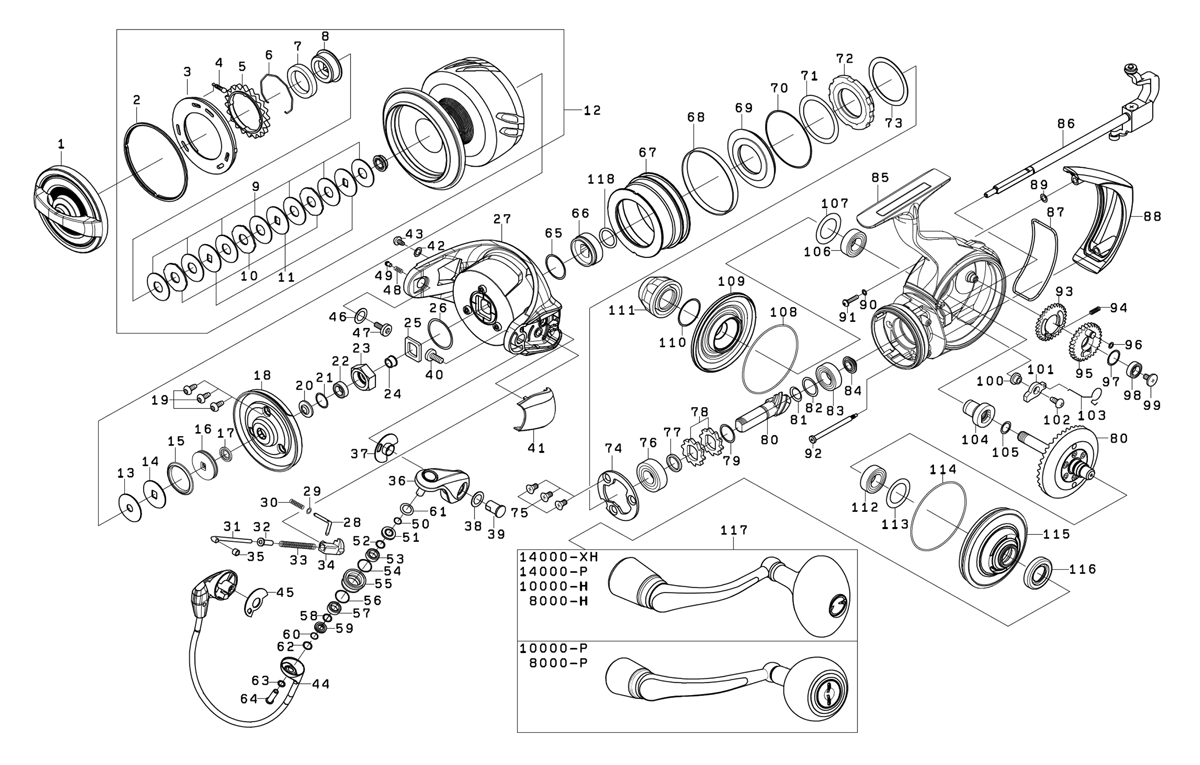

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6M828501 88.00
2 CLICK GEAR PLATE SC 6M042301 12.10
3 CLICK GEAR PLATE 6M825801 5.50
4 CLICK GEAR PIN 6J916501 2.20
5 CLICK GEAR 6J900201 4.40
6 SPOOL COLLAR 6J899901 2.20
7 SPOOL COLLAR (A) 6M145701 6.60
8 SPOOL COLLAR (B) 6J899701 6.60
9 DRAG W SET (7 pieces) 6M146201 77.00
10 DRAG GRIP W 6J899601 2.20
11 DRAG DISC W 6J899501 2.20
12 SPOOL (2-11) 6M883601 253.00
13 SPOOL W (A) 6J898601 1.10
14 SPOOL W (B) 6M656601 1.10
15 SPOOL PLATE GASKET (A) 6J898501 2.20
16 SPOOL PLATE 6J898301 4.40
17 SPOOL PLATE GASKET (B) 6J898401 2.20
18 ROTOR COVER 6J898201 8.80
19 ROTOR COVER SC 6H503901 2.20
20 ROTOR NUT GASKET 6J898101 2.20
21 ROTOR NUT BEARING W 6G522103 1.10
22 ROTOR NUT BALL BEARING 6G467102 8.80
23 ROTOR NUT 6H504801 3.30
24 ROTOR NUT COLLAR 6J898001 3.30
25 ROTOR NUT PLATE 6G392201 2.20
26 ROTOR NUT O-RING 6H501001 1.10
27 ROTOR *Cannot be ordered 6M827601 93.50
28 BAIL SHAFT (A) 6M623801 3.30
29 BAIL SHAFT (A) W 6J919501 1.10
30 BAIL SHAFT (A) SP 6J896401 2.20
31 BALE SHAFT (B) 6M623901 2.20
32 BALE SHAFT (B) SP COLLAR 6M624001 2.20
33 BALE SHAFT (B) SP 6M624101 2.20
34 BALE SHAFT (B) SP HOLDER 6M624201 8.80
35 BALE SHAFT (B) COLLAR 6M624301 2.20
36 ARM LEVER *Cannot be ordered 6M827701 39.60
37 ARM LEVER PLATE 6M624701 2.20
38 ARM LEVER NUT W 6M050901 1.10
39 ARM LEVER NUT 6M624801 3.30
40 ARM LEVER SC *Not available 6M624901 2.20
41 ARM LEVER COLLAR 6M625002 6.60
42 ARM LEVER COVER SC/W 6G256401 1.10
43 ARM LEVER COVER SC 6H741704 2.20
44 BAIL *Cannot be ordered 6M827801 108.90
45 BAIL HOLDER PLATE 6M828001 2.20
46 BAIL HOLDER NUT W 6J073502 1.10
47 BAIL HOLDER SC *Not available 6M624901 2.20
48 BAIL CLICK SP 6M626001 2.20
49 BAIL CLICK PIN 6M626101 2.20
50 ROLLER MAG COLLAR (A) O-RING 6J916201 1.10
51 ROLLER MAG COLLAR (A) *Cannot be ordered 6M654301 12.10
52 ROLLER W (B) 6E096501 1.10
53 ROLLER BALL BEARING (A) 6H738904 15.40
54 ROLLER O-RING (A) 6M625901 1.10
55 LINE ROLLER *Cannot be ordered 6M625801 16.50
56 ROLLER O-RING (B) 6M625901 1.10
57 ROLLER BALL BEARING (B) 6H738904 15.40
58 ROLLER W (C) 6E096501 1.10
59 ROLLER MAG COLLAR (B) *Cannot be ordered 6M654501 12.10
60 ROLLER MAG COLLAR (B) O-RING 6J916201 1.10
61 ROLLER W (A) 6E096501 1.10
62 ROLLER W (D) 6F774605 1.10
63 ROLLER SC・W 6M664401 1.10
64 ROLLER SC 6M844801 3.30
65 CLUTCH RING O-RING 6H255001 1.10
66 CLUTCH RING *Cannot be ordered 6J896001 18.70
67 INFINITE COVER *Cannot be ordered 6J896102 36.30
68 INFINITE COVER O-RING 6H629701 1.10
69 MAG SHIELD PLATE *Cannot be ordered 6M664301 23.10
70 MAG SHIELD PLATE O-RING 6H502601 1.10
71 ONE-WAY CLUTCH W (A) 6M819601 1.10
72 ONE-WAY CLUTCH *Cannot be ordered 6F765401 36.30
73 ONE-WAY CLUTCH W (B) 6G158101 2.20
74 PINION BEARING (A) PLATE 6J895801 3.30
75 PINION BEARING (A) PLATE SC 6F206902 2.20
76 PINION BALL BEARING (A) 66355001 8.80
77 PINION BEARING (A) COLLAR 6J895702 2.20
78 RATCHET 6E262701 2.20
79 RATCHET W 63727610 1.10
80 PINION + DRIVE GEAR SET *Cannot be ordered 6Z028037 187.00
81 PINION BEARING (B) SP?W 6E154803 1.10
82 PINION BEARING (B) W 6G578501 1.10
83 PINION BALL BEARING (B) 6G467302 8.80
84 PINION BEARING (B) COLLAR 6J895101 3.30
85 BODY *Cannot be ordered 6M826901 104.50
86 MAIN SHAFT *Cannot be ordered 6M828401 35.20
87 REAR CAP GASKET 6M622501 3.30
88 REAR CAP *Cannot be ordered 6M622601 36.30
89 REAR CAP SC・W (A) 6B554303 1.10
90 REAR CAP SC・W (B) 6E272501 1.10
91 REAR CAP SC (A) 6J894901 2.20
92 REAR CAP SC (B) 6J895003 4.40
93 OSCILLATING GEAR (A) *Cannot be ordered 6M621801 4.40
94 OSCILLATING GEAR (A) SP 6G157401 2.20
95 OSCILLATING GEAR (B) *Cannot be ordered 6M621701 9.90
96 OSCILLATING GEAR (B) O-RING 6J037601 1.10
97 OSCILLATING GEAR BEARING W 6G522101 1.10
98 OSCILLATING GEAR BALL BEARING 6G467102 8.80
99 OSCILLATING GEAR SC 6H272202 2.20
100 STOPPER COLLAR 6H243301 2.20
101 STOPPER 6M030301 3.30
102 STOPPER SC 63516401 2.20
103 STOPPER SP 6M656401 2.20
104 IDLE GEAR 6M621901 19.80
105 IDLE GEAR O-RING 6J185801 1.10
106 DRIVE BALL BEARING (A) 6G522802 8.80
107 DRIVE BEARING (A) W 6J893901 1.10
108 COVER PLATE O-RING 6M622101 1.10
109 COVER PLATE *Cannot be ordered 6M827201 55.00
110 HANDLE CAP O-RING 6M379901 1.10
111 HANDLE CAP 6J394903 17.60
112 DRIVE BALL BEARING (B) 6G522802 8.80
113 DRIVE BEARING (B) W 6G529501 1.10
114 ENGINE PLATE O-RING 6M622101 1.10
115 ENGINE PLATE *Cannot be ordered 6M827303 55.00
116 HANDLE PACKING 6M827401 2.20
117 HANDLE 6M881701 192.50
118 CLUTCH RING W 63712821 1.10
200 HANDLE KNOB W 63753005 1.10
201 HANDLE KNOB COLLAR 6F648301 4.40
202 HANDLE KNOB 6M357906 42.90
203 HANDLE KNOB BALL BEARING 6G466205 15.40
204 HANDLE KNOB SC 6E454003 2.20
205 HANDLE KNOB CAP COLLAR 6M881801 11.00
206 HANDLE KNOB CAP (WITH O-RING) 6M881901 17.60
207 HANDLE KNOB CAP O-RING 6H100001 1.10
208 SPOOL BAND 6X268103 15.40
209 SCREWDRIVER 6M793501 4.40
