[DAIWA] Genuine Spare Parts for 26 CERTATE HD LT3000 Product code: 00061901 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 26 CERTATE HD LT3000 Product code: 00061901 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$133.21 [Regular Price: US$1.10 - US$190.30]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

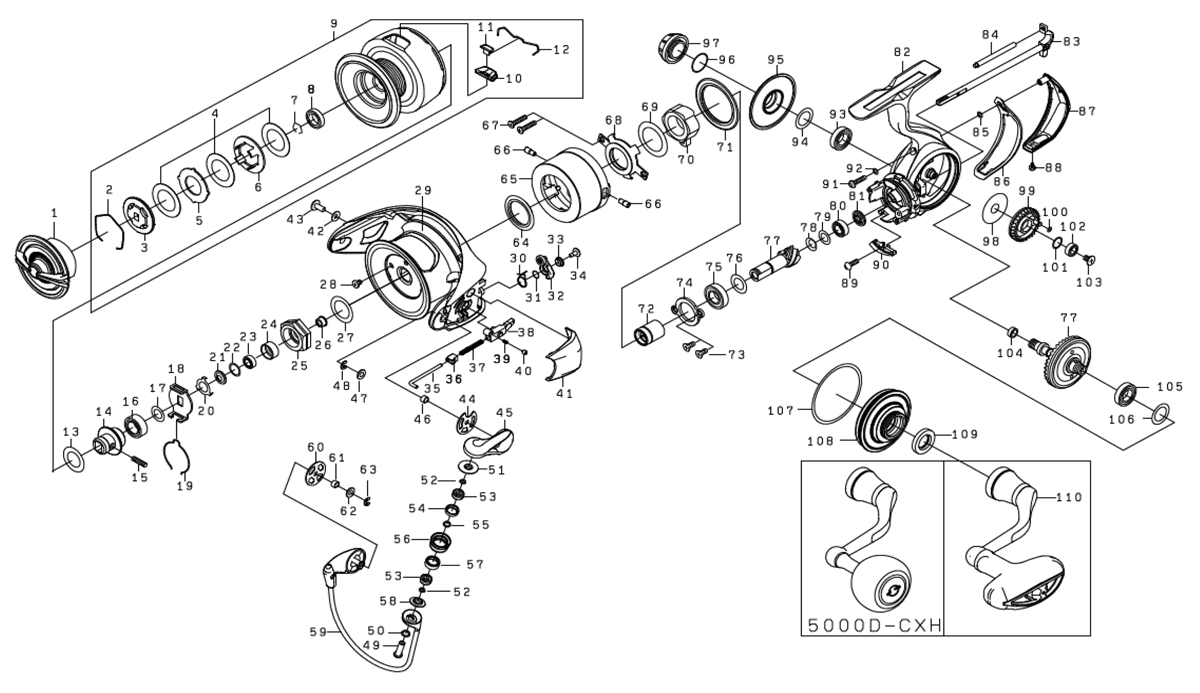

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6N001F01 59.40
2 DRAG RING 6J556701 2.20
3 DRAG METAL (A) 6J556601 6.60
4 DRAG W (3 pieces) 6M512501 33.00
5 DRAG GRIP W *Not available 6J561202 1.10
6 DRAG METAL (B) 6M287101 2.20
7 SPOOL BEARING RING 6B358702 2.20
8 SPOOL BALL BEARING 6G212503 15.40
9 SPOOL (2-12) 6M859001 190.30
10 LINE STOPPER PLATE 6J558101 2.20
11 LINE STOPPER 6J558001 2.20
12 LINE STOPPER SPRING 6J314801 2.20
13 SPOOL W 6J546301 1.10
14 SPOOL METAL 6J549501 9.90
15 SPOOL METAL SC 6J558201 2.20
16 SPOOL METAL BALL BEARING 6G522705 15.40
17 SPOOL METAL W 6J602201 1.10
18 CLICK HOLDER 6M021401 2.20
19 CLICK LEAF SP 6H416101 2.20
20 ROTOR NUT PLATE 6G471501 2.20
21 ROTOR NUT PACKING 6J729101 2.20
22 ROTOR NUT BEARING W 63755202 1.10
23 ROTOR NUT BALL BEARING 6H959602 15.40
24 ROTOR NUT BEARING COLLAR 6J690201 4.40
25 ROTOR NUT 6J253003 8.80
26 ROTOR NUT COLLAR 6Q858101 3.30
27 ROTOR NUT W 63712836 1.10
28 ROTOR NUT SC 6H294102 2.20
29 ROTOR *Cannot be ordered 6M798201 71.50
30 KICK LEVER SP 6M194502 2.20
31 KICK LEVER W 6M194601 1.10
32 KICK LEVER 6M232301 8.80
33 KICK LEVER COLLAR 6M196401 2.20
34 KICK LEVER SC 6H294101 2.20
35 ARM LEVER SHAFT 6M194901 2.20
36 ARM LEVER SHAFT COLLAR 6M195001 3.30
37 ARM LEVER SHAFT SP 6M108801 2.20
38 ARM LEVER SHAFT HOLDER 6M195201 2.20
39 ARM LEVER SHAFT HOLDER SP 6M195301 2.20
40 ARM LEVER SHAFT HOLDER PIN 6M195401 2.20
41 ARM LEVER COVER 6M232502 7.70
42 ARM LEVER COVER SC/W 6G256401 1.10
43 ARM LEVER COVER SC 6M355601 2.20
44 ARM LEVER PLATE 6M195902 2.20
45 ARM LEVER *Cannot be ordered 6M195508 24.20
46 ARM LEVER COLLAR 6M479802 2.20
47 ARM LEVER W 6B536101 1.10
48 ARM LEVER RETAINER 6B339801 2.20
49 ROLLER SC 6M196801 3.30
50 ROLLER SC・W 6M291901 1.10
51 ROLLER MAG COLLAR (A) *Cannot be ordered 6M789001 12.10
52 ROLLER W 6M788901 1.10
53 ROLLER BALL BEARING 6J256702 15.40
54 ROLLER COLLAR (A) 6J256601 3.30
55 ROLLER COLLAR (B) 6J256301 2.20
56 LINE ROLLER *Cannot be ordered 6M196701 8.80
57 ROLLER COLLAR (C) 6M196601 4.40
58 ROLLER MAG COLLAR (B) *Cannot be ordered 6M788701 12.10
59 BAIL *Cannot be ordered 6M798501 99.00
60 BAIL HOLDER PLATE 6M196502 2.20
61 BAIL HOLDER COLLAR 6M479802 2.20
62 BAIL HOLDER W 6B536101 1.10
63 BAIL HOLDER RETAINER 6B339801 2.20
64 MAG SHIELD CAP GASKET (A) 6J554901 2.20
65 MAG SHIELD CAP *Cannot be ordered 6J774703 12.10
66 MAG SHIELD CAP SC 6J782101 2.20
67 MAG SHIELD PLATE SC 6H842807 2.20
68 MAG SHIELD PLATE *Cannot be ordered 6J553802 23.10
69 ONE-WAY CLUTCH W 6H502204 1.10
70 ONE-WAY CLUTCH *Cannot be ordered 6H412602 26.40
71 MAG SHIELD CAP GASKET (B) 6J553701 2.20
72 CLUTCH RING *Cannot be ordered 6J774802 7.70
73 PINION BEARING PLATE SC 6J552202 2.20
74 PINION BEARING PLATE 6J552102 2.20
75 PINION BALL BEARING　(A) 6G279602 15.40
76 PINION BEARING (A) W 63758502 1.10
77 PINION + DRIVE GEAR SET *Cannot be ordered 6Z028767 88.00
78 PINION BEARING (B) SP・W 6H814902 1.10
79 PINION BEARING (B) W 6E096501 1.10
80 PINION BALL BEARING (B) 6G538007 15.40
81 PINION BEARING (B) W *Cannot be ordered 6J552001 3.30
82 BODY *Cannot be ordered 6M797701 68.20
83 MAIN SHAFT *Cannot be ordered 6J878703 16.50
84 OSCILLATING POST 6J774301 2.20
85 REAR CAP W 6G315302 1.10
86 REAR CAP PACKING 6J783901 3.30
87 REAR CAP 6J784003 8.80
88 REAR CAP SC (A) 6J774601 2.20
89 BAIL KICK COLLAR SC 6H158201 2.20
90 BAIL KICK COLLAR 6J571801 2.20
91 REAR CAP SC (B) 6J553603 2.20
92 REAR CAP SC (B) W 6G315301 1.10
93 DRIVE BALL BEARING (A) 6G818902 15.40
94 DRIVE BEARING (A) W 6J555501 1.10
95 DRIVE BEARING (A) COVER *Cannot be ordered 6M797901 46.20
96 HANDLE CAP O-RING 6G399702 1.10
97 HANDLE CAP 6J555901 6.60
98 OSCILLATING GEAR W 6G610104 1.10
99 OSCILLATING GEAR *Cannot be ordered 6J618501 9.90
100 OSCILLATING GEAR O-RING 6G869601 1.10
101 OSCILLATING GEAR BEARING W 6H129201 1.10
102 OSCILLATING GEAR BALL BEARING 6G686904 15.40
103 OSCILLATING GEAR SC 6G940403 2.20
104 DRIVE GEAR RING 6J552701 2.20
105 DRIVE BALL BEARING (B) 6H739702 15.40
106 DRIVE BEARING (B) W 6G613401 1.10
107 ENGINE PLATE O-RING 6J571501 1.10
108 ENGINE PLATE *Cannot be ordered 6M798002 46.20
109 HANDLE PACKING 6M457801 3.30
110 HANDLE 6M799101 149.60
200 HANDLE KNOB SP・W 6H744801 1.10
201 HANDLE KNOB W 6B411703 1.10
202 HANDLE KNOB BALL BEARING 6G469009 15.40
203 HANDLE KNOB 6J574001 36.30
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP 6J574201 6.60
