[DAIWA] Genuine Spare Parts for 26 RYOGA 150HL Product code: 00630149 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 26 RYOGA 150HL Product code: 00630149 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$106.26 [Regular Price: US$1.10 - US$151.80]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

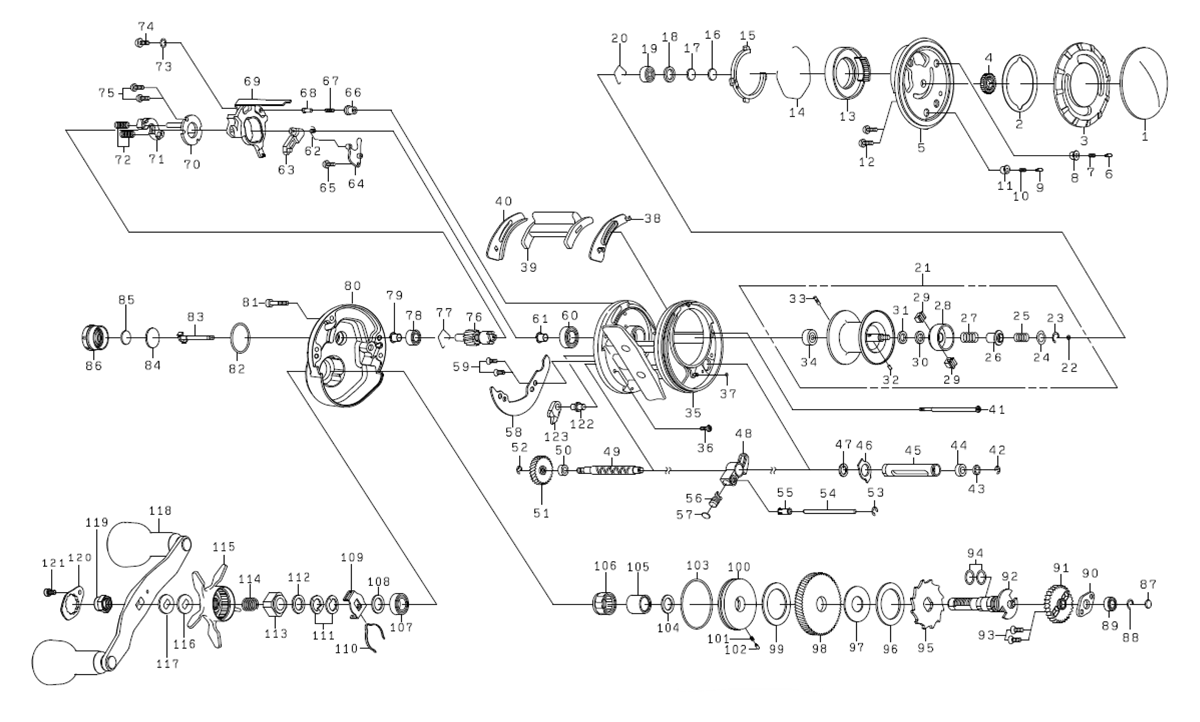

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 RS COVER 6J625204 39.60
2 MAG DIAL PLATE 6J625101 2.20
3 MAG DIAL 6J728402 9.90
4 MAG DIAL GEAR 6H176201 4.40
5 RS PLATE 6M892601 90.20
6 LEVER PLATE PIN 6J731201 2.20
7 LEVER PLATE SP 6J799101 2.20
8 LEVER PLATE COLLAR 6J635101 2.20
9 MAG DIAL PIN 6J286301 2.20
10 MAG DIAL SP 6J731301 2.20
11 MAG DIAL COLLAR 6J624901 2.20
12 RS PLATE SC 6G557111 2.20
13 MAG HOLDER 6J632401 19.80
14 MAG HOLDER RING 6H454501 2.20
15 LEVER PLATE 6J633601 2.20
16 RS BEARING W (A) 63757404 1.10
17 RS BEARING W (B) 63757411 1.10
18 RS BEARING W (C) 6G185101 1.10
19 RS BALL BEARING 6G511506 15.40
20 RS BEARING RING 6F032201 2.20
21 SPOOL (22-34) 6Z028574 145.20
22 SPOOL HOLDER O-RING 6H770601 1.10
23 SPOOL HOLDER RETAINER 63208002 2.20
24 SPOOL HOLDER W (A) 6J497001 1.10
25 SPOOL HOLDER SP (A) 6M341701 2.20
26 SPOOL HOLDER SP COLLAR 6M299301 3.30
27 SPOOL HOLDER SP (B) 6M917401 2.20
28 SPOOL HOLDER 6M889001 23.10
29 SPOOL HOLDER COLLAR 6M169601 2.20
30 SPOOL HOLDER W (B) 6J497002 2.20
31 SPOOL HOLDER W (C) 63753007 1.10
32 SPOOL HOLDER PIN 6M169301 2.20
33 SPOOL PIN 6J252301 2.20
34 SPOOL BALL BEARING 6G498511 15.40
35 FRAME 6M892401 137.50
36 LS PLATE SC (A) 6J632305 2.20
37 FRAME O-RING 6J718601 1.10
38 CLUTCH LEVER PLATE (R) 6J633001 2.20
39 CLUTCH LEVER 6J195201 6.60
40 CLUTCH LEVER PLATE (L) 6J195101 2.20
41 LS PLATE SC (B) 6J666602 3.30
42 WORM SHAFT RETAINER 63205901 2.20
43 WORM SHAFT W 6B411703 1.10
44 WORM SHAFT COLLAR 6G720001 2.20
45 WORM SHIELD 6J499001 11.00
46 WORM SHIELD PLATE 6J623801 2.20
47 WORM SHIELD PLATE W 6B553803 1.10
48 LEVEL WIND 6J498701 55.00
49 WORM SHAFT 6J653001 11.00
50 WORM SHAFT COLLAR 6G720001 2.20
51 WORM SHAFT GEAR 6H910501 3.30
52 WORM SHAFT GEAR RETAINER 6B339801 2.20
53 LEVEL WIND POST RETAINER 6B864101 2.20
54 LEVEL WIND POST 6J499101 3.30
55 LEVEL WIND POST COLLAR 6H168701 2.20
56 POLE 6H168601 15.40
57 POLE W 6G099801 1.10
58 LS COVER PLATE 6J195415 8.80
59 COVER PLATE SC 6H455407 2.20
60 CLUTCH CAM BALL BEARING 6G431008 15.40
61 PINION BEARING COLLAR 6M518401 7.70
62 KICK LEVER SP 6M895601 2.20
63 KICK LEVER 6J221501 12.10
64 KICK LEVER PLATE 6H944301 2.20
65 KICK LEVER PLATE SC 6H294101 2.20
66 CLUTCH CAM PLATE PIN SP COLLAR 6H910601 2.20
67 CLUTCH CAM PLATE PIN SP 6H928801 2.20
68 CLUTCH CAM PLATE PIN 6J055201 2.20
69 CLUTCH CAM 6J199501 6.60
70 CLUTCH CAM PLATE 6H659101 3.30
71 CLUTCH PLATE 6H944401 3.30
72 CLUTCH SP 6J055301 2.20
73 CLUTCH CAM SC・W 6H159201 1.10
74 CLUTCH CAM SC 63522501 2.20
75 CLUTCH CAM PLATE SC 6B032904 2.20
76 PINION + DRIVE GEAR SET 6Z028576 93.50
77 PINION BEARING RING 6H160801 2.20
78 PINION BALL BEARING 6G538003 15.40
79 PINION BEARING COLLAR 6J724601 9.90
80 LS PLATE 6M892801 116.60
81 LS PLATE SC (C) 6G945822 2.20
82 ZERO ADJUSTER O-RING 6J279701 1.10
83 PINION SHAFT 6J198801 3.30
84 ZERO ADJUSTER W (A) 6H161002 1.10
85 ZERO ADJUSTER W (B) 6B175503 1.10
86 ZERO ADJUSTER 6J279612 17.60
87 GEAR SHAFT W 6G099801 1.10
88 GEAR SHAFT RETAINER 63208002 2.20
89 GEAR SHAFT BALL BEARING 6G538007 15.40
90 GEAR SHAFT PLATE 6H928901 3.30
91 WORM GEAR 6H912701 4.40
92 GEAR SHAFT 6J278302 18.70
93 GEAR SHAFT PLATE SC 6E134503 2.20
94 GEAR SHAFT O-RING 6F657801 1.10
95 RATCHET 6H451901 4.40
96 DRIVE GEAR W (A) 6H359004 7.70
97 DRIVE GEAR W (B) 6H661101 1.10
98 PINION + DRIVE GEAR SET 6Z028576 93.50
99 DRAG W (1 piece) 6J517101 12.10
100 DRIVE COLLAR 6J499201 20.90
101 DRIVE COLLAR SP 6M025201 2.20
102 DRIVE COLLAR PIN 6J566201 2.20
103 DRIVE COLLAR O-RING 6H452801 1.10
104 CLUTCH RING W 6B553803 1.10
105 CLUTCH RING 6J327701 8.80
106 ONE-WAY CLUTCH 6G819801 20.90
107 HANDLE BALL BEARING 6G431008 15.40
108 HANDLE BEARING W 6B553802 1.10
109 DRAG HOLDER 6E709201 3.30
110 DRAG LEAF SP 6E715601 2.20
111 DRAG SP・W 61508901 2.20
112 STAR DRAG W 6H929501 2.20
113 STAR DRAG NUT 6J102302 7.70
114 STAR DRAG SP 6J011901 2.20
115 STAR DRAG 6J673910 30.80
116 HANDLE W (A) 6J102801 1.10
117 HANDLE W (B) 6J101302 1.10
118 HANDLE 6M892101 151.80
119 HANDLE NUT 6J090304 6.60
120 HANDLE LOCK PLATE 6M637102 4.40
121 HANDLE LOCK PLATE SC 6G835505 2.20
122 STOPPER PIN 6J196101 3.30
123 STOPPER 6H270401 8.80
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB SP/W 6H744801 1.10
202 HANDLE KNOB 6M850101 39.60
203 HANDLE KNOB BALL BEARING 6G469005 8.80
204 HANDLE KNOB COLLAR 6G720001 2.20
205 HANDLE KNOB SC 6B679308 2.20
206 HANDLE KNOB CAP (WITH O-RING) 6Z025949 15.40
207 HANDLE KNOB CAP O-RING 6H100001 1.10
