[SHIMANO] Genuine Spare Parts for 26 OCEA CONQUEST CT 301XG LEFT Product code: 049230 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

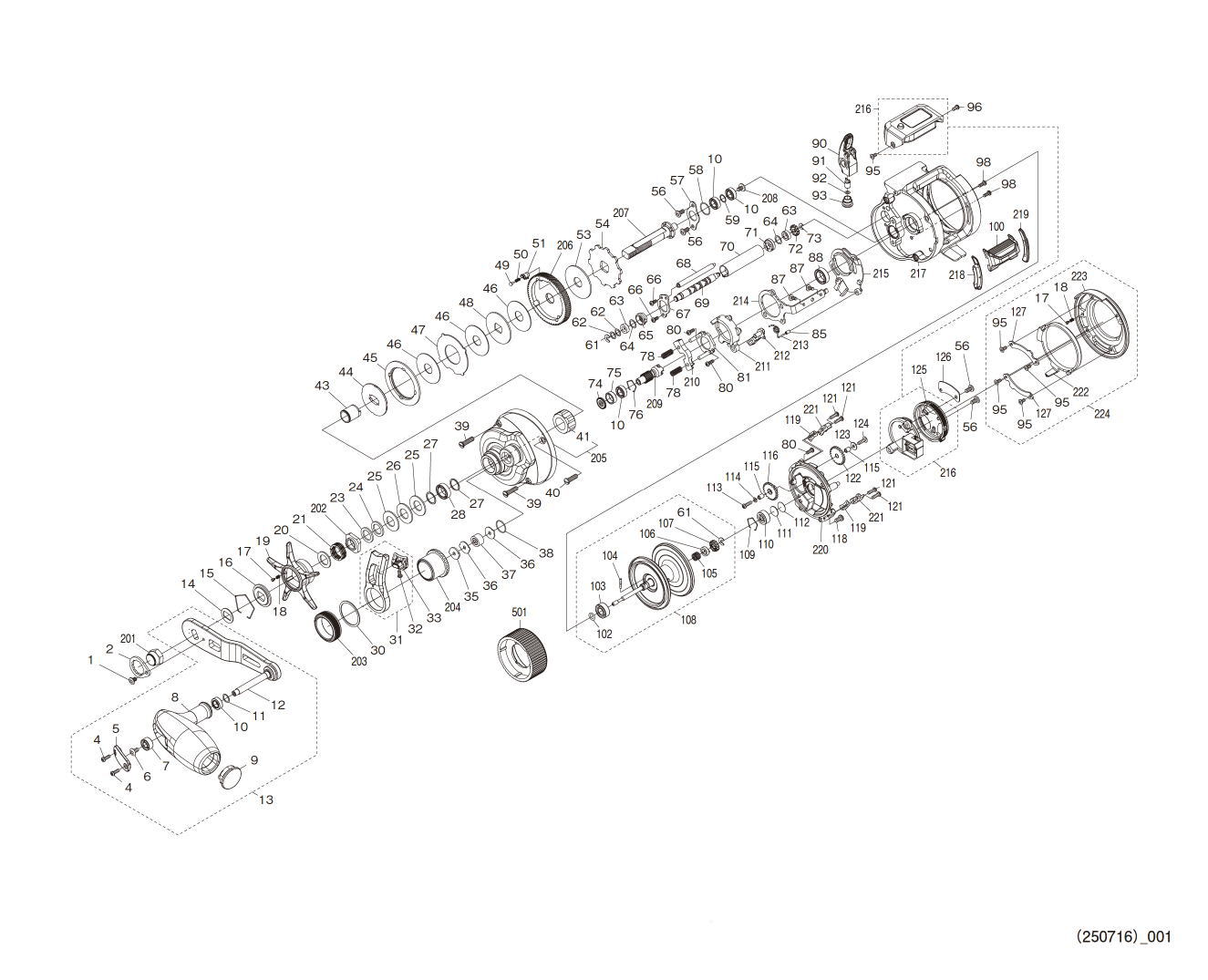

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "41 / ROLLER CLUTCH", "103 / BALL BEARING" and "104 / SPOOL CLUTCH PIN", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10QG0	FIXING BOLT	1.10
2	145FB	RETAINER	2.75
4	103NH	FIXING BOLT	1.10
5	10TNM	HANDLE KNOB NAMEPLATE	2.75
6	103E9	FIXING BOLT	1.10
7	10KX2	BALL BEARING (4X9X4)	13.75
8	142EQ	HANDLE KNOB	44.00
9	145AW	HANDLE CAP	1.65
10	105BP	BALL BEARING (5X9X3)	13.75
11	104FH	WASHER	2.20
12	146G0	HANDLE SHAFT ASSEMBLY	39.60
13	146G1	HANDLE ASSEMBLY	95.70
14	107QQ	HANDLE BEARING WASHER	1.65
15	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
16	10J1Y	STAR DRAG CLICK PLATE	1.65
17	10B27	CLICK PIN	1.65
18	10988	CLICK SPRING	1.65
19	13Z8A	STAR DRAG	28.60
20	10QXM	WASHER	1.10
21	10A71	STAR DRAG SPRING	2.75
23	10J1N	STAR DRAG SPACER	1.65
24	13B0U	STAR DRAG SPACER	1.10
25	10EW3	SALA SPRING (DB8L)	1.65
26	1052E	SALA SPRING (DB8H)	1.65
27	13B0S	WASHER	1.65
28	105BS	BALL BEARING (8X12X3.5)	13.75
30	13PK8	WASHER	1.65
31	146G2	FAURE LEVER ASSEMBLY	45.65
32	10LVD	FIXING BOLT	1.10
33	13UEU	LEVER PROTECTOR	1.65
35	13UES	MECHANICAL BRAKE WASHER	1.10
36	13UET	MECHANICAL BRAKE WASHER	3.85
37	13SVY	ROLLER CLUTCH	16.50
38	109EB	O-RING S11.2	1.65
39	13MBW	FIXING BOLT	3.85
40	10A6X	FIXING BOLT	3.85
41	10F33	ROLLER CLUTCH *Cannot be ordered	22.55
43	14016	ROLLER CLUTCH INNER TUBE	13.75
44	10D54	STAR DRAG PLATE	3.85
45	10JAZ	DRAG CLICK RATCHET	1.65
46	10CHW	STAR DRAG WASHER	6.05
47	10KQL	STAR DRAG WASHER	1.65
48	10LB6	STAR DRAG WASHER	1.65
49	10C0S	DRAG CLICK PIN	2.75
50	10J89	DRAG CLICK SPRING	1.65
51	13VG9	DRAG SPRING HOLDER	1.65
53	10CHZ	STAR DRAG WASHER	2.75
54	10D6Y	STOPPER GEAR	6.05
56	1055F	FIXING BOLT	1.65
57	13VAE	DRIVE GEAR SHAFT FIXING PLATE	1.65
58	10SZ4	O-RING	1.65
59	13Y0Z	WASHER	1.10
61	105NK	E-TYPE RETAINING RING 2.5	1.10
62	10J16	WASHER	1.10
63	10PXY	HANDLE GRIP BUSHING (B)	1.65
64	10G8J	WASHER	1.10
65	10N9Q	WORM SHAFT BEARING (A)	1.65
66	10LVF	FIXING BOLT	1.10
67	13SCJ	WORM SHAFT RETAINER	1.65
68	13SH2	LEVEL WIND GUIDE	6.05
69	13S1A	WORM SHAFT	9.35
70	145UA	LEVEL WIND PIPE	11.00
71	104SP	WORM SHAFT BEARING (B)	1.65
72	13S6P	WORM SHAFT GEAR (C)	2.75
73	105NC	E-TYPE RETAINING RING 2	1.10
74	13UEW	ROLLER CLUTCH SEAL	3.85
75	13SVZ	BEARING SPACER	1.10
76	1057X	RETAINER	1.65
78	13T1T	CLUTCH YOKE SPRING	1.10
80	101CN	FIXING BOLT	1.65
81	13UEP	CLUTCH CAM PRESSURE PLATE	3.85
85	108S5	SPRING SPACER	1.65
87	103C0	FIXING BOLT	1.10
88	10EX8	BALL BEARING (8X12X3.5)	13.75
90	10NYG	LEVEL WIND ASSEMBLY	34.10
91	10FFT	WORM SHAFT PIN	3.85
92	10GD0	WASHER	1.10
93	10FJC	LEVEL WIND BEARING	6.05
95	10S65	FIXING BOLT	1.10
96	10U0S	FIXING BOLT	1.10
98	10559	FIXING BOLT	1.65
100	13H6M	CLUTCH LEVER ASSEMBLY	8.80
102	10TNF	O-RING	1.65
103	105CA	BALL BEARING (5X11X4) *Cannot be ordered	13.75
104	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
105	10E20	SPOOL SHAFT SPRING	1.65
106	10MCY	SPOOL SHAFT CAM	1.65
107	13SW5	WORM SHAFT GEAR (A)	2.75
108	146G6	SPOOL ASSEMBLY	79.20
109	10GEW	BEARING RETAINER	1.10
110	105C1	BALL BEARING (3X10X4)	13.75
111	1057Q	SPOOL SHAFT STOPPER (B)	1.10
112	13Y0Y	WASHER	1.10
113	13JPR	FIXING BOLT	1.10
114	10HVD	WASHER	1.10
115	10TUH	WORM SHAFT GEAR (D) MOUNT	2.75
116	13Z7H	WORM SHAFT GEAR (B)	2.75
118	10LSL	FIXING BOLT	1.10
119	13Z7M	WASHER	1.10
121	142MD	FIXING BOLT	1.10
122	13S6N	WORM SHAFT GEAR (D)	2.75
123	10HYM	WASHER	1.10
124	10TTU	FIXING BOLT	1.10
125	13Z8F	BATTERY COVER	4.40
126	13Z7L	FRAME B MOUNT NAMEPLATE	1.65
127	13Z7D	MAIN BODY B CAM LEVER PUSH PLATE	1.10
201	13V1Q	HANDLE FIXING NUT	6.05
202	10A3W	STAR DRAG FIXING NUT	3.85
203	13Z87	LOCK RING	13.75
204	13Z83	MECHANICAL BRAKE KNOB	17.05
205	14CM1	MAIN BODY A ASSEMBLY	135.30
206	13UYC	DRIVE GEAR	28.05
207	13ULX	DRIVE GEAR SHAFT	22.55
208	10PVU	FIXING BOLT	1.65
209	13SQ8	PINION GEAR	22.55
210	13T1U	CLUTCH YOKE	1.65
211	10SKS	CLUTCH CAM	2.75
212	105ZV	CLUTCH CLAW	3.85
213	104CK	CLUTCH CLAW SPRING	1.65
214	13TDN	CLUTCH PLATE	4.95
215	13UER	MAIN UNIT A SEAT	1.10
216	146GC	COUNTER UNIT ASSEMBLY	192.50
217	146GE	FRAME ASSEMBLY	220.00
218	13TDS	CLUTCH LEVER MOUNT (B)	1.65
219	13TDR	CLUTCH LEVER MOUNT (A)	1.65
220	13Z7G	FRAME B MOUNT	30.80
221	1461X	FRAME B MOUNT CAM	1.65
222	13Z7C	MAIN UNIT B CAM LEVER	1.10
223	13Z7A	MAIN UNIT B	52.80
224	1473J	MAIN UNIT B ASSEMBLY	60.50
501	145AV	BATTERY CAP WRENCH	5.50
