[SHIMANO] Genuine Spare Parts for 26 CALCUTTA CONQUEST BFS LIMITED XG LEFT Product code: 049353 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

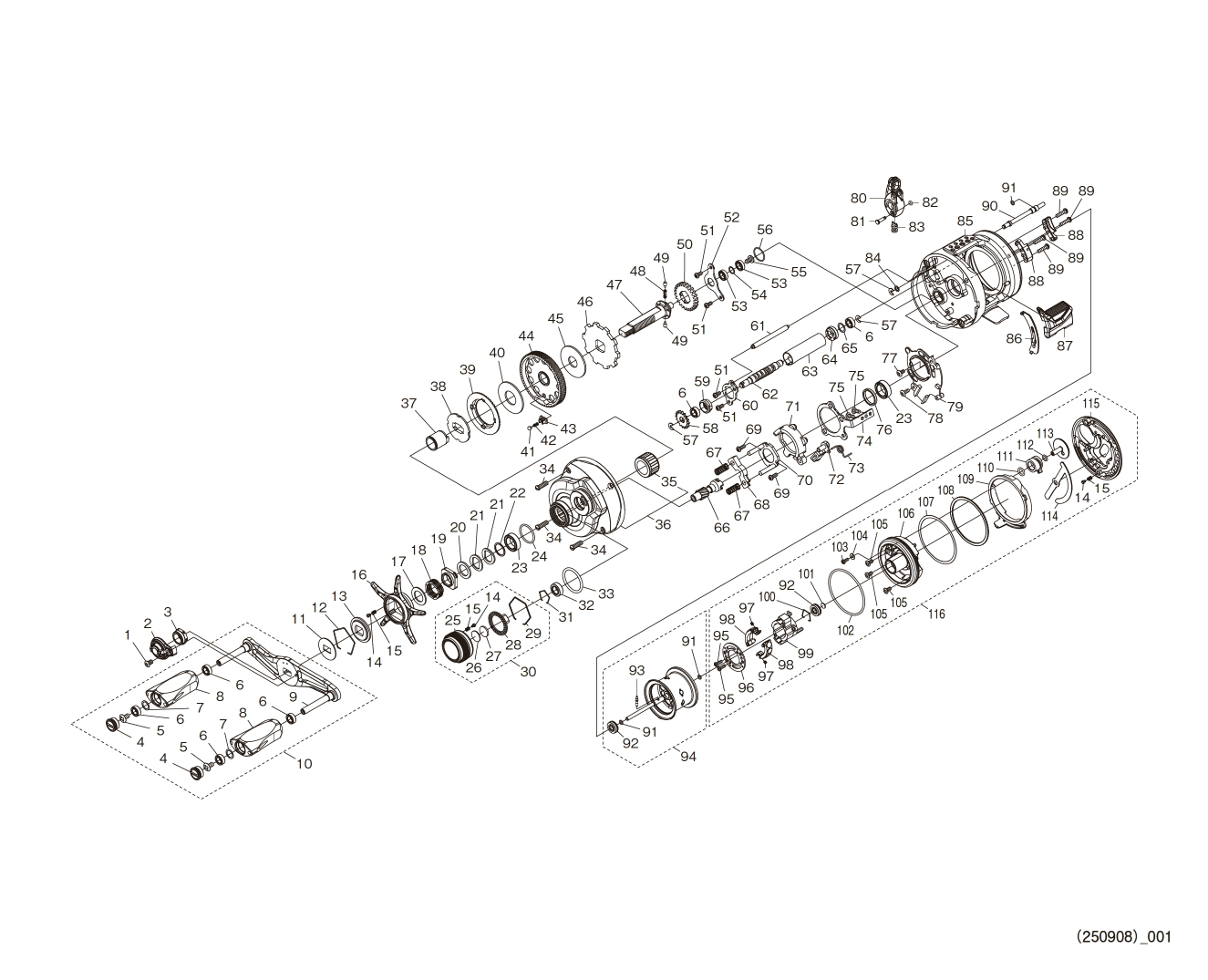

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "35 / ROLLER CLUTCH", "93 /SPOOL CLUTCH PIN" and "92 /BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10DN7	FIXING BOLT	1.65
2	10RZU	RETAINER	1.10
3	14AEE	HANDLE FIXING NUT	4.95
4	14AE8	HANDLE CAP	11.55
5	10DQN	FIXING BOLT	1.65
6	104VX	BALL BEARING (4X7X2.5)	13.75
7	104FH	WASHER	2.20
8	14AE7	HANDLE KNOB	88.00
9	14CNJ	HANDLE SHANK ASSEMBLY	34.10
10	14CNK	HANDLE ASSEMBLY	203.50
11	13V36	HANDLE BEARING SEAT WASHER	1.65
12	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
13	10J1Y	STAR DRAG CLICK PLATE	1.65
14	10B27	CLICK PIN	1.65
15	10988	CLICK SPRING	1.65
16	14AEC	STAR DRAG	22.00
17	100CU	WASHER	1.10
18	10A71	STAR DRAG SPRING	2.75
19	10A0C	STAR DRAG LOCK NUT	2.75
20	10J1N	STAR DRAG SPACER	1.65
21	10D60	MAIN GEAR WASHER (C)	1.65
22	105PW	STAR DRAG BEARING WASHER	1.10
23	10EX8	BALL BEARING (8X12X3.5)	13.75
24	1027V	O-RING	1.65
25	14AEB	MECHANICAL BRAKE KNOB	20.35
26	10896	MECHANICAL BRAKE WASHER	1.10
27	1057S	SPOOL SHAFT STOPPER (B)	1.10
28	10L2F	MECHANICAL BRAKE KNOB CLICK PLATE	2.75
29	10L6X	MECHANICAL BRAKE KNOB CLICK HOLDER	2.75
30	14CNL	MECHANICAL BRAKE KNOB ASSEMBLY	36.85
31	1057X	RETAINER	1.65
32	105BP	BALL BEARING (5X9X3)	13.75
33	108W8	O-RING S-16	1.65
34	10C3N	FIXING BOLT	2.75
35	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
36	14CNM	MAIN BODY A ASSEMBLY	132.00
37	10BN3	ROLLER CLUTCH INNER TUBE	6.05
38	10D55	STAR DRAG PLATE	6.05
39	10JB0	DRAG CLICK RATCHET	2.75
40	10CKS	STAR DRAG WASHER	6.05
41	10C0T	DRAG CLICK PIN	2.75
42	10J8A	DRAG CLICK SPRING	1.65
43	10J87	DRAG SPRING HOLDER	1.65
44	10RZQ	DRIVE GEAR	29.70
45	10CJ4	STAR DRAG WASHER (A)	3.85
46	10R5Z	STOPPER GEAR	2.75
47	13ULL	DRIVE GEAR SHAFT	13.20
48	10JDX	WORM SHAFT GEAR SPRING	1.65
49	10HJF	WORM SHAFT GEAR PIN	1.65
50	10057	WORM SHAFT GEAR	2.75
51	10U0S	FIXING BOLT	1.10
52	100GK	DRIVE GEAR SHAFT FIXING PLATE	1.10
53	10SAM	BALL BEARING (4X7X2)	13.75
54	13PKS	WASHER	1.10
55	10DR5	FIXING BOLT	1.10
56	10SZ4	O-RING	1.65
57	105NC	E-TYPE RETAINING RING 2	1.10
58	10FNX	WORM SHAFT GEAR	2.75
59	10N9Q	WORM SHAFT BEARING (A)	1.65
60	10T7S	WORM SHAFT RETAINER	1.10
61	1485R	LEVEL WIND GUIDE	3.30
62	100GT	WORM SHAFT	5.50
63	1485Q	LEVEL WIND PIPE	7.15
64	104SP	WORM SHAFT BEARING (B)	1.65
65	10G8G	WASHER	1.10
66	10RZW	PINION GEAR	23.10
67	13Y8B	CLUTCH YOKE SPRING	1.10
68	10EE4	CLUTCH YOKE	1.10
69	101CN	FIXING BOLT	1.65
70	10F42	CLUTCH CAM RETAINING PLATE	3.85
71	10SKS	CLUTCH CAM	2.75
72	105ZV	CLUTCH CLAW	3.85
73	14026	CLUTCH CLAW SPRING	1.65
74	13TD2	CLUTCH PLATE	2.20
75	10559	FIXING BOLT	1.65
76	13Y8C	FRAME (A) BUSHING	2.75
77	100BD	FIXING BOLT	1.65
78	10MPS	FIXING BOLT	1.65
79	13UEF	MAIN BODY A SHEET	1.65
80	10TED	LEVEL WIND ASSEMBLY	51.70
81	100GC	WORM SHAFT PIN RETAINER	1.10
82	10908	O-RING	1.65
83	100GJ	WORM SHAFT PIN	4.40
84	10GA7	WASHER	1.10
85	14CNN	FRAME ASSEMBLY	165.00
86	13TD3	CLUTCH LEVER MOUNT	1.10
87	10282	CLUTCH LEVER ASSEMBLY	7.70
88	13Y8D	FRAME B MOUNT CAM	1.10
89	10TP0	FIXING BOLT	1.10
90	13Y8E	LINE GUARD	3.85
91	10E7H	O-RING	1.10
92	10RUC	BALL BEARING (3X8X2.5) *Cannot be ordered	15.95
93	10MCZ	SPOOL CLUTCH PIN *Cannot be ordered	2.75
94	13Y84	SPOOL ASSEMBLY	134.75
95	10EEA	FIXING BOLT	1.10
96	10TK4	BRAKE FIXING PLATE	3.85
97	10DGJ	BRAKE COIL SPRING	1.10
98	10E7E	MAGNET HOLDER ASSEMBLY	29.70
99	10EEK	BRAKE MOUNTING BASE	3.30
100	101A9	BEARING RETAINER	1.10
101	1085H	MECHANICAL BRAKE WASHER	1.10
102	1006P	O-RING	1.65
103	13Y8F	FIXING BOLT	1.65
104	13Y8G	WASHER	1.10
105	13Y8H	FIXING BOLT	1.65
106	13Y85	FRAME B MOUNT ASSEMBLY	38.50
107	145UU	WASHER	1.10
108	10T02	WASHER	2.75
109	13Y8J	MAIN BODY B CAM LEVER	1.10
110	10TNF	O-RING	1.65
111	13Y8K	BRAKE CAM	2.75
112	10CFZ	O-RING	1.65
113	14AE2	BRAKE DIAL	31.35
114	13Y8M	MAIN BODY B SEAL	1.10
115	14AE1	MAIN BODY B	77.00
116	14CNP	MAIN BODY B ASSEMBLY	132.00
*F01	14B04	REEL BAG	11.00
