[DAIWA] Genuine Spare Parts for 26 RYOGA 100 Product code: 00630142 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 26 RYOGA 100 Product code: 00630142 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$109.34 [Regular Price: US$1.10 - US$156.20]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

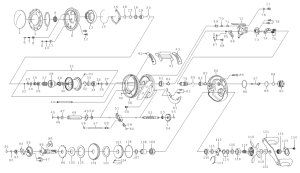

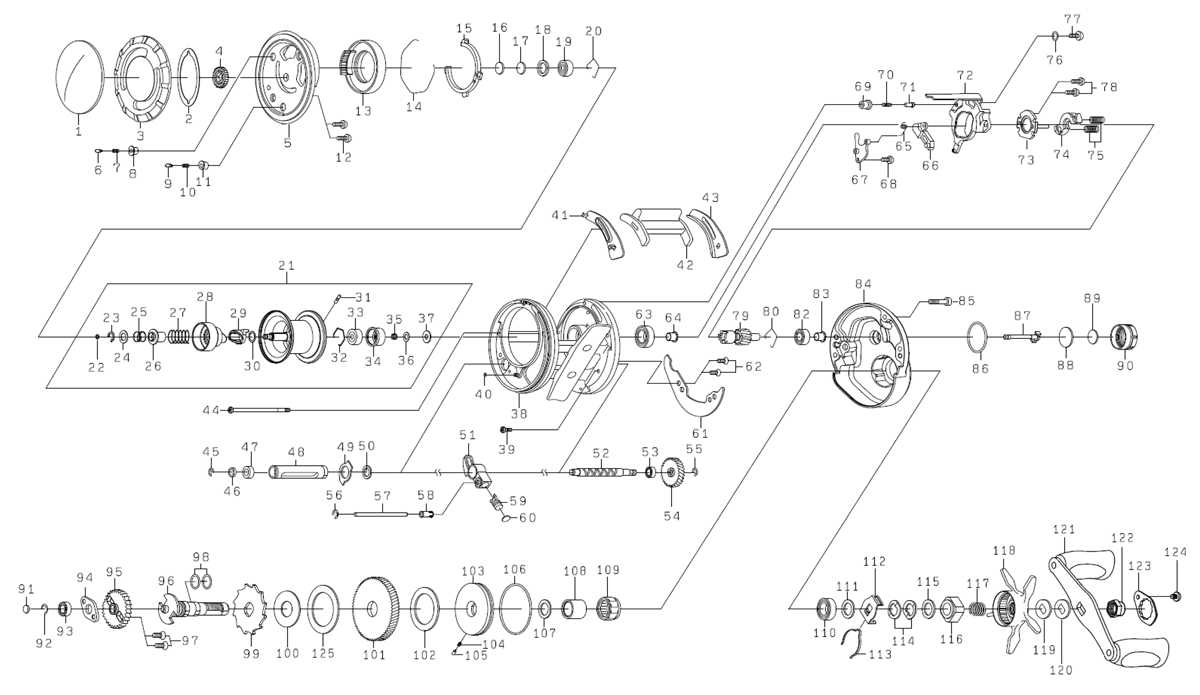

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 LS COVER 6J625203 39.60
2 MAG DIAL PLATE 6J625101 2.20
3 MAG DIAL 6J625002 9.90
4 MAG DIAL GEAR 6H176201 4.40
5 LS PLATE 6M852401 90.20
6 LEVER PLATE PIN 6J731201 2.20
7 LEVER PLATE SP 6J799101 2.20
8 LEVER PLATE COLLAR 6J635101 2.20
9 MAG DIAL PIN 6J286301 2.20
10 MAG DIAL SP 6J731301 2.20
11 MAG DIAL COLLAR 6J624901 2.20
12 LS PLATE SC 6G557111 2.20
13 MAG HOLDER 6J632401 19.80
14 MAG HOLDER RING 6H454501 2.20
15 LEVER PLATE 6J624801 2.20
16 LS BEARING W (A) 63757404 1.10
17 LS BEARING W (B) 63757411 1.10
18 LS BEARING W (C) 6G185101 1.10
19 LS BALL BEARING 6G511506 15.40
20 LS BEARING RING 6F032201 2.20
21 SPOOL (22-37) 6Z028459 156.20
22 SPOOL HOLDER O-RING 6H770601 1.10
23 SPOOL HOLDER RETAINER 63208002 2.20
24 SPOOL HOLDER SP・W 6J497001 1.10
25 SPOOL HOLDER SP (A) 6M042201 2.20
26 SPOOL HOLDER SP COLLAR 6M391901 3.30
27 SPOOL HOLDER SP (B) 6M042001 2.20
28 SPOOL HOLDER 6M055001 19.80
29 SPOOL HOLDER COLLAR 6M041701 2.20
30 SPOOL HOLDER COLLAR W 63755202 1.10
31 SPOOL PIN 6H358802 2.20
32 SPOOL BEARING RING 6J149501 2.20
33 SPOOL BALL BEARING 6G511506 15.40
34 SPOOL BEARING COLLAR 6H232201 2.20
35 SPOOL BEARING SP 6M052601 2.20
36 SPOOL BEARING W (A) 6F774601 1.10
37 SPOOL BEARING W (B) 6M052501 1.10
38 FRAME 6M852201 126.50
39 RS PLATE SC (A) 6J632305 2.20
40 FRAME O-RING 6J718601 1.10
41 CLUTCH LEVER PLATE (L) 6J623701 2.20
42 CLUTCH LEVER 6J219801 6.60
43 CLUTCH LEVER PLATE (R) 6J195001 2.20
44 RS PLATE SC (B) 6J623902 3.30
45 WORM SHAFT RETAINER 63205901 2.20
46 WORM SHAFT W 6B411703 1.10
47 WORM SHAFT COLLAR 6G720001 2.20
48 WORM SHIELD *Not available 6J541701 11.00
49 WORM SHIELD PLATE 6J623801 2.20
50 WORM SHIELD PLATE W 6B553803 1.10
51 LEVEL WIND 6J498701 55.00
52 WORM SHAFT 6J729201 11.00
53 WORM SHAFT COLLAR 6G720001 2.20
54 WORM SHAFT GEAR 6H910501 3.30
55 WORM SHAFT GEAR RETAINER 6B339801 2.20
56 LEVEL WIND POST RETAINER 6B864101 2.20
57 LEVEL WIND POST 6J527502 3.30
58 LEVEL WIND POST COLLAR 6H168701 2.20
59 POLE 6H168601 15.40
60 POLE W 6G099801 1.10
61 RS COVER PLATE 6J195415 8.80
62 COVER PLATE SC 6H455407 2.20
63 CLUTCH CAM BALL BEARING 6G431008 15.40
64 PINION BEARING COLLAR 6M518401 7.70
65 KICK LEVER SP 6H450001 2.20
66 KICK LEVER 6J221401 12.10
67 KICK LEVER PLATE 6H912301 2.20
68 KICK LEVER PLATE SC 6H294101 2.20
69 CLUTCH CAM SP COLLAR 6H910601 2.20
70 CLUTCH CAM SP 6H928801 2.20
71 CLUTCH CAM PIN 6J055201 2.20
72 CLUTCH CAM 6J219601 6.60
73 CLUTCH CAM PLATE 6H659101 3.30
74 CLUTCH PLATE 6H929001 3.30
75 CLUTCH SP 6J055301 2.20
76 CLUTCH CAM SC・W 6H159201 1.10
77 CLUTCH CAM SC 63522501 2.20
78 CLUTCH CAM PLATE SC 6B032904 2.20
79 PINION + DRIVE GEAR SET 6Z026846 93.50
80 PINION BEARING RING 6H160801 2.20
82 PINION BALL BEARING 6G538003 15.40
83 PINION BEARING COLLAR 6H159501 7.70
84 RS PLATE 6M852701 116.60
85 RS PLATE SC (C) 6G945822 2.20
86 ZERO ADJUSTER O-RING 6J279701 1.10
87 PINION SHAFT 6J198801 3.30
88 ZERO ADJUSTER W (A) 6H161002 1.10
89 ZERO ADJUSTER W (B) 6B175503 1.10
90 ZERO ADJUSTER 6J279612 17.60
91 GEAR SHAFT W 6G099801 1.10
92 GEAR SHAFT RETAINER 63208002 2.20
93 GEAR SHAFT BALL BEARING 6G538007 15.40
94 GEAR SHAFT PLATE 6H156501 6.60
95 WORM GEAR 6H912701 4.40
96 GEAR SHAFT 6J278301 18.70
97 GEAR SHAFT PLATE SC 6E134503 2.20
98 GEAR SHAFT O-RING 6F657801 1.10
99 RATCHET 6H929401 3.30
100 DRIVE GEAR W (A) 6H661101 1.10
101 PINION + DRIVE GEAR SET 6Z026846 93.50
102 DRAG W (1 piece) 6J517101 12.10
103 DRIVE COLLAR 6J499201 20.90
104 DRIVE COLLAR SP 6M025201 2.20
105 DRIVE COLLAR PIN 6J566201 2.20
106 DRIVE COLLAR O-RING 6H452801 1.10
107 CLUTCH RING W 6B553803 1.10
108 CLUTCH RING 6J327701 8.80
109 ONE-WAY CLUTCH 6G819801 20.90
110 HANDLE BALL BEARING 6G431008 15.40
111 HANDLE BEARING W 6B553802 1.10
112 DRAG HOLDER 6E709201 3.30
113 DRAG LEAF SP 6E715601 2.20
114 DRAG SP・W 61508901 2.20
115 STAR DRAG W 6H929501 2.20
116 STAR DRAG NUT 6J102301 7.70
117 STAR DRAG SP 6J011901 2.20
118 STAR DRAG 6J673910 30.80
119 HANDLE W (A) 6J102801 1.10
120 HANDLE W (B) 6J101302 1.10
121 HANDLE 6M870101 140.80
122 HANDLE NUT 6J090303 6.60
123 HANDLE LOCK PLATE 6M637102 4.40
124 HANDLE LOCK PLATE SC 6G835505 2.20
125 DRIVE GEAR W (B) 6H359004 7.70
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB SP/W 6H744801 1.10
202 HANDLE KNOB 6M604401 26.40
203 HANDLE KNOB BALL BEARING 6G469005 8.80
204 HANDLE KNOB COLLAR 6G720001 2.20
205 HANDLE KNOB SC 6B679308 2.20
206 HANDLE KNOB CAP 6M604601 6.60
