[DAIWA] Genuine Spare Parts for 26 STEEZ SV LIGHT TW 100XXHL Product code: 00630325 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 26 STEEZ SV LIGHT TW 100XXHL Product code: 00630325 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$124.74 [Regular Price: US$1.10 - US$178.20]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

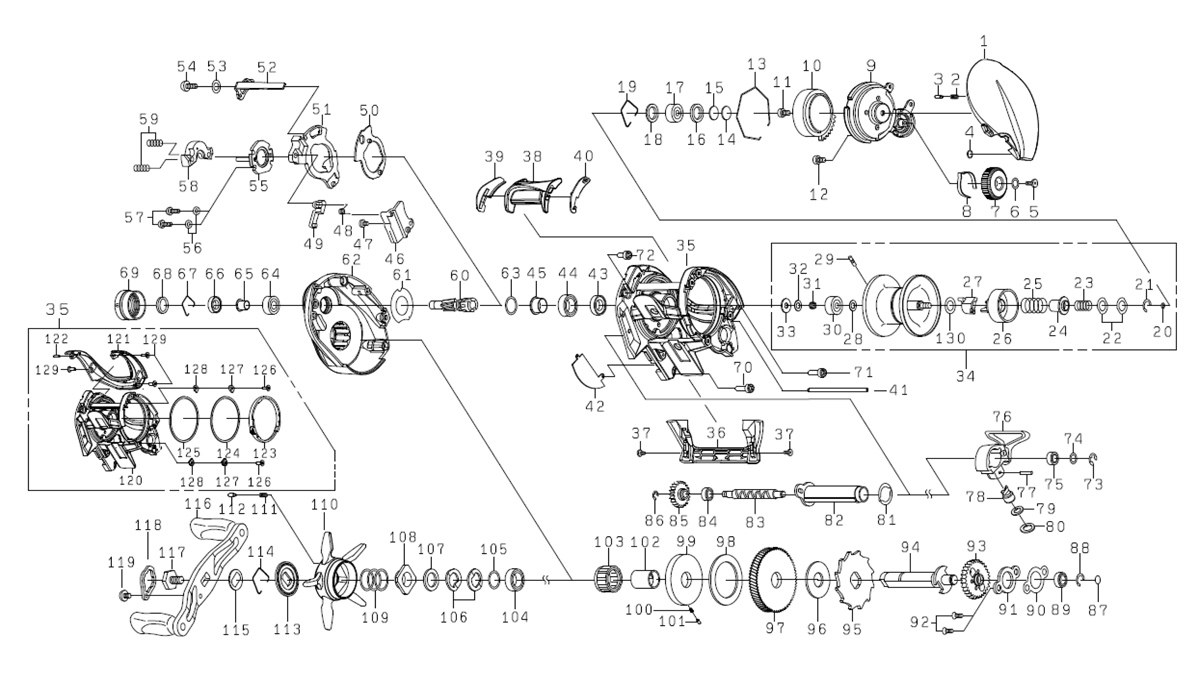

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 RS PLATE 6M507201 42.90
2 LEVER PLATE SP 6J631901 2.20
3 LEVER PLATE PIN 6M508401 3.30
4 RS PLATE O-RING 6J197901 1.10
5 BRAKE DIAL SC 6G940402 2.20
6 BRAKE DIAL SC・W 6H159201 1.10
7 BRAKE DIAL 6M507604 7.70
8 BRAKE DIAL LEAF SP 6J886201 2.20
9 SET PLATE 6M507401 48.40
10 MAG HOLDER 6M507701 26.40
11 SET PLATE SC (A) 6H666002 2.20
12 SET PLATE SC (B) 6H022601 2.20
13 MAG HOLDER RING 6G757801 2.20
14 RS BEARING W (A) 63757404 1.10
15 RS BEARING W (B) 63757411 1.10
16 RS BEARING W (C) 6G185101 1.10
17 RS BALL BEARING 6G511506 15.40
18 RS BEARING O-RING 6G703201 1.10
19 RS BEARING RING 6F032201 2.20
20 SPOOL HOLDER O-RING 6H770601 1.10
21 SPOOL HOLDER SP RETAINER 63208002 2.20
22 SPOOL HOLDER SP・W 6J497001 1.10
23 SPOOL HOLDER COLLAR (A) SP 6M042201 2.20
24 SPOOL HOLDER COLLAR (A) 6M391901 3.30
25 SPOOL HOLDER SP 6M042001 2.20
26 SPOOL HOLDER 6M385101 19.80
27 SPOOL HOLDER COLLAR (B) 6M041701 2.20
28 SPOOL BEARING W (A) 63754103 1.10
29 SPOOL PIN 6H358802 2.20
30 SPOOL BALL BEARING 6G511506 15.40
31 SPOOL BEARING SP 6M052601 2.20
32 SPOOL BEARING W (B) 6F774601 1.10
33 SPOOL BEARING W (C) 6M052501 1.10
34 SPOOL (20-33・130) *Not available 6Z028521 178.20
36 FRONT COVER 6M507102 8.80
37 FRONT COVER SC 6H531507 2.20
38 CLUTCH LEVER 6M505902 9.90
39 CLUTCH LEVER PLATE (L) 6M505801 2.20
40 CLUTCH LEVER PLATE (R) 6M505701 2.20
41 OSCILLATING POST 6M522601 4.40
42 LS COVER PLATE 6M047901 2.20
43 FRAME COLLAR 6M505201 3.30
44 CLUTCH CAM BALL BEARING 6G431008 15.40
45 CLUTCH CAM BEARING COLLAR 6M518401 7.70
46 KICK LEVER PLATE (A) 6M048301 3.30
47 KICK LEVER PLATE (A) SC 6H531507 2.20
48 KICK LEVER PLATE SP 6J407801 2.20
49 KICK LEVER 6J638601 6.60
50 CLUTCH CAM PLATE (A) 6M048201 2.20
51 CLUTCH CAM 6M048001 3.30
52 CLUTCH CAM PLATE (B) 6M511601 5.50
53 CLUTCH CAM PLATE W 6M070001 1.10
54 CLUTCH CAM PLATE SC 6B360405 2.20
55 KICK LEVER PLATE (B) 6H659103 3.30
56 KICK LEVER PLATE (B) SC・W 6G913306 1.10
57 KICK LEVER PLATE (B) SC 6B032905 3.30
58 CLUTCH PLATE 6M950601 3.30
59 CLUTCH SP 6J313901 2.20
60 PINION + DRIVE GEAR SET 6Z028528 63.80
61 CLUTCH SP PLATE 6J285901 2.20
62 LS PLATE 6M877601 112.20
63 CLUTCH CAM BEARING COLLAR O-RING 6M639101 2.20
64 PINION BALL BEARING 6G538003 15.40
65 PINION BEARING COLLAR (A) 6J724601 9.90
66 PINION BEARING COLLAR (B) 6M525801 2.20
67 PINION BEARING COLLAR (B) RING 6H448402 2.20
68 OIL INJECTION CAP W 6M526701 1.10
69 OIL INJECTION CAP 6M504908 19.80
70 LS PLATE SC (A) 6G945820 2.20
71 LS PLATE SC (B) 6G945806 2.20
72 LS PLATE SC (C) 6G945806 2.20
73 WORM SHAFT RETAINER 63205901 2.20
74 WORM SHAFT W 6B411702 1.10
75 WORM SHAFT BALL BEARING (A) 6G469009 15.40
76 LEVEL WIND 6M604801 70.40
77 LEVEL WIND PIN 6J740201 3.30
78 POLE 6J740102 3.30
79 POLE W 6M161301 1.10
80 LEVEL WIND O-RING 6G252202 1.10
81 WORM SHIELD PLATE 6J281601 2.20
82 WORM SHIELD 6M506401 3.30
83 WORM SHAFT 6M506301 8.80
84 WORM SHAFT BALL BEARING (B) 6G469009 15.40
85 WORM SHAFT GEAR 6M048801 4.40
86 WORM SHAFT GEAR RETAINER 6B339801 2.20
87 GEAR SHAFT W 6G099801 1.10
88 GEAR SHAFT RETAINER 63208002 2.20
89 GEAR SHAFT BALL BEARING 6G466205 15.40
90 GEAR SHAFT PLATE (A) 6M730701 2.20
91 GEAR SHAFT PLATE (B) 6J281101 3.30
92 GEAR SHAFT PLATE SC 6G297006 2.20
93 WORM SHAFT GEAR 6M048601 3.30
94 GEAR SHAFT 6M505602 27.50
95 RATCHET 6H660901 3.30
96 DRIVE GEAR W 6E708903 2.20
97 PINION + DRIVE GEAR SET 6Z028528 63.80
98 DRAG W 6H359004 7.70
99 DRIVE COLLAR 6J740501 17.60
100 DRIVE COLLAR SP 6M025201 2.20
101 DRIVE COLLAR PIN 6J566201 2.20
102 CLUTCH RING 6G011401 8.80
103 ONE-WAY CLUTCH 6G819801 20.90
104 HANDLE BALL BEARING 6G431008 15.40
105 HANDLE BEARING W 6B553803 1.10
106 DRAG SP・W 61508901 2.20
107 STAR DRAG W 6H929501 2.20
108 STAR DRAG NUT 6M507002 7.70
109 STAR DRAG SP (A) 6J011901 2.20
110 STAR DRAG 6M506508 41.80
111 STAR DRAG SP (B) 6M627801 2.20
112 STAR DRAG PIN 6J731201 2.20
113 STAR DRAG PLATE 6M506601 2.20
114 STAR DRAG PLATE RING 6M627701 2.20
115 HANDLE W 6G027403 1.10
116 HANDLE 6M917601 96.80
117 HANDLE SC 6J295503 9.90
118 HANDLE LOCK PLATE 6J319207 3.30
119 HANDLE LOCK PLATE SC 6H257001 2.20
120 FRAME 6M957101 66.00
121 FRAME COVER 6M505401 28.60
122 FRAME COVER PIN 6M526101 2.20
123 LEVER PLATE (A) 6M508601 2.20
124 LEVER PLATE (B) 6M511401 2.20
125 LEVER PLATE (C) 6M506702 2.20
126 LEVER PLATE SC 6H842809 2.20
127 LEVER PLATE (D) 6M508501 2.20
128 LEVER PLATE (E) 6M511504 2.20
129 FRAME COVER SC 6H531507 2.20
130 SPOOL HOLDER COLLAR (B)・W 63755201 2.20
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB SP・W 6H744801 1.10
202 HANDLE KNOB 6J315504 24.20
203 HANDLE KNOB BALL BEARING 6G469009 15.40
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP 6J315801 6.60
300 SCREWDRIVER 6X390501 4.40
