[SHIMANO] Genuine Spare Parts for 26 NASCI 4000 Product Code: 048158 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 NASCI 4000 Product Code: 048158 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$34.65 [Regular Price: US$1.10 - US$49.50]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

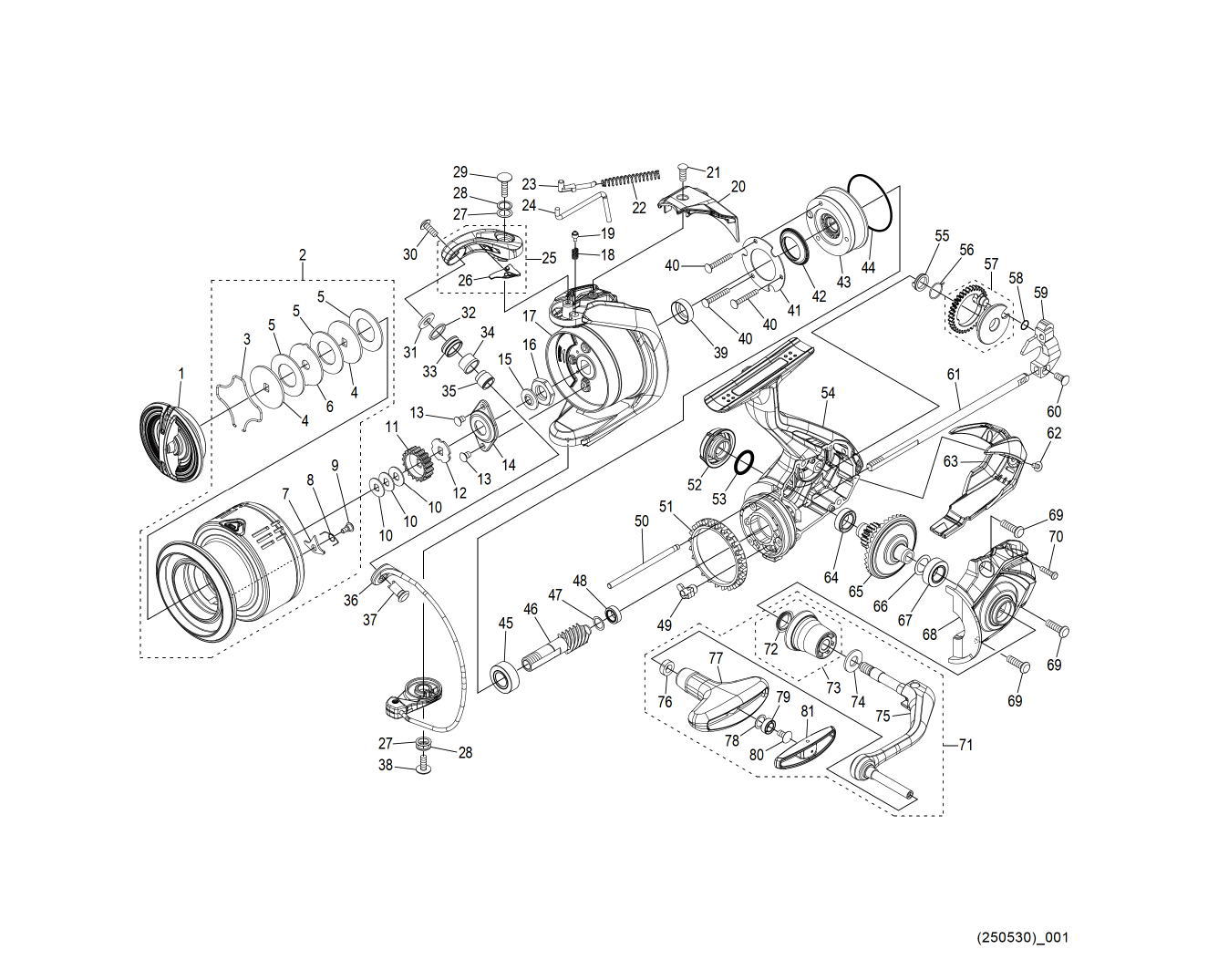

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 101UA DRAG KNOB ASSEMBLY 17.05
2 14A9C SPOOL ASSEMBLY 38.50
3 10B8N ANTI-SLIP SPRING 1.65
4 10BCE OVAL WASHER 1.65
5 102ZG DRAG WASHER 1.65
6 102XX EAR WASHER 1.65
7 1038D SPOOL PIN 1.65
8 10JM5 CLICK SPRING 1.65
9 10PH5 FIXING BOLT 1.65
10 10BXN SPOOL WASHER SET 1.10
11 103MU SPOOL RECEIVER (A) 1.65
12 10J04 SPOOL RECEIVER (B) 1.65
13 10PMC FIXING BOLT 2.75
14 10TRH RETAINER 2.75
15 107L4 ROTOR BEARING SEAL 2.75
16 1067Y ROTOR NUT 3.85
17 148D4 ROTOR 11.00
18 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
19 106ZC CLICK PIN 1.65
20 148D6 ARM CAM SPRING COVER 3.85
21 103CJ FIXING BOLT 1.10
22 10FVC ARM CAM SPRING 1.65
23 105LT ARM SPRING GUIDE 1.10
24 106P4 INNER GEAR LEVER 2.75
25 14CAA ARM CAM ASSEMBLY 3.85
26 14A9E ARM CAM FIN 1.10
27 10KFA ADJUSTMENT WASHER 1.10
28 10K96 WASHER 1.65
29 103LT FIXING BOLT 1.65
30 10PMH FIXING BOLT 1.65
31 107X1 LINE ROLLER WASHER 1.65
32 10KFD ARM ROLLER SPACER 1.65
33 10JLF ARM ROLLER 1.65
34 10PFH ARM ROLLER BUSHING 1.10
35 149ZC COLLET 1.65
36 14CAB BAIL ASSEMBLY 18.70
37 149ZA ARM FIXING SHAFT 3.30
38 103DA FIXING BOLT 1.65
39 10JHG ROTOR COLLET 3.85
40 103C6 FIXING BOLT 1.10
41 10L62 ROLLER CLUTCH COVER PLATE 1.65
42 10MH6 ROLLER CLUTCH SEAL 3.85
43 10QPN ROLLER CLUTCH ASSEMBLY 11.55
44 10MLU O-RING 3.85
45 107FE BALL BEARING (7X14X5) 7.15
46 14A99 PINION GEAR 13.20
47 10SYU WASHER 1.65
48 10RKR BALL BEARING (5X8X2.5) 7.15
49 149ZL STOPPER CAM 1.10
50 101HU SLIDER GUIDE 1.65
51 104FV FRICTION RING 2.75
52 10RSK HANDLE SCREW CAP 3.85
53 108WH O-RING 1.65
54 14CAC BODY ASSEMBLY 18.70
55 10TBH BUSHING 1.10
56 10RPB BUSHING SPRING 1.10
57 10U1D SLIDER GEAR 3.30
58 10241 O-RING 1.65
59 101UC SLIDER 8.25
60 10ML7 FIXING BOLT 1.65
61 101SZ MAIN SHAFT 6.05
62 10LCS FIXING BOLT 1.10
63 10R94 BODY GUARD 6.05
64 107FA BALL BEARING (7X11X3) 7.15
65 101UB DRIVE GEAR 17.60
66 10EEZ WASHER 2.75
67 107AT BALL BEARING (7X13X4) 7.15
68 14A97 COVER 12.10
69 101EH FIXING BOLT 1.10
70 10R7G FIXING BOLT 1.10
71 14A9B HANDLE ASSEMBLY 49.50
72 10PXV HANDLE SHAFT SEAL 2.75
73 10E7V HANDLE SHAFT FLANGE ASSEMBLY 8.80
74 10E5X HANDLE WASHER 1.65
75 14CAD HANDLE SHANK ASSEMBLY 22.00
76 10PXZ HANDLE KNOB BUSHING 1.65
77 10RHC HANDLE KNOB 17.05
78 104FH WASHER 2.20
79 10K64 BALL BEARING (4X7X2.5) 7.15
80 10LFA FIXING BOLT 1.10
81 10S3U HANDLE CAP 3.85
MH01 14797 BASE PLATE 1.10
