[SHIMANO] Genuine Spare Parts for 26 NASCI 2500SHG Product Code: 048127 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 NASCI 2500SHG Product Code: 048127 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$34.65 [Regular Price: US$1.10 - US$49.50]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

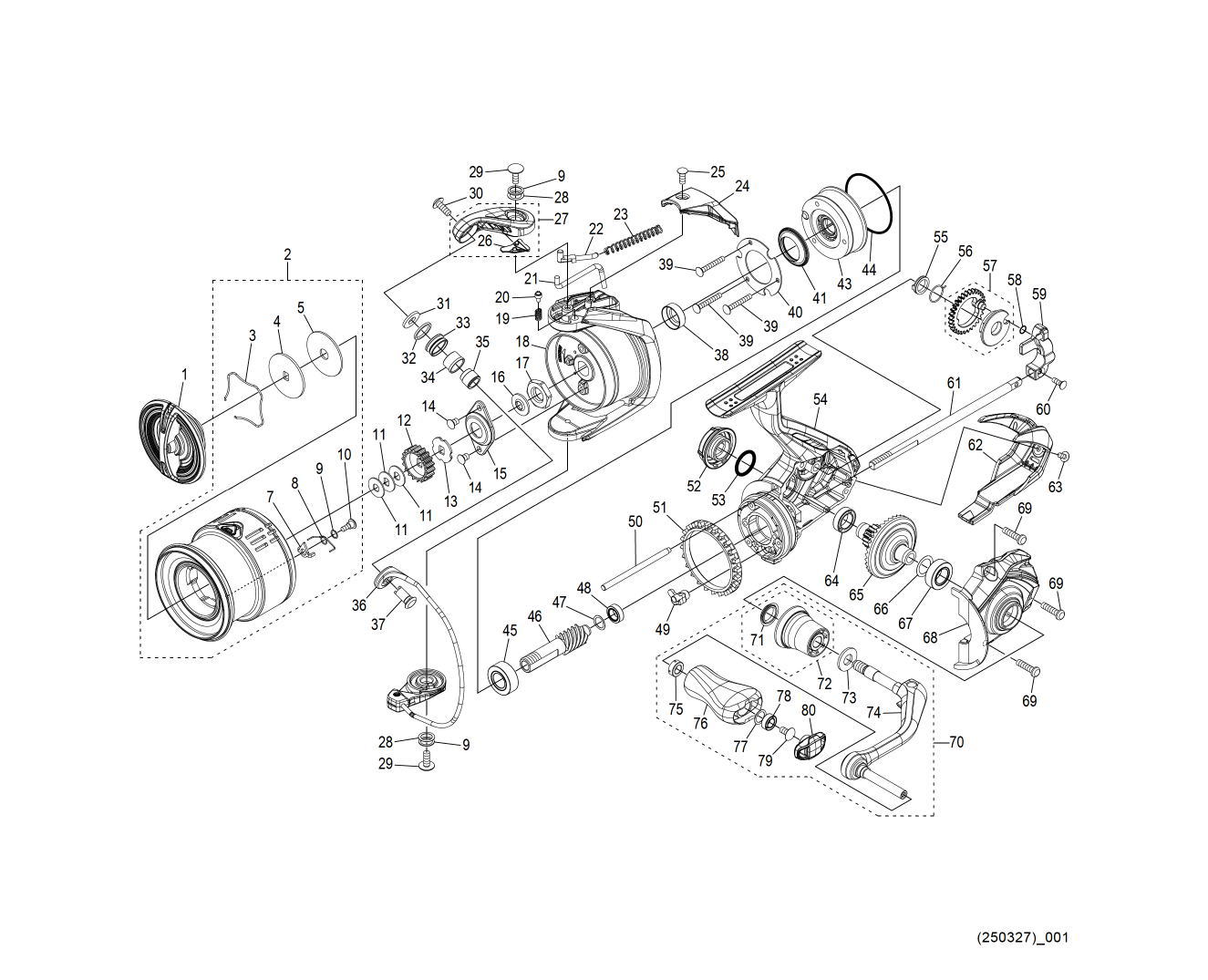

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 100K9 DRAG KNOB ASSEMBLY 17.05
2 149ZU SPOOL ASSEMBLY 36.30
3 10MZX ANTI-SLIP SPRING 1.65
4 10BCE OVAL WASHER 1.65
5 10N5A DRAG WASHER 1.10
7 10DS4 SPOOL PIN 1.65
8 149Z7 SPOOL PIN SPRING 1.65
9 10K96 WASHER 1.65
10 10TRB FIXING BOLT 1.65
11 10BXN SPOOL WASHER SET 1.10
12 103MU SPOOL BEARING (A) 1.65
13 10J04 SPOOL BEARING (B) 1.65
14 10PMC FIXING BOLT 2.75
15 10TRH RETAINER 2.75
16 107L4 ROTOR BEARING SEAL 2.75
17 1067Y ROTOR NUT 3.85
18 14807 ROTOR 11.00
19 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
20 106ZC CLICK PIN 1.65
21 106P2 INNER GEAR LEVER 2.75
22 105LT ARM SPRING GUIDE 1.10
23 10FVC ARM CAM SPRING 1.65
24 14809 ARM CAM SPRING COVER 3.85
25 103CJ FIXING BOLT 1.10
26 149ZE ARM CAM FIN 1.10
27 14C1N ARM CAM ASSEMBLY 5.50
28 10KFA ADJUSTMENT WASHER 1.10
29 103DA FIXING BOLT 1.65
30 10PMH FIXING BOLT 1.65
31 107X1 LINE ROLLER WASHER 1.65
32 10KFD ARM ROLLER SPACER 1.65
33 10JLF ARM ROLLER 1.65
34 10PFH ARM ROLLER BUSHING 1.10
35 149ZC BUSHING 1.65
36 14BMA BAIL ASSEMBLY 18.70
37 149ZA ARM FIXING SHAFT 3.30
38 10JHG ROTOR BUSHING 3.85
39 103C6 FIXING BOLT 1.10
40 10L62 ROLLER CLUTCH COVER PLATE 1.65
41 10MH6 ROLLER CLUTCH SEAL 3.85
43 10QPN ROLLER CLUTCH ASSEMBLY 11.55
44 10MLU O-RING 3.85
45 107FE BALL BEARING (7X14X5) 7.15
46 149ZR PINION GEAR 13.20
47 10SYU WASHER 1.65
48 10RKR BALL BEARING (5X8X2.5) 7.15
49 149ZL STOPPER CAM 1.10
50 10TBF SLIDER GUIDE 1.65
51 104FV FRICTION RING 2.75
52 10RSK HANDLE SCREW CAP 3.85
53 108WH O-RING 1.65
54 14BMF BODY ASSEMBLY 18.70
55 10TBH BUSHING 1.10
56 10RPB BUSHING SPRING 1.10
57 14BMC SLIDER GEAR ASSEMBLY 3.85
58 101BW O-RING 1.65
59 100KG SLIDER 8.25
60 10R1P FIXING BOLT 1.65
61 10DMK MAIN SHAFT 6.05
62 10R8U BODY GUARD 6.05
63 10LCS FIXING BOLT 1.10
64 107FA BALL BEARING (7X11X3) 7.15
65 100QB DRIVE GEAR 16.50
66 10EEZ WASHER 2.75
67 107AT BALL BEARING (7X13X4) 7.15
68 149ZF COVER 12.10
69 10L6K FIXING BOLT 1.10
70 149ZP HANDLE ASSEMBLY 49.50
71 10PXV HANDLE SHAFT SEAL 2.75
72 10E7V HANDLE SHAFT FLANGE ASSEMBLY 8.80
73 10E5X HANDLE WASHER 1.65
74 14BMD HANDLE SHANK ASSEMBLY 22.00
75 10PXZ HANDLE KNOB BUSHING 1.65
76 10328 HANDLE KNOB 11.55
77 104FH WASHER 2.20
78 10K64 BALL BEARING (4X7X2.5) 7.15
79 10LFA FIXING BOLT 1.10
80 10TNJ HANDLE CAP 3.85
MH01 14794 BASE PLATE 1.10
