[SHIMANO] Genuine Spare Parts for 26 NASCI 500 Product Code: 048066 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 NASCI 500 Product Code: 048066 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$34.65 [Regular Price: US$1.10 - US$49.50]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

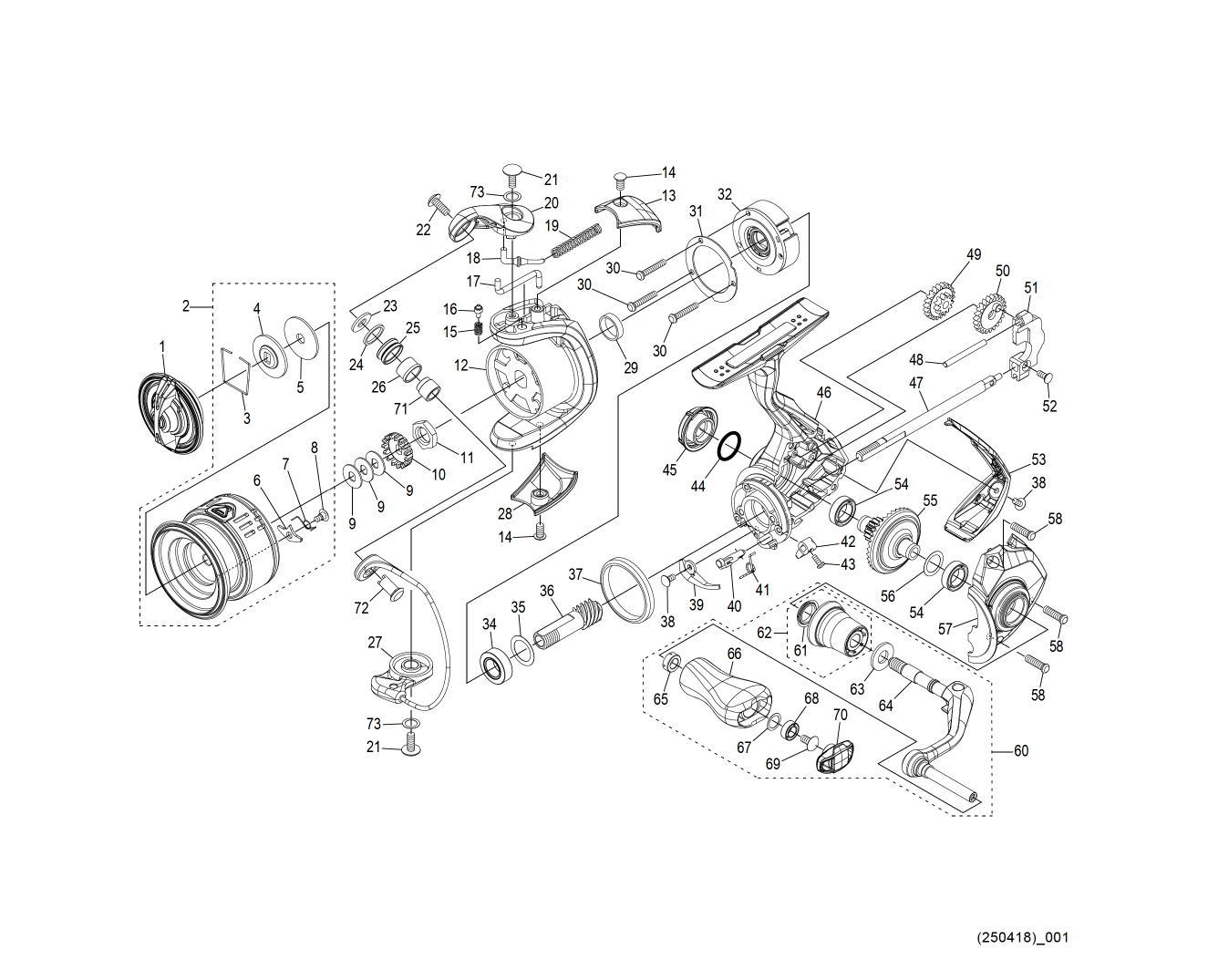

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 1001L DRAG KNOB ASSEMBLY 17.05
2 149P4 SPOOL ASSEMBLY 33.00
3 10MZN ANTI-SLIP SPRING 1.10
4 10S0W OVAL WASHER 1.65
5 10N56 DRAG WASHER 1.65
6 10BWZ CLICK PLATE SPRING 1.65
7 10JX8 CLICK SPRING 1.65
8 10PH4 FIXING BOLT 1.65
9 10BXN SPOOL WASHER SET 1.10
10 103MX SPOOL RECEIVER 1.65
11 1081A ROTOR NUT 3.85
12 149P6 ROTOR 11.00
13 10CT3 ARM CAM SPRING COVER 2.75
14 103KS FIXING BOLT 1.10
15 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
16 106ZC CLICK PIN 1.65
17 10FAZ INNER GEAR LEVER 3.85
18 105LS ARM SPRING GUIDE 1.10
19 10SQ8 ARM CAM SPRING 1.65
20 149NV ARM CAM 3.85
21 103DA FIXING BOLT 1.65
22 10PMH FIXING BOLT 1.65
23 149NX WASHER 1.10
24 10KFD ARM ROLLER SPACER 1.65
25 10JLF ARM ROLLER 1.65
26 10PFH ARM ROLLER BUSHING 1.10
27 14C79 BAIL ASSEMBLY 18.70
28 107WM MOUNTING CAM COVER 3.85
29 10HB7 ROTATING FRAME RING 2.75
30 10L1Z FIXING BOLT 1.10
31 10AEX ROLLER CLUTCH COVER PLATE 1.65
32 10QPH ROLLER CLUTCH ASSEMBLY 11.55
34 107AT BALL BEARING (7X13X4) 7.15
35 10HHQ WASHER 1.65
36 149NZ PINION GEAR 13.20
37 10D7P FRICTION RING 3.85
38 10LCS FIXING BOLT 1.10
39 10D8Z INNER GEAR STOP 1.65
40 10DC5 STOPPER CAM 1.65
41 10DCS CLICK SPRING 1.10
42 10FPW STOPPER LEVER 1.65
43 10SUK FIXING BOLT 1.65
44 10E3K O-RING 1.65
45 10RSE HANDLE SCREW CAP 3.85
46 14C7A BODY ASSEMBLY 18.70
47 10S0V MAIN SHAFT 6.05
48 10QWH SLIDER GUIDE 1.65
49 10QWJ INTERMEDIATE GEAR 2.75
50 10QWF SLIDER GEAR 1.65
51 104WG SLIDER 8.25
52 10MGL FIXING BOLT 1.10
53 10SGA BODY GUARD 11.55
54 107FA BALL BEARING (7X11X3) 7.15
55 142TH DRIVE GEAR 22.55
56 10EEZ WASHER 2.75
57 149P8 COVER 12.10
58 100H5 FIXING BOLT 1.65
60 149P0 HANDLE ASSEMBLY 49.50
61 10PXV HANDLE SHAFT SEAL 2.75
62 10RWV HANDLE SHAFT FLANGE ASSEMBLY 5.50
63 10E5X HANDLE WASHER 1.65
64 14C7B HANDLE SHANK ASSEMBLY 22.00
65 10PXZ HANDLE KNOB BUSHING 1.65
66 10328 HANDLE KNOB 11.55
67 104FH WASHER 2.20
68 10K64 BALL BEARING (4X7X2.5) 7.15
69 10LFA FIXING BOLT 1.10
70 10TNJ HANDLE CAP 3.85
71 149NY COLLET 1.65
72 149ZA ARM FIXING SHAFT 3.30
73 10HE5 WASHER 1.65
MH01 1478X BASE PLATE 1.10
