[SHIMANO] Genuine Spare Parts for 14-15 CALCUTTA CONQUEST 201 HG Product code: 034403 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

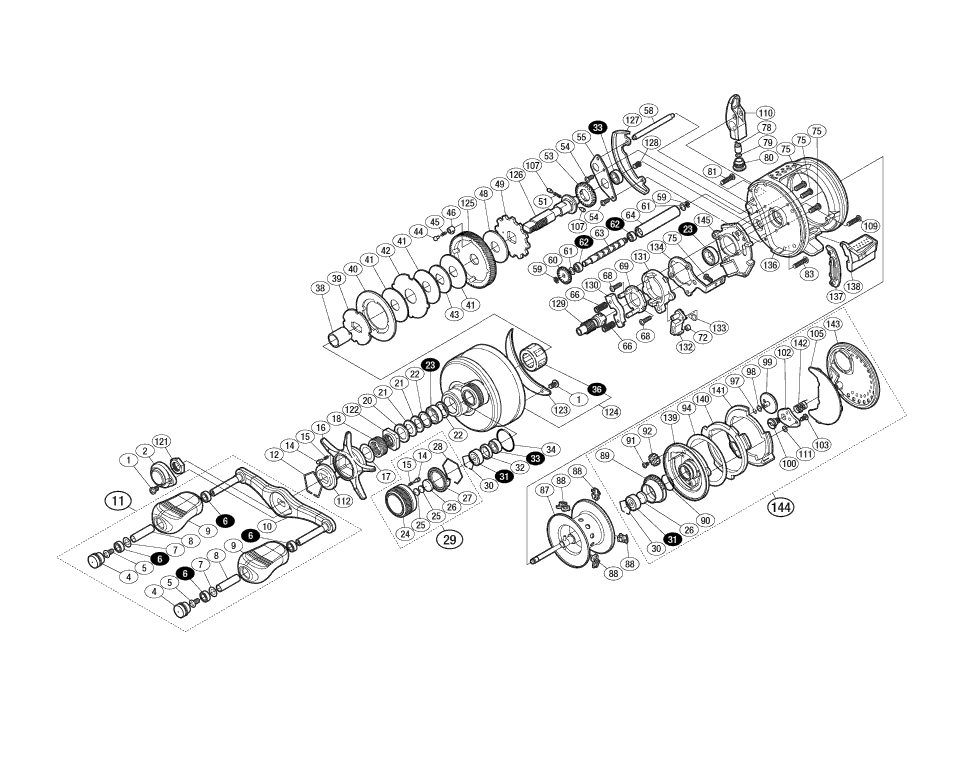

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "38 / ROLLER CLUTCH" they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	13WHP	REEL BAG	9.35
1	10CZ5	FIXING BOLT	2.75
2	10Q5R	HANDLE RETAINER	13.75
4	10FML	HANDLE CAP	9.35
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4X7X2.5)	13.75
7	104FH	WASHER	2.20
8	109VL	KNOB FIXING SHAFT PIPE	3.85
9	10325	HANDLE KNOB	11.55
10	10A67	HANDLE	39.60
11	13HY5	HANDLE ASSEMBLY	101.20
12	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
14	10B27	CLICK PIN	1.65
15	10988	CLICK SPRING	1.65
16	13UUF	STAR DRAG	22.55
17	10HHN	SLIDER WASHER (9X13X0.3)	1.65
18	10A71	STAR DRAG SPRING	2.75
20	10J1N	STAR DRAG SPACER	1.65
21	1052E	SLIDE SPRING (DB8H)	1.65
22	10GHN	WASHER	1.65
23	10EX8	BALL BEARING (8X12X3.5)	13.75
24	13TXT	MECHANICAL BRAKE KNOB	17.05
25	10896	MECHANICAL BRAKE WASHER	1.10
26	1057S	SPOOL SHAFT STOPPER (B)	1.10
27	10L2F	MECHANICAL BRAKE KNOB CLICK PLATE	2.75
28	10L6X	MECHANICAL BRAKE KNOB CLICK HOLDER	2.75
29	13HA0	MECHANICAL BRAKE KNOB ASSEMBLY	28.05
30	10GEW	BEARING RETAINER	1.10
31	105C4	BALL BEARING (3X10X4)	13.75
32	10EYT	BEARING SPACER	2.75
33	105BR	BALL BEARING (5X9X3)	13.75
34	108W8	O-RING S-16	1.65
36	10F33	ROLLER CLUTCH *Cannot be ordered	22.55
38	10BN3	ROLLER CLUTCH INNER TUBE *Cannot be ordered	6.05
39	13UTZ	STAR DRAG PLATE	3.85
40	13VC1	DRAG CLICK RATCHET	1.65
41	10CHW	STAR DRAG WASHER	6.05
42	13V82	STAR DRAG WASHER	1.65
43	13V7Q	STAR DRAG WASHER	1.65
44	10C0S	DRAG CLICK PIN	2.75
45	10J89	DRAG CLICK SPRING	1.65
46	13VB6	DRAG SPRING HOLDER	1.65
48	10CHY	STAR DRAG WASHER	3.85
49	13ULZ	STOPPER GEAR	3.85
51	10JDZ	WORM SHAFT GEAR SPRING	1.65
53	10J6W	WORM SHAFT GEAR	3.85
54	10MPN	FIXING BOLT	1.10
55	109SU	DRIVE GEAR SHAFT FIXING PLATE	3.85
58	10QSF	LEVEL WIND ROD	3.85
59	105NC	E-TYPE RETAINING RING 2	1.10
60	10FNW	WORM SHAFT GEAR	2.75
61	10GFJ	WASHER	1.10
62	10PDA	BALL BEARING (3X6X2.5)	13.75
63	104T8	WORM SHAFT	9.35
64	10NFR	LEVEL WIND PIPE	11.55
66	104BB	CLUTCH YOKE SPRING	1.10
68	10LUZ	FIXING BOLT	1.10
69	10F3Y	CLUTCH CAM PRESSURE PLATE	3.85
72	1048C	CLUTCH CLAW BUSHING	1.65
75	103C0	FIXING BOLT	1.10
78	10FFT	WORM SHAFT PIN	3.85
79	10GFH	WASHER	1.10
80	10FJC	LEVEL WIND RECEIVER	6.05
81	10JZ1	MAIN BODY A FIXING BOLT (A)	2.75
83	10A6J	FIXING BOLT	3.85
87	10L3T	SPOOL ASSEMBLY	78.65
88	1046H	BRAKE SHOE (RED)	1.10
89	10EXR	BRAKE PIPE GEAR	17.05
90	10LA8	O-RING	1.65
91	10PRT	FIXING BOLT	1.10
92	10BGM	BR KNOB GEAR	1.65
94	104N2	MAIN BODY B CAM LEVER ADJUSTMENT WASHER	1.65
97	10FMT	O-RING	1.10
98	10HYU	WASHER	1.10
99	10EV4	BR KNOB	22.55
100	10GM4	MAIN UNIT B SHAFT	6.05
102	10AVQ	DAMPER BUSHING	2.75
103	10LVE	FIXING BOLT	1.10
105	104H6	MAIN UNIT B SEAL	3.85
107	10HJG	WORM SHAFT GEAR PIN	1.65
109	101XL	FIXING BOLT	1.10
110	10TSX	LEVEL WIND ASSEMBLY	31.90
111	10280	WASHER	1.10
112	10J26	STAR DRAG CLICK PLATE	1.65
121	10FSN	HANDLE FIXING NUT	2.75
122	10A3W	STAR DRAG FIXING NUT	3.85
123	10QCB	MAIN UNIT FIXING PLATE NAMEPLATE	1.65
124	13HAP	MAIN UNIT A ASSEMBLY	112.20
125	13UQS	DRIVE GEAR	28.05
126	13UJT	DRIVE GEAR SHAFT	22.55
127	108PL	WORM SHAFT GEAR COVER	9.35
128	10PVU	FIXING BOLT	1.65
129	13SJL	PINION GEAR	22.55
130	1046Y	CLUTCH YOKE	1.65
131	10K0Y	CLUTCH CAM	2.75
132	105ZV	CLUTCH CLAW	3.85
133	10N1V	CLUTCH CLAW SPRING	1.65
134	10QGL	CLUTCH PLATE	4.95
136	10EVH	FRAME	168.30
137	1096V	CLUTCH LEVER MOUNT	1.65
138	10MWG	CLUTCH LEVER	9.35
139	10FXE	FRAME B MOUNT ASSEMBLY	22.55
140	104NA	FRAME B MOUNT CAM	2.75
141	10BAP	MAIN BODY B CAM LEVER	2.75
142	10KN7	DAMPER SPRING	1.65
143	10D0E	MAIN BODY B	45.10
144	101Z3	MAIN BODY B ASSEMBLY	118.25
145	10RPE	MAIN BODY A SEAT	3.85
OIL1	10LQ0	B-100 OIL (4.5G)	3.85
