[SHIMANO] Genuine Spare Parts for 14-15 CALCUTTA CONQUEST 200 HG Product code: 034397 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 14-15 CALCUTTA CONQUEST 200 HG Product code: 034397 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$117.81 [Regular Price: US$1.10 - US$168.30]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

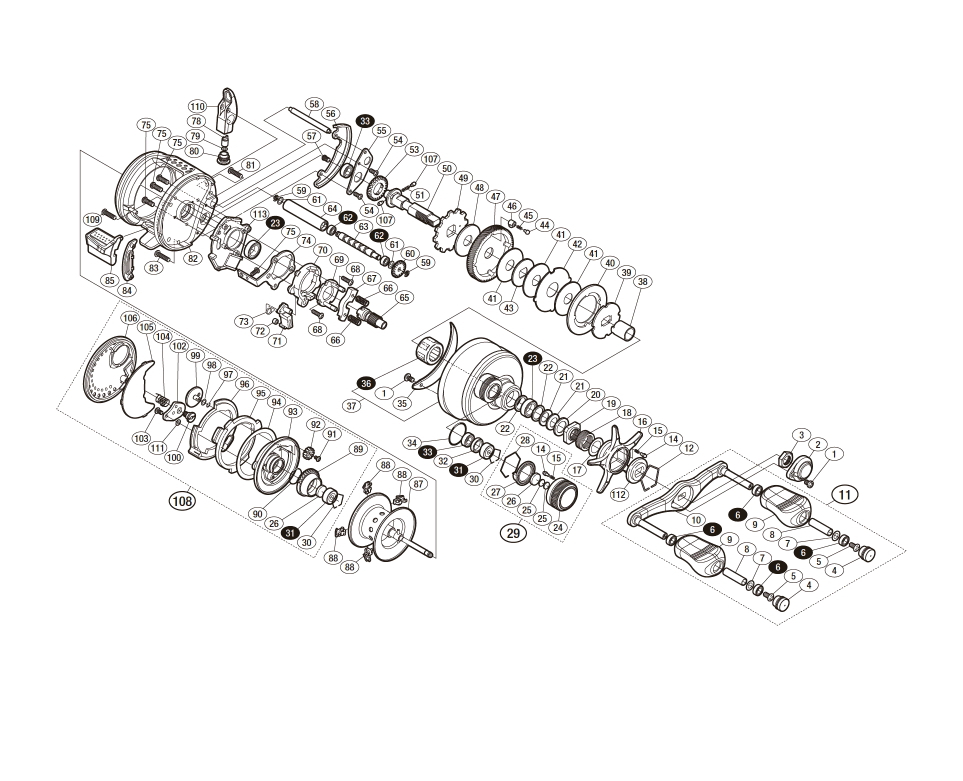

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "36 / ROLLER CLUTCH" they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13WHP REEL BAG 9.35
1 10CZ5 FIXING BOLT 2.75
2 10Q5R HANDLE RETAINER 13.75
3 10FSM HANDLE FIXING NUT 2.75
4 10FML HANDLE CAP 9.35
5 103E9 FIXING BOLT 1.10
6 104VX BALL BEARING (4X7X2.5) 13.75
7 104FH WASHER 2.20
8 109VL KNOB FIXING SHAFT PIPE 3.85
9 10325 HANDLE KNOB 11.55
10 10A67 HANDLE 39.60
11 13HY5 HANDLE ASSEMBLY 101.20
12 10KXV STAR DRAG CLICK PLATE RETAINER 1.65
14 10B27 CLICK PIN 1.65
15 10988 CLICK SPRING 1.65
16 13UUF STAR DRAG 22.55
17 10HHN SLIDER WASHER (9X13X0.3) 1.65
18 10A71 STAR DRAG SPRING 2.75
19 10A3V STAR DRAG LOCKING NUT 3.85
20 10J1N STAR DRAG SPACER 1.65
21 1052E SCREW SPRING (DB8H) 1.65
22 10GHN WASHER 1.65
23 10EX8 BALL BEARING (8X12X3.5) 13.75
24 13TXT MECHANICAL BRAKE KNOB 17.05
25 10896 MECHANICAL BRAKE WASHER 1.10
26 1057S SPOOL SHAFT STOP (B) 1.10
27 10L2F MECHANICAL BRAKE KNOB CLICK PLATE 2.75
28 10L6X MECHANICAL BRAKE KNOB CLICK HOLDER 2.75
29 13HA0 MECHANICAL BRAKE KNOB ASSEMBLY 28.05
30 10GEW BEARING RETAINER 1.10
31 105C4 BALL BEARING (3X10X4) 13.75
32 10EYT BEARING SPACER 2.75
33 105BR BALL BEARING (5X9X3) 13.75
34 108W8 O-RING S-16 1.65
35 10QCA MAIN BODY MOUNTING PLATE NAMEPLATE 1.65
36 10F33 ROLLER CLUTCH *Cannot be ordered 22.55
37 13HAL MAIN BODY A ASSEMBLY 112.20
38 10BN3 ROLLER CLUTCH INNER TUBE 6.05
39 13UTZ STAR DRAG PLATE 3.85
40 13VC1 DRAG CLICK RATCHET 1.65
41 10CHW STAR DRAG WASHER 6.05
42 13V82 STAR DRAG WASHER 1.65
43 13V7Q STAR DRAG WASHER 1.65
44 10C0S DRAG CLICK PIN 2.75
45 10J89 DRAG CLICK SPRING 1.65
46 13VB6 DRAG SPRING HOLDER 1.65
47 13UQQ DRIVE GEAR 28.05
48 10CHY STAR DRAG WASHER 3.85
49 13ULZ STOPPER GEAR 3.85
50 13UJS DRIVE GEAR SHAFT 22.55
51 10JDZ WORM SHAFT GEAR SPRING 1.65
53 10J6W WORM SHAFT GEAR 3.85
54 10MPN FIXING BOLT 1.10
55 109SU DRIVE GEAR SHAFT FIXING PLATE 3.85
56 108PK WORM SHAFT GEAR COVER 9.35
57 10PVT FIXING BOLT 1.65
58 10QSF LEVEL WIND ROD 3.85
59 105NC E-TYPE RETAINING RING 2 1.10
60 10FNW WORM SHAFT GEAR 2.75
61 10GFJ WASHER 1.10
62 10PDA BALL BEARING (3X6X2.5) 13.75
63 104T8 WORM SHAFT 9.35
64 10NFR LEVEL WIND PIPE 11.55
65 13SJK PINION GEAR 22.55
66 104BB CLUTCH YOKE SPRING 1.10
67 1046X CLUTCH YOKE 1.65
68 10LUZ FIXING BOLT 1.10
69 10F3Y CLUTCH CAM PRESSURE PLATE 3.85
70 10K0X CLUTCH CAM 2.75
71 105ZU CLUTCH CLAW 3.85
72 1048C CLUTCH CLAW BUSHING 1.65
73 10N1Z CLUTCH CLAW SPRING 1.10
74 10QGK CLUTCH PLATE 4.95
75 103C0 FIXED BOLT 1.10
78 10FFT WORM SHAFT PIN 3.85
79 10GFH WASHER 1.10
80 10FJC LEVEL WIND RECEIVER 6.05
81 10JZ1 MAIN BODY A FIXED BOLT (A) 2.75
82 10EVG FRAME 168.30
83 10A6J FIXED BOLT 3.85
84 1096U CLUTCH LEVER RECEIVER 1.65
85 13H21 CLUTCH LEVER 9.35
87 10L3T SPOOL ASSEMBLY 78.65
88 1046H BRAKE SHOE (RED) 1.10
89 10EXR BRAKE PIPE GEAR 17.05
90 10LA8 O-RING 1.65
91 10PRT FIXED BOLT 1.10
92 10BGM BR KNOB GEAR 1.65
93 10FXD FRAME B RECEIVER ASSEMBLY 22.55
94 104N2 MAIN BODY B CAM LEVER ADJUSTMENT WASHER 1.65
95 104N9 FRAME B MOUNTING CAM 2.75
96 10BAN MAIN UNIT B CAM LEVER 2.75
97 10FMT O-RING 1.10
98 10HYU WASHER 1.10
99 10EV4 BR KNOB 22.55
100 10GM4 MAIN UNIT B SHAFT 6.05
102 10AVQ DAMPER BUSHING 2.75
103 10LVE FIXING BOLT 1.10
104 10KN6 DAMPER SPRING 1.65
105 104H6 MAIN UNIT B SEAL 3.85
106 10D0D MAIN UNIT B 45.10
107 10HJG WORM SHAFT GEAR PIN 1.65
108 101Z2 MAIN UNIT B ASSEMBLY 118.25
109 101XL FIXING BOLT 1.10
110 10TSX LEVEL WIND ASSEMBLY 31.90
111 10280 WASHER 1.10
112 10J26 STAR DRAG CLICK PLATE 1.65
113 10RPM MAIN UNIT A SEAT 3.85
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
