[SHIMANO] Genuine Spare Parts for 14-15 CALCUTTA CONQUEST 101 HG Product code: 034380 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

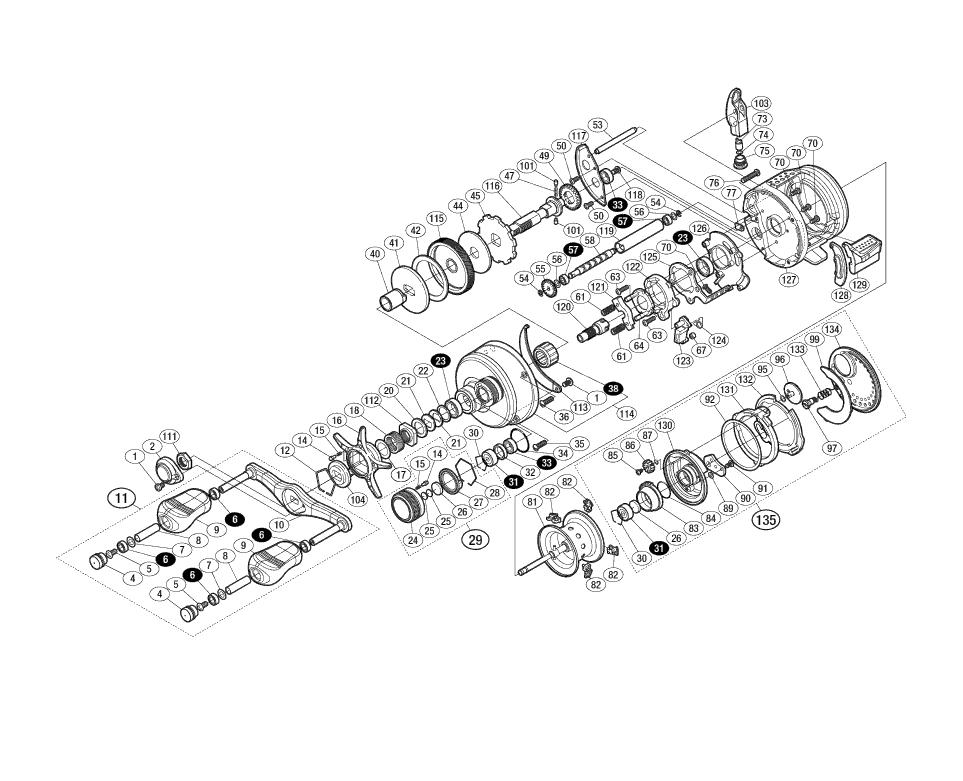

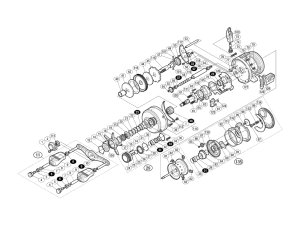

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "38 / ROLLER CLUTCH" they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	13WHP	REEL BAG	9.35
1	10CZ5	FIXING BOLT	2.75
2	10Q5R	HANDLE RETAINER	13.75
4	10FML	HANDLE CAP	9.35
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4×7×2.5)	13.75
7	104FH	WASHER	2.20
8	109VL	KNOB FIXING SHAFT PIPE	3.85
9	10325	HANDLE KNOB	11.55
10	13HRG	HANDLE	39.60
11	13HYB	HANDLE ASSEMBLY	101.20
12	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
14	10B27	CLICK PIN	1.65
15	10988	CLICK SPRING	1.65
16	10AU1	STAR DRAG	22.55
17	10HHN	SLIDER WASHER (9×13×0.3)	1.65
18	10A71	STAR DRAG SPRING	2.75
20	10J1N	STAR DRAG SPACER	1.65
21	10D60	MAIN GEAR WASHER (C)	1.65
22	105PW	STAR DRAG BEARING WASHER	1.10
23	10EX8	BALL BEARING (8×12×3.5)	13.75
24	13TXT	MECHANICAL BRAKE KNOB	17.05
25	10896	MECHANICAL BRAKE WASHER	1.10
26	1057S	SPOOL SHAFT STOPPER (B)	1.10
27	10L2F	MECHANICAL BRAKE KNOB CLICK PLATE	2.75
28	10L6X	MECHANICAL BRAKE KNOB CLICK STOP RING	2.75
29	13HA0	MECHANICAL BRAKE KNOB ASSEMBLY	28.05
30	10GEW	BEARING RETAINER	1.10
31	105C4	BALL BEARING (3×10×4)	13.75
32	10EYR	BEARING SPACER	2.75
33	105BR	BALL BEARING (5×9×3)	13.75
34	108W8	O-RING S-16	1.65
35	10C3N	FIXING BOLT	2.75
36	10C3M	MAIN BODY A FIXING BOLT (C)	2.75
38	10F34	ROLLER CLUTCH *Cannot be ordered	22.55
40	10BMX	ROLLER CLUTCH INNER TUBE	9.35
41	10D3R	STAR DRAG PLATE	6.05
42	1071X	STAR DRAG WASHER (C)	3.85
44	10CJ4	STAR DRAG WASHER (A)	3.85
45	10D70	STOPPER GEAR	3.85
47	10JDX	WORM SHAFT GEAR SPRING	1.65
49	10J6W	WORM SHAFT GEAR	3.85
50	10LVG	FIXING BOLT	1.10
53	10GUF	LEVEL WIND GUIDE	3.85
54	105NC	E-TYPE RETAINING RING 2	1.10
55	10FNW	WORM SHAFT GEAR	2.75
56	10GFJ	WASHER	1.10
57	10PDA	BALL BEARING (3×6×2.5)	13.75
58	104T9	WORM SHAFT	9.35
61	104BJ	CLUTCH YOKE SPRING	1.10
63	10LUZ	FIXING BOLT	1.10
64	10F3Y	CLUTCH CAM PRESSURE PLATE	3.85
67	1048C	CLUTCH CLAW BUSHING	1.65
70	103C0	FIXING BOLT	1.10
73	10FFT	WORM SHAFT PIN	3.85
74	10GFH	WASHER	1.10
75	10FJC	LEVEL WIND RECEIVER	6.05
76	10A6J	FIXING BOLT	3.85
77	10FTB	WORM SHAFT PULL-OUT STOPPER	2.75
81	10L3M	SPOOL ASSEMBLY	78.65
82	1046H	BRAKE SHOE (RED)	1.10
83	10EXR	BRAKE PIPE GEAR	17.05
84	10LA8	O-RING	1.65
85	10PRT	FIXING BOLT	1.10
86	10BGM	BR KNOB GEAR	1.65
87	10FMT	O-RING	1.10
89	10GHK	WASHER	1.10
90	10AYW	DAMPER BUSHING	2.75
91	10LVE	FIXING BOLT	1.10
92	104MY	MAIN BODY B CAM LEVER ADJUSTMENT WASHER	1.65
95	10HYU	WASHER	1.10
96	10EV4	BR KNOB	22.55
97	10GM5	MAIN BODY B SHAFT	6.05
99	104H7	MAIN BODY B SEAL	3.85
101	10HJG	WORM SHAFT GEAR PIN	1.65
103	10TSX	LEVEL WIND ASSEMBLY	31.90
104	10J26	STAR DRAG CLICK PLATE	1.65
111	10FSN	HANDLE FIXING NUT	2.75
112	10A0C	STAR DRAG FIXING NUT	2.75
113	10QCD	MAIN BODY FIXING PLATE NAMEPLATE	1.65
114	13HAR	MAIN BODY A ASSEMBLY	112.20
115	13UMS	DRIVE GEAR	28.05
116	105CB	DRIVE GEAR SHAFT	22.55
117	109SW	DRIVE GEAR SHAFT FIXING PLATE	9.35
118	10PVU	FIXING BOLT	1.65
119	10NFT	LEVEL WIND PIPE	11.55
120	13SJJ	PINION GEAR	22.55
121	10470	CLUTCH YOKE	1.65
122	10K0Y	CLUTCH CAM	2.75
123	105ZV	CLUTCH CLAW	3.85
124	10N1V	CLUTCH CLAW SPRING	1.65
125	10QGN	CLUTCH PLATE	4.95
126	10BVR	MAIN BODY A SEAT	3.85
127	10EVK	FRAME	146.30
128	10971	CLUTCH LEVER RECEIVER	1.65
129	10MWG	CLUTCH LEVER	9.35
130	10FXG	FRAME B RECEIVER ASSEMBLY	22.55
131	104NC	FRAME B RECEIVER CAM	2.75
132	10BAR	MAIN BODY B CAM LEVER	2.75
133	10KN9	DAMPER SPRING	1.65
134	10D0G	MAIN BODY B	45.10
135	101Z5	MAIN BODY B ASSEMBLY	118.25
OIL1	10LQ0	B-100 OIL (4.5G)	3.85
