[SHIMANO] Genuine Spare Parts for 14-15 CALCUTTA CONQUEST 100 HG Product code: 034373 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

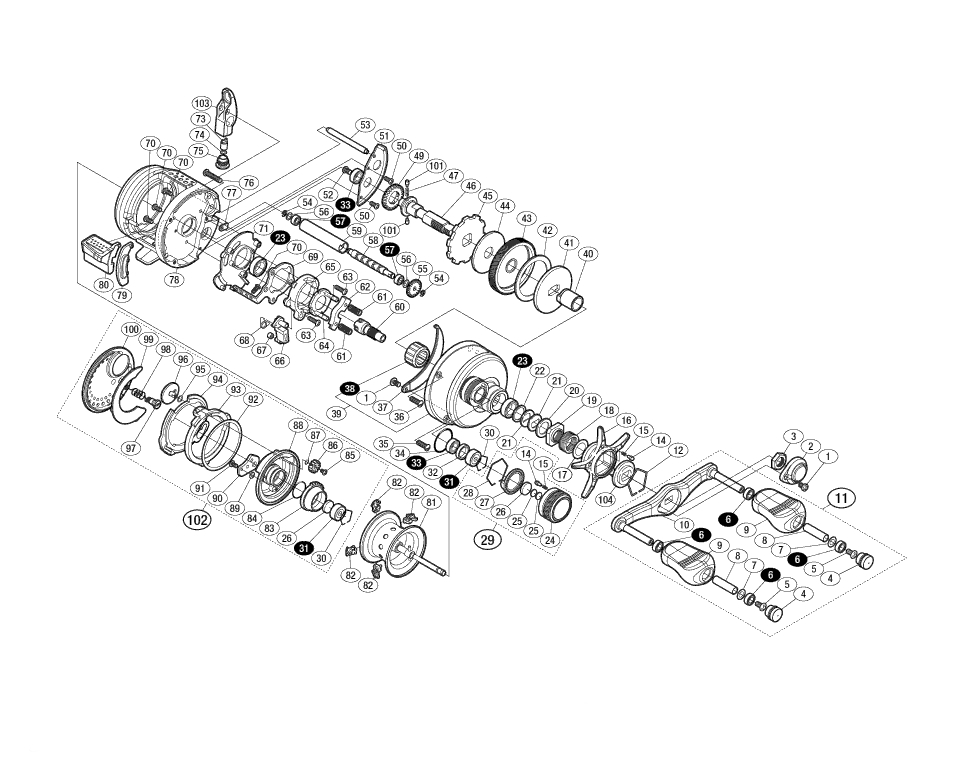

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "38 / ROLLER CLUTCH" they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	13WHP	REEL BAG	9.35
1	10CZ5	FIXING BOLT	2.75
2	10Q5R	HANDLE RETAINER	13.75
3	10FSM	HANDLE FIXING NUT	2.75
4	10FML	HANDLE CAP	9.35
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4X7X2.5)	13.75
7	104FH	WASHER	2.20
8	109VL	KNOB FIXING SHAFT PIPE	3.85
9	10325	HANDLE KNOB	11.55
10	13HRG	HANDLE	39.60
11	13HYB	HANDLE ASSEMBLY	101.20
12	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
14	10B27	CLICK PIN	1.65
15	10988	CLICK SPRING	1.65
16	10AU1	STAR DRAG	22.55
17	10HHN	SLIDER WASHER (9X13X0.3)	1.65
18	10A71	STAR DRAG SPRING	2.75
19	10A0B	STAR DRAG LOCKING NUT	2.75
20	10J1N	STAR DRAG SPACER	1.65
21	10D60	MAIN GEAR WASHER (C)	1.65
22	105PW	STAR DRAG BEARING WASHER	1.10
23	10EX8	BALL BEARING (8X12X3.5)	13.75
24	13TXT	MECHANICAL BRAKE KNOB	17.05
25	10896	MECHANICAL BRAKE WASHER	1.10
26	1057S	SPOOL SHAFT STOPPER (B)	1.10
27	10L2F	MECHANICAL BRAKE KNOB CLICK PLATE	2.75
28	10L6X	MECHANICAL BRAKE KNOB CLICK STOPPER RING	2.75
29	13HA0	MECHANICAL BRAKE KNOB ASSEMBLY	28.05
30	10GEW	BEARING RETAINER	1.10
31	105C4	BALL BEARING (3X10X4)	13.75
32	10EYR	BEARING SPACER	2.75
33	105BR	BALL BEARING (5X9X3)	13.75
34	108W8	O-RING S-16	1.65
35	10C3N	FIXING BOLT	2.75
36	10C3M	MAIN BODY A FIXING BOLT (C)	2.75
37	10QCC	BODY MOUNTING PLATE NAMEPLATE	1.65
38	10F34	ROLLER CLUTCH *Cannot be ordered	22.55
39	13HAQ	BODY A ASSEMBLY	112.20
40	10BMX	ROLLER CLUTCH INNER TUBE	9.35
41	10D3R	STAR DRAG PLATE	6.05
42	1071X	STAR DRAG WASHER (C)	3.85
43	13UMR	DRIVE GEAR	28.05
44	10CJ4	STAR DRAG WASHER (A)	3.85
45	10D70	STOPPER GEAR	3.85
46	1058Q	DRIVE GEAR SHAFT	22.55
47	10JDX	WORM SHAFT GEAR SPRING	1.65
49	10J6W	WORM SHAFT GEAR	3.85
50	10LVG	FIXING BOLT	1.10
51	109SV	DRIVE GEAR SHAFT MOUNTING PLATE	9.35
52	10PVT	FIXING BOLT	1.65
53	10GUF	LEVEL WIND GUIDE	3.85
54	105NC	E-TYPE RETAINING RING 2	1.10
55	10FNW	WORM SHAFT GEAR	2.75
56	10GFJ	WASHER	1.10
57	10PDA	BALL BEARING (3X6X2.5)	13.75
58	104T9	WORM SHAFT	9.35
59	10NFS	LEVEL WIND PIPE	11.55
60	13SJH	PINION GEAR	22.55
61	104BJ	CLUTCH YOKE SPRING	1.10
62	1046Z	CLUTCH YOKE	1.65
63	10LUZ	FIXING BOLT	1.10
64	10F3Y	CLUTCH CAM PRESSURE PLATE	3.85
65	10K0X	CLUTCH CAM	2.75
66	105ZU	CLUTCH CLAW	3.85
67	1048C	CLUTCH CLAW BUSHING	1.65
68	10N1Z	CLUTCH CLAW SPRING	1.10
69	10QGM	CLUTCH PLATE	4.95
70	103C0	FIXING BOLT	1.10
71	10BVQ	MAIN BODY A SEAT	3.85
73	10FFT	WORM SHAFT PIN	3.85
74	10GFH	WASHER	1.10
75	10FJC	LEVEL WIND RECEIVER	6.05
76	10A6J	FIXING BOLT	3.85
77	10FTB	WORM SHAFT RETAINER	2.75
78	10EVJ	FRAME	146.30
79	1096W	CLUTCH LEVER RECEIVER	1.65
80	13H21	CLUTCH LEVER	9.35
81	10L3M	SPOOL ASSEMBLY	78.65
82	1046H	BRAKE SHOE (RED)	1.10
83	10EXR	BRAKE PIPE GEAR	17.05
84	10LA8	O-RING	1.65
85	10PRT	FIXING BOLT	1.10
86	10BGM	BR KNOB GEAR	1.65
87	10FMT	O-RING	1.10
88	10FXF	FRAME B RECEIVER ASSEMBLY	22.55
89	10GHK	WASHER	1.10
90	10AYW	DAMPER BUSHING	2.75
91	10LVE	FIXING BOLT	1.10
92	104MY	MAIN UNIT B CAM LEVER ADJUSTMENT WASHER	1.65
93	104NB	FRAME B RECEIVER CAM	2.75
94	10BAQ	MAIN UNIT B CAM LEVER	2.75
95	10HYU	WASHER	1.10
96	10EV4	BR KNOB	22.55
97	10GM5	MAIN UNIT B SHAFT	6.05
98	10KN8	DAMPER SPRING	1.65
99	104H7	MAIN UNIT B SEAL	3.85
100	10D0F	MAIN UNIT B	45.10
101	10HJG	WORM SHAFT GEAR PIN	1.65
102	101Z4	MAIN UNIT B ASSEMBLY	118.25
103	10TSX	LEVEL WIND ASSEMBLY	31.90
104	10J26	STAR DRAG CLICK PLATE	1.65
OIL1	10LQ0	B-100 OIL (4.5G)	3.85
