[SHIMANO] Genuine Spare Parts for 14-15 CALCUTTA CONQUEST 200 Product code: 032041 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

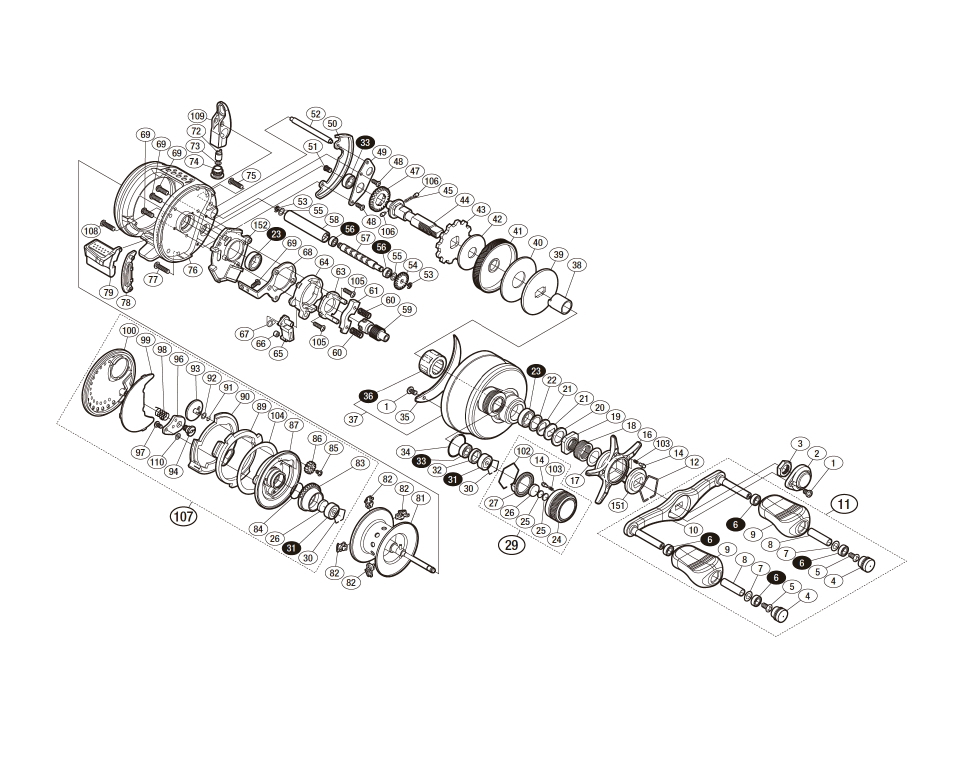

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "36 / ROLLER CLUTCH" they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	13WHP	REEL BAG	9.35
1	10CZ5	FIXING BOLT	2.75
2	10Q5R	HANDLE RETAINER	13.75
3	10FSM	HANDLE FIXING NUT	2.75
4	10FMG	HANDLE CAP	3.85
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4X7X2.5)	13.75
7	104FH	WASHER	2.20
8	109VL	KNOB FIXING SHAFT PIPE	3.85
9	10325	HANDLE KNOB	11.55
10	10A67	HANDLE	39.60
11	10CF1	HANDLE ASSEMBLY	101.20
12	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
14	10B27	CLICK PIN	1.65
16	10AU1	STAR DRAG	22.55
17	10HHN	SLIDER WASHER (9X13X0.3)	1.65
18	10A71	STAR DRAG SPRING	2.75
19	10A0B	STAR DRAG LOCK NUT	2.75
20	10J1N	STAR DRAG SPACER	1.65
21	10D60	MAIN GEAR WASHER (C)	1.65
22	105PW	STAR DRAG BEARING WASHER	1.10
23	10EX8	BALL BEARING (8X12X3.5)	13.75
24	10KDN	MECHANICAL BRAKE KNOB	17.05
25	10896	MECHANICAL BRAKE WASHER	1.10
26	1057S	SPOOL SHAFT STOPPER (B)	1.10
27	10L2F	MECHANICAL BRAKE KNOB CLICK PLATE	2.75
29	10HWC	MECHANICAL BRAKE KNOB ASSEMBLY	28.05
30	10GEW	BEARING RETAINER	1.10
31	105C4	BALL BEARING (3X10X4)	13.75
32	10EYT	BEARING SPACER	2.75
33	105BR	BALL BEARING (5X9X3)	13.75
34	108W8	O-RING S-16	1.65
35	10QCA	MAIN BODY MOUNTING PLATE NAMEPLATE	1.65
36	10F33	ROLLER CLUTCH *Cannot be ordered	22.55
37	10HZL	MAIN BODY A ASSEMBLY	112.20
38	10BN1	ROLLER CLUTCH INNER TUBE	6.05
39	10D3M	STAR DRAG PLATE	2.75
40	106XR	STAR DRAG WASHER	3.85
41	10CMG	DRIVE GEAR	28.05
42	10CJ2	STAR DRAG WASHER	3.85
43	10D6Z	STOPPER GEAR	3.85
44	1058N	DRIVE GEAR SHAFT	22.55
45	10JDZ	WORM SHAFT GEAR SPRING	1.65
47	10J6W	WORM SHAFT GEAR	3.85
48	10MPN	FIXING BOLT	1.10
49	109SU	DRIVE GEAR SHAFT FIXING PLATE	3.85
50	108PK	WORM SHAFT GEAR COVER	9.35
51	10PVT	FIXING BOLT	1.65
52	10QSF	LEVEL WIND ROD	3.85
53	105NC	E-TYPE RETAINING RING 2	1.10
54	10FNW	WORM SHAFT GEAR	2.75
55	10GFJ	WASHER	1.10
56	10PDA	BALL BEARING (3X6X2.5)	13.75
57	104T8	WORM SHAFT	9.35
58	10NFR	LEVEL WIND PIPE	11.55
59	10CS0	PINION GEAR	22.55
60	104BB	CLUTCH YOKE SPRING	1.10
61	1046X	CLUTCH YOKE	1.65
63	10F3Y	CLUTCH CAM RETAINING PLATE	3.85
64	10K0X	CLUTCH CAM	2.75
65	105ZU	CLUTCH CLAW	3.85
66	1048C	CLUTCH CLAW BUSHING	1.65
67	10N1Z	CLUTCH CLAW SPRING	1.10
68	10QGK	CLUTCH PLATE	4.95
69	103C0	FIXING BOLT	1.10
72	10FFT	WORM SHAFT PIN	3.85
73	10GFH	WASHER	1.10
74	10FJC	LEVEL WIND SUPPORT	6.05
75	10JZ1	MAIN BODY A FIXING BOLT (A)	2.75
76	10EVG	FRAME	168.30
77	10A6J	FIXING BOLT	3.85
78	1096U	CLUTCH LEVER SUPPORT	1.65
79	13H21	CLUTCH LEVER	9.35
81	10L3T	SPOOL ASSEMBLY	78.65
82	1046H	BRAKE SHOE (RED)	1.10
83	10EXR	BRAKE PIPE GEAR	17.05
84	10LA8	O-RING	1.65
85	10PRT	FIXING BOLT	1.10
86	10BGM	BR KNOB GEAR	1.65
87	10FXD	FRAME B SUPPORT ASSEMBLY	22.55
89	104N9	FRAME B SUPPORT CAM	2.75
90	10BAN	MAIN UNIT B CAM LEVER	2.75
91	10FMT	O-RING	1.10
92	10HYU	WASHER	1.10
93	10EV4	BR KNOB	22.55
94	10GM4	MAIN UNIT B SHAFT	6.05
96	10AVQ	DAMPER BUSHING	2.75
97	10LVE	FIXING BOLT	1.10
98	10KN6	DAMPER SPRING	1.65
99	104H6	MAIN UNIT B SEAL	3.85
100	10D0D	MAIN BODY B	45.10
102	10L6X	MECHANICAL BRAKE KNOB CLICK HOLDER	2.75
103	10988	CLICK SPRING	1.65
104	104N2	MAIN BODY B CAM LEVER ADJUSTMENT WASHER	1.65
105	10LUZ	FIXED BOLT	1.10
106	10HJG	WORM SHAFT GEAR PIN	1.65
107	101Z2	MAIN BODY B ASSEMBLY	118.25
108	101XL	FIXED BOLT	1.10
109	10TSX	LEVEL WIND ASSEMBLY	31.90
110	10280	WASHER	1.10
151	10J26	STAR DRAG CLICK PLATE	1.65
152	10RPM	MAIN BODY A SEAT	3.85
OIL1	10LQ0	B-100 OIL (4.5G)	3.85
