[DAIWA] Genuine Spare Parts for 21 銀狼-GINRO LBQD Product code: 00066052 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 21 銀狼-GINRO LBQD Product code: 00066052 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$118.58 [Regular Price: US$1.10 - US$169.40]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

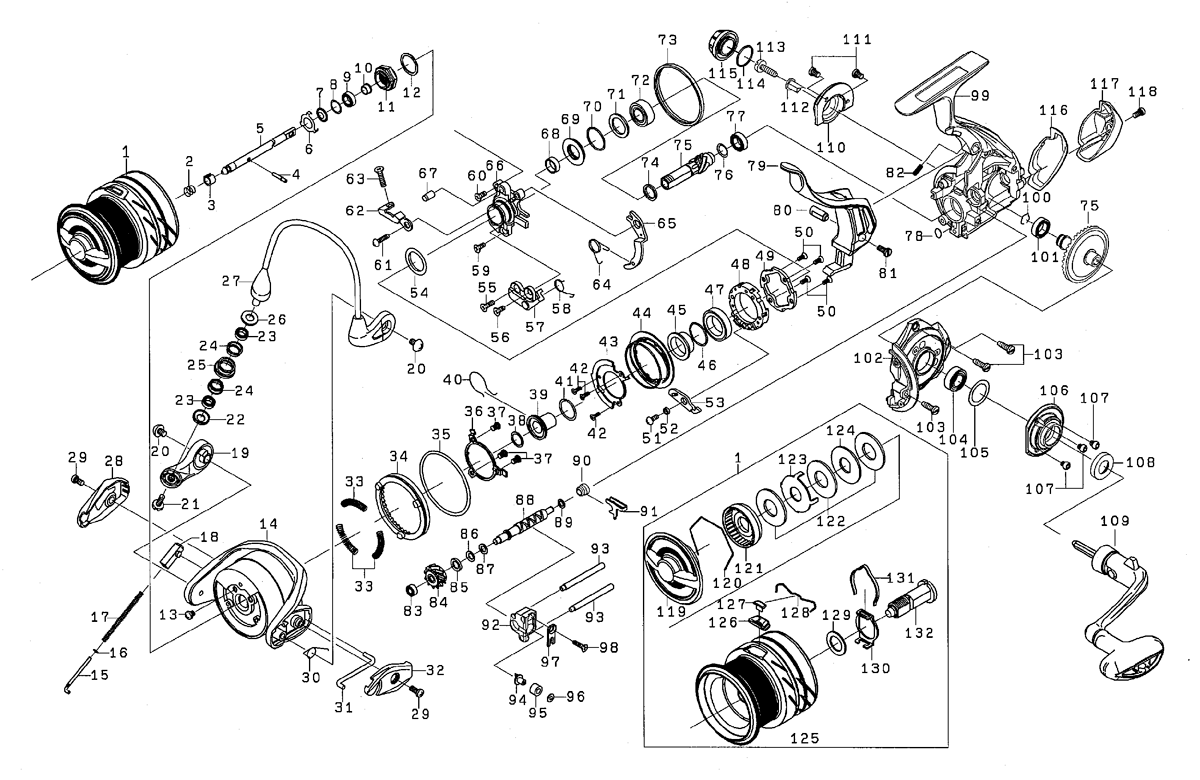

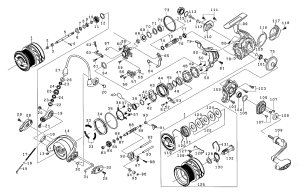

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 SPOOL 6Z026018 165.00
2 METAL SP 6G993001 2.20
3 SPOOL PIN COLLAR 6G992901 2.20
4 SPOOL PIN 6G992801 2.20
5 MAIN SHAFT 6H178501 19.80
6 ROTOR NUT BEARING PLATE 6G471501 2.20
7 ROTOR NUT BEARING PACKING 6H461201 2.20
8 ROTOR NUT BEARING W 6G466103 1.10
9 ROTOR NUT BALL BEARING 6G466205 15.40
10 ROTOR NUT BEARING COLLAR 6J214101 2.20
11 ROTOR NUT 6H818201 4.40
12 ROTOR NUT W 6G613403 1.10
13 ROTOR NUT SC 6G627701 2.20
14 ROTOR 6H817214 63.80
15 ARM LEVER SHAFT 6G766601 2.20
16 ARM LEVER SHAFT W 6G685401 1.10
17 ARM LEVER SP 6G766701 2.20
18 ARM LEVER SP HOLDER 6H817401 4.40
19 ARM LEVER 6H817310 11.00
20 ARM LEVER SC 6G998401 2.20
21 ROLLER SC 6G687202 4.40
22 ROLLER PACKING (A) 6H818101 2.20
23 ROLLER BALL BEARING 6G686903 12.10
24 ROLLER COLLAR 6G998901 2.20
25 LINE ROLLER 6G686701 7.70
26 ROLLER PACKING (B) 6G687001 3.30
27 BAIL 6H817701 143.00
28 ARM LEVER COVER 6H817501 7.70
29 ARM LEVER COVER SC 6H376601 2.20
30 BAIL LOCK SHAFT SP 6M405801 2.20
31 BAIL LOCK SHAFT 6H817601 4.40
32 BAIL HOLDER COVER 6H818001 7.70
33 RATCHET SP 6H458001 2.20
34 RATCHET 6G766005 20.90
35 RATCHET O-RING 6G158601 1.10
36 RATCHET HOLDER 6G766102 3.30
37 RATCHET HOLDER SC 6G992201 2.20
38 METAL BEARING COLLAR W 63758502 1.10
39 METAL BEARING COLLAR 6H817101 7.70
40 METAL STOPPER SP 6G297901 2.20
41 METAL BEARING COLLAR RING 6J089701 2.20
42 BEARING HOLDER PLATE SC 6G297401 2.20
43 BEARING HOLDER PLATE 6G991901 4.40
44 BRAKE DISC *Cannot be ordered 6J947001 15.40
45 METAL COLLAR (A) 6J947301 3.30
46 METAL COLLAR (A) W 6J932101 1.10
47 METAL COLLAR (B) 6J947201 3.30
48 BRAKE METAL 6G296802 7.70
49 METAL RATCHET 6G774901 6.60
50 METAL RATCHET SC *Cannot be ordered 6G297001 2.20
51 ROTOR STOPPER SC 63522507 2.20
52 ROTOR STOPPER COLLAR 6G297701 2.20
53 ROTOR STOPPER 6G382401 4.40
54 SET PLATE COLLAR 6J947401 2.20
55 BRAKE STOPPER SC (A) 6H370201 2.20
56 BRAKE STOPPER SC (B) 6H178101 2.20
57 BRAKE STOPPER 6G764902 11.00
58 BRAKE STOPPER SP 6G864101 2.20
59 SET PLATE SC (A) 6H178101 2.20
60 SET PLATE SC (B) 6H370201 2.20
61 BRAKE PLATE SC (A) 6F935402 2.20
62 BRAKE PLATE 6G991701 15.40
63 BRAKE PLATE SC (B) 6H370301 2.20
64 CRANK PLATE SP 6G296205 2.20
65 CRANK PLATE 6H178202 3.30
66 SET PLATE 6H370102 20.90
67 PUSH HEAD *Cannot be ordered 6J728501 4.40
68 MAG SHIELD COLLAR 6H816501 4.40
69 MAG SHIELD PLATE *Cannot be ordered 6H815901 15.40
70 MAG SHIELD O-RING 6H816401 2.20
71 PINION BEARING W 63727601 1.10
72 PINION BALL BEARING (A) 6G279602 15.40
73 BRAKE RING 6H545901 3.30
74 PINION BEARING COLLAR 6H815801 2.20
75 PINION + DRIVE GEAR SET *Cannot be ordered 6Z023770 66.00
76 PINION BEARING (B) W 6G572501 1.10
77 PINION BALL BEARING (B) 6G467101 15.40
78 SET PLATE W 6J319701 1.10
79 BRAKE LEVER *Cannot be ordered 6M132201 72.60
80 BRAKE LEVER NUT 6G762701 4.40
81 BRAKE LEVER SC 6G762801 4.40
82 BRAKE LEVER SP 6G762601 2.20
83 WORM SHAFT BALL BEARING 6G281605 8.80
84 WORM SHAFT GEAR 6J337101 29.70
85 WORM SHAFT GEAR COLLAR 6G762901 2.20
86 WORM SHAFT GEAR SP・W 6G864801 1.10
87 WORM SHAFT GEAR W 6B411703 1.10
88 WORM SHAFT 6G763201 15.40
89 WORM SHAFT W 6F950201 1.10
90 WORM SHAFT BEARING COLLAR 6F631502 3.30
91 WORM SHAFT RETAINER 6J205301 2.20
92 OSCILLATING SLIDER 6J205101 17.60
93 OSCILLATING POST 6J205201 7.70
94 POLE 6G763601 8.80
95 POLE HOLDER COLLAR 6G763701 3.30
96 POLE W 63750801 1.10
97 POLE HOLDER PLATE 6G763801 2.20
98 POLE HOLDER PLATE SC 6E150205 2.20
99 BODY *Cannot be ordered 6J716902 52.80
100 DRIVE BEARING (A) RING 6G472401 2.20
101 DRIVE BALL BEARING (A) 6G522702 8.80
102 BODY COVER 6J205606 39.60
103 BODY COVER SC 6H380401 2.20
104 DRIVE BALL BEARING (B) 6G467302 8.80
105 DRIVE W 6G468001 1.10
106 DRIVE BEARING COVER (L) 6M072104 36.30
107 DRIVE BEARING COVER (L) SC 6H740303 3.30
108 HANDLE PACKING 6J130201 2.20
109 HANDLE *Cannot be ordered 6M131401 169.40
110 DRIVE BEARING COVER (R) 6M072004 36.30
111 DRIVE BEARING COVER (R) SC 6H740003 3.30
112 HANDLE COLLAR 6F404801 2.20
113 HANDLE SC 63638511 2.20
114 HANDLE CAP O-RING 6G399702 1.10
115 HANDLE CAP 6H745101 6.60
116 REAR CAP PACKING 6J206001 4.40
117 REAR CAP 6J206104 11.00
118 REAR CAP SC 6H825401 2.20
119 DRAG KNOB 6J852002 20.90
120 DRAG RING 6F742501 2.20
121 DRAG RATCHET 6G367202 8.80
122 DRAG W 6G365301 2.20
123 DRAG GRIP W 6F635202 2.20
124 DRAG DISC W 6G367101 2.20
126 LINE STOPPER PLATE 6J558101 2.20
127 LINE STOPPER 6J558001 2.20
128 LINE STOPPER SP 6J314801 2.20
129 SPOOL W 63755702 1.10
130 CLICK HOLDER 6G693902 2.20
131 CLICK LEAF SP 6F704901 2.20
132 SPOOL METAL 6G364501 27.50
200 HANDLE KNOB SP/W 6H744801 1.10
201 HANDLE KNOB W 6B411703 1.10
202 HANDLE KNOB BALL BEARING 6G469009 15.40
203 HANDLE KNOB COLLAR 6H850401 2.20
204 HANDLE KNOB 6J555601 24.20
205 HANDLE KNOB SC 6B679308 2.20
206 HANDLE KNOB CAP 6J555802 6.60
