[DAIWA] Genuine Spare Parts for 25 SALTIGA IC 300H-SJ-C Product code: 00631594 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 25 SALTIGA IC 300H-SJ-C Product code: 00631594 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$137.06 [Regular Price: US$1.10 - US$195.80]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

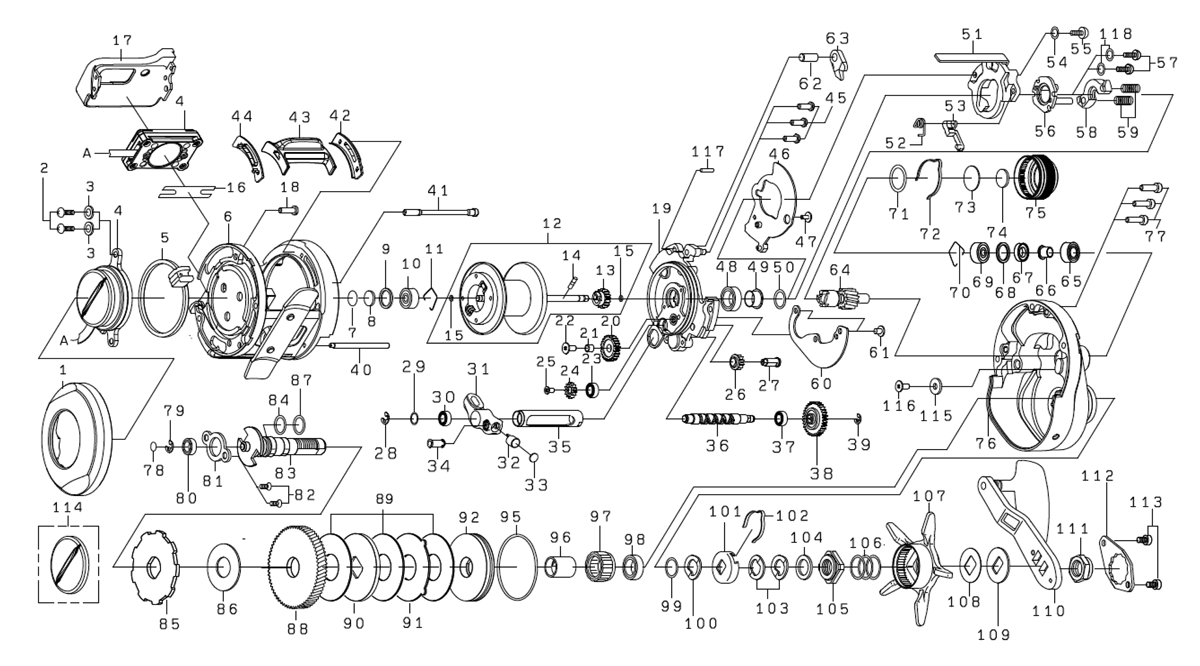

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 LS PLATE 6M721002 107.80
2 IC MODULE SC 6H666003 2.20
3 IC MODULE SC・W 6B536104 1.10
4 IC MODULE 6M614403 154.00
5 LS SENSOR PLATE 6M721101 19.80
6 FRAME 6M720701 169.40
7 LS BEARING W (A) 63757404 1.10
8 LS BEARING W (B) 63757411 1.10
9 LS BEARING W (C) 6G185101 1.10
10 LS BALL BEARING 6G511506 15.40
11 LS BEARING RING 6F032201 2.20
12 SPOOL (12-15) 6M728901 88.00
13 SPOOL GEAR 6M026001 2.20
14 SPOOL PIN 6J252301 2.20
15 SPOOL O-RING 6H770601 1.10
16 IC MODULE HOLD SEAL 6J911901 2.20
17 IC MODULE COVER 6M720901 82.50
18 LS PLATE SC 6J632304 2.20
19 SET PLATE 6M660401 38.50
20 SET PLATE GEAR (A) 6M023701 2.20
21 SET PLATE GEAR (A) COLLAR 6M023601 2.20
22 SET PLATE GEAR (A) SC 6H472205 2.20
23 SET PLATE GEAR (B) BEARING 6G469009 15.40
24 SET PLATE GEAR (B) 6M023801 2.20
25 SET PLATE GEAR (B) SC 6H842806 2.20
26 SET PLATE GEAR (C) 6M023901 2.20
27 SET PLATE GEAR (C) SC 6M024001 2.20
28 WORM SHAFT RETAINER 63205901 2.20
29 WORM SHAFT BEARING W 6B411702 1.10
30 WORM SHAFT BALL BEARING (A) 6G469009 15.40
31 LEVEL WIND 6M044901 58.30
32 POLE 6H168601 15.40
33 POLE W 6G099801 1.10
34 LEVEL WIND POST COLLAR 6H168701 2.20
35 WORM SHIELD 6M729501 17.60
36 WORM SHAFT 6M729701 12.10
37 WORM SHAFT BALL BEARING (B) 6G469009 15.40
38 WORM SHAFT GEAR 6M023501 2.20
39 WORM SHAFT GEAR RETAINER 6B339801 2.20
40 POST 6M076201 3.30
41 FRAME SC 6M026201 6.60
42 CLUTCH LEVER PLATE (R) 6M044601 2.20
43 CLUTCH LEVER 6M664201 7.70
44 CLUTCH LEVER PLATE (L) 6M044701 2.20
45 SET PLATE SC 6G040834 2.20
46 CLUTCH CAM PLATE 6M043701 2.20
47 CLUTCH CAM PLATE SC 6H531508 2.20
48 CLUTCH CAM BALL BEARING 6G431008 15.40
49 CLUTCH CAM BEARING COLLAR 6M518401 7.70
50 CLUTCH CAM O-RING 6M639101 2.20
51 CLUTCH CAM 6M747701 8.80
52 KICK LEVER SP 6J933601 2.20
53 KICK LEVER 6J933201 6.60
54 CLUTCH CAM W 6H159201 1.10
55 CLUTCH CAM SC 63522501 2.20
56 KICK LEVER PLATE (B) 6M044101 3.30
57 KICK LEVER PLATE (B) SC 6B032905 3.30
58 CLUTCH PLATE 6M105701 3.30
59 CLUTCH PLATE SP 6J142501 2.20
60 RS COVER PLATE 6M733401 8.80
61 COVER PLATE SC 6G557113 2.20
62 STOPPER PIN 6J946701 2.20
63 STOPPER 6H270401 8.80
64 PINION + DRIVE GEAR SET 6Z028079 93.50
65 PINION BALL BEARING (A) 6G467101 15.40
66 PINION BEARING COLLAR (A) *Cannot be ordered 6J953001 7.70
67 PINION BEARING COLLAR (B) 6M348501 7.70
68 PINION BEARING W 6G185101 1.10
69 PINION BALL BEARING (B) 6G511506 15.40
70 PINION RING 6F032201 2.20
71 MECHANICAL BRAKE O-RING 6H157002 1.10
72 MECHANICAL BRAKE SP 6H160901 2.20
73 MECHANICAL BRAKE W (A) 6J692001 1.10
74 MECHANICAL BRAKE W (B) 6B175503 1.10
75 MECHANICAL BRAKE KNOB 6M720601 22.00
76 RS PLATE 6M720401 195.80
77 RS PLATE SC 6G945828 2.20
78 GEAR SHAFT W 6G099802 1.10
79 GEAR SHAFT RETAINER 63208002 2.20
80 GEAR SHAFT BALL BEARING 6G538007 15.40
81 GEAR SHAFT PLATE 6M044301 3.30
82 GEAR SHAFT PLATE SC 6E134514 2.20
83 GEAR SHAFT 6M929601 22.00
84 GEAR SHAFT O-RING (A) 6H156901 1.10
85 RATCHET 6M045501 3.30
86 DRIVE GEAR W 6M085901 2.20
87 GEAR SHAFT O-RING (B) 6F657801 1.10
88 PINION + DRIVE GEAR SET 6Z028079 93.50
89 DRAG W SET (3 pieces) 6M217501 39.60
90 DRAG DISC W 6M886903 2.20
91 DRAG GRIP W 6M046101 3.30
92 DRIVE COLLAR 6M046302 17.60
95 DRIVE COLLAR O-RING 6H452801 1.10
96 CLUTCH RING 6J327701 8.80
97 ONE-WAY CLUTCH 6G819801 20.90
98 HANDLE BALL BEARING 6G431008 15.40
99 HANDLE BEARING COLLAR 6J640609 2.20
100 HANDLE BEARING SP・W 6E253501 2.20
101 DRAG HOLDER 6E709201 3.30
102 DRAG HOLDER LEAF SP 6E715601 2.20
103 DRAG SP/W 61508901 2.20
104 STAR DRAG W 6H929501 2.20
105 DRAG NUT 6J935103 7.70
106 STAR DRAG SP 6J011901 2.20
107 STAR DRAG 6E721106 31.90
108 HANDLE W (A) 6J101301 3.30
109 HANDLE W (B) 6J102801 1.10
110 HANDLE 6M665401 159.50
111 HANDLE NUT 6J090311 4.40
112 HANDLE LOCK PLATE 6M096502 4.40
113 HANDLE LOCK PLATE SC 6J632309 2.20
114 BATTERY CAP (WITH O-RING) *Cannot be ordered 6Y658601 22.00
115 ANODE PLATE 6M809301 3.30
116 ANODE PLATE SC 6G940403 2.20
117 SET PLATE PIN 6M024101 2.20
118 KICK LEVER PLATE (B) W 6G913306 1.10
200 MANUAL/25 SOL IC 6Y752201 2.20
201 MANUAL/25 SOL IC (CONNECTING) 1 6Y752301 2.20
202 MANUAL/25 SOL IC (COUNTER) 2 6Y752401 2.20
203 HANDLE KNOB W 63753005 1.10
204 HANDLE KNOB BALL BEARING 6G466201 15.40
205 HANDLE KNOB 6M047301 72.60
206 HANDLE KNOB SC 6E454003 2.20
207 HANDLE KNOB CAP 6M086201 9.90
208 HANDLE KNOB CAP SC 6G352301 2.20
