[DAIWA] Genuine Spare Parts for 25 SALTIGA 10L Product code: 00631601 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 25 SALTIGA 10L Product code: 00631601 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$118.58 [Regular Price: US$1.10 - US$169.40]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

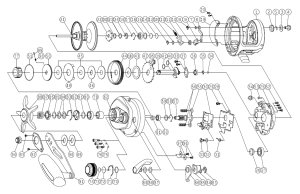

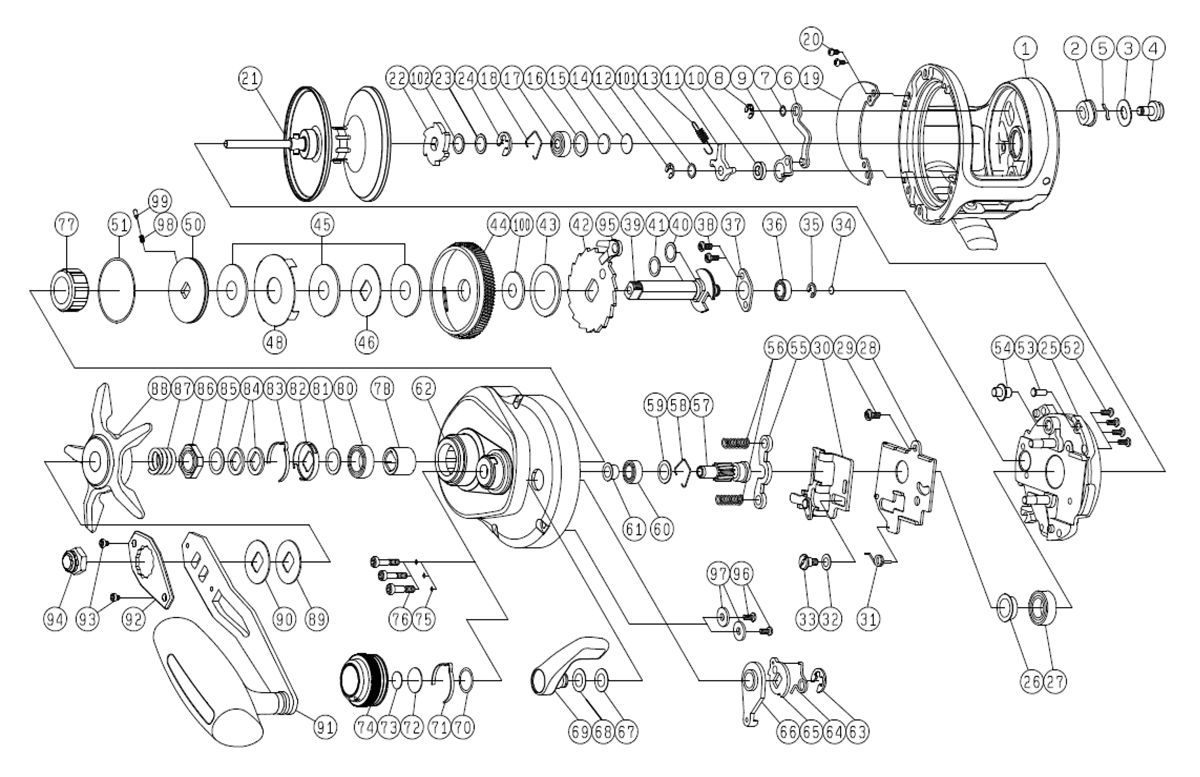

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 FRAME 6M780801 156.20
2 SPOOL LOCK PLATE COLLAR 6M664001 2.20
3 SPOOL LOCK PLATE 6M664101 2.20
4 SPOOL LOCK LEVER 6M759901 12.10
5 SPOOL LOCK LEVER LEAF SP 6E656502 2.20
6 LOCK LEVER PLATE (A) 6E712201 6.60
7 LOCK LEVER PLATE (A) W 6G850702 1.10
8 LOCK LEVER PLATE (A) RETAINER 63201402 2.20
9 LOCK LEVER PLATE (B) 6E712301 2.20
10 LOCK PLATE (B) COLLAR 6E703001 2.20
11 LOCK PLATE 6E689901 3.30
12 LOCK LEVER PLATE (B) RETAINER 63201402 2.20
13 LOCK PLATE SP 6E703101 2.20
14 RS BEARING W (A) 63757404 1.10
15 RS BEARING W (B) 63757411 1.10
16 RS BEARING W (C) 6E703301 1.10
17 RS BALL BEARING 6G427701 15.40
18 RS BEARING RING 6F032201 2.20
19 LS COVER PLATE 6M204022 18.70
20 LS COVER PLATE SC 63510906 2.20
22 LOCK PLATE RATCHET 6E699801 4.40
23 LOCK PLATE RATCHET W (A) 63755808 1.10
24 LOCK PLATE RATCHET RETAINER 63207601 2.20
25 SET PLATE 6M240801 30.80
26 SET PLATE BEARING COLLAR 6J946501 7.70
27 SET PLATE BALL BEARING 6G156803 15.40
28 BEARING HOLD PLATE 6M241101 2.20
29 BEARING HOLD PLATE SC 6B557610 2.20
30 SLIDE PLATE 6M484001 15.40
31 SLIDE PLATE SP 6E714201 2.20
32 SLIDE PLATE SC・W 6G850702 1.10
33 SLIDE PLATE SC 6M234801 3.30
34 GEAR SHAFT W 6G099806 1.10
35 GEAR SHAFT BEARING RETAINER 63208002 2.20
36 GEAR SHAFT BALL BEARING 6G538007 15.40
37 GEAR SHAFT PLATE 6H928901 3.30
38 GEAR SHAFT PLATE SC 6E134514 2.20
39 GEAR SHAFT 6M385602 30.80
40 GEAR SHAFT O-RING (A) 6H156901 1.10
41 GEAR SHAFT O-RING (B) 6F657801 1.10
42 RATCHET 6M189802 9.90
43 DRIVE GEAR W (A) 6M378401 3.30
44 PINION + DRIVE GEAR SET 6Z026422 82.50
45 DRAG W SET (3 pieces) 6M217501 39.60
46 DRAG DISC W 6M886901 3.30
48 DRAG GRIP W 6M223601 2.20
50 DRAG COLLAR 6M190201 12.10
51 DRAG COLLAR O-RING 6M880301 1.10
52 SET PLATE SC 6E705004 2.20
53 SET PLATE PIN 6E706501 3.30
54 STOPPER PIN 6E704301 3.30
55 CLUTCH PLATE 6M204301 8.80
56 CLUTCH PLATE SP 6M234901 2.20
57 PINION + DRIVE GEAR SET 6Z026422 82.50
58 PINION BEARING RING 6J149501 2.20
59 PINION BEARING W 6E700401 1.10
60 PINION BALL BEARING *Cannot be ordered 6J184402 45.10
61 PINION BEARING COLLAR *Cannot be ordered 6J953001 7.70
62 LS PLATE 6M881401 169.40
63 CLUTCH CAM RETAINER 63207601 2.20
64 CLUTCH CAM SP 6E713302 2.20
65 CLUTCH CAM 6E713201 8.80
66 CLUTCH CAM PLATE 6M241201 2.20
67 CLUTCH LEVER W (A) 6E711101 1.10
68 CLUTCH LEVER W (B) 63705159 1.10
69 CLUTCH LEVER 6M241901 46.20
70 MECHANICAL BRAKE O-RING 6H157002 1.10
71 MECHANICAL BRAKE LEAF SP 6H160901 2.20
72 MECHANICAL BRAKE W (A) 6J692001 1.10
73 MECHANICAL BRAKE W (B) 6B175503 1.10
74 MECHANICAL BRAKE KNOB 6M190601 22.00
75 LS PLATE SC O-RING 6B853101 1.10
76 LS PLATE SC 6M236101 2.20
77 ONE-WAY CLUTCH 6G819801 20.90
78 CLUTCH RING 6J327701 8.80
80 HANDLE BALL BEARING 6G431008 15.40
81 HANDLE BEARING W 6B553803 1.10
82 DRAG HOLDER 6E709201 3.30
83 DRAG HOLDER LEAF SP 6E715601 2.20
84 DRAG SP/W 61508901 2.20
85 DRAG NUT W 6H929501 2.20
86 DRAG NUT *Not available 6J935104 7.70
87 STAR DRAG SP 6J011901 2.20
88 STAR DRAG 6M205501 42.90
89 HANDLE W (A) 6J102801 1.10
90 HANDLE W (B) 6J101301 3.30
91 HANDLE 6M628502 145.20
92 HANDLE LOCK PLATE 6M096503 4.40
93 HANDLE LOCK PLATE SC 6J632309 2.20
94 HANDLE NUT 6J090312 4.40
95 STOPPER 6E710001 8.80
96 ANODE PLATE SC 6H257001 2.20
97 ANODE PLATE 6M809301 3.30
98 DRAG COLLAR SP 6M025201 2.20
99 DRAG COLLAR PIN 6J566201 2.20
100 DRIVE GEAR W (B) 6M463201 1.10
101 LOCK PLATE W 63731602 1.10
102 LOCK PLATE RATCHET W (B) 6G878201 1.10
200 HANDLE KNOB W 63753005 1.10
201 HANDLE KNOB BALL BEARING 6G466201 15.40
202 HANDLE KNOB 6M047301 72.60
203 HANDLE KNOB SC 6E454003 2.20
204 HANDLE KNOB CAP 6M086202 9.90
205 HANDLE KNOB CAP SC 6G352301 2.20
