[DAIWA] Genuine Spare Parts for 17 EXCELER 4000H Product code: 00059810 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 17 EXCELER 4000H Product code: 00059810 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$50.82 [Regular Price: US$1.10 - US$72.60]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

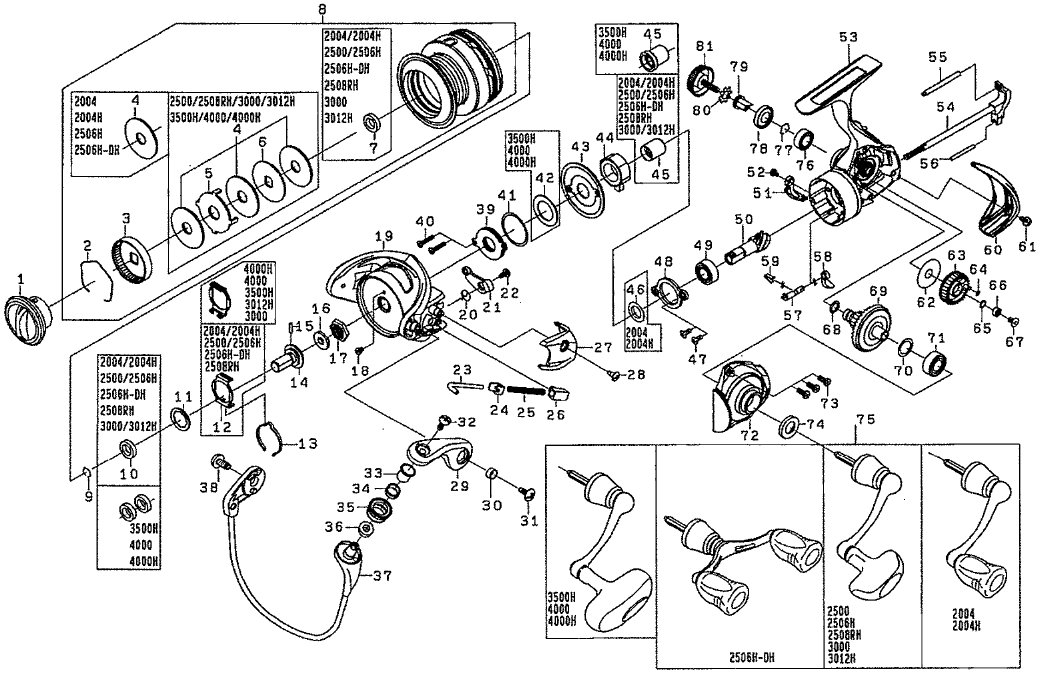

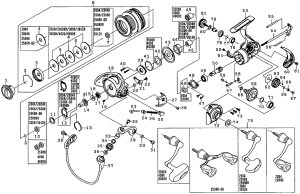

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6J496801 16.50
2 DRAG RING 6F710001 2.20
3 DRAG RATCHET 6F895302 7.70
4 DRAG W SET (3 pieces) 6J398601 19.80
5 DRAG GRIP W 6F627301 1.10
6 DRAG DISC W 6H714001 2.20
8 SPOOL (2-8) 6J496601 72.60
9 SPOOL METAL RING 6G525101 2.20
10 SPOOL METAL COLLAR 6G747401 2.20
11 SPOOL W 6G903901 1.10
12 CLICK HOLDER 6G694001 3.30
13 CLICK LEAF SP 6F709002 2.20
14 SPOOL METAL 6H641501 4.40
15 SPOOL METAL PIN 6G224101 2.20
16 ROTOR NUT PACKING 6H995201 2.20
17 ROTOR NUT 6H995101 15.40
18 ROTOR NUT SC 6H022701 2.20
19 ROTOR *Cannot be ordered 6H994306 20.90
20 KICK LEVER SP 6H413601 2.20
21 KICK LEVER 6H994401 4.40
22 KICK LEVER SC 6H417701 2.20
23 ARM LEVER SHAFT 6H640601 2.20
24 ARM LEVER SHAFT PLATE 6H576101 3.30
25 ARM LEVER SP 6H640701 2.20
26 ARM LEVER SP HOLDER 6J089401 2.20
27 ARM LEVER SP COVER 6H994601 3.30
28 COVER SC 6G270801 2.20
29 ARM LEVER 6H728912 6.60
30 ARM LEVER SC COLLAR 6H962401 2.20
31 ARM LEVER SC 6G205001 2.20
32 ROLLER SC 6G195602 2.20
33 ROLLER COLLAR (A) 6G195501 2.20
34 ROLLER SLEEVE 6G220701 2.20
35 LINE ROLLER 6J089902 7.70
36 ROLLER COLLAR (B) 6G874201 2.20
37 BAIL 6H984001 27.50
38 BAIL HOLDER SC 6G205001 2.20
39 MAG SHIELD PLATE *Cannot be ordered 6J289301 23.10
40 MAG SHIELD PLATE SC 6J001601 2.20
41 MAG SHIELD PLATE O-RING 6J212901 1.10
42 MAG SHIELD CAP W 6J238801 2.20
43 MAG SHIELD CAP *Cannot be ordered 6J100501 4.40
44 ONE-WAY CLUTCH *Cannot be ordered 6J309101 26.40
45 CLUTCH RING *Cannot be ordered 6J690501 18.70
47 PINION BEARING PLATE SC 6J000901 2.20
48 PINION BEARING PLATE 6J020801 2.20
49 PINION BALL BEARING (A) 6G522802 8.80
50 PINION + DRIVE GEAR SET *Cannot be ordered 6Z021606 27.50
51 BAIL KICK COLLAR 6J021001 2.20
52 BAIL KICK COLLAR SC 6G940402 2.20
53 BODY 6J312903 34.10
54 MAIN SHAFT *Cannot be ordered 6J140901 12.10
55 OSCILLATING POST (A) 6H614301 2.20
56 OSCILLATING POST (B) 6J084803 2.20
57 STOPPER CAM 6J020501 3.30
58 STOPPER LEVER 6H595401 2.20
59 STOPPER CAM LEAF SP 6H697801 2.20
60 REAR CAP 6J495801 4.40
61 REAR CAP SC 6J001801 2.20
62 OSCILLATING GEAR W 6G644201 1.10
63 OSCILLATING GEAR *Cannot be ordered 6G644302 4.40
64 OSCILLATING GEAR O-RING 6B853101 1.10
65 OSCILLATING GEAR BEARING W (0.02) 6G522101 1.10
66 OSCILLATING GEAR BALL BEARING 6G467105 8.80
67 OSCILLATING GEAR SC 6H272202 2.20
68 DRIVE GEAR O-RING 6G645301 2.20
69 PINION + DRIVE GEAR SET *Cannot be ordered 6Z021606 27.50
70 DRIVE W (0.1) 63737808 1.10
71 DRIVE BALL BEARING (A) 6G523405 8.80
72 BODY COVER 6J313101 15.40
73 BODY COVER SC 6G332904 2.20
74 HANDLE PACKING 6J100401 3.30
75 HANDLE 6J495901 39.60
76 DRIVE BALL BEARING (B) 6B861704 8.80
77 DRIVE BEARING RING 6G525101 2.20
78 HANDLE PACKING 6J100401 3.30
79 HANDLE COLLAR 6F721202 2.20
80 HANDLE W 61608101 2.20
81 HANDLE SC 6H641802 3.30
201 HANDLE KNOB W 6B411703 1.10
202 HANDLE KNOB COLLAR 6G720001 2.20
203 HANDLE KNOB SC 6B679308 2.20
