[DAIWA] Genuine Spare Parts for 17 EXCELER 3012H Product code: 00059807 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 17 EXCELER 3012H Product code: 00059807 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$46.97 [Regular Price: US$1.10 - US$67.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

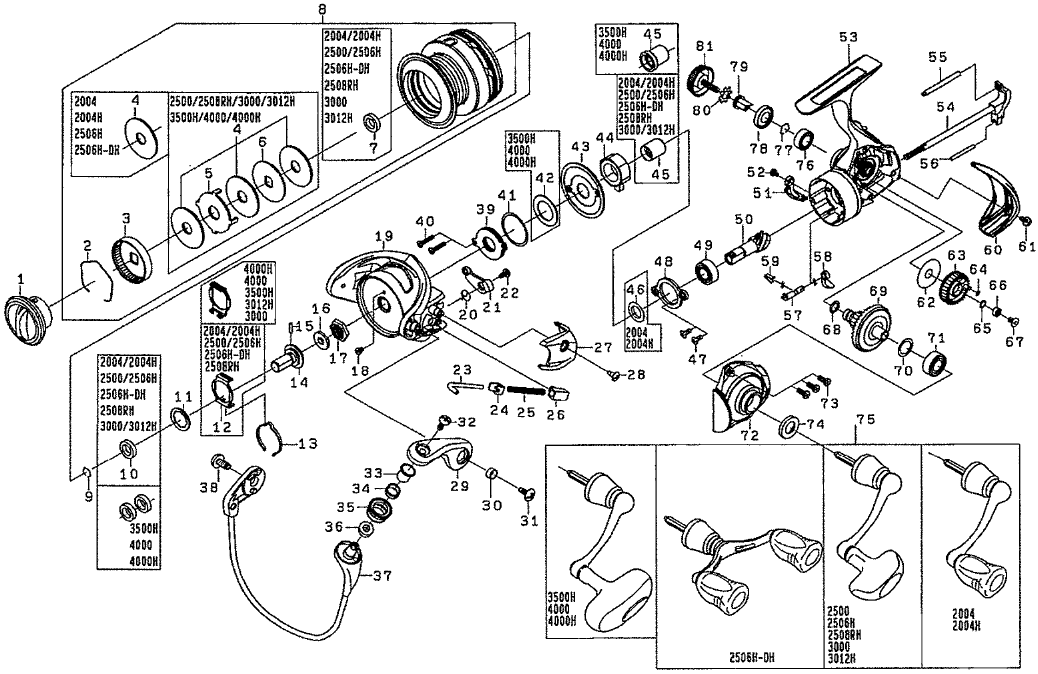

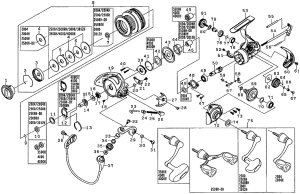

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6J494201 12.10
2 DRAG RING 6F710001 2.20
3 DRAG RATCHET 6F895301 7.70
4 DRAG W SET (3 pieces) 6J398501 19.80
5 DRAG GRIP W 6F627301 1.10
6 DRAG DISC W 6F627201 2.20
7 DRAG COLLAR 6H624801 2.20
8 SPOOL (2-8) 6J495501 67.10
9 SPOOL METAL RING 6G472401 2.20
10 SPOOL METAL COLLAR 6H624801 2.20
11 SPOOL W 6H806301 1.10
12 CLICK HOLDER 6H416001 2.20
13 CLICK LEAF SP 6H883701 2.20
14 SPOOL METAL 6H615003 4.40
15 SPOOL METAL PIN 6G375001 2.20
16 ROTOR NUT PACKING 6H986901 3.30
17 ROTOR NUT 6H961101 15.40
18 ROTOR NUT SC 6H022701 2.20
19 ROTOR *Cannot be ordered 6H986306 20.90
20 KICK LEVER SP 6H413601 2.20
21 KICK LEVER 6J072301 4.40
22 KICK LEVER SC 6H417701 2.20
23 ARM LEVER SHAFT 6H572001 2.20
24 ARM LEVER SHAFT PLATE 6H576101 3.30
25 ARM LEVER SP 6J089301 2.20
26 ARM LEVER SP HOLDER 6J089401 2.20
27 ARM LEVER SP COVER 6H986401 3.30
28 COVER SC 6G270801 2.20
29 ARM LEVER 6H728912 6.60
30 ARM LEVER SC COLLAR 6H962401 2.20
31 ARM LEVER SC 6G205001 2.20
32 ROLLER SC 6G195602 2.20
33 ROLLER COLLAR (A) 6G195501 2.20
34 ROLLER SLEEVE 6G220701 2.20
35 LINE ROLLER 6J089902 7.70
36 ROLLER COLLAR (B) 6G874201 2.20
37 BAIL 6H983601 24.20
38 BAIL HOLDER SC 6G205001 2.20
39 MAG SHIELD PLATE *Cannot be ordered 6J688201 23.10
40 MAG SHIELD PLATE SC 6J001601 2.20
41 MAG SHIELD PLATE O-RING 6J354801 1.10
43 MAG SHIELD CAP *Cannot be ordered 6J560901 4.40
44 ONE-WAY CLUTCH *Cannot be ordered 6J388401 26.40
45 CLUTCH RING *Cannot be ordered 6J001403 6.60
47 PINION BEARING PLATE SC 6J000901 2.20
48 PINION BEARING PLATE 6H411501 2.20
49 PINION BALL BEARING (A) 6G535104 8.80
50 PINION + DRIVE GEAR SET *Cannot be ordered 6Z021570 24.20
51 BAIL KICK COLLAR 6J001101 2.20
52 BAIL KICK COLLAR SC 6G940402 2.20
53 BODY *Cannot be ordered 6J495101 30.80
54 MAIN SHAFT *Cannot be ordered 6J140801 11.00
55 OSCILLATING POST (A) 6H614301 2.20
56 OSCILLATING POST (B) 6J084802 2.20
57 STOPPER CAM 6H595501 3.30
58 STOPPER LEVER 6H595401 2.20
59 STOPPER CAM LEAF SP 6H697801 2.20
60 REAR CAP 6J495301 4.40
61 REAR CAP SC 6J001801 2.20
62 OSCILLATING GEAR W 6H595701 1.10
63 OSCILLATING GEAR *Cannot be ordered 6H613901 6.60
64 OSCILLATING GEAR O-RING 6G466001 1.10
65 OSCILLATING GEAR BEARING W (0.05) 6H129201 1.10
66 OSCILLATING GEAR BALL BEARING 6G469005 8.80
67 OSCILLATING GEAR SC 6G940402 2.20
68 DRIVE GEAR O-RING 6G670501 1.10
69 PINION + DRIVE GEAR SET *Cannot be ordered 6Z021570 24.20
70 DRIVE W (0.1) 63758502 1.10
71 DRIVE BALL BEARING (A) 6G467302 8.80
72 BODY COVER 6J495201 14.30
73 BODY COVER SC 6G332904 2.20
74 HANDLE PACKING 6J100201 3.30
75 HANDLE 6J495401 35.20
76 DRIVE BALL BEARING (B) 6G522706 8.80
77 DRIVE BEARING RING 6G472401 2.20
78 HANDLE PACKING 6J100201 3.30
79 HANDLE COLLAR 6F721001 2.20
80 HANDLE W 61608401 2.20
81 HANDLE SC 6H613302 3.30
201 HANDLE KNOB W 6B411703 1.10
202 HANDLE KNOB COLLAR 6G720001 2.20
203 HANDLE KNOB 6J013801 22.00
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP 6H790602 2.20
300 WASHER (REAL FOUR/RCS) AL 6H513202 2.20
